Two LED display quotes become comparable only after the display configuration, scope, delivery terms, and service obligations match. A low LED display screen price per square meter can omit the equipment and work needed to operate the display. Use a normalized schedule to compare the delivered system, not a headline unit price.
Normalize the Display Specification First
Put every supplier response against the same technical schedule, line by line.
Ask each bidder to confirm every variable in writing. A quote based on a smaller active area or a different cabinet layout can look cheaper while delivering less screen.
Display Area and Cabinet Count
Start with the net active display area in square meters. Record the width, height, cabinet dimensions, cabinet count, and the unused edge area created by the layout.
Do not compare a nominal 20 m² display with a 19.2 m² active surface. The difference affects content canvas, structural load, electrical capacity, shipping volume, and the LED display price per square meter.
Request the native pixel resolution across the complete wall. Similar pixel pitches can produce different resolutions if the cabinet count or cabinet pixel matrix changes. For an indoor project, check viewing distance and content detail alongside pitch. Extra pixel density adds cost without a visible benefit at longer viewing distances.
Optical, Electrical, and Component Specifications
Compare pixel pitch, LED package, brightness range, grayscale, refresh rate, color calibration method, and power figures. Note rated maximum power and expected average operating power as separate entries.
Refresh rate needs context. A 3,840 Hz or higher specification is a common high-refresh baseline for indoor installations. A project with broadcast cameras may require further camera testing, shutter settings, and processor confirmation.

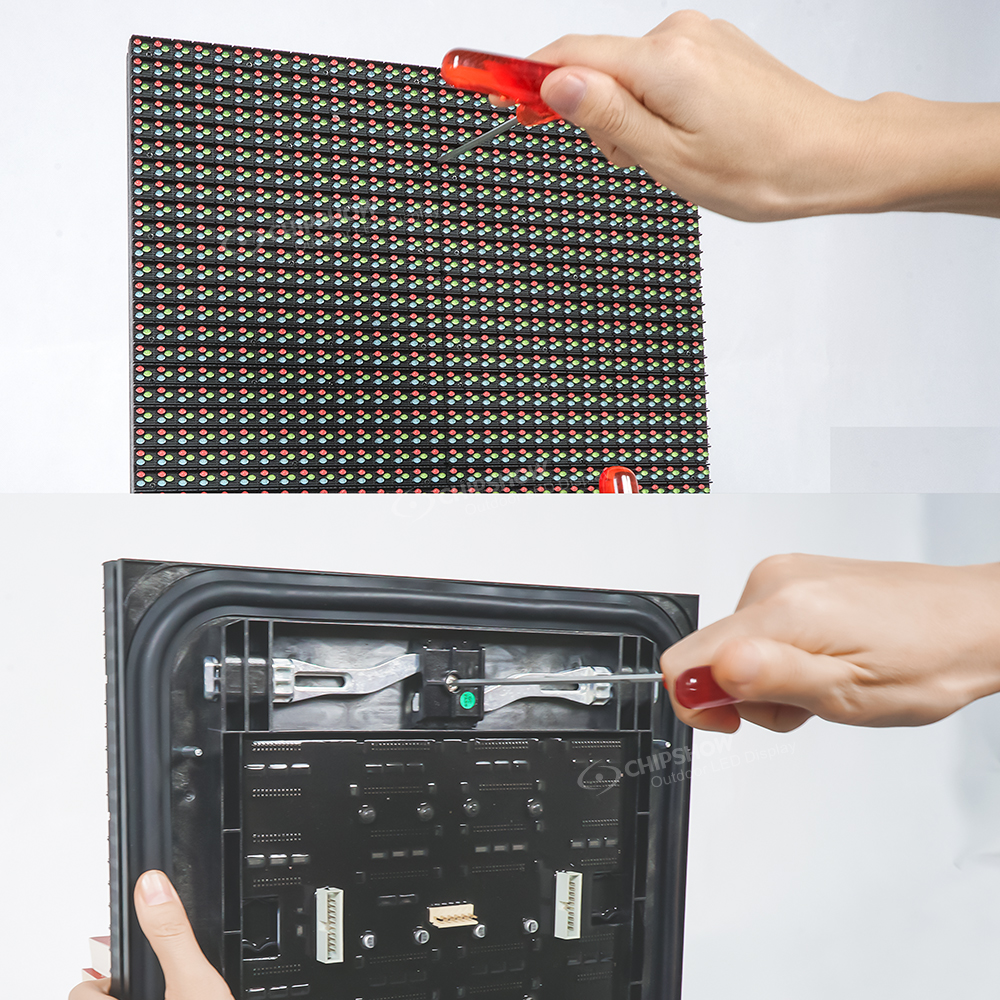

Also name the receiving cards, power supplies, modules, cabinet material, ingress protection, and service access method. A low LED display screen price can reflect lower-cost components, reduced redundancy, or front-service limits that shift cost into future maintenance.
Use one row for each component or service. Mark it as included, optional, excluded or supplied by others, and name the party responsible. Compare totals only after the active display area, configuration, delivery terms and service scope match.
Scroll horizontally to compare all columns in the table.
| Item | Quantity, unit or specification | Quote A scope and amount | Quote B scope and amount | Responsible party | Evidence or clarification needed |
|---|---|---|---|---|---|
| Active display area | Width, height and m² | To confirm | To confirm | To confirm | Attach quote or clarification |
| Cabinet layout | Size, count and native pixel matrix | To confirm | To confirm | To confirm | Attach quote or clarification |
| Image specification | Pitch, brightness, refresh and calibration | To confirm | To confirm | To confirm | Attach quote or clarification |
| Electrical design | Peak and average power; electrical scope | To confirm | To confirm | To confirm | Attach quote or clarification |
| Service design | Service access and spare components | To confirm | To confirm | To confirm | Attach quote or clarification |
| Processor/controller | To confirm | To confirm | To confirm | To confirm | Attach quote or clarification |
| Power distribution | To confirm | To confirm | To confirm | To confirm | Attach quote or clarification |
| Signal cabling | To confirm | To confirm | To confirm | To confirm | Attach quote or clarification |
| Support structure | To confirm | To confirm | To confirm | To confirm | Attach quote or clarification |
| Packing | To confirm | To confirm | To confirm | To confirm | Attach quote or clarification |
| Transport | To confirm | To confirm | To confirm | To confirm | Attach quote or clarification |
| Installation and commissioning | To confirm | To confirm | To confirm | To confirm | Attach quote or clarification |
| Training | To confirm | To confirm | To confirm | To confirm | Attach quote or clarification |
| Spares | To confirm | To confirm | To confirm | To confirm | Attach quote or clarification |
| Warranty | To confirm | To confirm | To confirm | To confirm | Attach quote or clarification |
| Taxes | To confirm | To confirm | To confirm | To confirm | Attach quote or clarification |
A common pricing mistake is to divide an incomplete hardware cost by an estimated display area. For a fair comparison, use the confirmed active display area and include the same system components in every quote.
Separate the LED Hardware From the Complete System
Ask each bidder to split display hardware from all supporting equipment and services.
The displayed LED display screen price should show the cabinets, modules, power supplies, and receiving cards. Then list the controls, distribution, structure, packaging, and service items separately. A clear LED wall cost breakdown makes omissions visible without assuming bad intent.
Included and Optional Equipment
Request a quote schedule that marks each item as included, optional, excluded, or supplied by others. The schedule should identify quantity, manufacturer or model, unit price, and extended price.
- The controller and video processor should state the input formats, output capacity, redundancy, and licensing requirements.
- The electrical package should state distribution cabinets, breakers, connectors, grounding materials, and the handoff point.
- The signal package should state fiber converters, copper cabling, patch leads, data routing, and control-room interfaces.
- The mechanical package should state wall structure, frame, fasteners, trim, access doors, and any rigging hardware.
- The spare-parts package should state spare modules, power supplies, receiving cards, cables, and storage conditions.
The LED display quotation comparison should keep optional items visible. An option may be sensible, yet it cannot disappear from the total if the site needs it.
Missing System Components
Look for phrases such as “display only,” “standard accessories,” or “to be confirmed.” Each phrase needs a defined scope. The missing item may be a processor, a power cabinet, a steel frame, a monitoring license, export-grade packing, or a spare-kit allowance.
Ask who provides mounting drawings, electrical single-line diagrams, load data, and interface documentation. A low LED display screen price can become a higher purchase order after these dependencies return as variations.
Add Logistics, Installation, and Commissioning
Compare the cost to place a working screen into service at the actual site.
The LED display screen price often stops at the factory gate or port. The project total continues through freight, import handling, installation, testing, calibration, and handover. State the currency, tax treatment, quote validity, payment milestones, and Incoterms in every comparison.
Freight and Import Costs
List the agreed Incoterm and named location. A factory pickup, an FOB port price, and a delivered-duty-paid price assign different risks and costs to the buyer.
Use the packed dimensions, gross weight, crate count, and shipping method to estimate freight. Add cargo insurance, customs brokerage, duties, taxes, port fees, local delivery, and storage where relevant. Confirm who pays for delays, inspections, demurrage, or damaged packaging.
Do not convert a factory hardware figure into an installed LED display price per square meter. Calculate the installed unit cost only after all site-bound charges have been added.
Site Work, Testing, and Training
Break site work into lifting, access equipment, structural installation, electrical connection, signal integration, and safety management. Each item needs an owner and an allowance.
Commissioning should include module replacement checks, brightness and color calibration, processor setup, input testing, failover testing if specified, and acceptance criteria. Include operator training, maintenance training, manuals, and as-built drawings. The LED screen installation cost should show labor hours, travel, accommodation, equipment rental, and local subcontractor work.
Compare Warranty and Support Responsibilities
Read the warranty as an operating commitment, not a marketing label.
For each quote, record the start date, duration, covered components, exclusions, labor coverage, travel coverage, freight responsibility, response targets, and support channel. The lowest LED display screen price may carry a warranty that begins at factory shipment and leaves site labor with the owner.
Ask how failed parts are diagnosed and replaced. Remote support may reduce downtime, yet it does not replace local access, stocked spares, or a clear return process. Confirm spare-part replenishment terms after a warranty claim.
| Support Question | Evidence to Request | Cost or Risk Affected |
|---|---|---|
| When does coverage start? | Contract wording with the start event. | Effective coverage period. |
| Which parts are covered? | A component-level warranty list. | Module, power, control, and cabinet exposure. |
| Who pays site labor and freight? | A responsibility matrix. | Repair budget and response speed. |
| What response time applies? | Support-hours and escalation terms. | Display downtime and operational disruption. |
| How are spares replenished? | RMA and replacement policy. | Long-term service readiness. |
Use the same warranty period in your compare LED display quotes worksheet. Do not treat a parts-only warranty and a site-supported warranty as equal.
Use TCO and Risk at Contract Award
Select the supplier with the strongest documented delivered value, not the lowest isolated number.
Build a decision matrix that combines the complete contract total, estimated average energy use, maintenance access, spare-parts coverage, expected downtime exposure, expansion capacity, and supplier deviations. The LED display screen price is a starting input, not the award decision.
Score each supplier against the approved technical schedule. Flag any exception that changes image performance, delivery responsibility, installation scope, warranty, or support. Price the exception where possible. If it cannot be priced, assign it an owner and a contract condition.
For a useful LED display quotation comparison, retain the source quote, clarification log, technical schedule, and commercial comparison sheet together. That record protects the budget during procurement and gives the project team a clear baseline for handover.
Evaluate LED Display Screen Price Against Total Cost
Use the matrix to request like-for-like revisions and award only after every material gap has an agreed cost or responsibility. The final LED display screen price should represent the delivered, operating system, including confirmed logistics, installation, commissioning, and support obligations.
FAQs About Comparing LED Display Quotes
Q1. How Should I Compare LED Display Quotes From Different Suppliers?
Compare the same active area, pixel pitch, resolution, brightness, controls, electrical scope, logistics, installation, warranty, and support. Request a line-item schedule. Do not rank quotes until exclusions and supplier responsibilities are visible in the same comparison sheet.
Q2. Is LED Display Price Per Square Meter Enough for Budgeting?
No. LED display price per square meter helps compare equivalent display hardware, yet it excludes variables such as processors, structure, freight, site work, taxes, commissioning, and warranty labor. Use it alongside a full delivered-cost schedule.
Q3. What Should an LED Wall Cost Breakdown Include?
An LED wall cost breakdown should include display cabinets, controls, power and signal distribution, structure, spares, packing, freight, import costs, installation, calibration, training, and warranty responsibilities. Mark every line as included, optional, excluded, or supplied by others.
Q4. How Can I Estimate LED Screen Installation Cost?
Estimate LED screen installation cost from verified labor, lift access, structure, electrical work, signal integration, travel, equipment rental, testing, calibration, and training. Get a site-specific scope. A factory quote cannot establish this amount accurately without local conditions.
Q5. Why Can a Low LED Display Screen Price Increase the Total Project Cost?
A low LED display screen price may omit equipment, freight, structural work, commissioning, or site support. It can also transfer risk through limited warranty coverage. Compare the delivered system and its contractual responsibilities, then calculate total cost of ownership.
