Selection fit: retrofit-friendly façade media
Choose this card when the client needs an outdoor media façade but wants to keep the glass look and daylight performance, especially on malls, terminals, and office buildings.

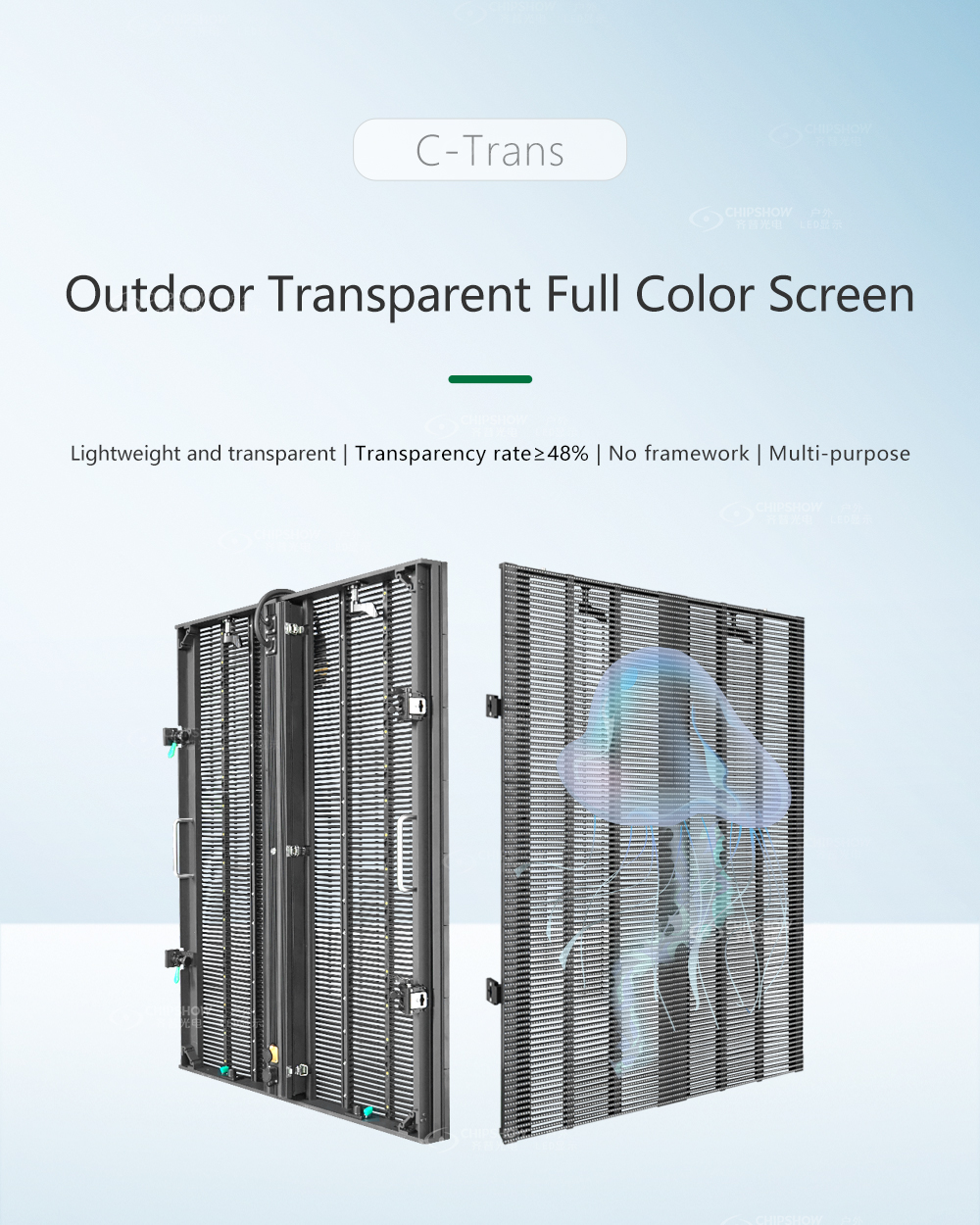

C-Trans Façade P10.41 Transparent Outdoor LED for Curtain Walls
Ultra-light retrofit intent for long-view media façades
C-Trans Façade P10 is designed for glass curtain walls that need a long-view media layer without turning the building into a solid wall. It supports practical access planning and retrofit-friendly engineering, making it suitable for malls, terminals, office towers, and large public façades.
C-Trans Façade P10.41 Transparent Outdoor LED for Curtain Walls
Ultra-light retrofit intent for long-view media façades
C-Trans Façade P10 is designed for glass curtain walls that need a long-view media layer without turning the building into a solid wall. It supports practical access planning and retrofit-friendly engineering, making it suitable for malls, terminals, office towers, and large public façades.
Specification
Pixel pitch H 10.41 mm × V 10.4 mm
Cabinet 1000 × 500 × 80 mm, 7.5 kg/cabinet
Permeability 58%
Brightness 4500 cd/㎡
Protection / Temperature IP65, -20 to 50°C

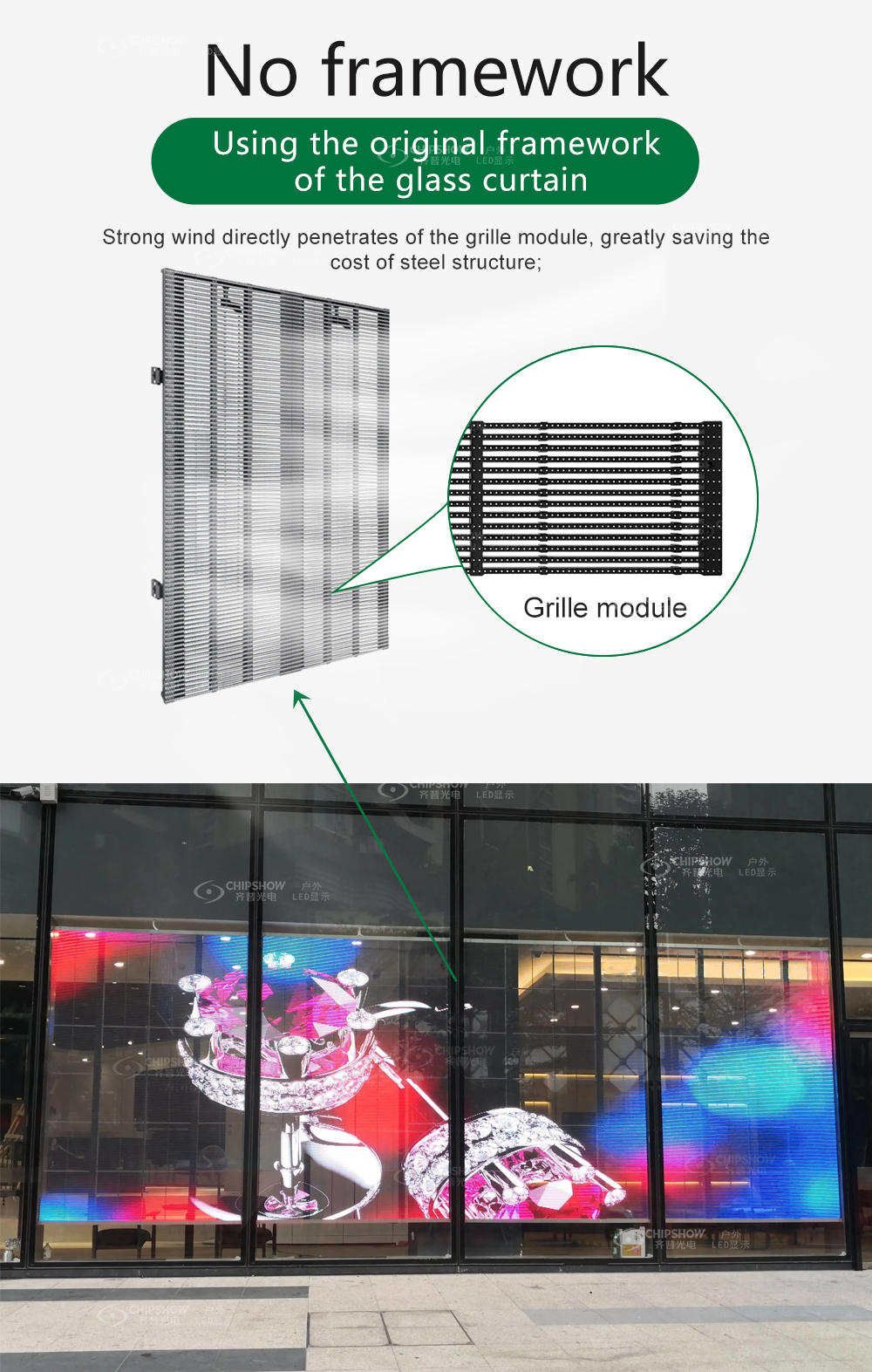

- Retrofit-oriented: designed to leverage existing curtain-wall steelwork where suitable.
- High transparency: 58% permeability helps keep daylight and outward view.
- Access flexibility: front & rear service supports complex site conditions.
- Outdoor reliability: IP65 protection for exposed façades.
- Energy-conscious design: PFC power supply for improved conversion efficiency.

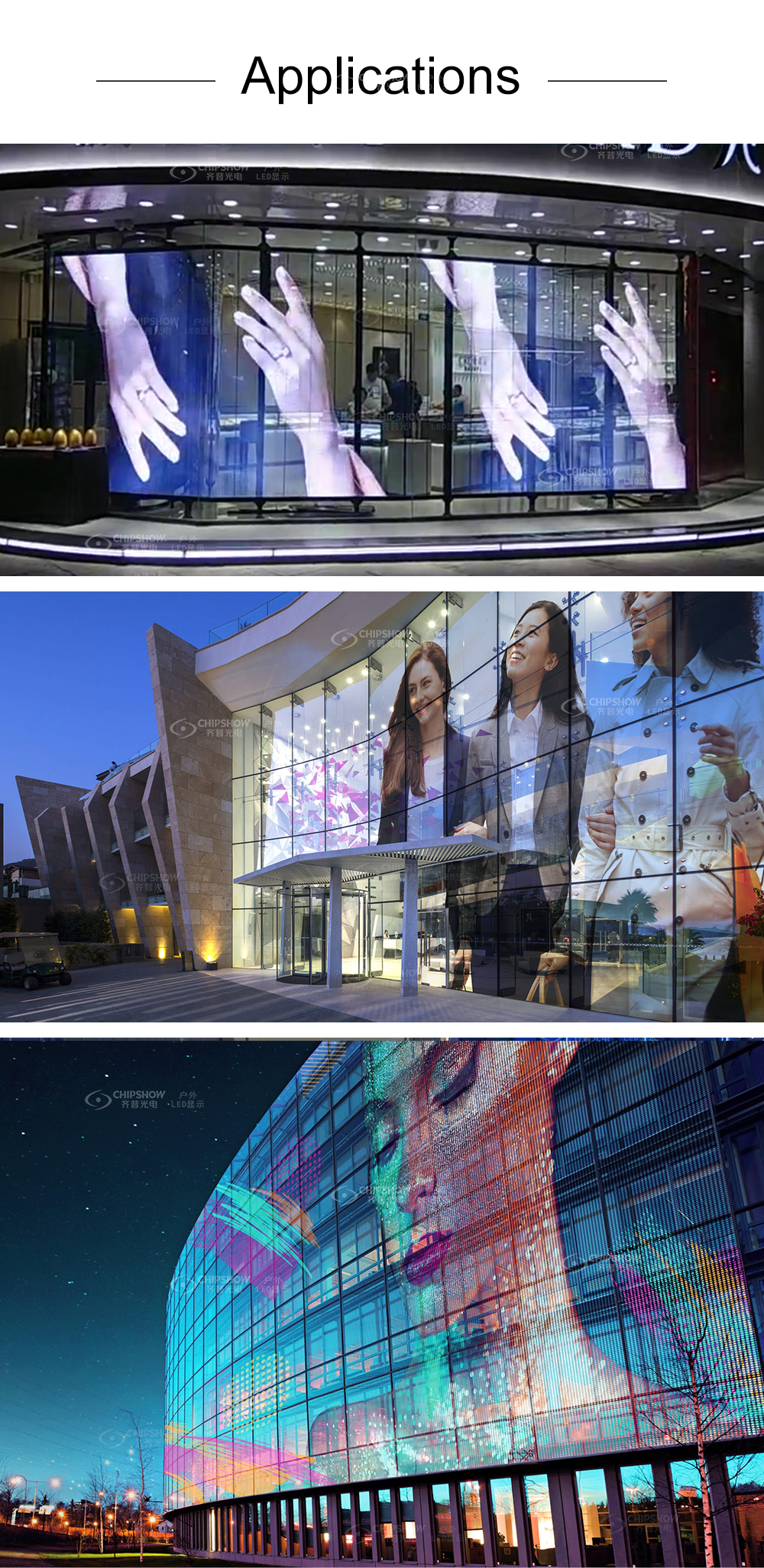

- Designed for landmark surfaces: suited to malls, terminals, showrooms and office curtain walls.
- Dscription
- Specification
- Application
- Solution
- FAQs

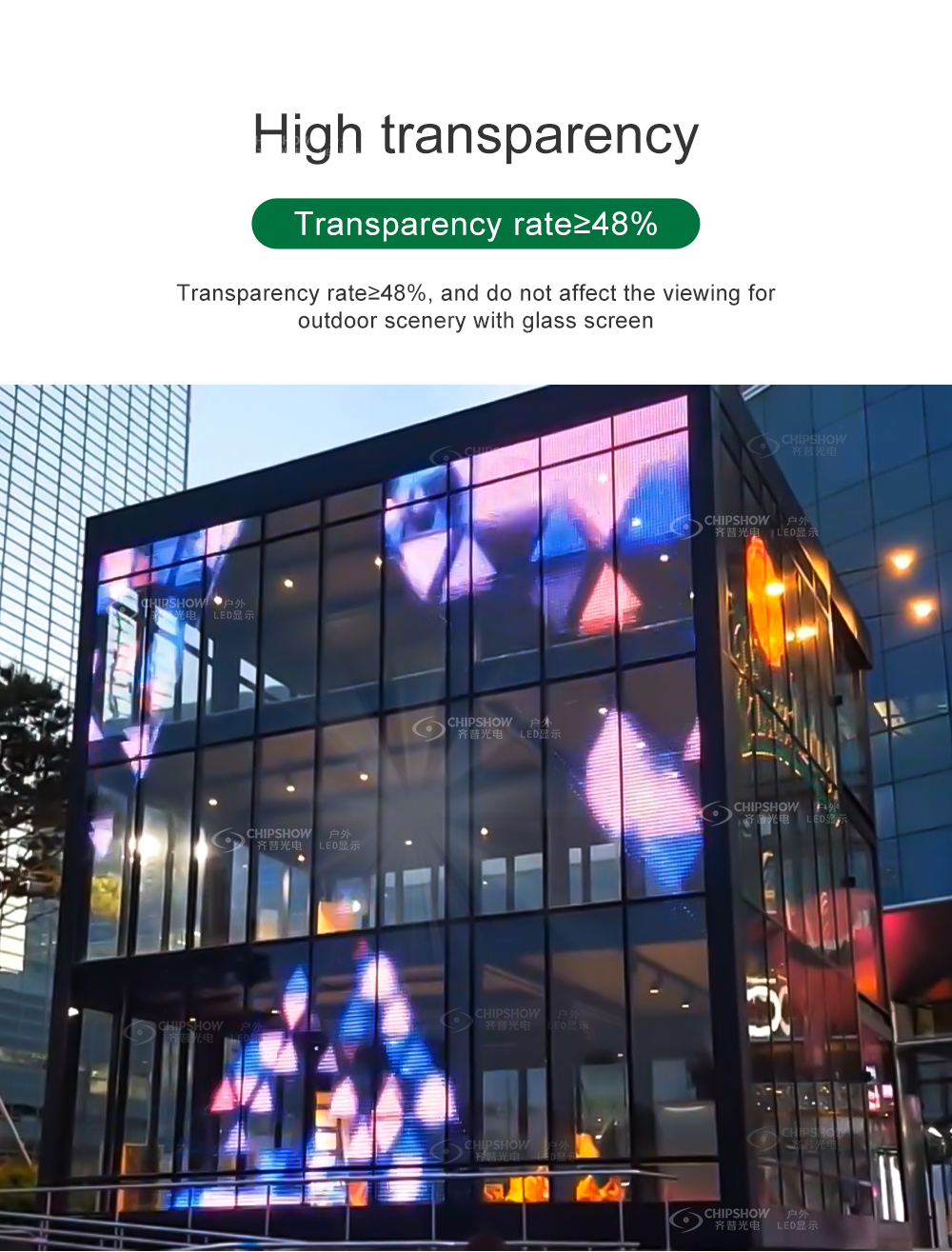

58% permeability keeps architecture readable
The 58% permeability supports the “media surface without a solid wall” intent, helping preserve the building’s transparency and interior lighting conditions.
Cabinet-based engineering clarity
The 1000×500×80 mm cabinet format supports predictable panelization for façade planning and phased expansion.

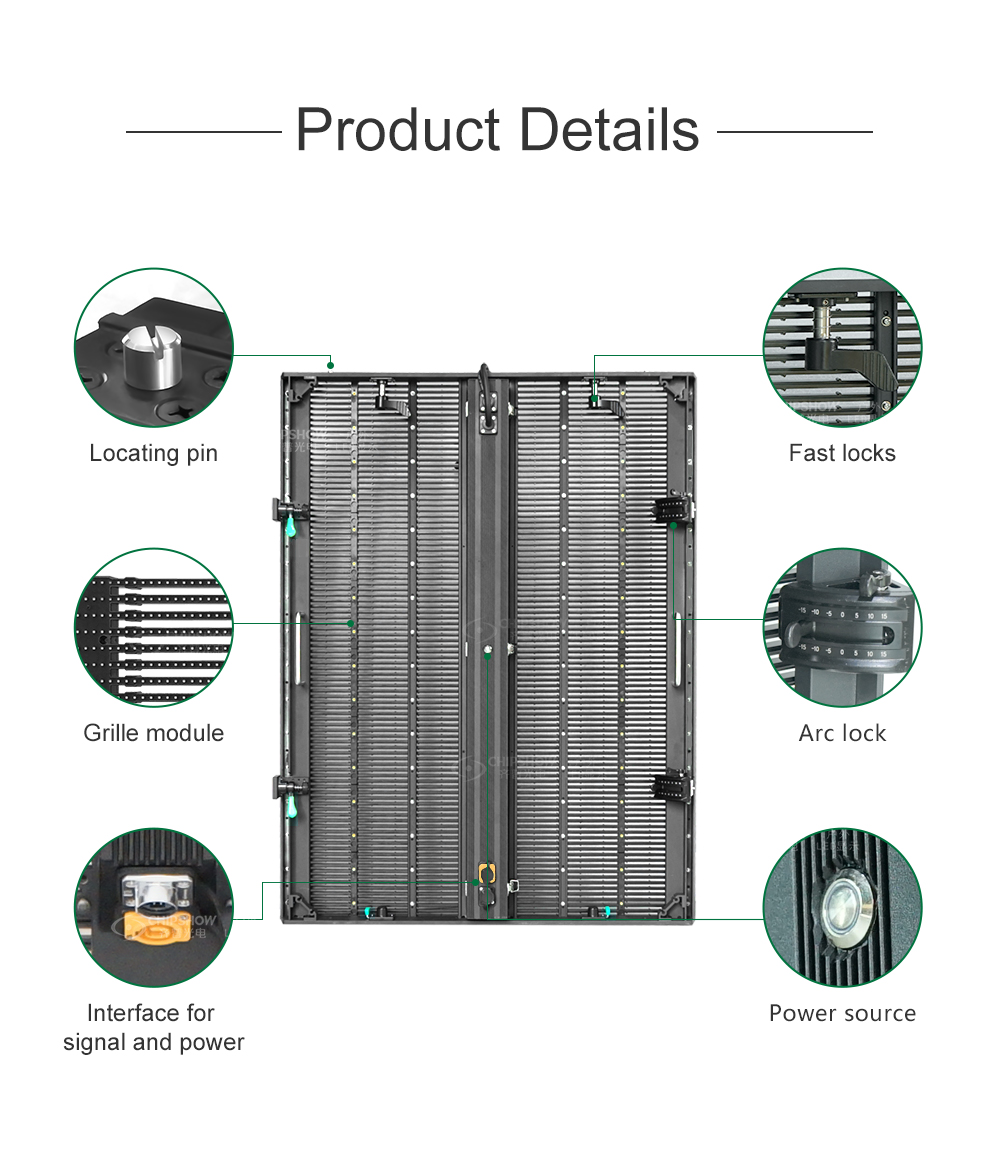

Plan around access: front & rear service
Façade projects often have limited access paths. Front/back installation and maintenance options improve adaptability when gondolas, scaffolding, or interior access varies by site.
Outdoor baseline: IP65 and temperature window
IP65 protection and the stated working temperature range support outdoor deployment planning across common climates.
OpEx awareness for long-hour façades
PFC power design is intended to improve conversion efficiency for large, long-running surfaces, supporting more controllable operating cost planning.
