Master the Corner Edge
Standard 960mm panels create "black lines" or bulky seams at 90° turns. The C-Slim(ca) specialized narrow design (560mm/600mm) provides a flush, gap-free transition for broadcast-grade corner wraps.

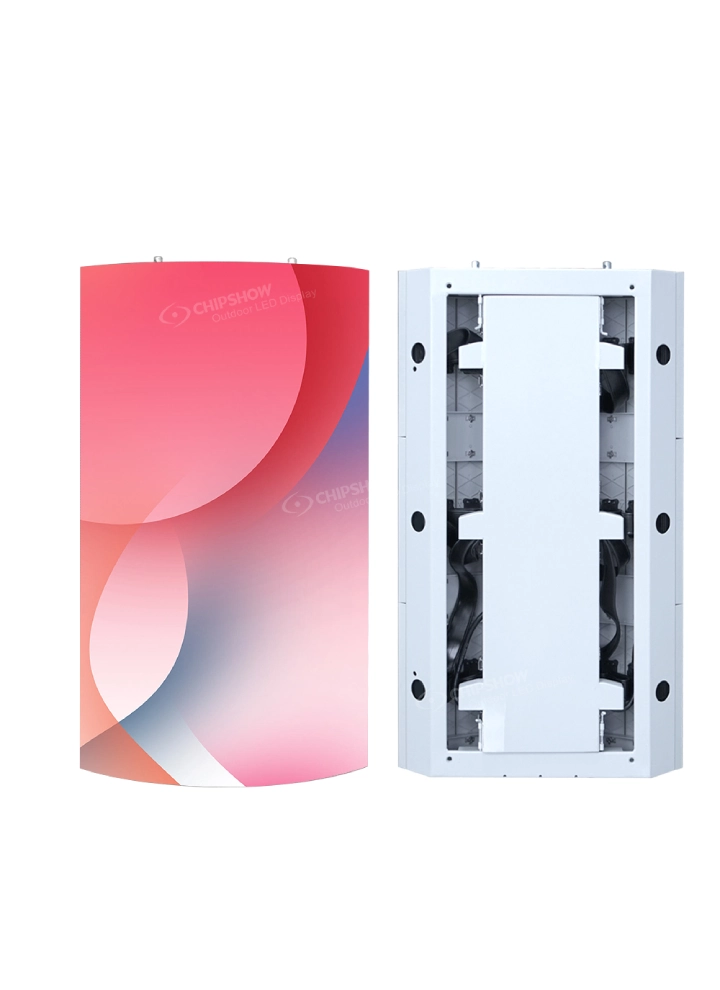

C-Slim(ca) Seamless Curved & Corner LED Display
The C-Slim(ca) is not just a screen; it is a structural solution for landmark architecture. By utilizing precision-engineered narrow cabinets (560mm/600mm), it eliminates the visual artifacts and “faceting” of standard 960mm panels. Achieving a 382mm outer radius and seamless 90° corner wraps, it transforms sharp building edges into fluid, high-revenue digital canvases.
C-Slim(ca) Seamless Curved & Corner LED Display
The C-Slim(ca) is not just a screen; it is a structural solution for landmark architecture. By utilizing precision-engineered narrow cabinets (560mm/600mm), it eliminates the visual artifacts and "faceting" of standard 960mm panels. Achieving a 382mm outer radius and seamless 90° corner wraps, it transforms sharp building edges into fluid, high-revenue digital canvases.
Specification
Pixel Pitch P4 / P5 / P6.67
Curvature Min Outer Radius 382 mm | Min Cylindrical Diameter 764 mm
Brightness ≥5,500 nits (P4/P6.67) | ≥5,000 nits (P5)
Cabinet 560×960×95 mm (P4/P6.67) / 600×960×95 mm (P5) | ~15kg Aluminum Alloy
Protection IP65 Front / IP54 Rear
Maintenance Front & Rear Dual Service

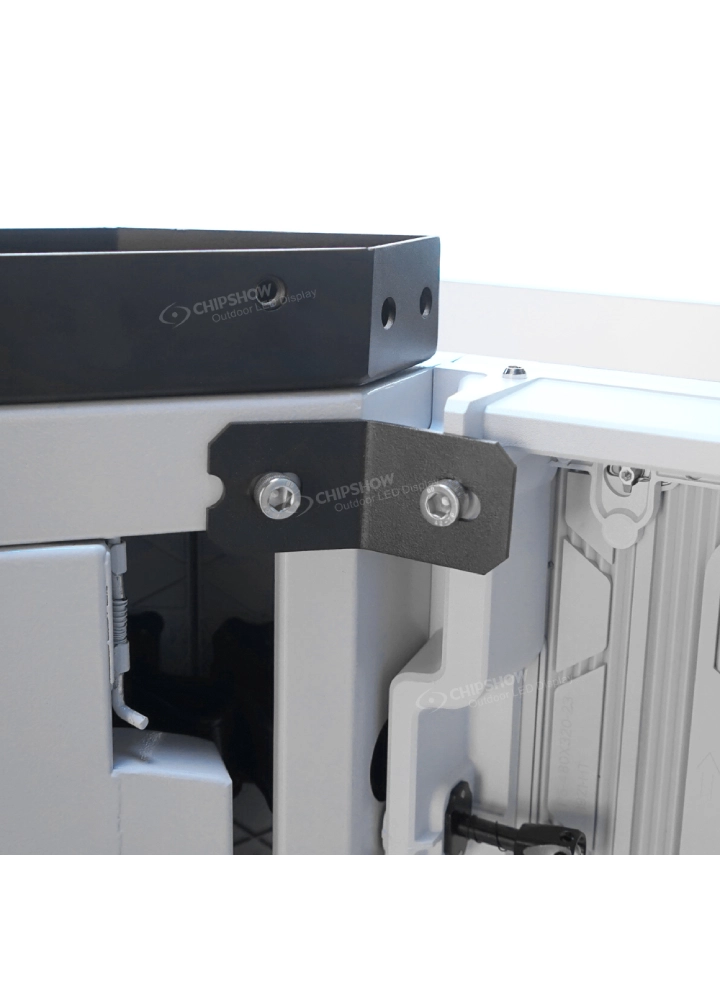

- True 90° Zero-Gap Splicing: The specialized narrow frames (560mm/600mm) allow for a mathematical 90° fit. Avoid expensive custom corner modules and speed up project approval.
- Elite Low-Gray Grayscale: Proprietary driver ICs maintain neutral color balance at low brightness. Flawless brand representation during nighttime city dimming compliance.
- Extreme Radius Versatility: 382mm outer radius supports tight-wrap pillars and complex S-waves. Unlock premium placements on columns and curved facades that competitors cannot bid for.
- Bilateral Maintenance: Tool-free access from both front and rear. Drastically lower labor costs for flush wall-mounts where rear access is restricted.
- Climate Equalization: Built-in breathable valve prevents internal condensation. Extended 100,000-hour lifespan in diverse outdoor humidity and temperature swings.
- Lightweight Architectural Fit: At ~15kg per cabinet, the aluminum alloy build reduces the dead load on building structures. Simplifies safety certifications and reduces the cost of heavy mounting hardware.
- Description
- Specification
- Product Detail
- Parameter
- Form
- Product Highlight
- FAQs
Grayscale Fidelity for Premium Brands
Advertising luxury brands requires color perfection. Our advanced circuitry eliminates the "ghosting" and color shift common in outdoor displays when dimmed for night use, keeping visuals pristine 24/7.
Rugged All-Weather Engineering
IP65 front protection paired with a built-in breathable pressure-balance valve ensures the screen remains perfectly flat, waterproof, and condensation-free from -20°C freezing winters to +50°C heatwaves.

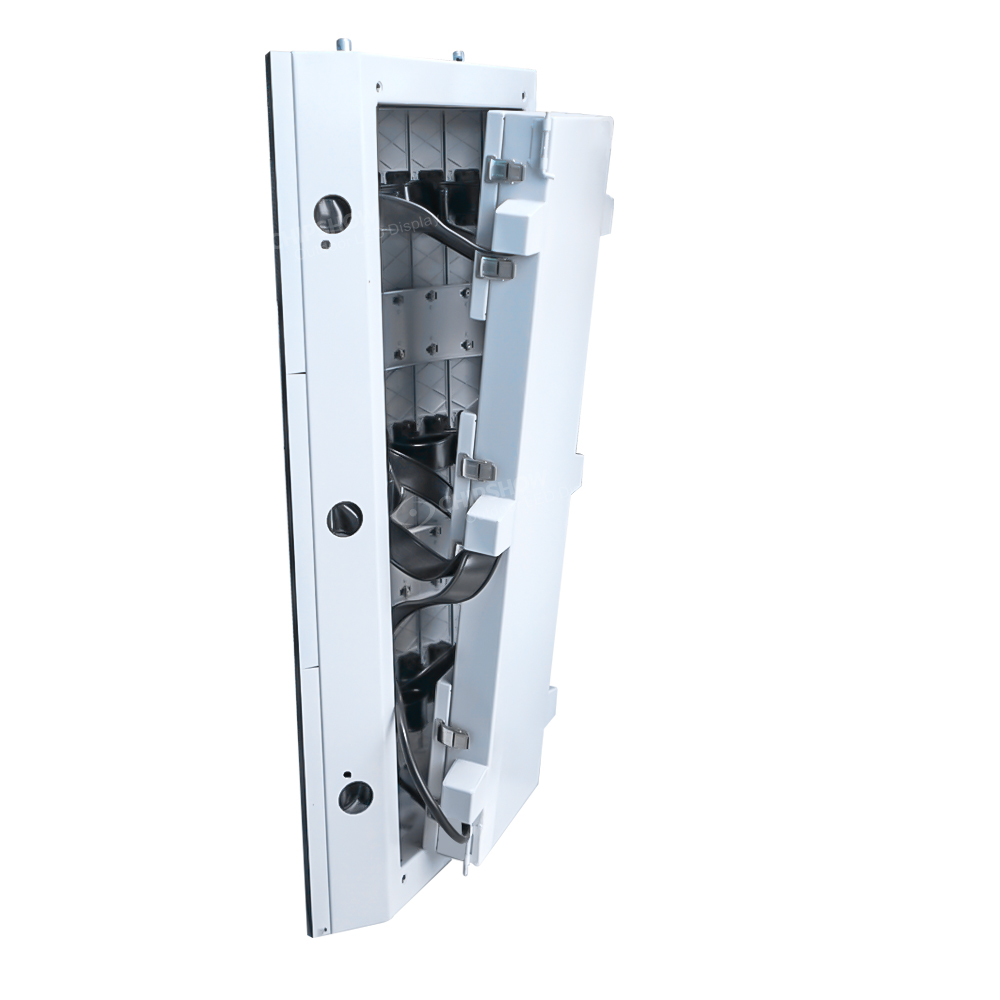

Effortless Dual Maintenance
For high-rise facades or tight storefronts, the ability to completely service the modules and power boxes from the front ensures maintenance is fast, safe, and never a bottleneck for uptime.

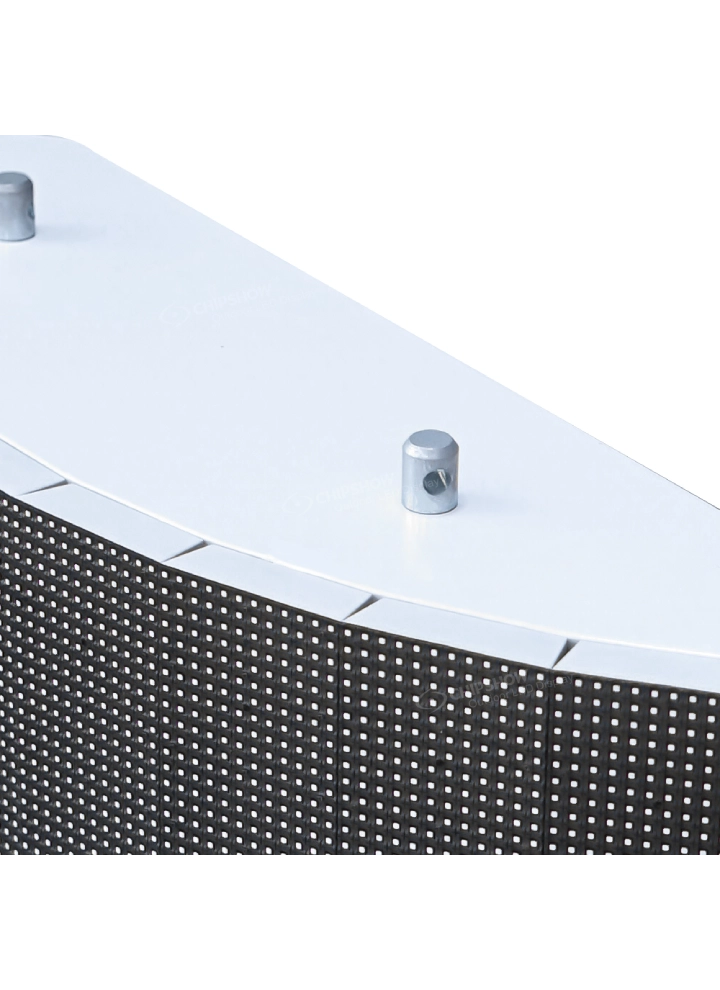

Creative Pillar Freedom
From 764mm diameter pillars to flowing architectural waves, the 382mm minimum outer radius capability provides the geometric flexibility to win high-margin smart-city landmark projects.
Lightweight Installation Efficiency
At just ~15kg per cabinet, the aluminum alloy chassis reduces the dead load on building structures. This slashes heavy equipment rentals, eases union labor efforts, and simplifies engineering approvals.
Send a Comment
Product Highlight

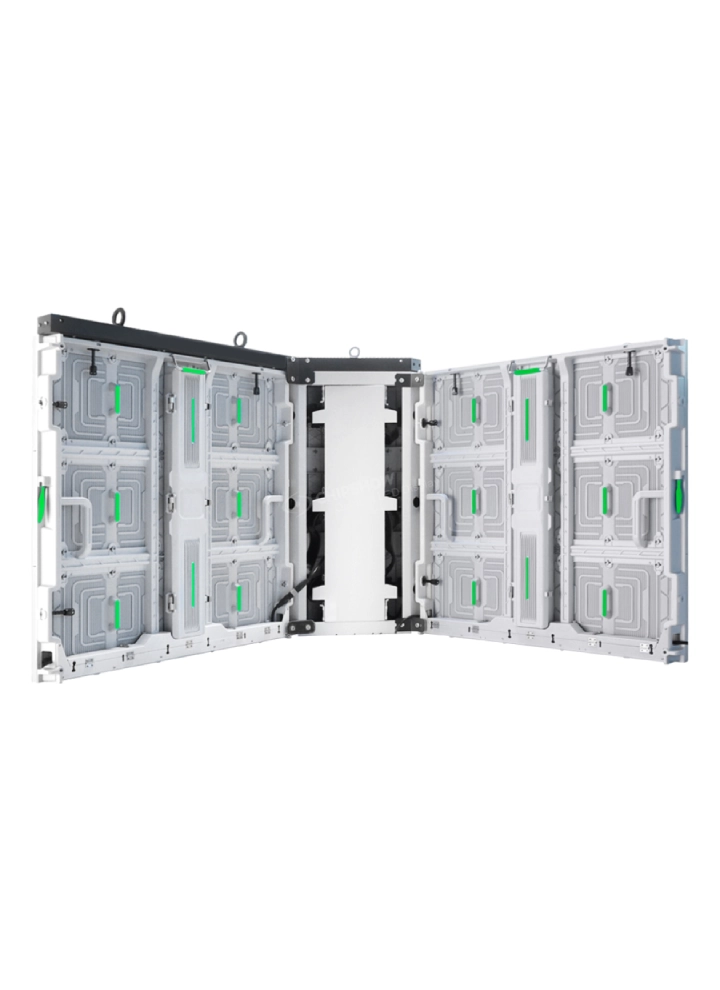

Seamless 90° Splicing
Specialized narrow cabinets eliminate gaps at building corners.
No Low-Gray Color Cast
Maintains neutral color and zero ghosting at any brightness level.
Min Outer Radius 382mm
Achieves smooth pillars and tight architectural arcs with ease.
Pressure-Balance Valve
Regulates internal climate for long-term outdoor performance.
Related Solution
Street Corner Digital Signage
High-end retail corner displays that wrap building edges, capturing pedestrian and vehicular traffic from two intersecting streets.
Recommend
Purpose-built platforms for iconic moments
Pixel Pitch
P4 / P5 / P6.67 / P8 / P10
Dimension
960×960×95 mm / 480×640×71.5 mm
Feature
Balanced 5,500+ nits
Front & Rear Service
Lightweight Install (26kg/m²)
IP65 All-Weather
Pixel Pitch
P4 / P5 / P6.67 / P8 / P10
Dimension
960×960×95 mm
Feature
≤120W/m² &12.4kNit Brightness
27kg/m² light load
Passive airflow cooling
Long-view giant DOOH
Pixel Pitch
P4 / P5 / P6.67
Dimension
560×960×95 mm (P4/P6.67) / 600×960×95 mm (P5) | ~15kg Aluminum Alloy
Feature
382mm Min Outer Radius
True 90° Zero-Gap Splicing
Front & Rear Dual Maintenance
Zero Low-Gray Color Cast
Pixel Pitch
P10 / P16 / P20
Dimension
960 × 960 × 100 mm
Feature
12,400 nits Ultra-Bright
Rugged Cast Aluminum
DIP310 Gold Wire
IP65 Extreme Weather
Pixel Pitch
P6.67 / P8 / P10
Dimension
960×960×95 mm / 480×640×71.5 mm
Feature
Up to 14,000 nits
5 brightness modes
Common-cathode
IP65 front & rear
Frequently Asked Questions
From specs and compatibility to warranty and support, our FAQ covers everything you need to know to get the most out of your experience.
Can the C-Slim(ca) create a full 360-degree cylindrical screen?
Yes. With a minimum outer radius of 382mm, you can splice cabinets to form a perfect 360° digital pillar with a diameter of 764mm. The narrow cabinet ensures the curve remains smooth without the faceted appearance typical of wider panels.
How does "Low-Gray" performance benefit outdoor advertising?
Is it difficult to install this screen flush against a building corner?
What is the difference between the P4, P5, and P6.67 models?
Does the C-Slim(ca) require a special controller or software?
