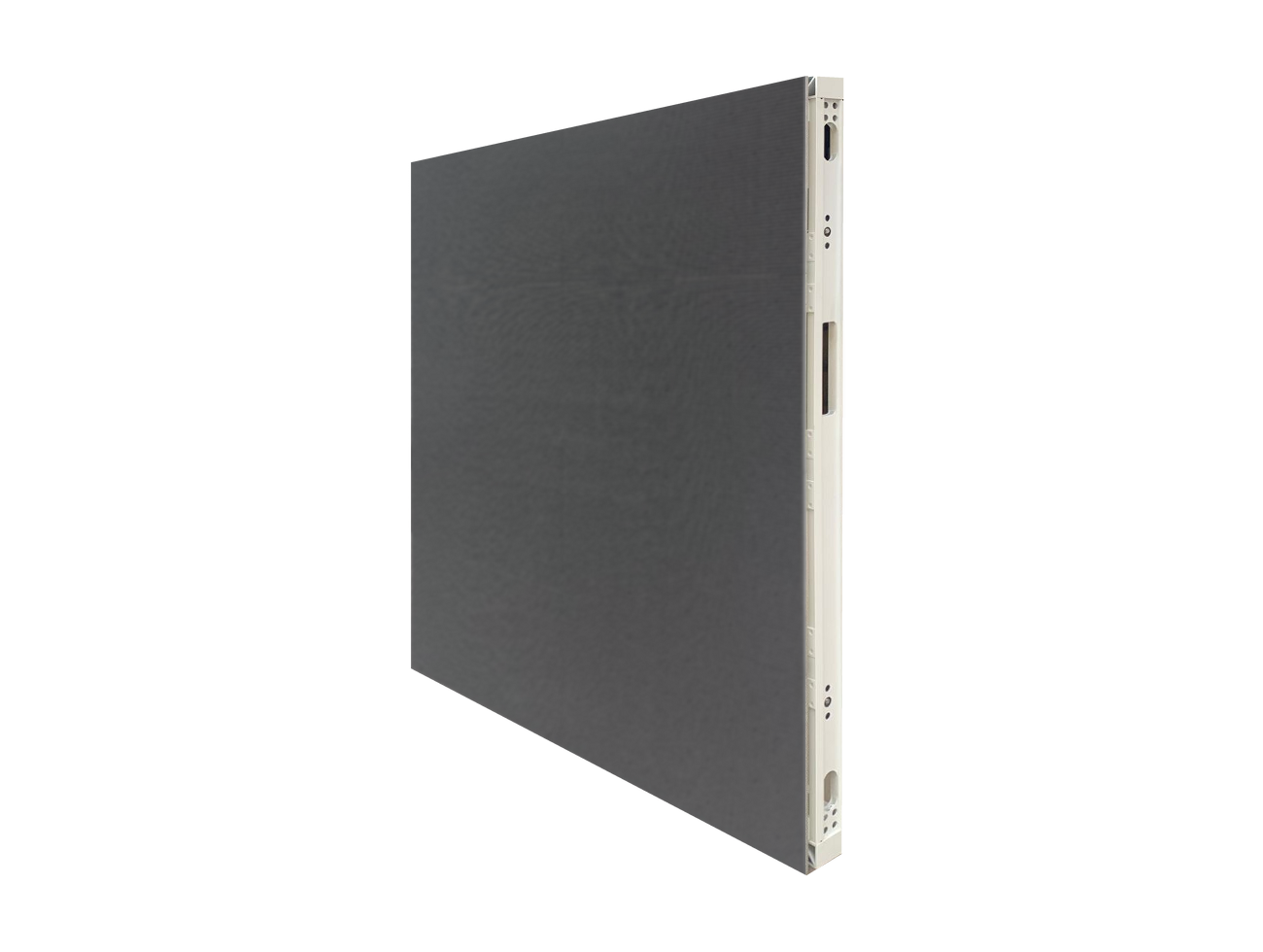

C-Slim AlloyPro DH 1000x1000mm Outdoor LED Display

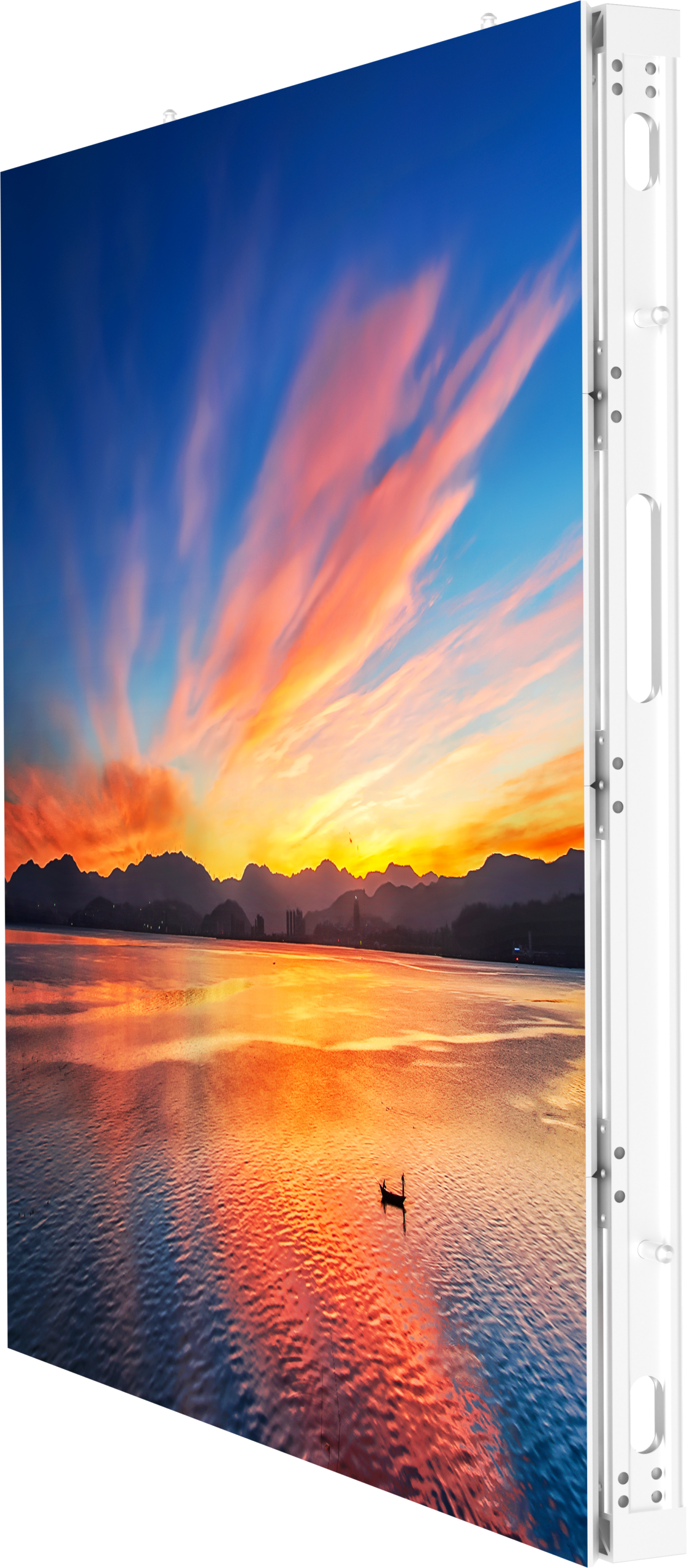

C-Slim AlloyPro DH 1000x1000mm Outdoor LED Display - Image 2
C-Slim AlloyPro DH 1000x1000mm Outdoor LED Display - Image 3
C-Slim AlloyPro DH 1000x1000mm Outdoor LED Display - Image 4

C-Slim AlloyPro DH 1000x1000mm Outdoor LED Display

C-Slim AlloyPro DH: 1000 x 1000 mm outdoor LED cabinets. Each cabinet covers one square meter, so screen area and budgets come together without conversion steps. Six pitches from P2.97 to P10.42 share one aluminum profile platform at 25 kg per 75 mm cabinet, with IP65 front and rear protection and a 35% common-cathode efficiency gain. Match pitch to viewing distance and budget.

Categories: , ,
C-Slim AlloyPro DH 1000x1000mm Outdoor LED Display
C-Slim AlloyPro DH: 1000 x 1000 mm outdoor LED cabinets. Each cabinet covers one square meter, so screen area and budgets come together without conversion steps. Six pitches from P2.97 to P10.42 share one aluminum profile platform at 25 kg per 75 mm cabinet, with IP65 front and rear protection and a 35% common-cathode efficiency gain. Match pitch to viewing distance and budget.
Learn More
Specification

Pixel pitch P2.97 / P3.91 / P4.81 / P6.25 / P7.81 / P10.42

Cabinet size 1000 × 1000 × 75 mm (P2.97: 1000 × 500 mm)

Cabinet weight 25 kg

Refresh rate 3840 Hz

Reference brightness 4500 / 6000 cd/m² by pitch

Protection IP65 front and rear
  • One cabinet, one square meter — 1000 × 1000 mm full-meter cabinets keep screen area and budget planning straightforward from quote to installation
  • Slimmer and lighter cabinets — at 75 mm thick and 25 kg each, the aluminum profile build cuts freight cost and eases handling on multi-cabinet installs
  • 35% lower power draw — common-cathode modules consume 35% less power than conventional screens, averaging 180 W per square meter over long daily operating hours
  • Wide pitch coverage — the range runs from P2.97 for panels viewed up close to P10.42 for screens read from a distance, so each install can match pitch to viewing distance
  • Sealed against dust and rain — IP65 protection on both cabinet faces supports year-round outdoor service, with corrosion-resistant aluminum for long-term exposure
Get Quote Now
Download Spec
Share
chipshow

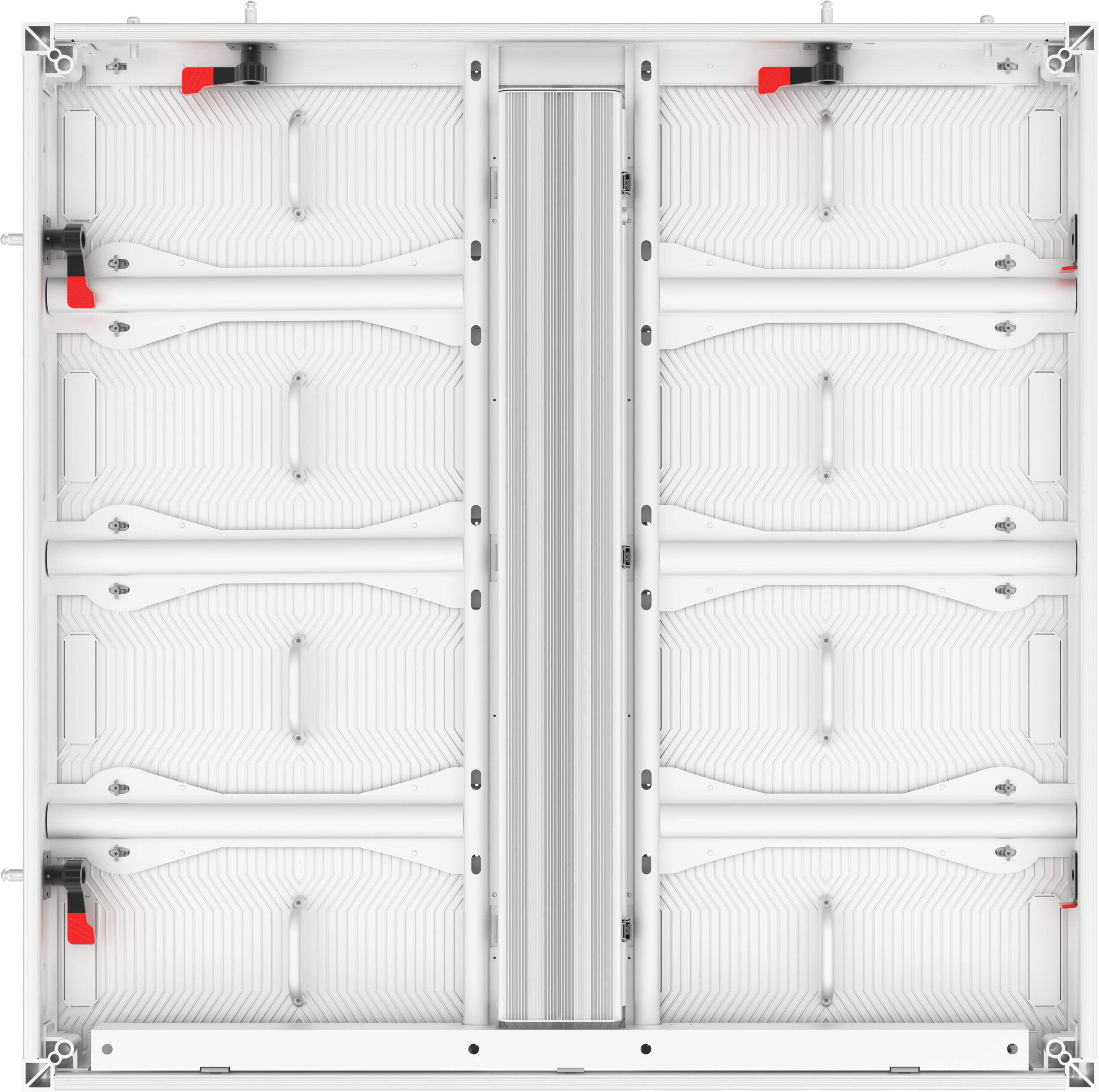

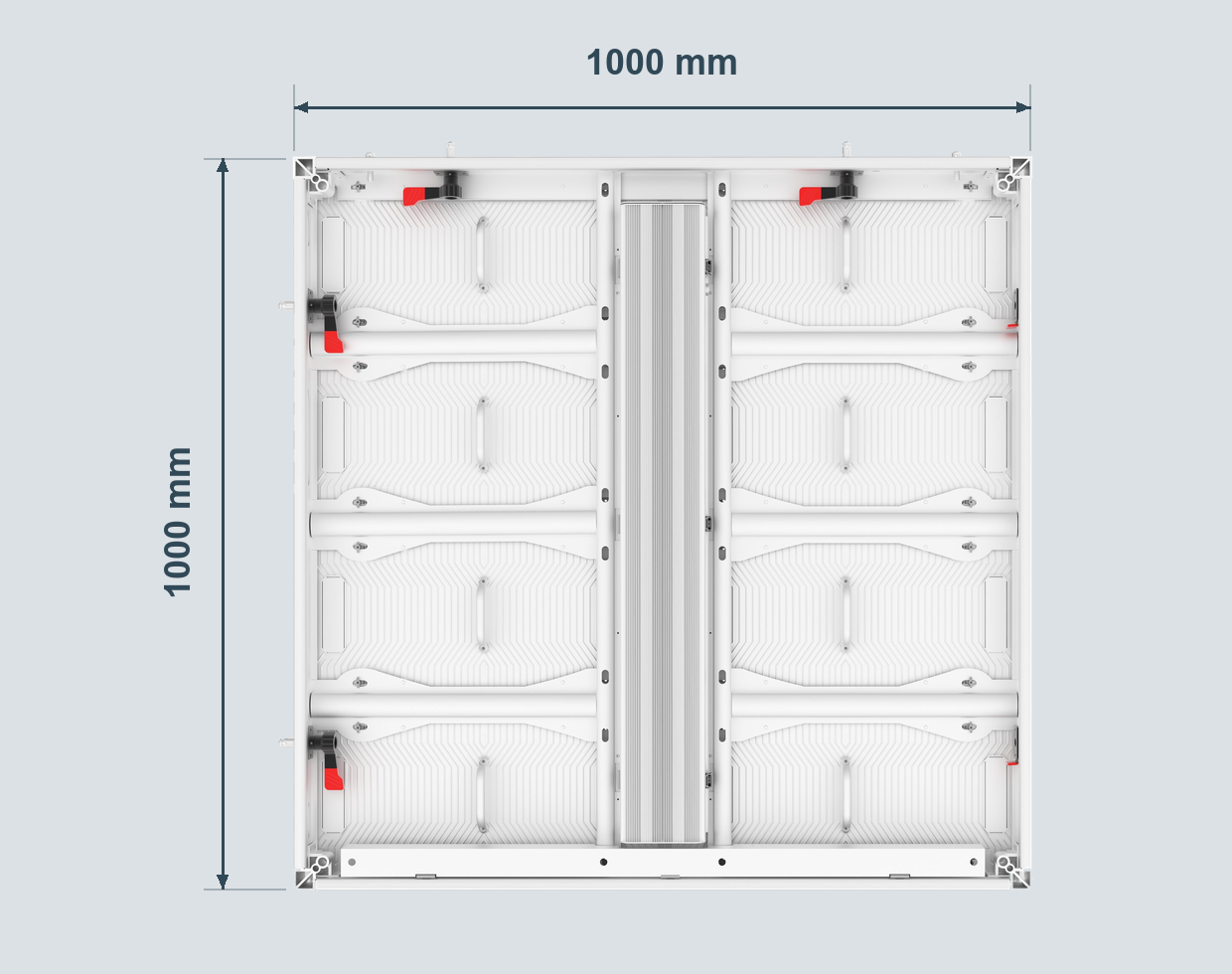

1000 × 1000 mm Cabinets, Straightforward Planning

Each cabinet covers exactly one square meter, so a twenty-square-meter wall works out to twenty cabinets, and budget planning follows directly from screen area. Rows align on one-meter grids from the first cabinet to the last. Where wall height calls for it, the P2.97 model uses a 1000 × 500 mm half-meter format on the same platform.
chipshow

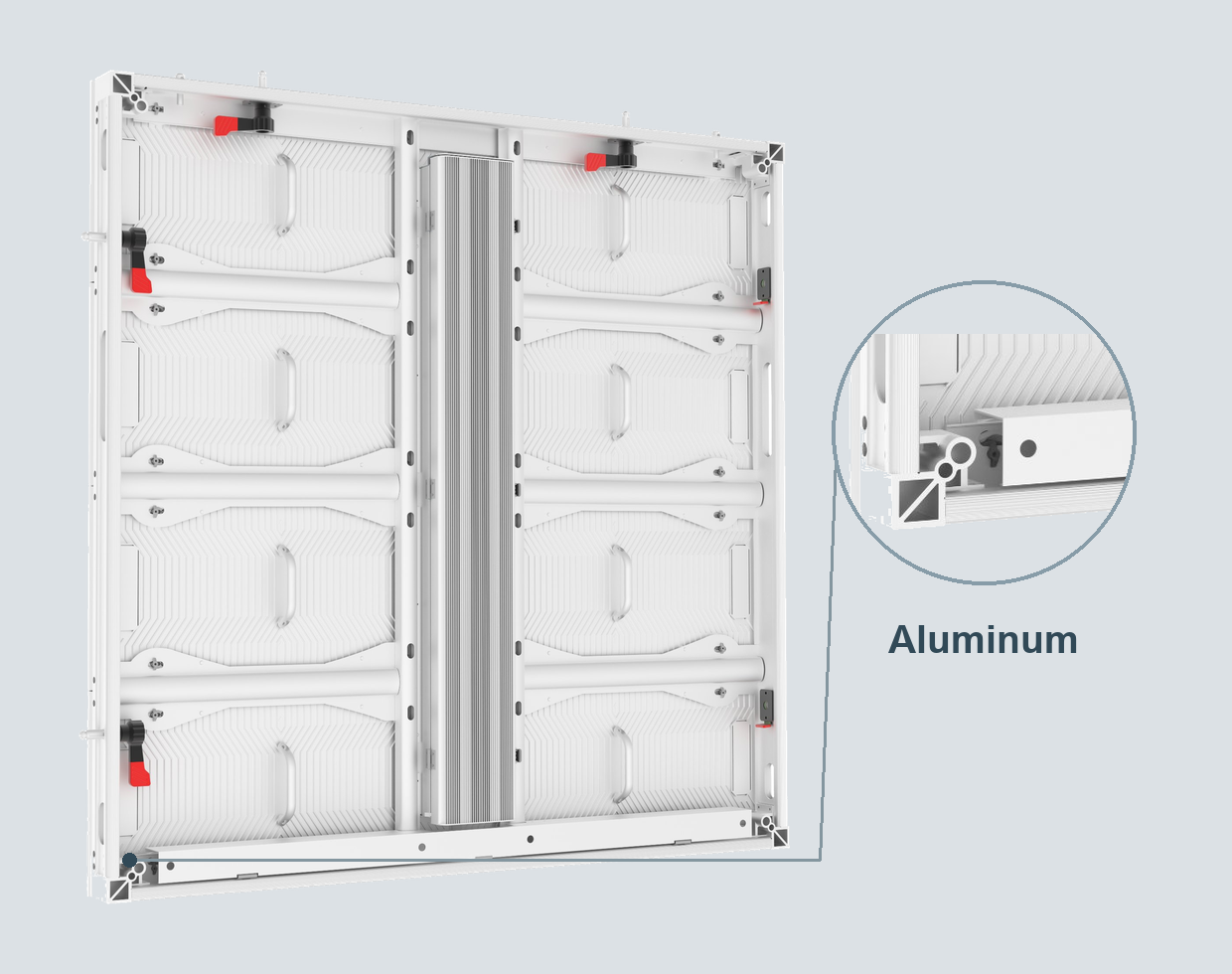

Extruded Aluminum Housing for Heat Control

The extruded aluminum housing adopts contact heat conduction with thermal silicone gel, pulling module heat away at the source through the aluminum base shell. Rated operation spans minus 20 °C to 50 °C, so winter cold and summer peaks sit inside the design range. Stable thermal conditions support long daily operating hours.
chipshow

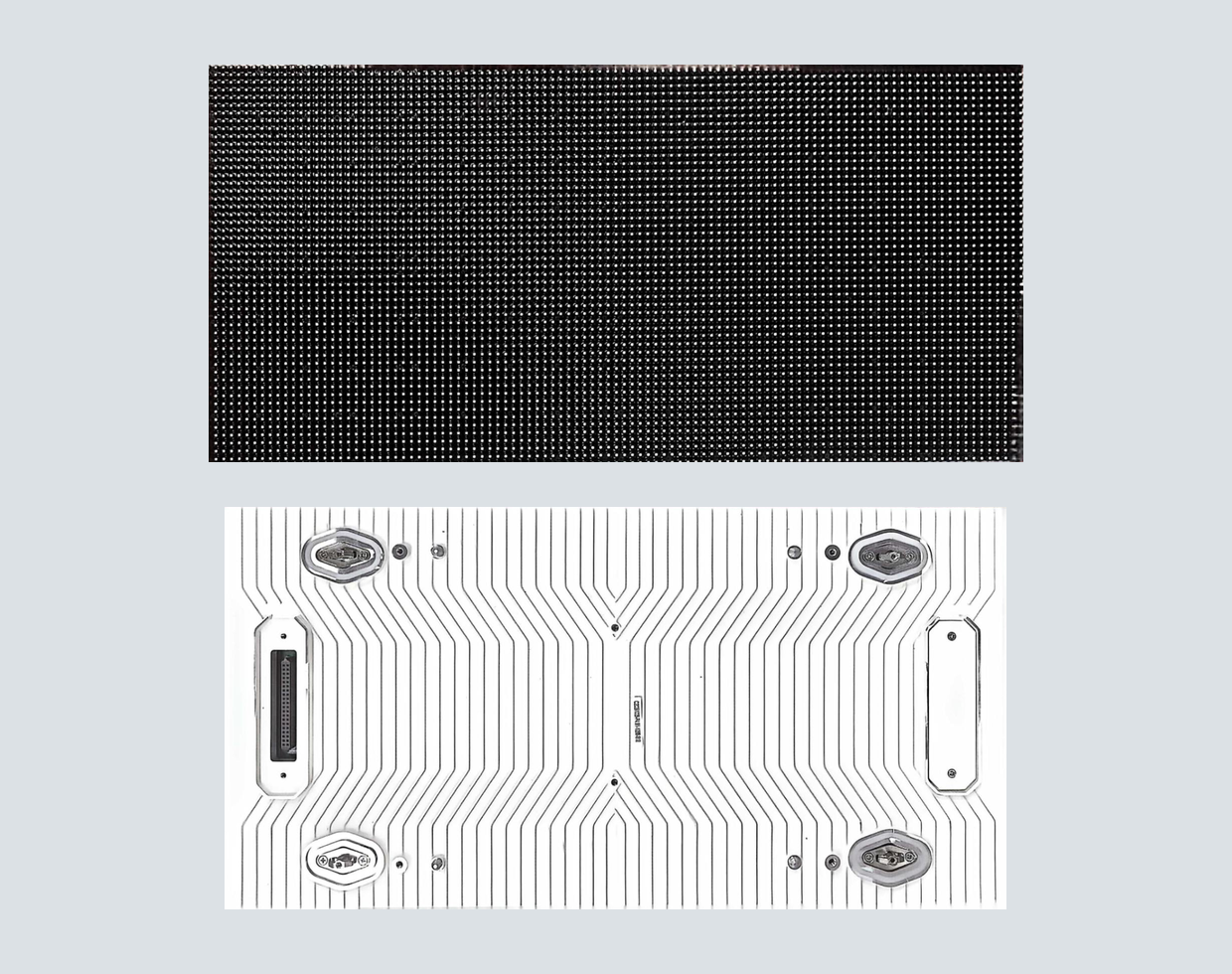

Common-Cathode Modules, 35% Efficiency Gain

Long operating hours make power draw a real cost item. Common-cathode modules run at 180 W per square meter on average, a 35% efficiency gain over conventional screens. Peak load sits at 550 W against 750 W under common-anode drive, and the saving repeats across every operating hour.
chipshow

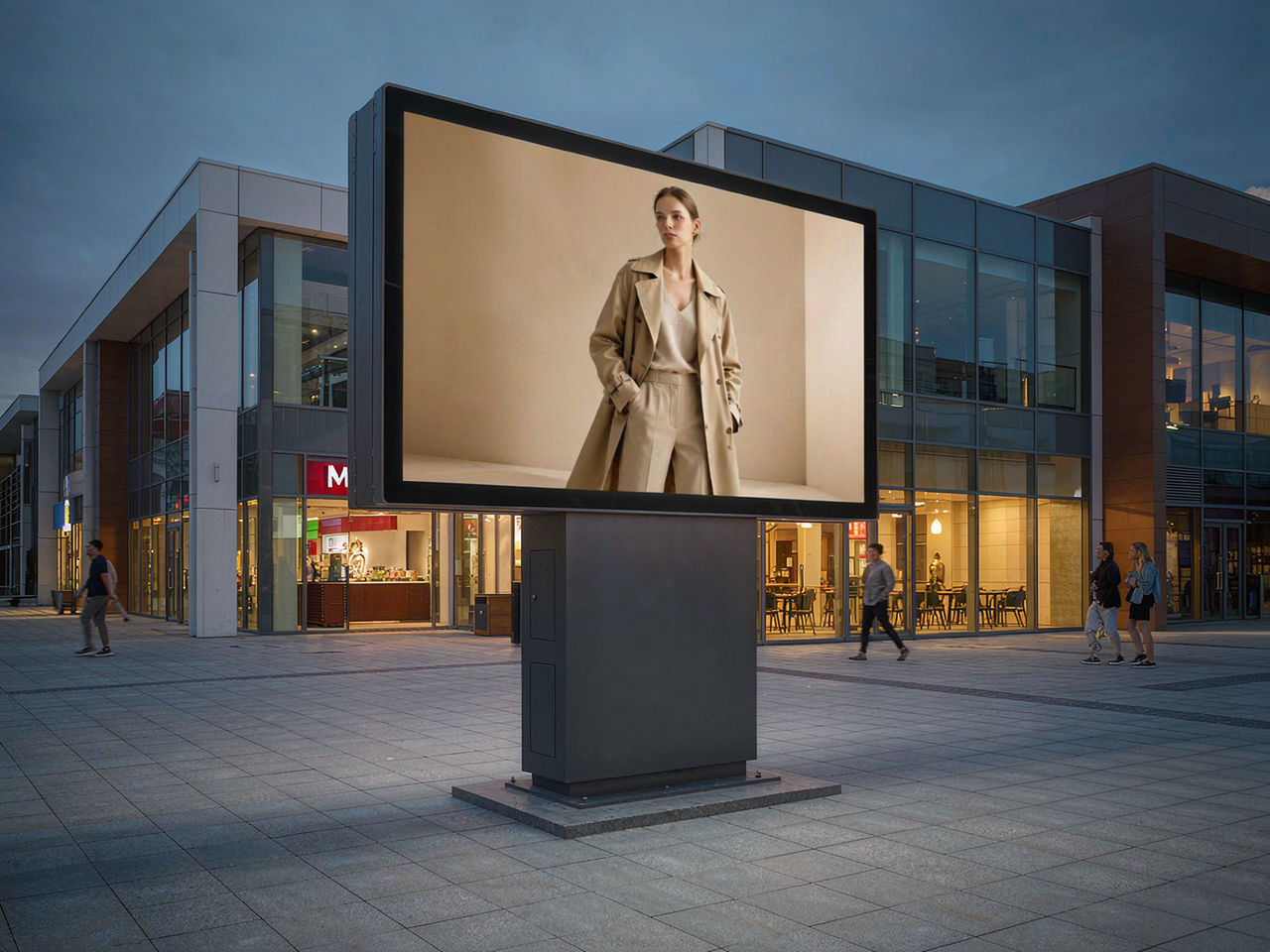

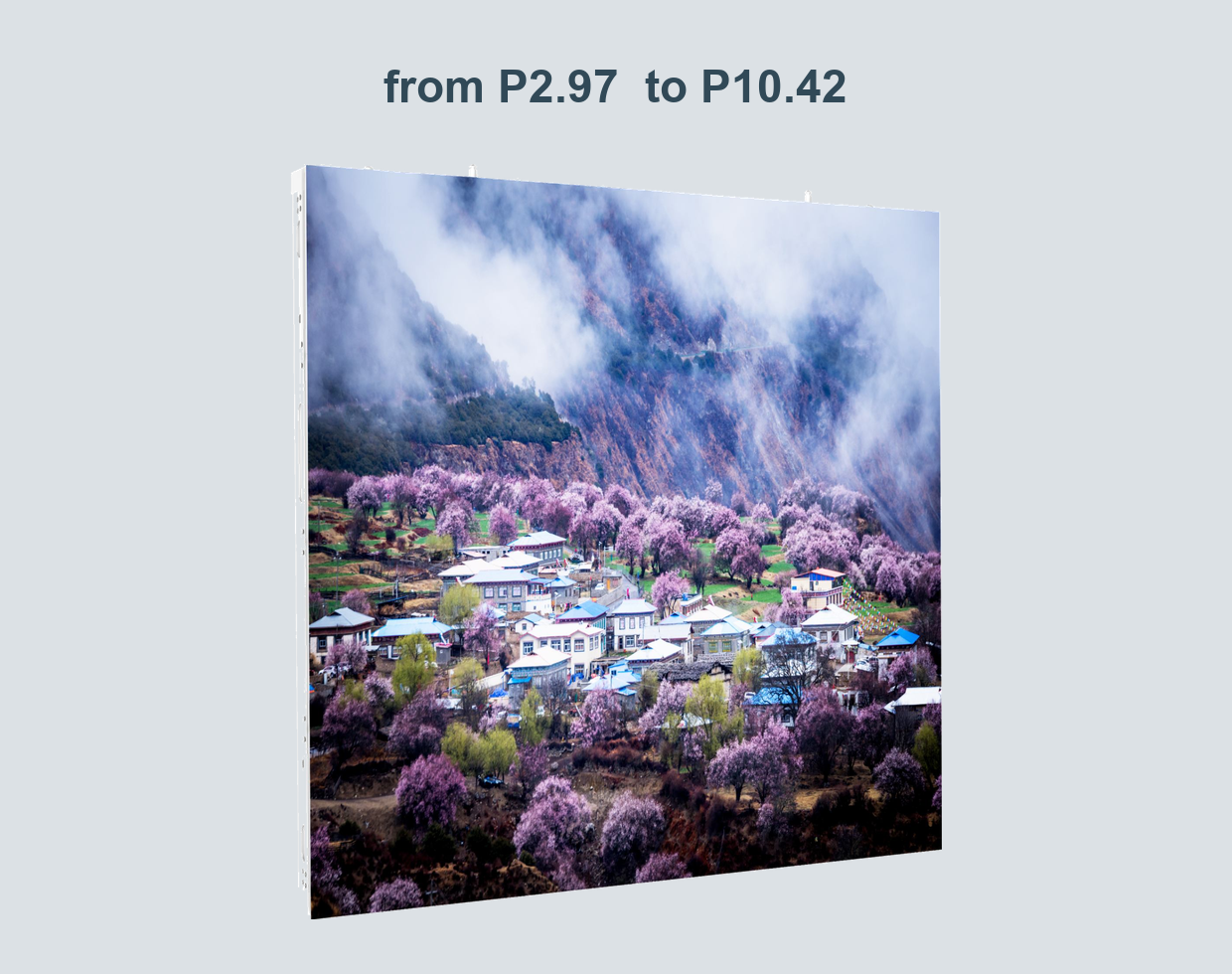

From Storefront Distance to Highway View

The pitch range runs from P2.97 for panels near pedestrians to P10.42 for long-view roadsides, all on one aluminum profile platform. Lamps step from SMD1415 at close view to SMD2727 at long view, with white-balance brightness between 4,500 and 6,000 nits. Module upgrades later in the screen's life keep the original frame.
chipshow

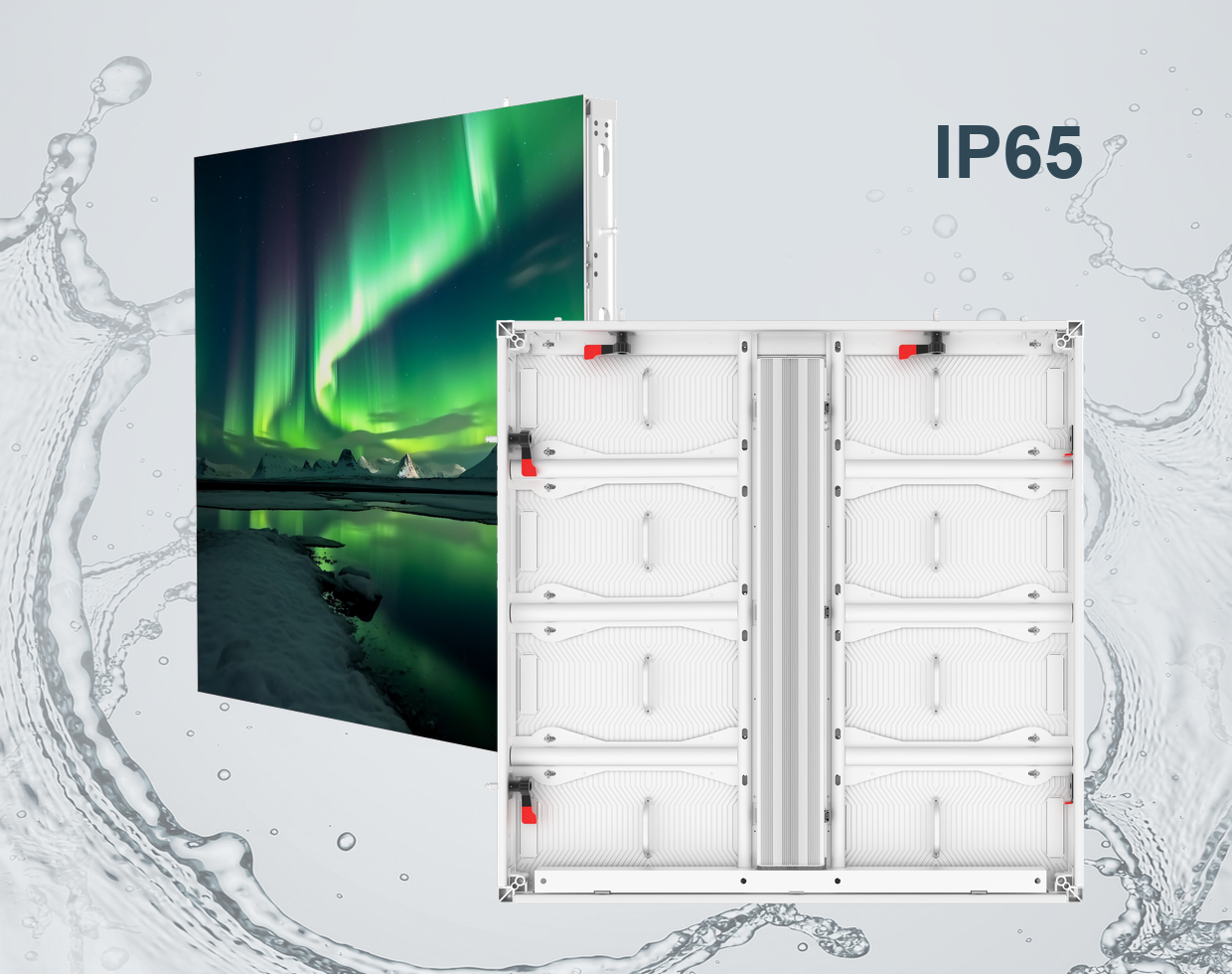

IP65 Cabinet for Open-Air Service

Front and rear IP65 sealing keeps dust and driving rain outside the cabinet. The aluminum profile structure resists corrosion through years of outdoor exposure. The sealed design suits billboards, building-front screens and other open-air installs.
