P4–P10 in One Line
Cover common outdoor project needs—from high-definition street signage to cost-effective elevated billboards—without switching to a different cabinet family.
C-Slim (Ma) Standard SMD Outdoor LED Display
The balanced outdoor line for mainstream DOOH builds.
Designed for everyday outdoor advertising and information displays, the Standard line helps integrators move faster. With a practical pitch range, dual-size cabinets, and service flexibility, it delivers reliable performance without the cost of extreme-brightness specs.
C-Slim (Ma) Standard SMD Outdoor LED Display
The balanced outdoor line for mainstream DOOH builds.
Designed for everyday outdoor advertising and information displays, the Standard line helps integrators move faster. With a practical pitch range, dual-size cabinets, and service flexibility, it delivers reliable performance without the cost of extreme-brightness specs.
Specification
Pixel pitch P4 / P5 / P6.67 / P8 / P10
Brightness 5,500 nits +(Standard)
Cabinet 960×960 mm / 480×640 mm
Serviceability Front & Rear Access
Protection IP65 Front & Rear

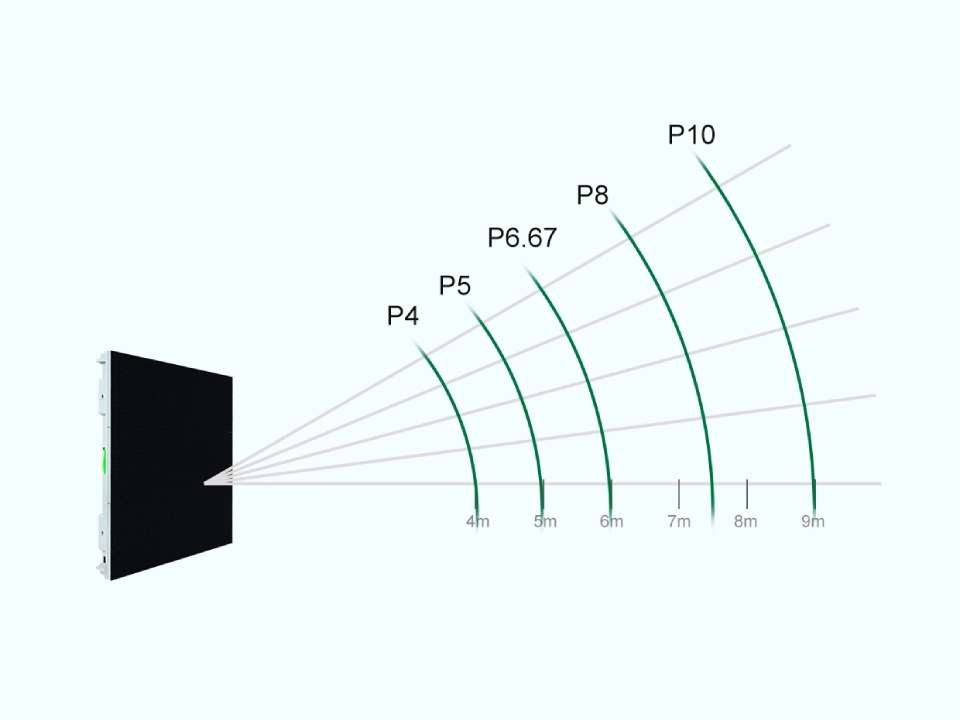

- Right-Fit Range: One platform covers P4–P10, adapting to viewing distances from street level to roof top.
- Everyday Daylight: Balanced 5,500 nits brightness suits typical urban commercial placements.
- Install Flexibility: Two cabinet sizes (960/480) help fit walls, poles, and irregular façade layouts.
- Tight-Space Service: Front access supports wall-mount sites where rear maintenance space is impossible.
- Outdoor Protection: IP65 sealing supports stable operation through rain, humidity, and temperature changes.
- Lifecycle Predictability: Built on a mature SMD platform to keep installation and service routines straightforward.
- Description
- Specification
- Application
- Parameter
- Form
- Product Highlight
- FAQ
Built for Urban Daylight
The 5,500 nits+ output (model dependent) is calibrated for typical city environments, ensuring clear visibility without causing excessive light pollution.

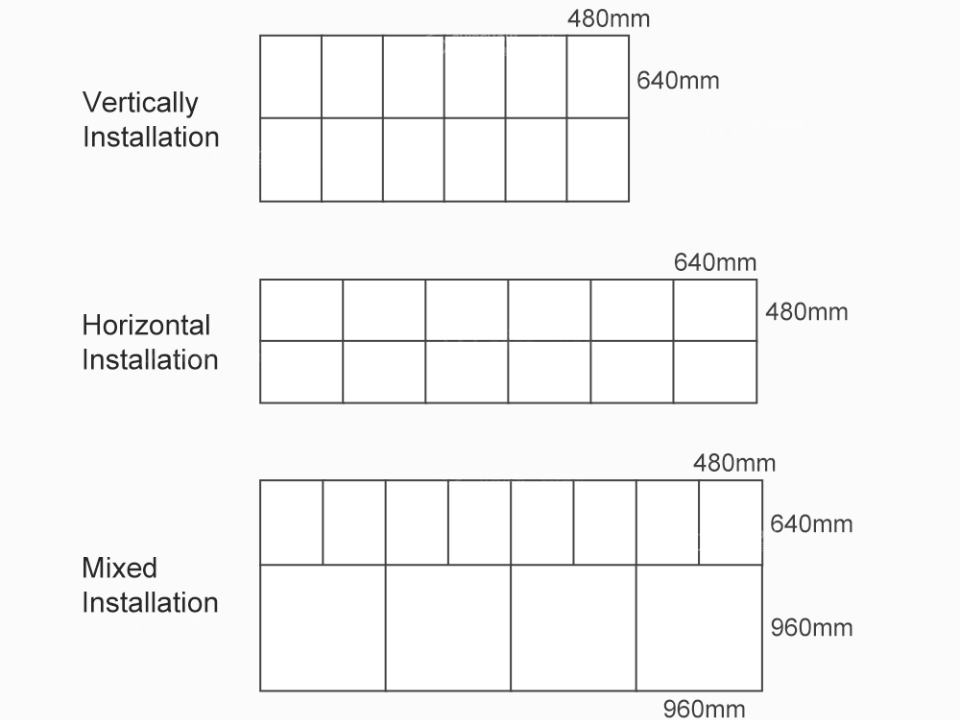

Cabinet Fit Variety
Available in 960×960mm and 480×640mm formats, allowing for efficient layouts on large billboards or more compact, complex architectural designs.

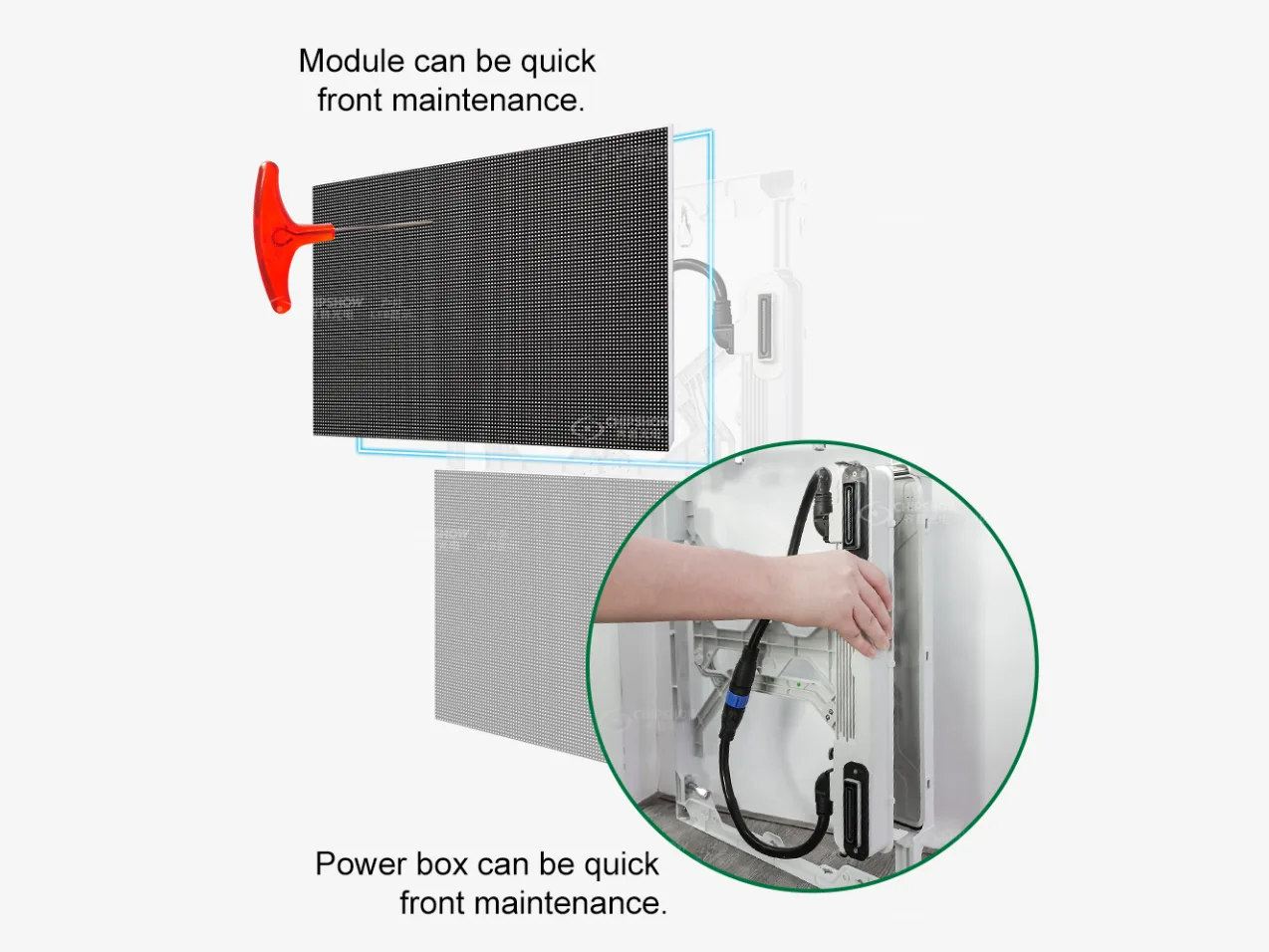

Front & Rear Service
The dual-maintenance design reduces risk during site planning. Whether it’s an open-frame pole or a flat wall mount, the screen remains accessible.

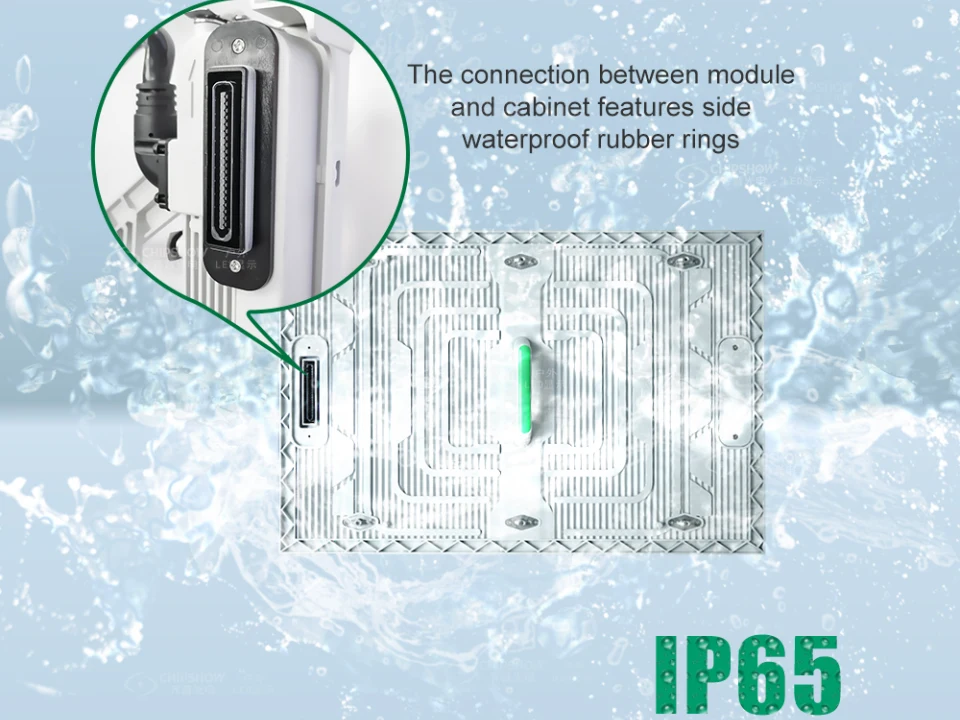

IP65 All-Weather
Designed with independent waterproof rings and sealed modules, ensuring the display withstands rain and dust for reliable commercial operation.

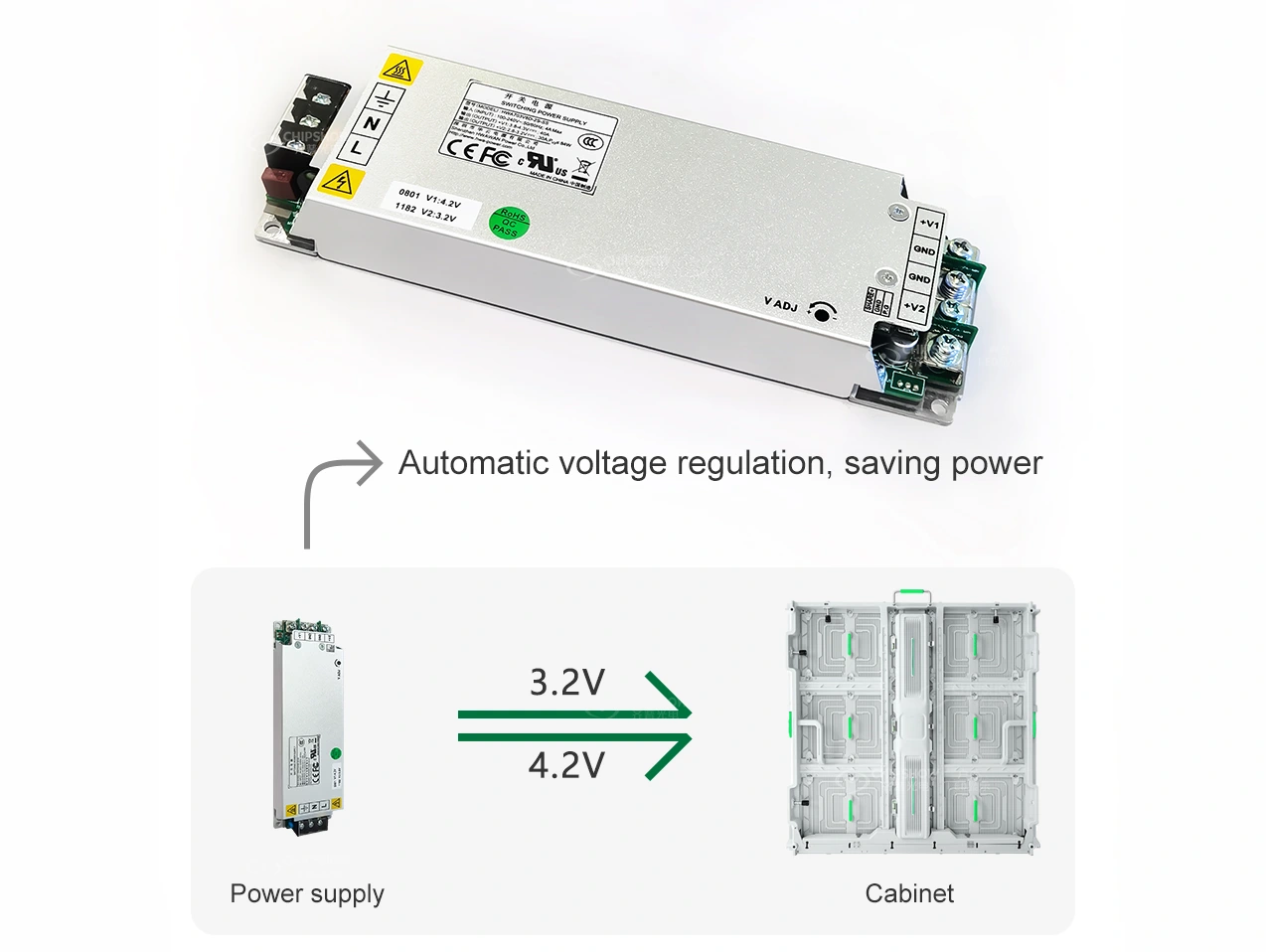

Practical Power Profile
Optimized for standard commercial use with manageable power consumption (≤500 W/m² max on key models), avoiding the energy premium of ultra-high-brightness screens.
Send a Comment
Product Highlight
P4–P10 Range
Versatile options for any viewing distance.
5,500 nits+
Optimal brightness for standard city use.
Dual Service
Front/Rear access for flexible installation.
Slim Mg Cabinet
Lightweight design cuts structural costs.
Service Support
End-to-End Project Support
From design to installation, we handle every step for you.
Customization for Every Scenario
Tailored LED screens for any location or shape.
Reliable Quality & Smart Maintenance
Stable performance, simple upkeep, and long lifespan.
Global Service & Fast Response
Fast delivery and responsive service worldwide.
Roadside DOOH billboard (long-running campaigns)
Outdoor Billboard & Façade DOOH
Build stable, serviceable outdoor LED walls for long-term campaigns—designed around real structure limits and maintenance access.
Frequently Asked Questions
From specs and compatibility to warranty and support, our FAQ covers everything you need to know to get the most out of your experience.
Can I use this to replace an old, heavy iron cabinet screen?
Yes, it is the perfect retrofit solution. At only 26kg/cabinet, the C-Slim Ma Standard is a lightweight led display much lighter than older iron cabinets (often 45-60kg). This means you can likely reuse your existing steel structure without reinforcement. Its standard 960×960mm size also matches the modular grid of many legacy billboards, simplifying the replacement process.
What control system does the C-Slim Ma Standard use?
What spare parts ratio do you recommend for purchase?
Does the "Standard" version support curved installations?
