C-Max Fine-Pitch COB LED Display

Close-view 4:3 cabinets for clean LCD wall upgrades.

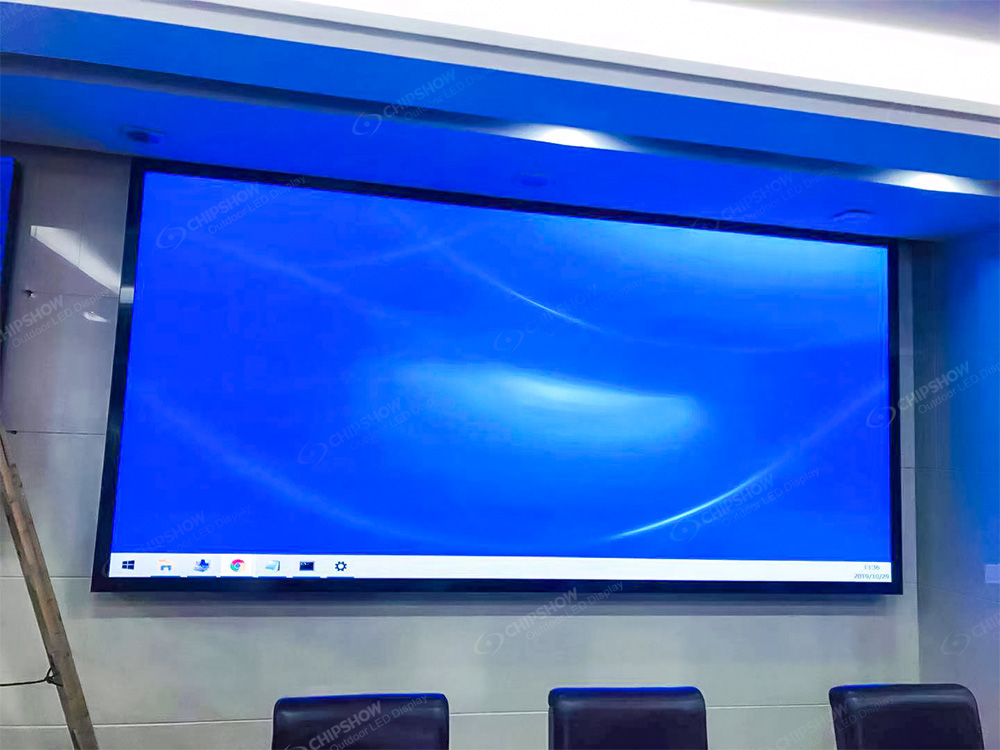

C-Max Fine Pitch is designed for close-view professional spaces such as boardrooms, training rooms, and monitoring rooms. Its native 4:3 cabinet format simplifies 16:9 wall planning, while internal wiring and front access maintenance help keep installations tidy and service-efficient for integrators.

Categories: C-Max, Indoor LED Display (Fixed), Product

C-Max Fine-Pitch COB LED Display

Close-view 4:3 cabinets for clean LCD wall upgrades. C-Max Fine Pitch is designed for close-view professional spaces such as boardrooms, training rooms, and monitoring rooms. Its native 4:3 cabinet format simplifies 16:9 wall planning, while internal wiring and front access maintenance help keep installations tidy and service-efficient for integrators.

Learn More

Specification

Pixel Pitch P1.25 / P1.53 / P1.86

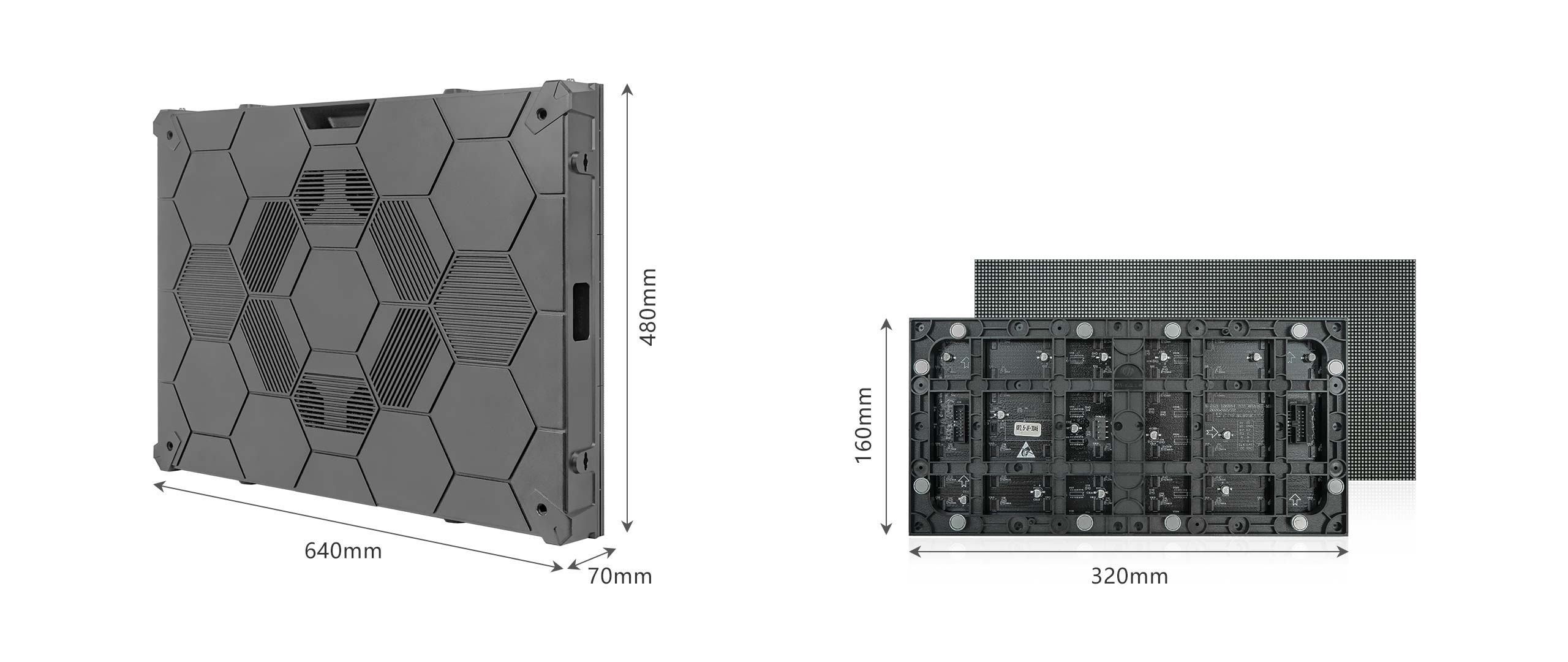

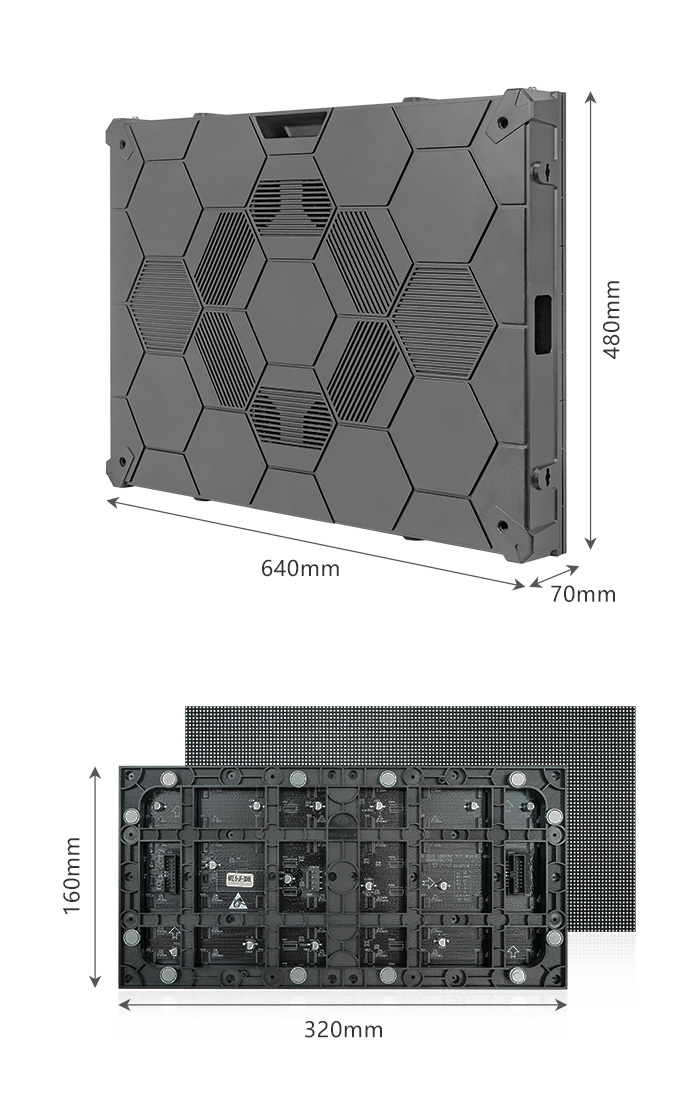

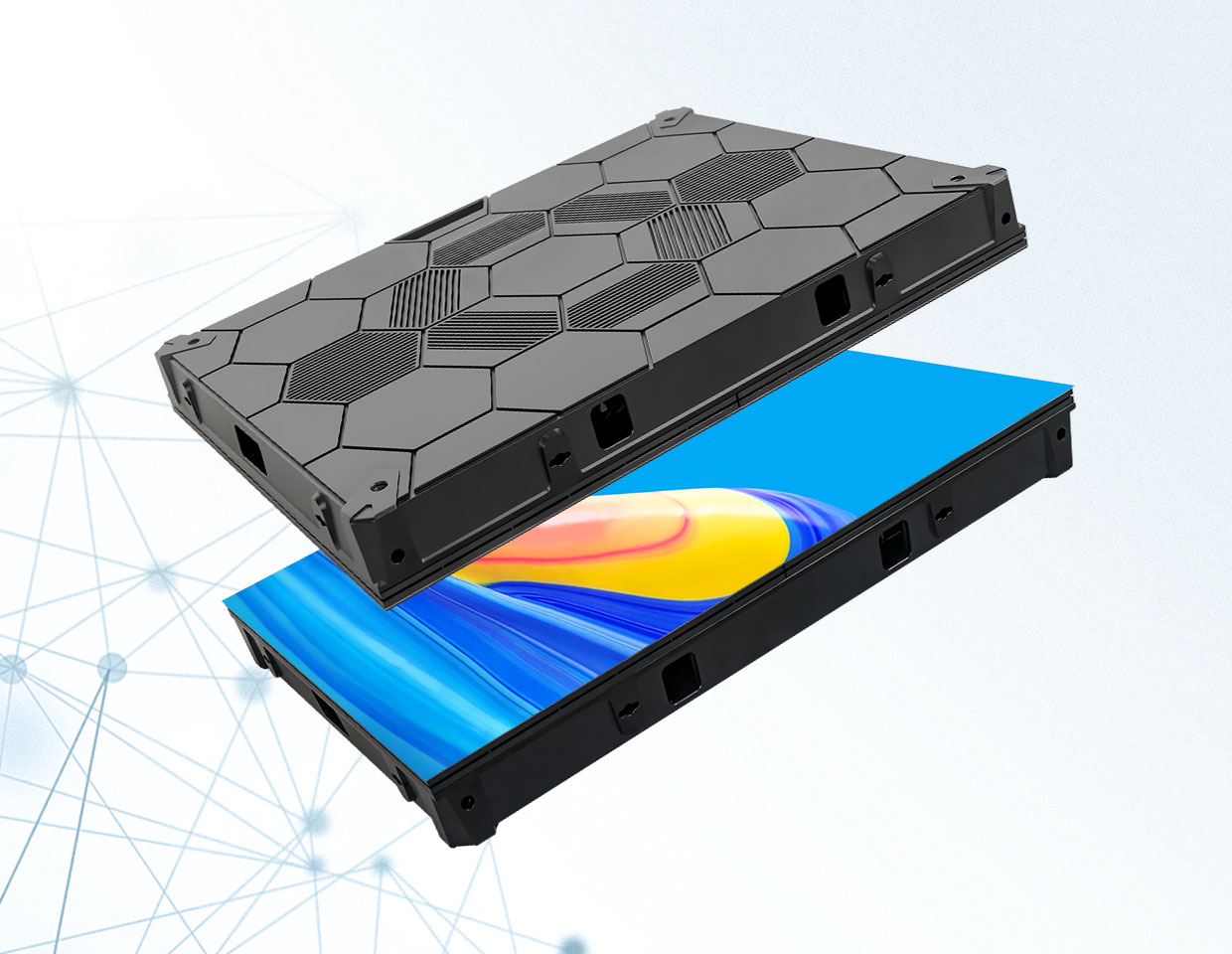

Cabinet Size 640 × 480 × 70 mm (native 4:3)

Brightness 300–600 cd/m²

Refresh 2880–3840 Hz

Cabinet Weight 5.0–7.5 kg/cabinet

COB Shield Technology: The fully encapsulated surface offers 4H hardness, protecting against accidental impact, dust, and moisture in high-traffic professional settings.
True Black Contrast: The non-reflective matte finish delivers deeper blacks and superior contrast, ensuring cinematic clarity for both video and data visualization.
Native LCD Ratio: The 640×480 mm cabinet matches standard video source ratios, enabling seamless 16:9 4K configurations and direct replacement of traditional LCD video walls.
Whisper-Quiet Operation: The high-thermal-conductivity magnesium chassis provides natural heat dissipation, eliminating the need for fans and ensuring silent performance in noise-sensitive environments.
100% Front Maintenance: Modules, power units, and control cards are fully accessible from the front, preserving valuable installation depth.
Cable-Free Internal Architecture: Board-to-board hard connections eliminate vulnerable ribbon cables, enhancing long-term reliability.

Get Quote Now

Spec Sheet

Description
Specification
Application
Parameter
Form
Product Highlight
FAQ

The Ultimate COB Upgrade for Professional Visualization

Engineered to surpass conventional video walls, this COB platform combines a 4H-hardened surface with true black contrast and native 4:3 geometry. The ideal solution for high-end control rooms, executive environments, and premium architectural installations worldwide.

Specifications&Details

Ultimate Surface Protection

Unlike traditional SMD LEDs, COB technology embeds the chips directly onto the board with a protective resin coating. The result is a smooth, 4H-hardness surface that resists water, dust, and physical impact — delivering exceptional durability for demanding professional applications.

Unrivaled Visual Contrast

The specialized matte-finish COB surface absorbs ambient light and eliminates reflections, producing an ultra-deep black level and vivid contrast that brings both high-definition video and detailed data visualizations to life with remarkable clarity.

Precision Retrofitting

The proven 640×480 mm native 4:3 cabinet geometry matches standard video source ratios. This enables flawless 16:9 FHD or 4K displays with 1:1 pixel mapping, offering a seamless, bezel-free upgrade over aging LCD video walls.

Silent Engineering

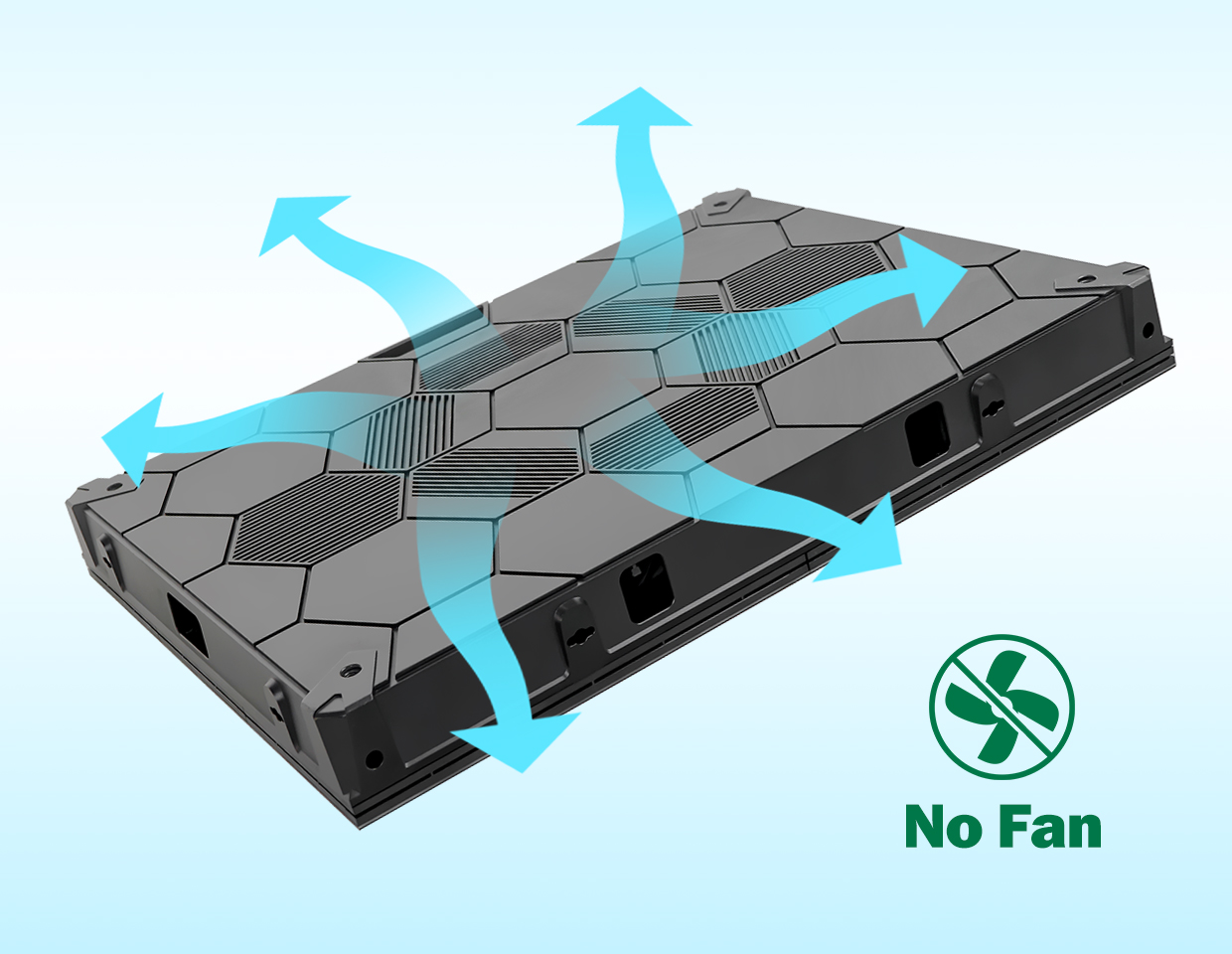

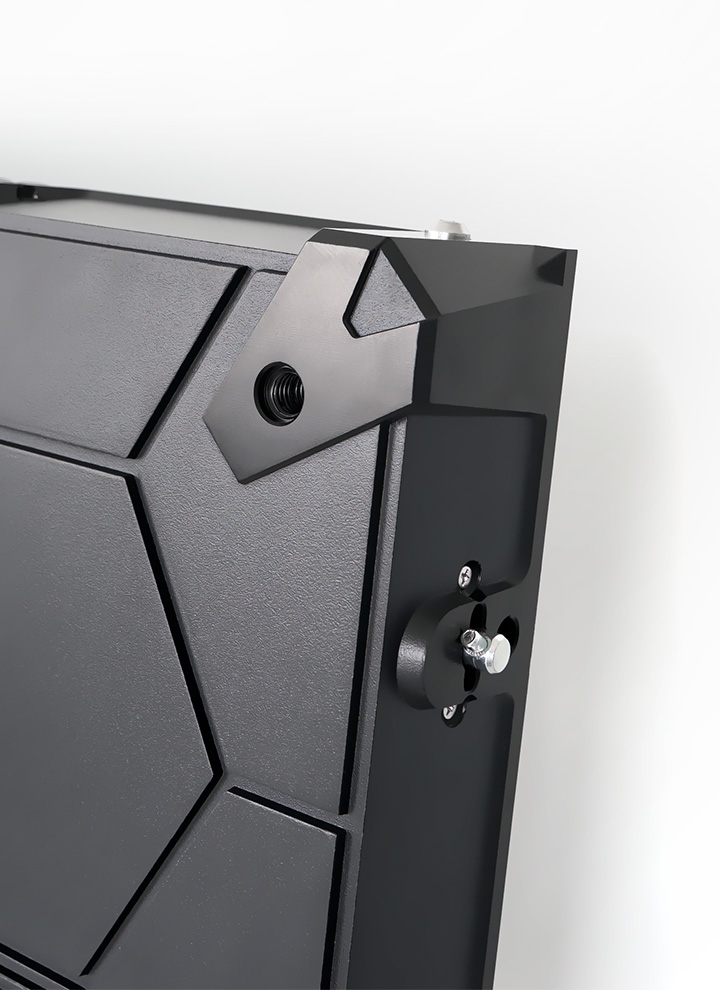

Quiet environments require silent technology. The high-thermal-conductivity magnesium alloy chassis functions as a natural heat sink, enabling a completely fanless design that ensures zero mechanical noise in executive and control-room settings.

Cable-Free Internal Architecture

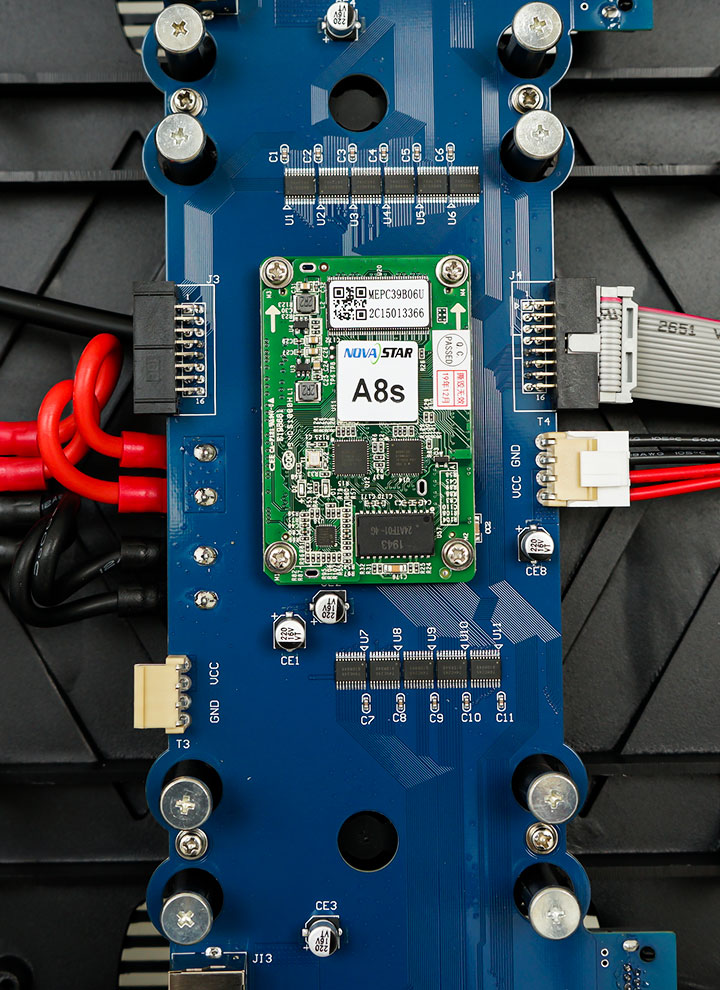

To maximise reliability, the C-Max COB employs a streamlined internal design using high-speed board-to-board “float” connectors. This eliminates vulnerable ribbon cables, significantly reducing potential failure points.

Full Component Accessibility

In professional installations where downtime is unacceptable, the C-Max COB provides full front access to all core components — modules, power supplies, and system cards — via an intuitive magnetic quick-lock system.

Send a Comment

* Project status:

* Business email:

Phone:

GA * Client

* Country

Width in millimeter:

Height in millimeter:

Viewing distance:

Installation site:

Checkboxes

Uncertain size

* Installation method:

* Type:

Message

Chat on WhatsApp

Product Highlight

4H Collision Proof

Hardened COB surface protects against impact, dust, and moisture for superior long-term reliability.

True Black Contras

Non-reflective matte finish delivers deeper blacks and exceptional clarity for close-view professional visualization.

Cable-Free Architecture

Board-to-board hard connections eliminate ribbon cables, ensuring maximum signal stability and reliability.

100% Front Service

Magnetic quick-lock system provides rapid front access to all components while saving valuable installation depth.

Service Support

End-to-End Project Support

From design to installation, we handle every step for you.

Customization for Every Scenario

Tailored LED screens for any location or shape.

Reliable Quality & Smart Maintenance

Stable performance, simple upkeep, and long lifespan.

Global Service & Fast Response

Fast delivery and responsive service worldwide.

Frequently Asked Questions

From specs and compatibility to warranty and support, our FAQ covers everything you need to know to get the most out of your experience.

+86 18148555033

[email protected]

5F Tower C,Baoshi Technology Park,Baoshi Road,Shiyan Street,Bao'an District.Shenzhen City China 518102

Why is the "Native 4:3 Ratio" important for my conference room?

Traditional LED cabinets often require complex video processors to match standard 16:9 content (like PowerPoint or Zoom). The C-Max 640×480mm cabinet is a native 4:3 unit. This means you can easily build a standard 16:9 FHD or 4K screen by simply stacking a 4×3 or 8×6 array, achieving a pixel-to-pixel display without image distortion or scaling artifacts.

Does the C-Max Fine Pitch require a rear maintenance corridor?

How does the "Internal Hard Connection" benefit my installation?

Unlike traditional screens that use messy ribbon cables, C-Max Fine Pitch uses board-to-board "float" connectors. This wireless internal design not only makes the installation look cleaner and more professional but also significantly reduces the risk of signal failure caused by loose cables, ensuring high stability for mission-critical command centers.

Is this display suitable for video conferences and camera recording?
