Optical Performance (Urban & Ramps)
Tailored for varied viewing distances. P16 offers up to 15,000 nits for sun-facing expressways, while P10 delivers 8,000 nits for closer, high-resolution viewing on off-ramps and toll approaches.
C-Tra-KXB Lightweight VMS
Ultra-light <35 kg/m² aluminum VMS for F-frames and retrofits.

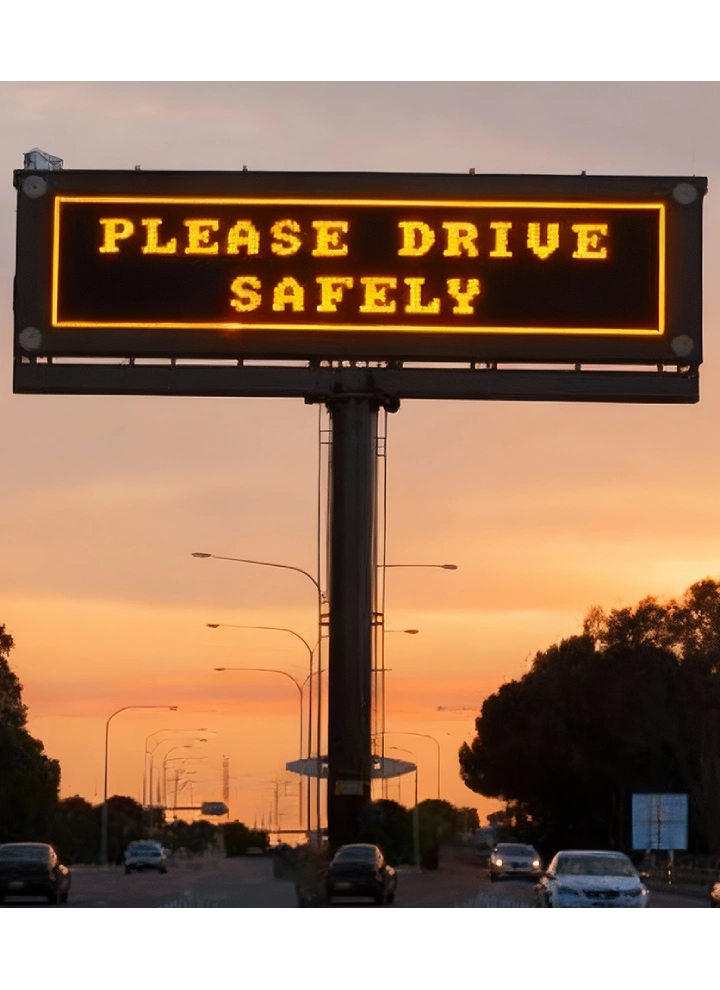

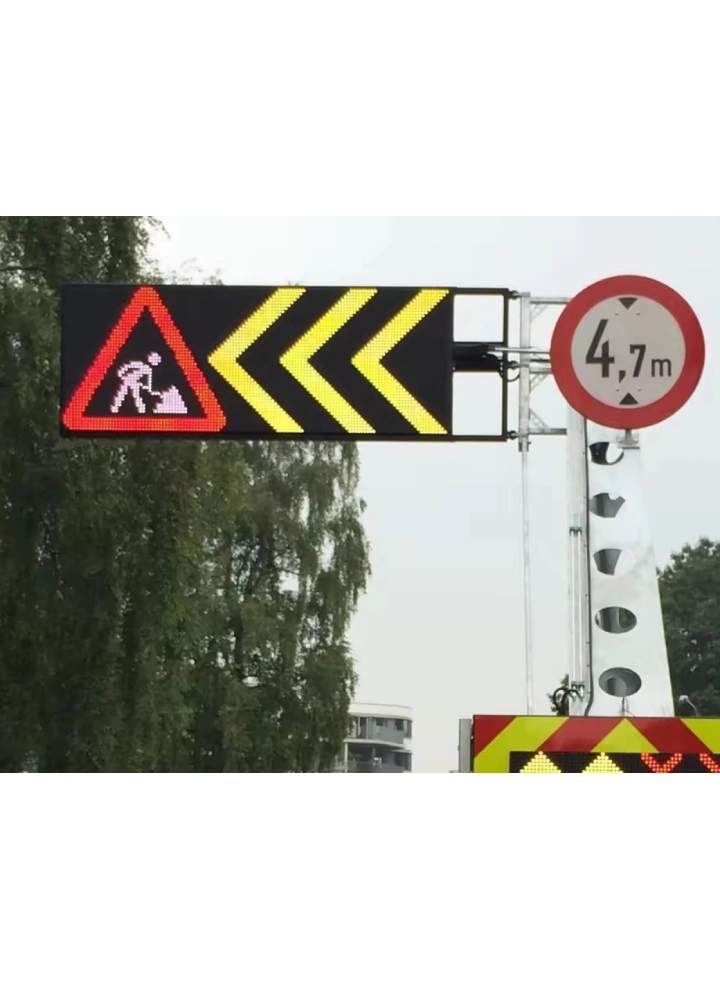

C-Tra-KXB (Lightweight Series) is a compact aluminum-profile traffic display designed for F-frames, cantilever poles and retrofit gantries. Weighing under 35 kg/m², it dramatically reduces structural load while maintaining stability. With brightness up to 15,000 nits (P16) and slim door-frame formats, it is ideal for urban expressways and upgrading aging signs without reinforcing existing foundations.
C-Tra-KXB Lightweight VMS
Ultra-light <35 kg/m² aluminum VMS for F-frames and retrofits.
C-Tra-KXB (Lightweight Series) is a compact aluminum-profile traffic display designed for F-frames, cantilever poles and retrofit gantries. Weighing under 35 kg/m², it dramatically reduces structural load while maintaining stability. With brightness up to 15,000 nits (P16) and slim door-frame formats, it is ideal for urban expressways and upgrading aging signs without reinforcing existing foundations.
Specification
Pixel PitchP10 / P16
Brightness8,000 nits (P10) / 15,000 nits (P16)
Dimensions1440×640 mm / 960×1280 mm (Door-frame)
Cabinet Weight<35 kg/m² (Aluminum Profile)
ProtectionIP65 Front / IP54–IP65 Rear
Ultra-light <35 kg/m² for pole loads
Aluminum profile body for durable lightweight design
Slim ≤100 mm depth for tight roadside spaces
Ideal for retrofit without structural reinforcement
Front & rear service for fast maintenance
Auto-dimming reduces glare and power costs
- Dscription
- Specification
- Application
- Solution
- FAQs
Ultra-Light Aluminum Structure
Built with industrial aluminum profiles, the cabinet stays below 35 kg/m². Compared with traditional steel cabinets (>60 kg/m²), the reduced load is critical for F-frames and cantilever poles with strict weight limits.
Perfect for Retrofit Projects
Unlike square gantry cabinets, this series offers purpose-built formats including 1440×640 mm and 960×1280 mm. These dimensions naturally fit vertical door-frame structures, tunnel entrances, toll stations and narrow median installations.
Door-Frame & F-Frame Formats
The system features fully sealed IP65 modules, protecting internal components from dust, driving rain, and corrosive exhaust fumes. With an operating range of −20°C to +50°C, it performs reliably in environments ranging from freezing northern bridges to scorching desert highways.
Energy Saving & Smart Dimming
Automatic brightness adjustment reduces glare at night and improves energy efficiency. Power consumption for P16 is typically ≤80 W/m² at 10,000 nits, lowering OPEX for urban road operators.
Flexible Maintenance
Designed for restricted access sites. Independent modules can be serviced from both the front and rear—critical for side-mounted poles, narrow medians or overpasses where rear access is limited.
Send a Comment
Product Highlight
<35 kg/m² Aluminum
Dramatically reduces load on F-frames and cantilever poles.
Retrofit Friendly
Upgrade old signs without reinforcing steel structures.
Slim Profile (≤100 mm)
Designed for urban roads and tight installation spaces.
15,000 nits Brightness
Clear visibility on sun-facing expressways and ramps.
Service Support
End-to-End Project Support
From design to installation, we handle every step for you.
Customization for Every Scenario
Tailored LED screens for any location or shape.
Reliable Quality & Smart Maintenance
Stable performance, simple upkeep, and long lifespan.
Global Service & Fast Response
Fast delivery and responsive service worldwide.
Related Solution
Urban & Retrofit Guidance Solution
Deploy C-Tra-KXB Lightweight VMS where weight and space are restrictedF-frames, ramps, side poles and retrofit projects.
Combine with:
C-Tra-KXB Gantry VMS for mainline guidance

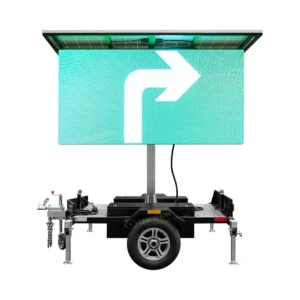

C-Tra-KXB Mobile VMS for temporary traffic control
C-Tra-KXB ETC Lane Display for toll and ETC approaches
Together, they deliver a complete end-to-end ITS traffic guidance solution.
