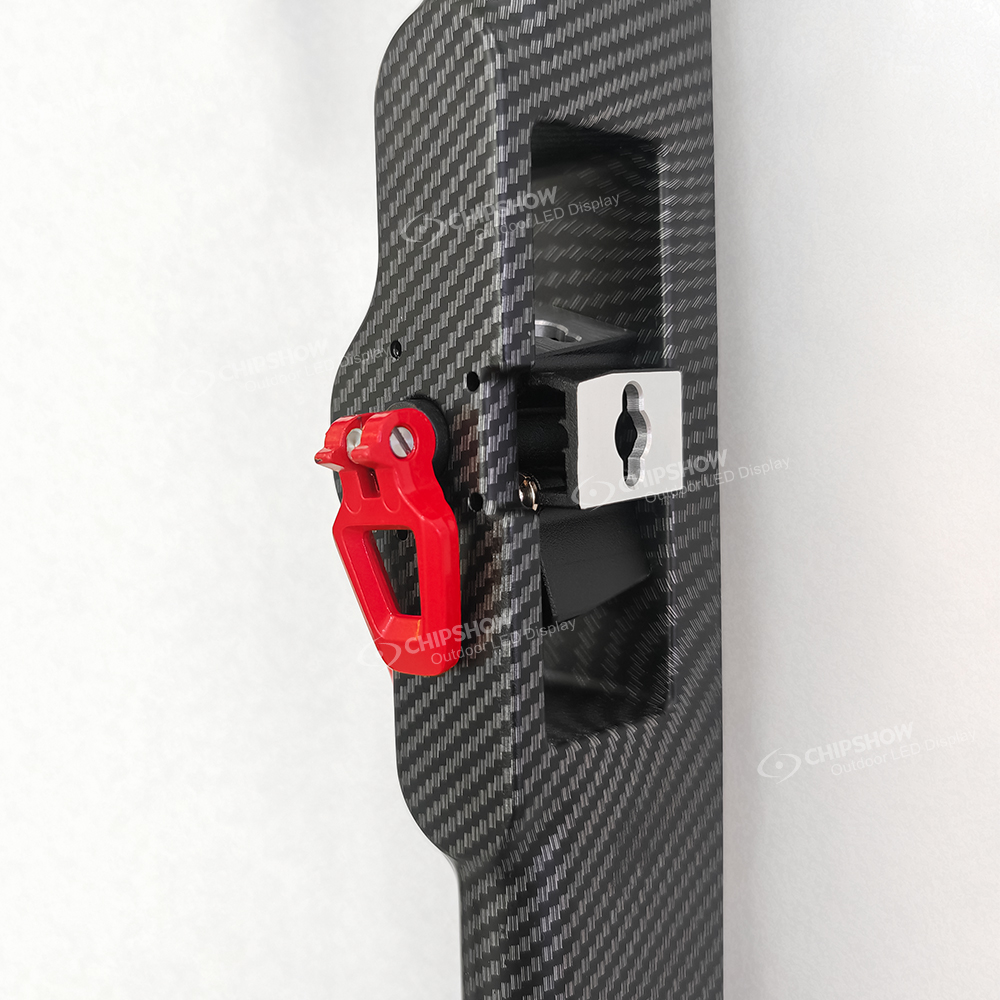

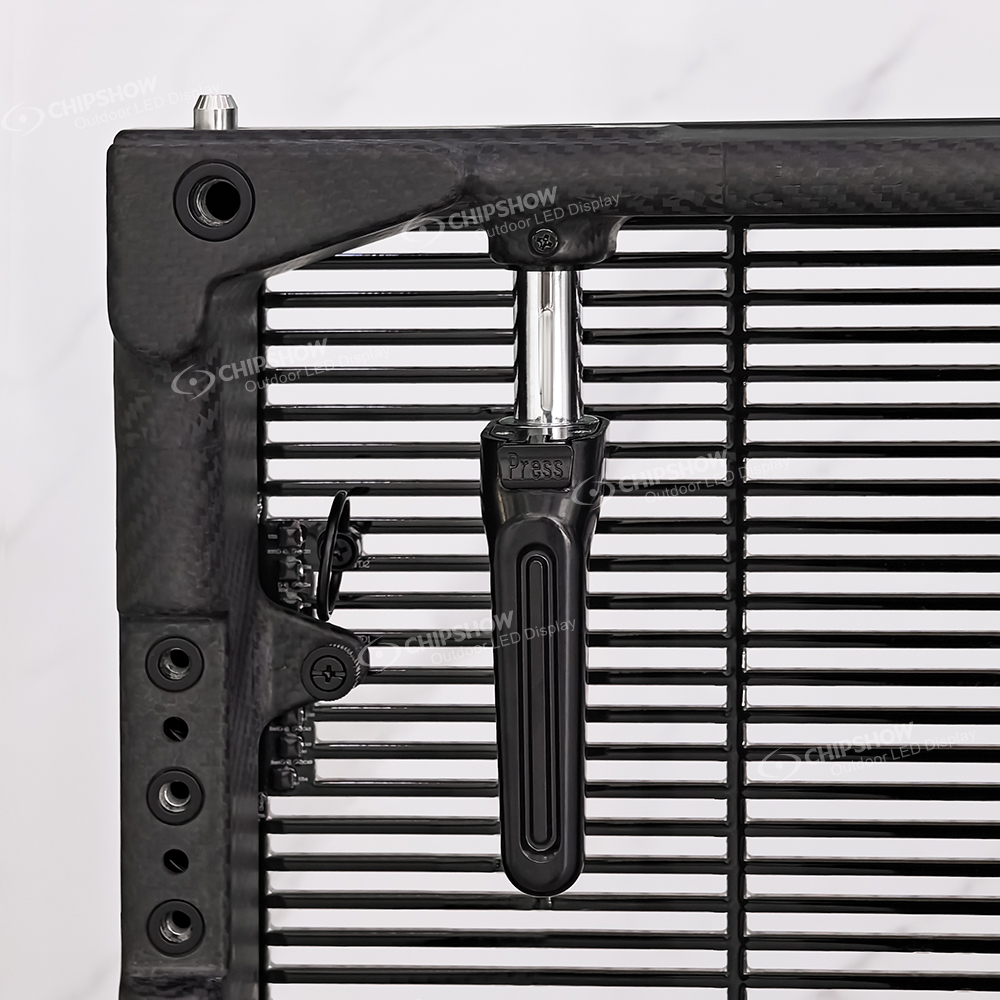

Carbon Fiber Architecture
Combines Carbon Fiber and Mg-Alloy to create a rigid, durable frame that withstands touring stress while remaining lightweight (20kg).
C-Carbon P3.91 lightweight (20kg) Rental LED Wall
Large format. High brightness. Tour ready.
Built on a 1000×1000 mm carbon-fiber frame, C-Carbon P3.91 combines rapid deployment with outdoor readability. It features ≤6000 cd/㎡ brightness, 3840 Hz refresh, magnetic front/rear service and IP65 (front/back) protection for demanding rental workflows.
C-Carbon P3.91 lightweight (20kg) Rental LED Wall
Large format. High brightness. Tour ready.
Built on a 1000×1000 mm carbon-fiber frame, C-Carbon P3.91 combines rapid deployment with outdoor readability. It features ≤6000 cd/㎡ brightness, 3840 Hz refresh, magnetic front/rear service and IP65 (front/back) protection for demanding rental workflows.
Specification
Pixel pitch 3.91 mm (SMD1921)

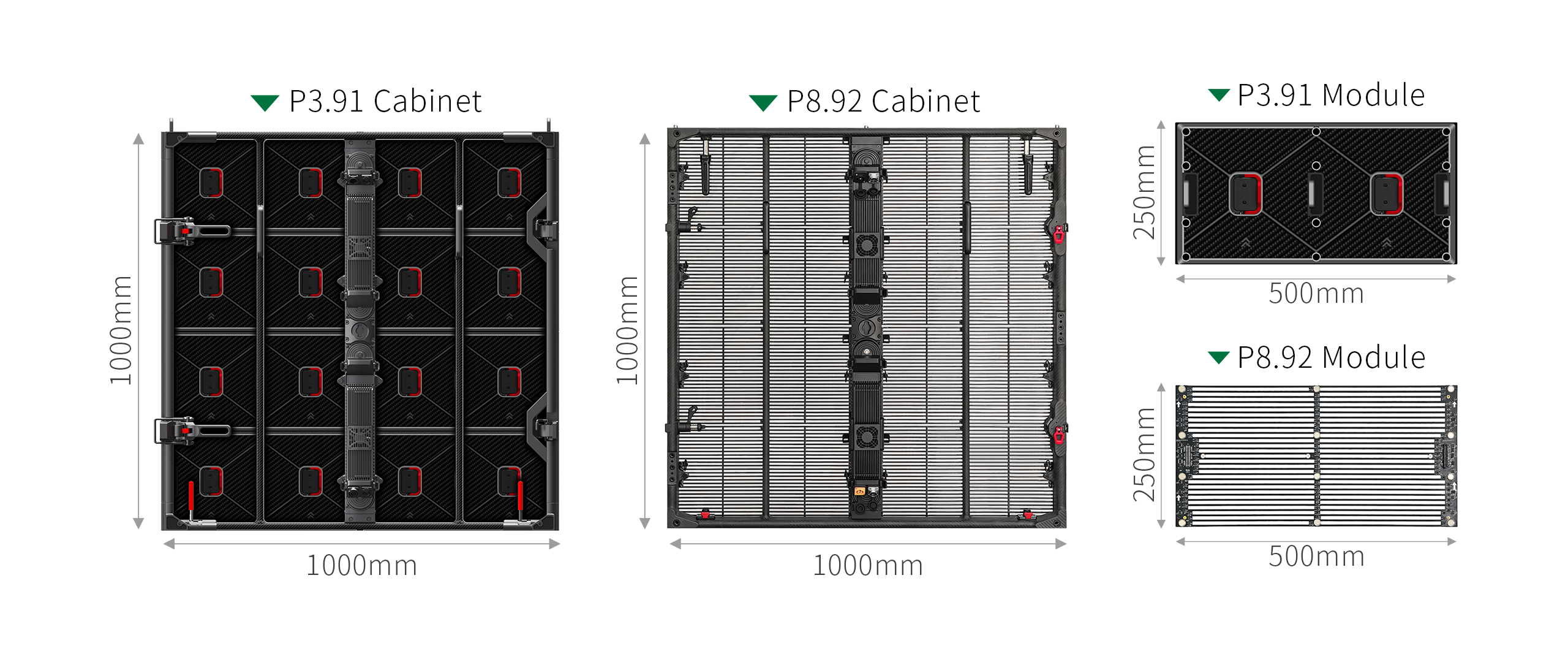

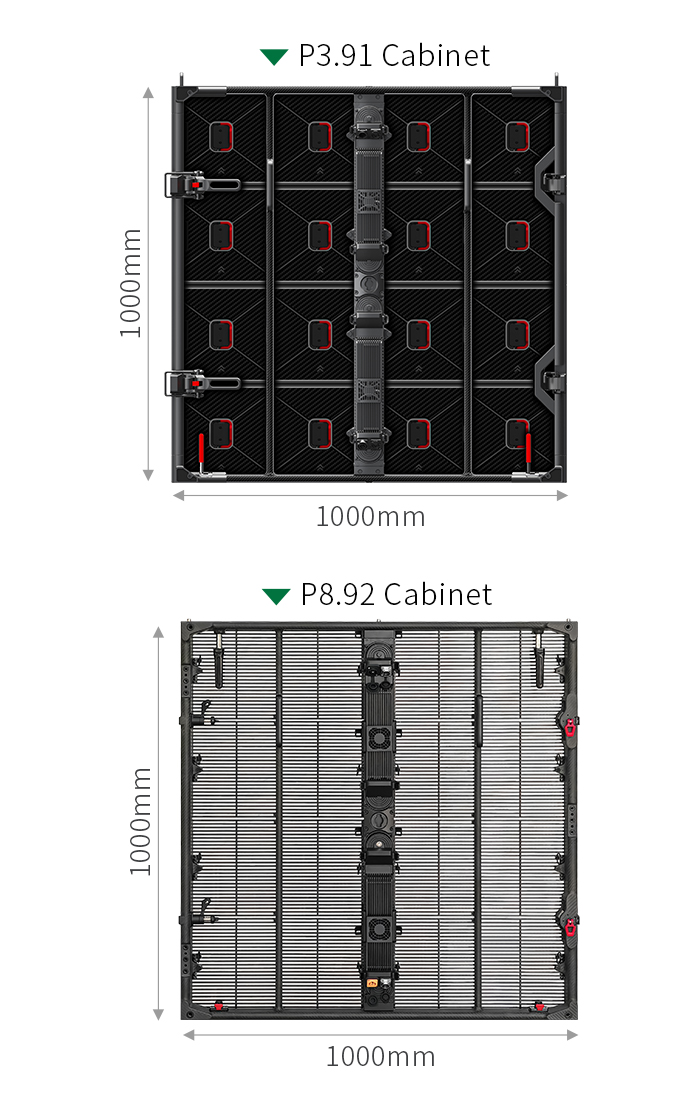

Cabinet size 1000×1000×83.75 mm
Cabinet weight 20 kg
Brightness ≤6000 cd/㎡
Protection IP65 front / IP65 back
-
1×1 m efficiency — Fewer seams and rigging points speed up large-scale builds.
-
20kg ultra-light design — Carbon-fiber frame significantly reduces truss loading.
-
6,000 nits brightness — Maintains high contrast and readability in direct sunlight.
-
Energy saving — Low avg. power (≤195W/㎡) reduces onsite generator costs.
-
Smart heat control — Intelligent fans ensure stability in 55℃ outdoor heat.
-
IP65 rental tough — Sealed front/rear protection for all-weather reliability.
- Description
- Specification
- Application
- Parameter
- Form
- Product Highlight
- FAQ

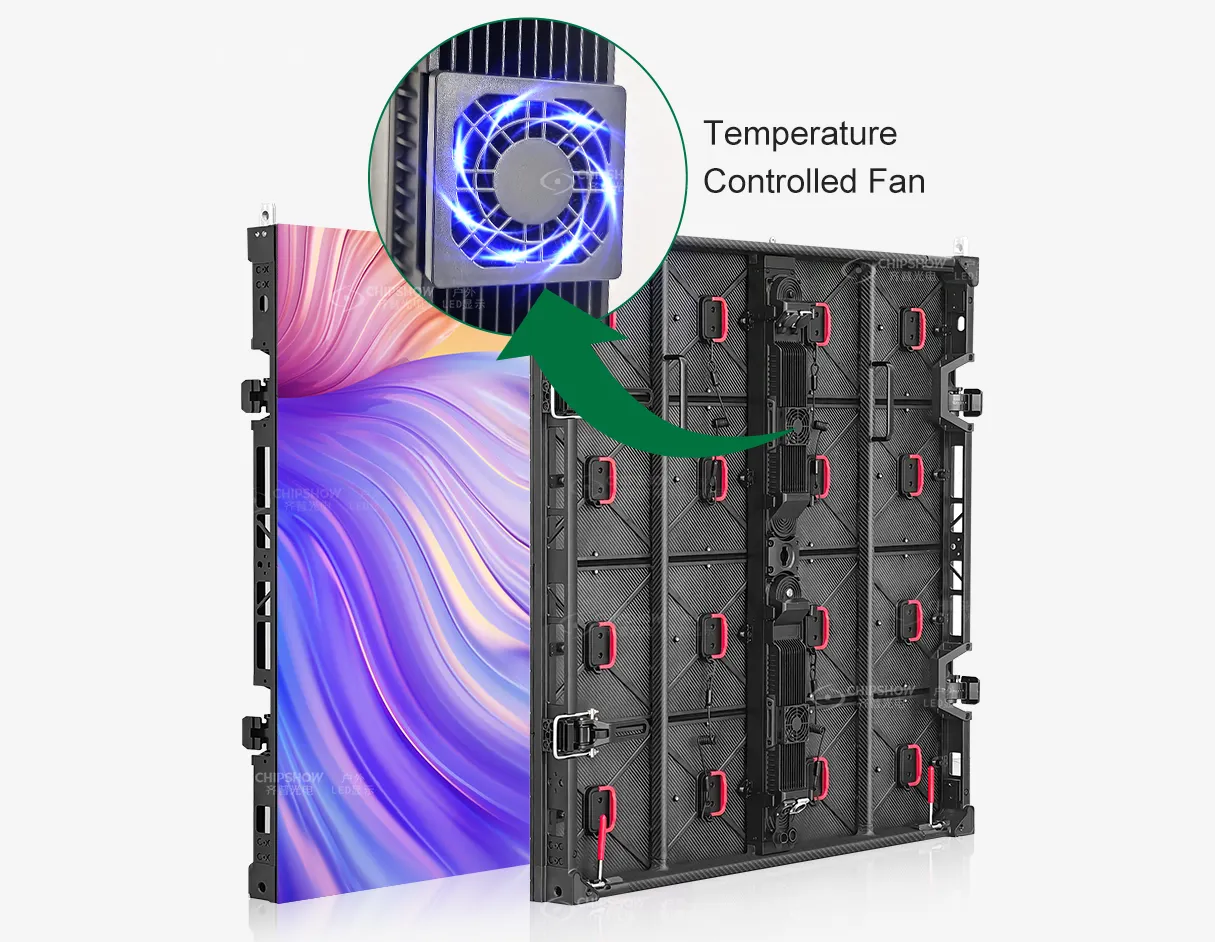

Intelligent Thermal Control
Unlike passive designs, the "Smart Heat Dissipation" system uses variable-speed fans to actively manage heat, ensuring stability in high-temp (55℃) environments.
Visual Clarity
Delivers ≤6000 nits brightness and 3840 Hz refresh rate, ensuring vivid content visibility under direct sunlight and flicker-free camera capture.
Operational Efficiency

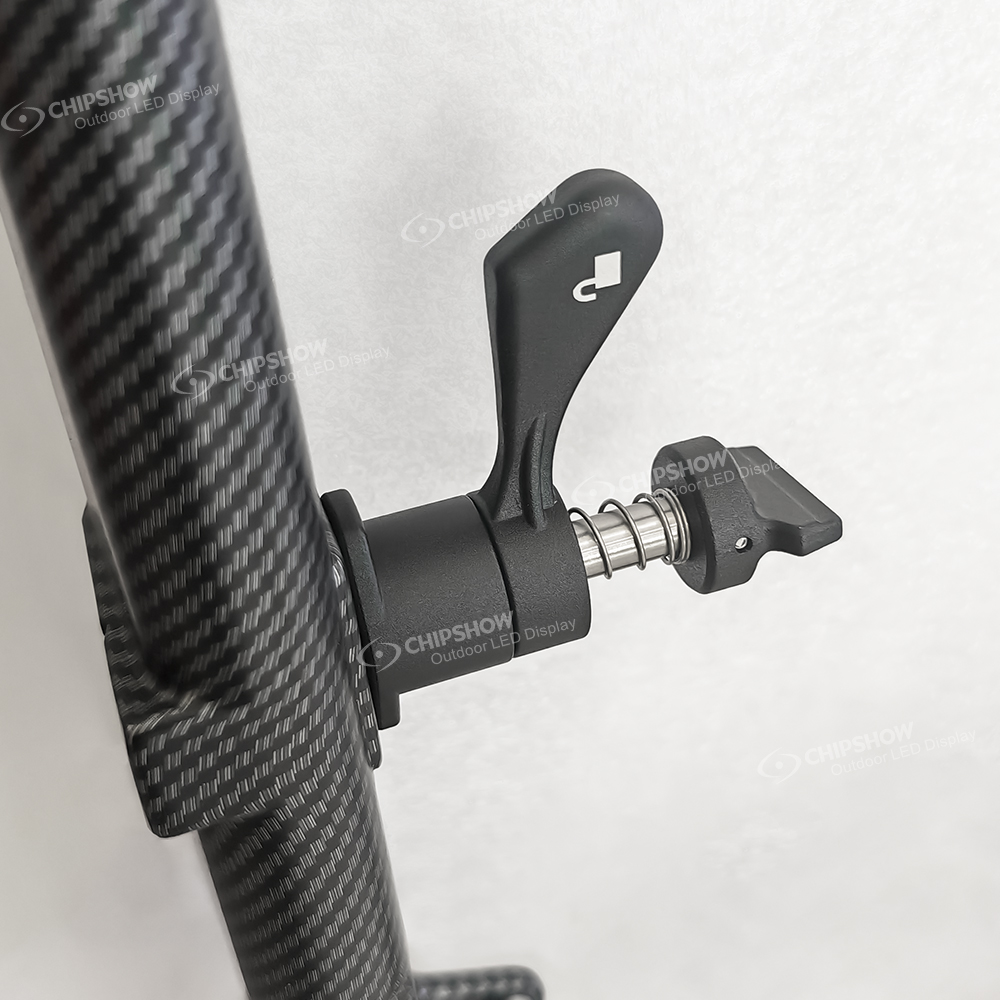

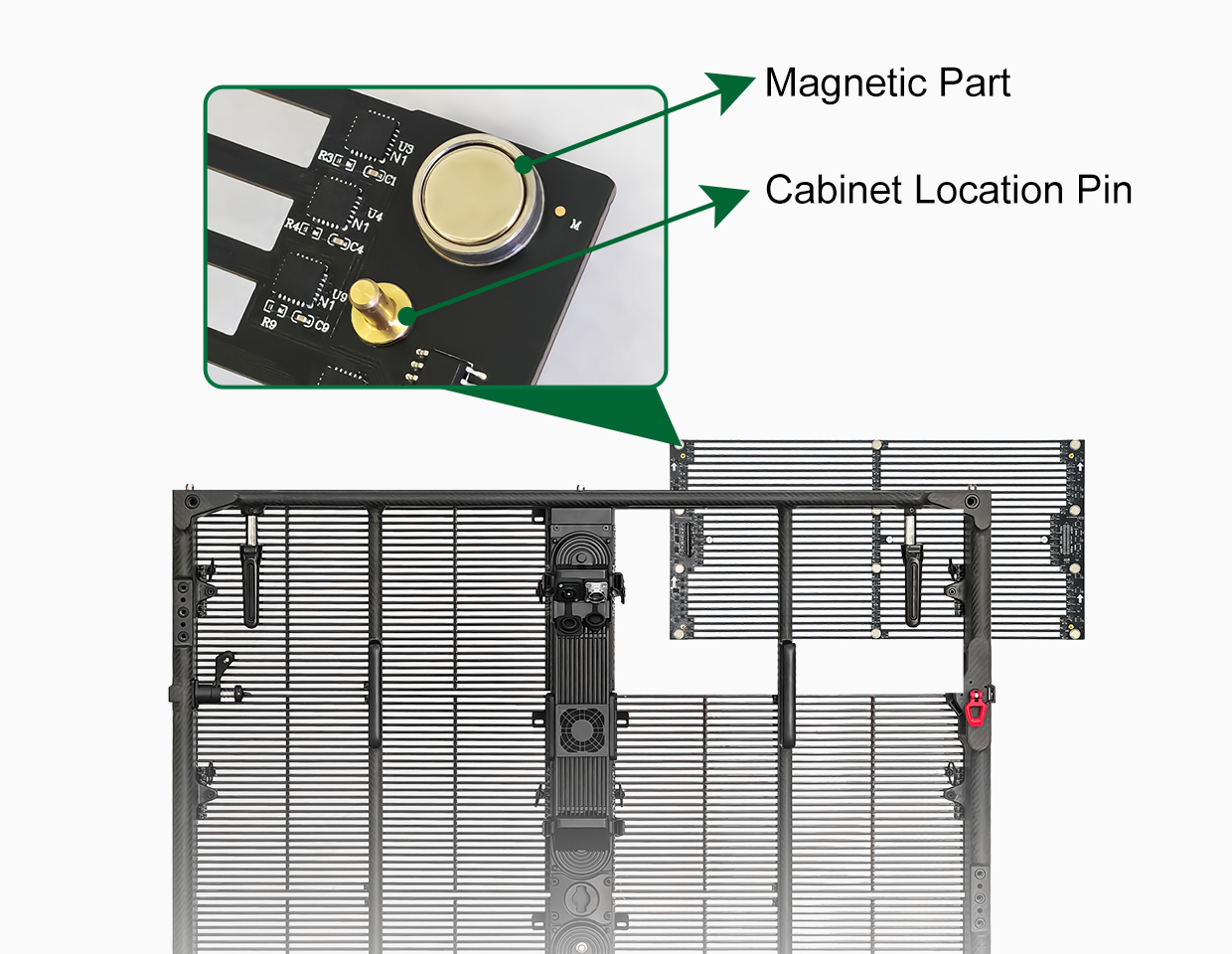

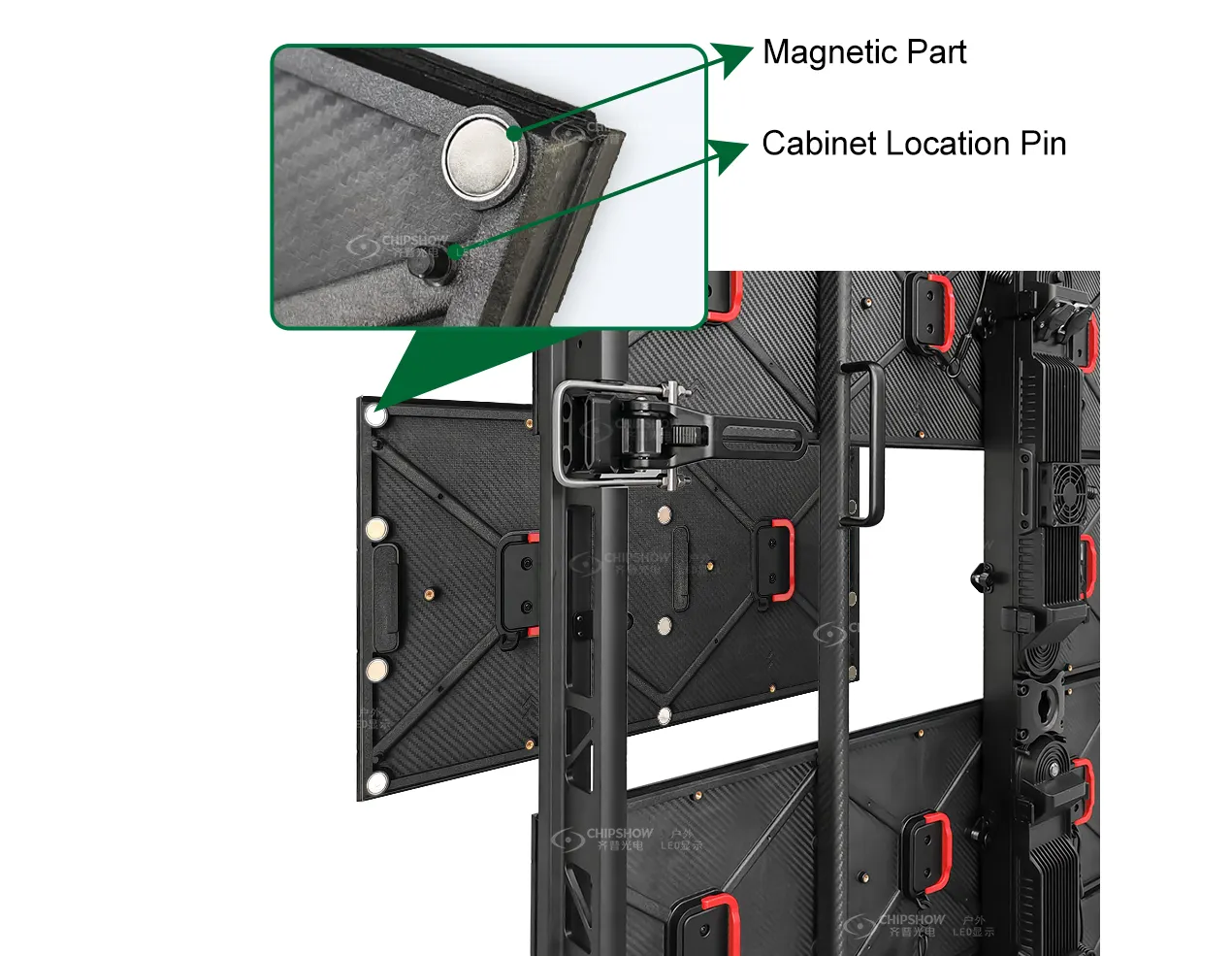

The 1000×1000mm format covers more area with fewer cables. Magnetic alignment ensures precise installation for stacking or hanging.
Energy Optimization
Operating at a lower voltage (DC4.6V) results in an average power consumption of just ≤195W/㎡, lowering operational costs.
All-Weather Protection

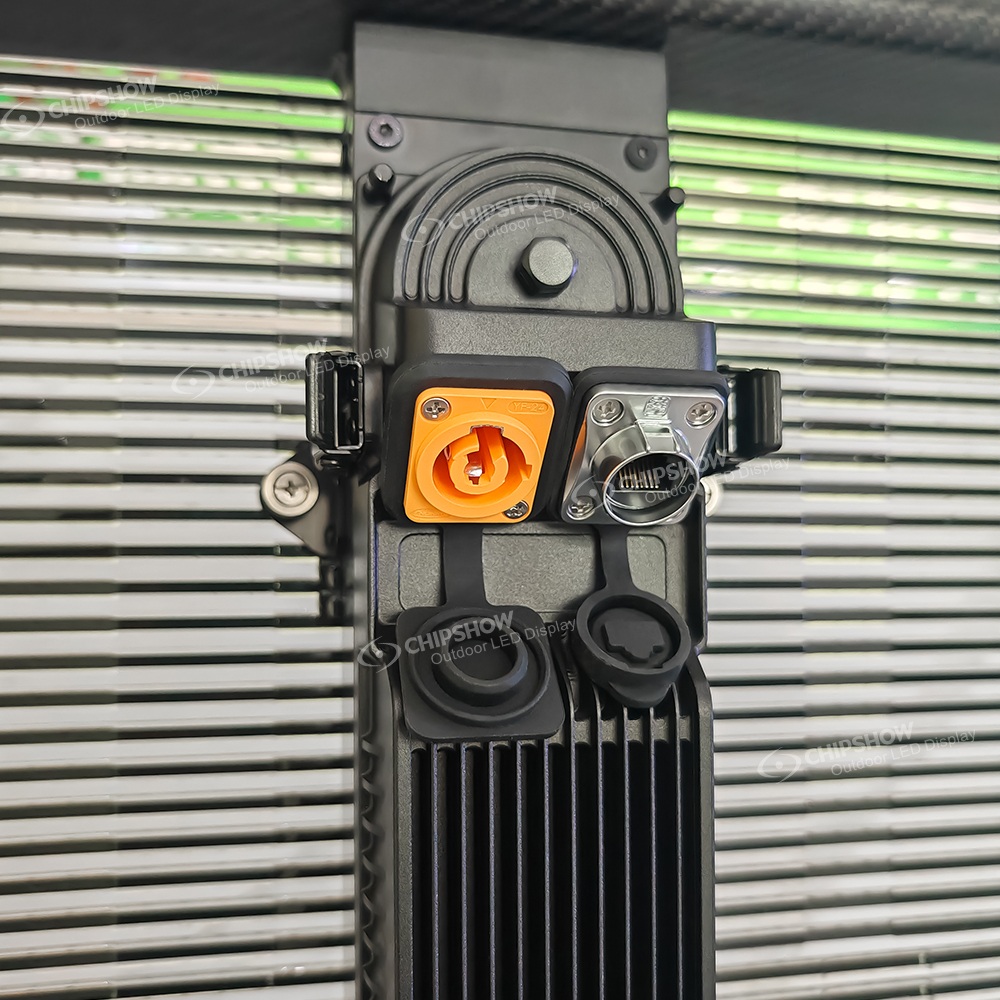

Certified IP65 for both front and back, ensuring the power box and modules are sealed against rain and dust.
Send a Comment
Service Support
End-to-End Project Support
From design to installation, we handle every step for you.
Customization for Every Scenario
Tailored LED screens for any location or shape.
Reliable Quality & Smart Maintenance
Stable performance, simple upkeep, and long lifespan.
Global Service & Fast Response
Fast delivery and responsive service worldwide.
Recommend
Purpose-built platforms for iconic moments
Pixel pitch
P1.95 / P2.6 / P2.97 / P3.91
Dimension
500×500/1000×79 mm
Feature
Fanless 0dB Silent Cooling
Fine pitch for close-view
One-Touch Rotary Rapid Service
−10° to +15° curves
Pixel pitch
P2.6 / P2.97 / P3.91
Dimension
500×500/1000×79 mm
Feature
IP65/IP54 Touring Protection
5,500 Nits Daylight Impact
Wind-Bracing Support System
Ultra-High 7,680Hz Refresh

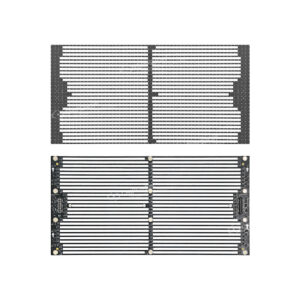

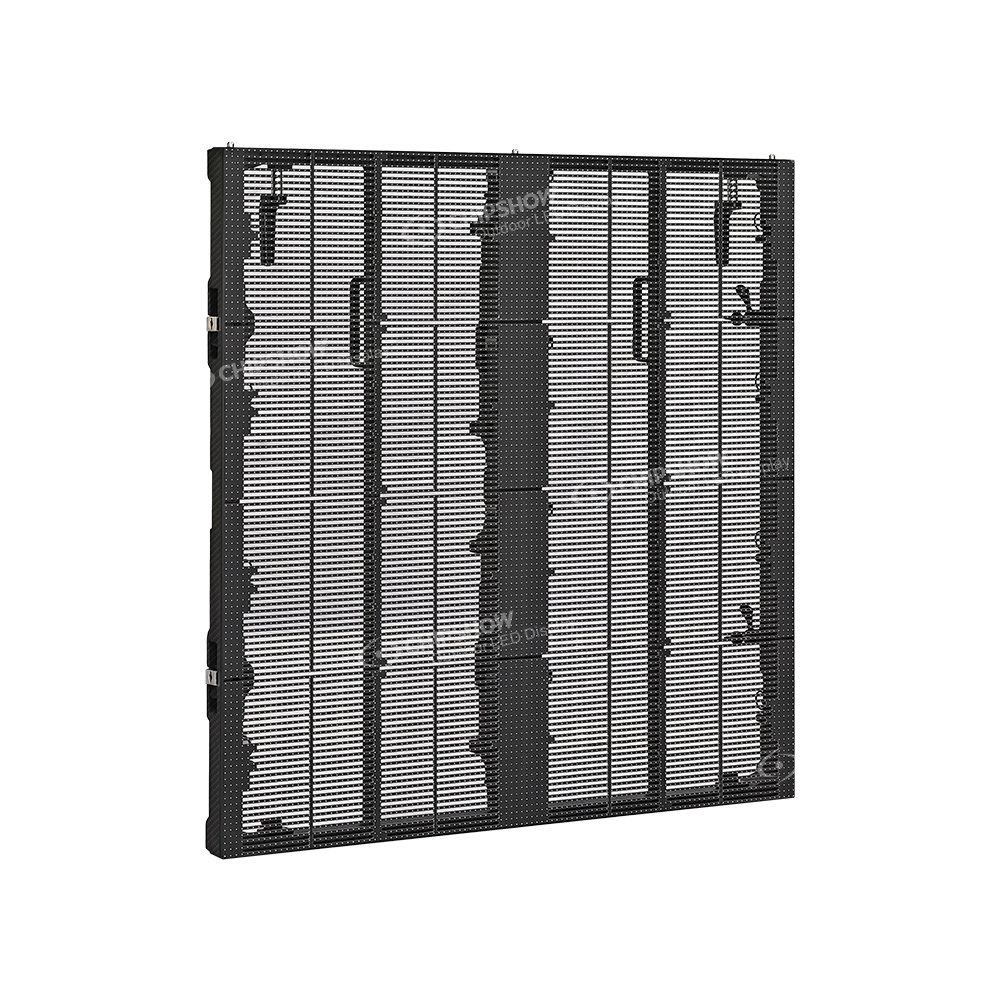

Pixel Pitch:
P8.93
Dimension:
1000×1000 mm
Features:

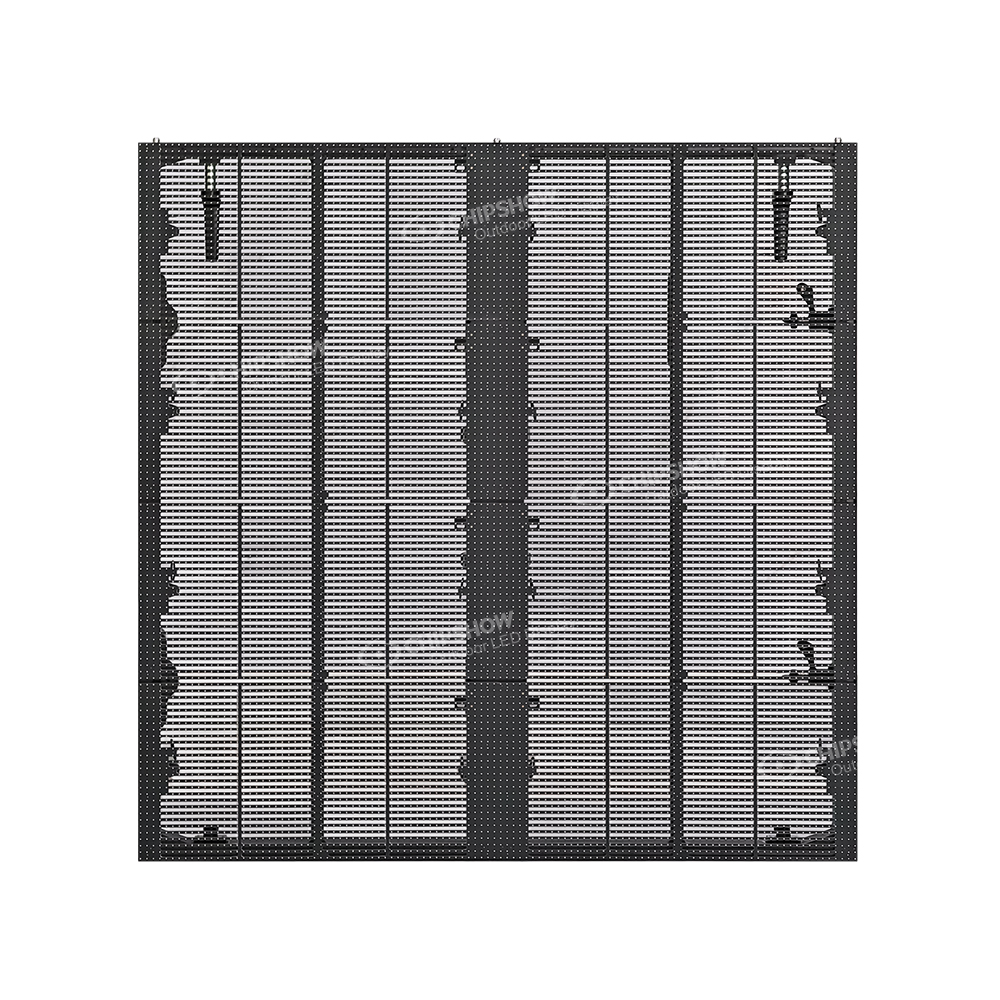

65% transparency
Ultra-light 12.5 kg/panel
Wind-load friendly
IP65 all-weather rated
Pixel Pitch
P2.5-P16(For Hybrid Project)
Dimensions
960/640/1280×960 mm
Features
Hybrid Fast Rigging
Negative-Pressure Cooling
Perimeter-Ready Options
One Platform, Upgrade Easy
Pixel pitch
P2.9 / P3.9 / P4.8
Dimension
500×500/1000 mm
Feature
4,500 Nits Daylight Output
IP54 Touring Protection
Single-Person Fast Locks
Universal 500/1000 Mix
Frequently Asked Questions
From specs and compatibility to warranty and support, our FAQ covers everything you need to know to get the most out of your experience.
How does the 20kg weight benefit large-scale touring setups?
At just 20kg per 1000×1000mm cabinet, the C-Carbon P3.91 is significantly lighter than traditional die-cast aluminum options. This lightweight carbon-fiber frame reduces the static load on truss structures, allowing for larger screen arrays without exceeding weight limits, and simplifies manual handling for faster load-in.
Is the C-Carbon P3.91 energy-efficient for generator-powered events?
Can this display perform reliably in direct sunlight and high heat?
Does the cabinet support quick maintenance during an event?
Is the 1x1m cabinet compatible with standard 500x500mm rigging accessories?
