Slim Profile for Clean Integration
In premium rooms, the wall footprint is part of the design brief. With a 34.6 mm cabinet depth, C-Pad-H helps reduce visual bulk and supports a cleaner “built-in” look for architects and integrators.
C-Pad-H Slim Indoor COB（P0.9-1.56）

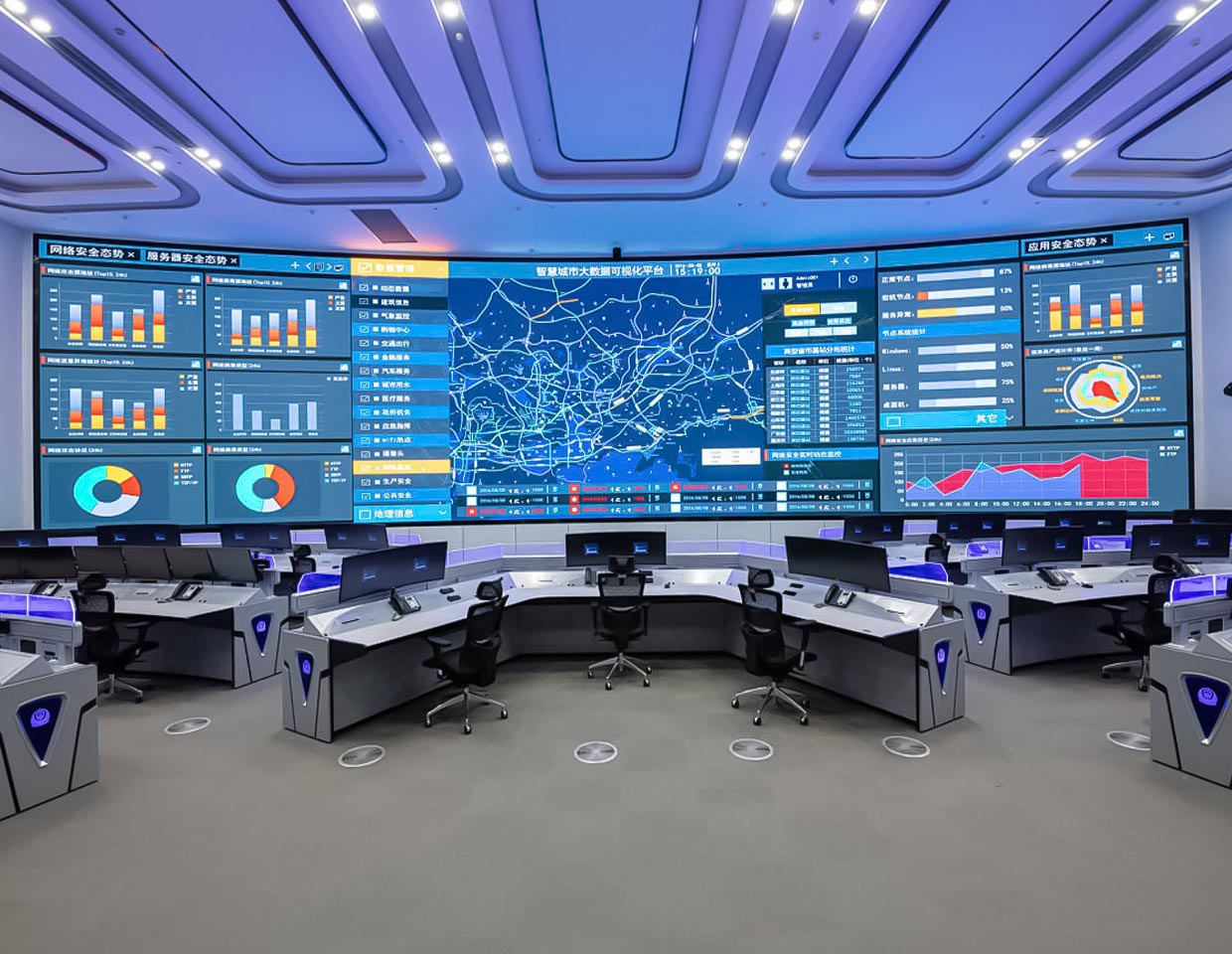

C-Pad-H is a slim indoor COB display for boardrooms, control rooms, showrooms and flagship retail. Its 16:9, 34.6 mm cabinets support space-saving wall installation and magnetic front service.
C-Pad-H Slim Indoor COB（P0.9-1.56）
C-Pad-H is a slim indoor COB display for boardrooms, control rooms, showrooms and flagship retail. Its 16:9, 34.6 mm cabinets support space-saving wall installation and magnetic front service.
Specification
Pixel pitch 0.93 / 1.25 / 1.56 mm

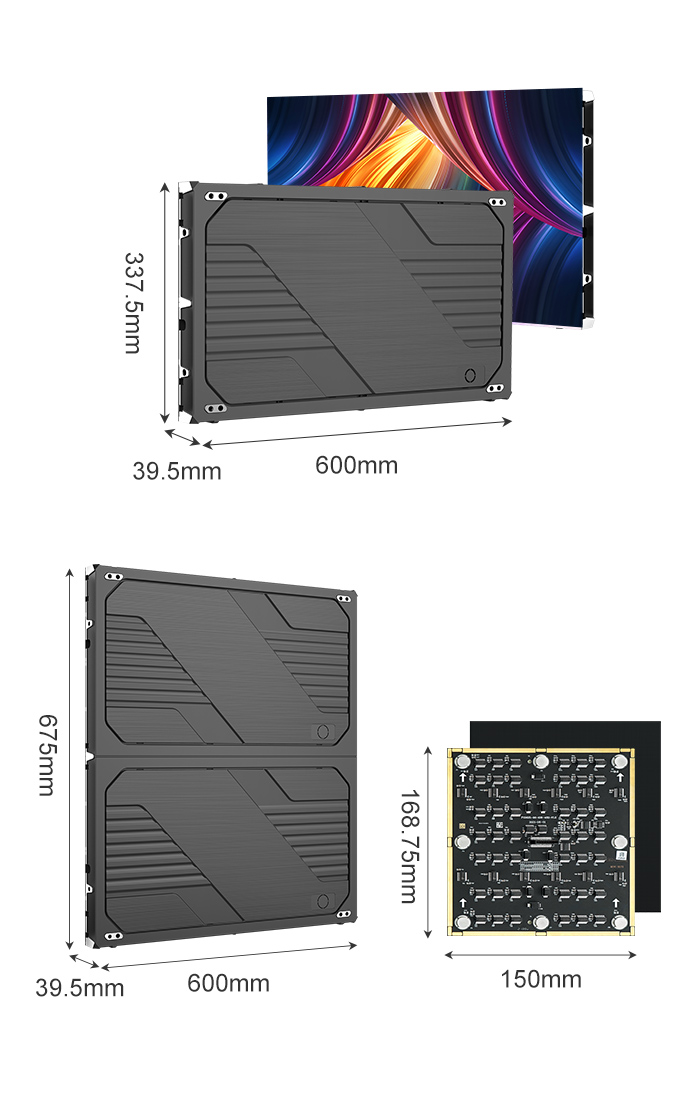

Cabinet size 600 × 337.5 × 34.6 mm
Cabinet weight 3.1 kg
Protection grade Front/Back IP54/IP40
COB package Inverted COB
- Indoor Comfort: 600-nit brightness for close-view spaces.
- Clear Detail: ≥13-bit grayscale and 3,840 Hz refresh.
- Slim Fit: 34.6 mm cabinets keep installations compact.

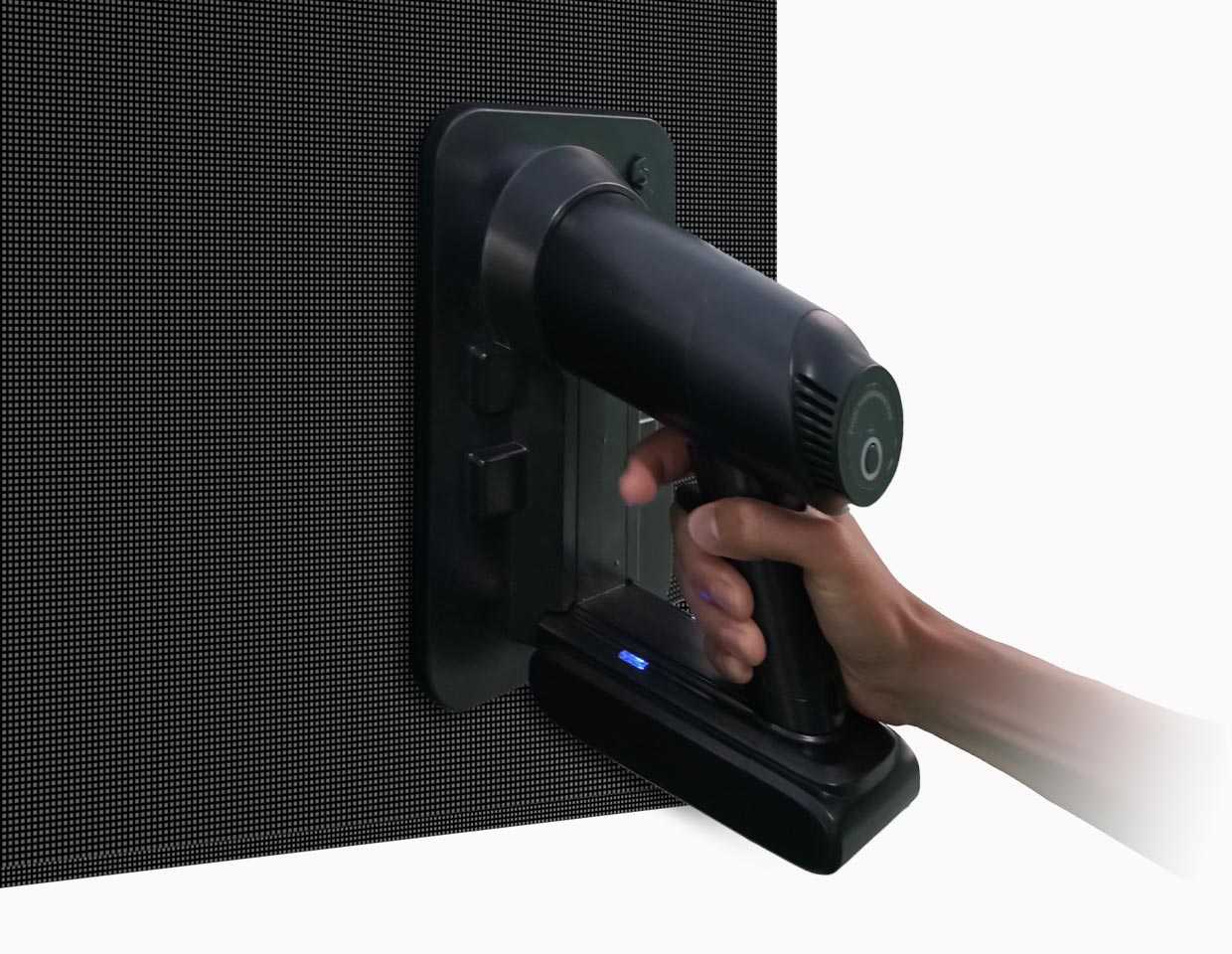

- Easy Front Service: Magnetic modules simplify maintenance.

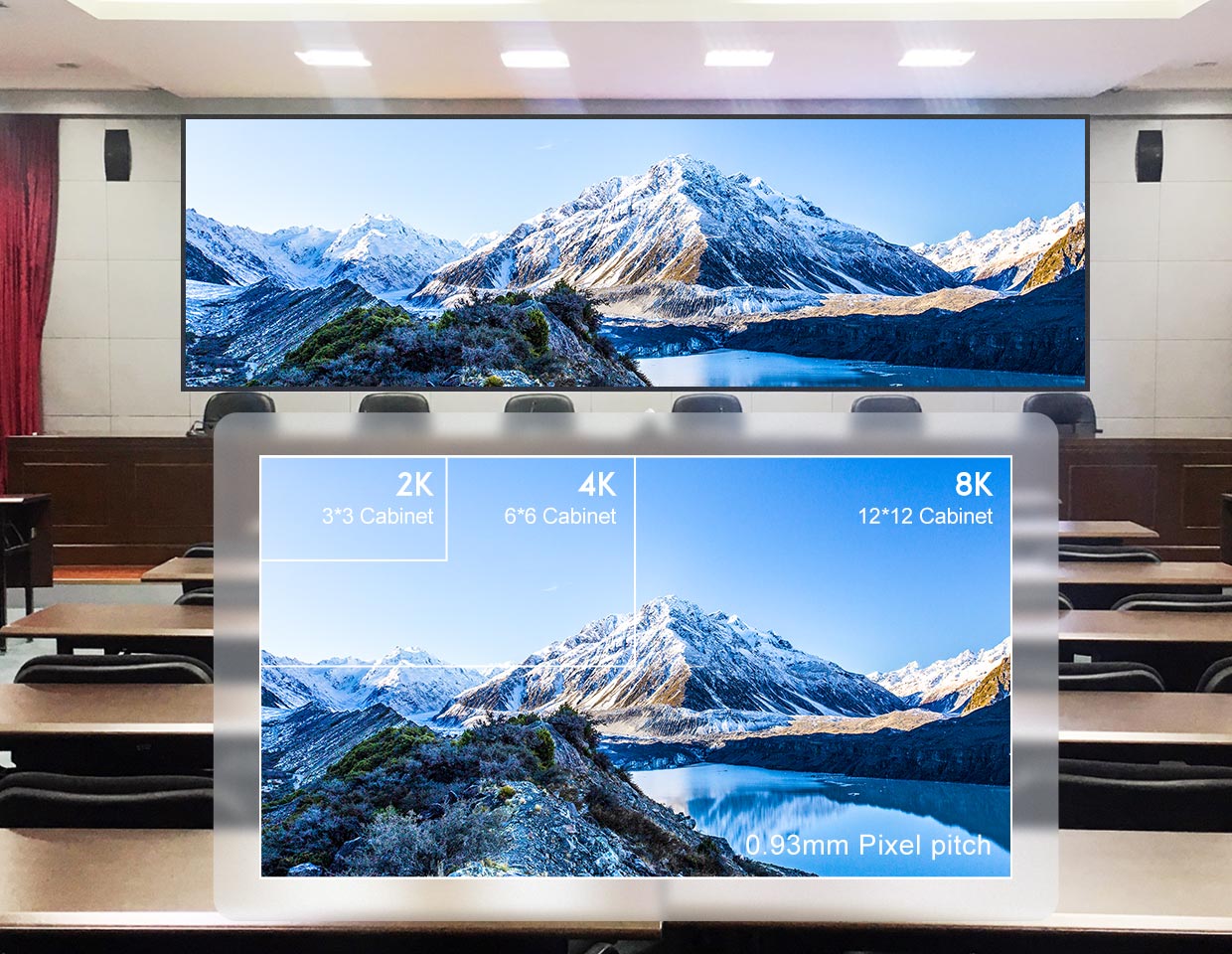

- Scale with 16:9: Build 2K, 4K or 8K display walls.
- Even Color: Point-by-point calibration improves uniformity.
- description
- Specification
- Application
- Solution
- FAQs
Specifications&Details
3.1 kg Cabinets for Faster Installation
Lightweight handling matters on fast-fit projects and high-finish interiors. At 3.1 kg per cabinet, crews can move and mount panels more efficiently while reducing wall load pressure.
Cooler Operation for Meeting Comfort
For close-range seating, perceived heat can affect comfort. Common-cathode options (available on P1.25/P1.56 models) are specified with lower power figures (e.g., P1.25 220W/㎡ max, 70W/㎡ average), which can help reduce thermal load in compact boardrooms.

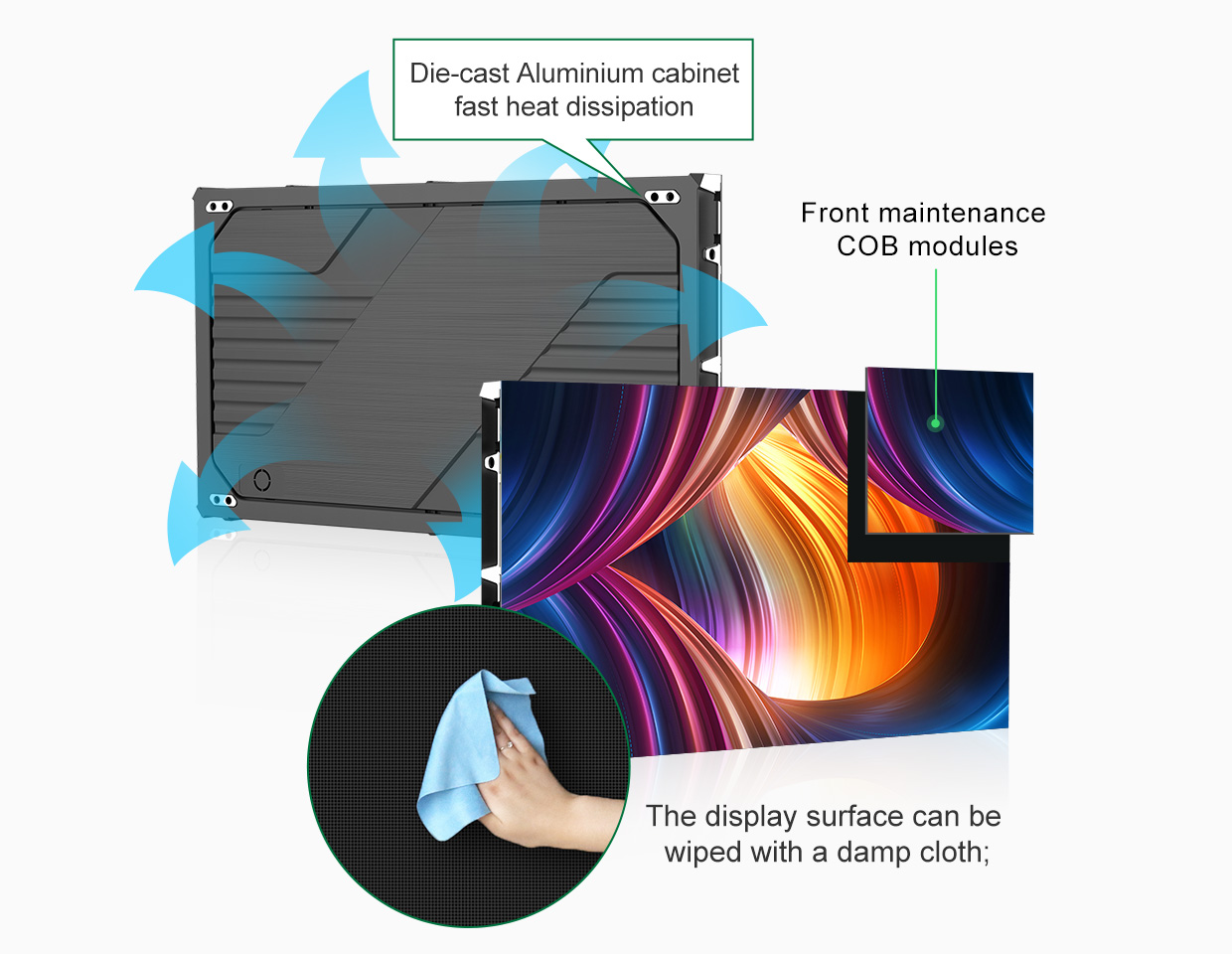

Front Access for Flush Wall-Mounting
Designed for direct wall mounting, components are serviced from the front, supporting premium spaces where rear access corridors are not possible. This keeps layout clean and simplifies future servicing.
Camera-Ready Motion and Grayscale
High refresh (3840 Hz) and ≥13-bit grayscale help maintain smooth content for conferencing, filming, and live switching—especially when text and faces must remain stable on camera.
Predictable 169 System Design

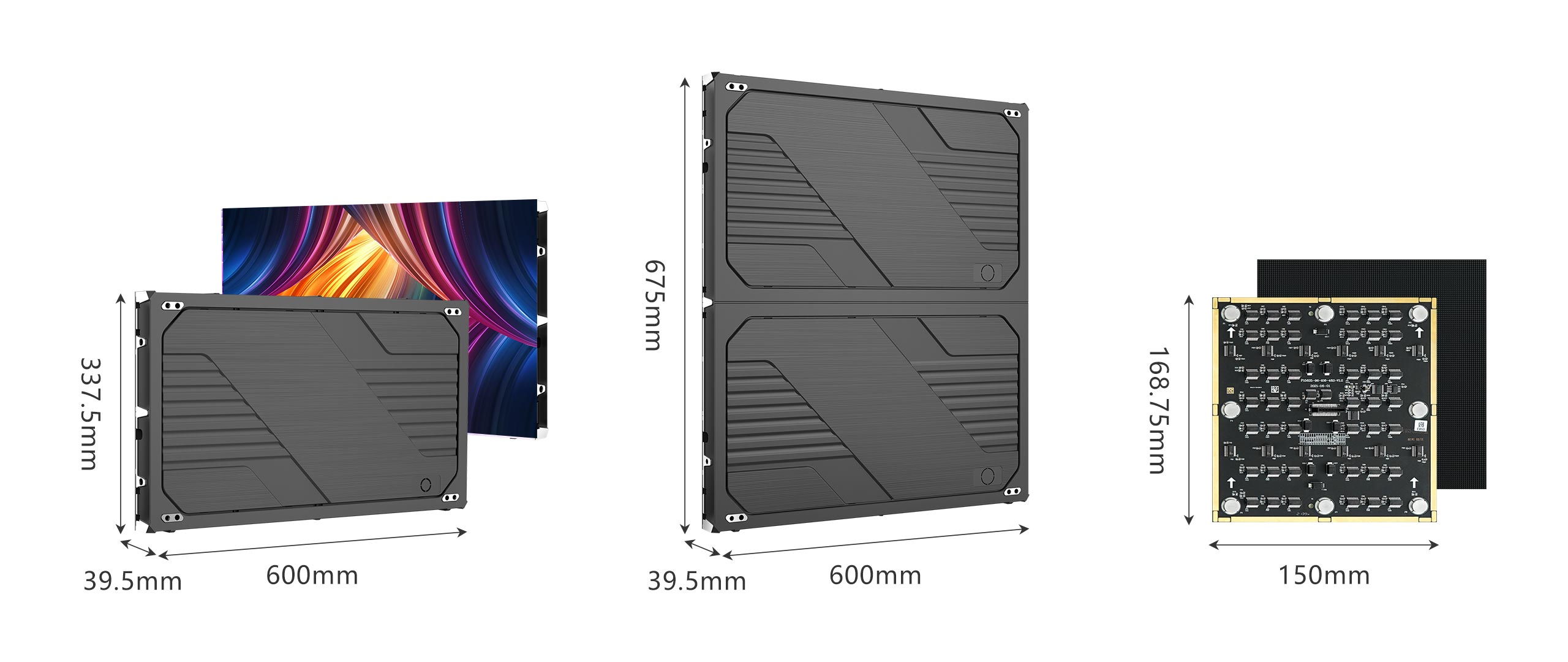

The 600 × 337.5 mm cabinet follows a native 169 ratio, making it easier to plan standard-resolution canvases with less scaling friction for typical AV signal chains.
Send a Comment
Service Support
End-to-End Project Support
From design to installation, we handle every step for you.
Customization for Every Scenario
Tailored LED screens for any location or shape.
Reliable Quality & Smart Maintenance
Stable performance, simple upkeep, and long lifespan.
Global Service & Fast Response
Fast delivery and responsive service worldwide.
Related Solution
Corporate Boardroom AV Solution

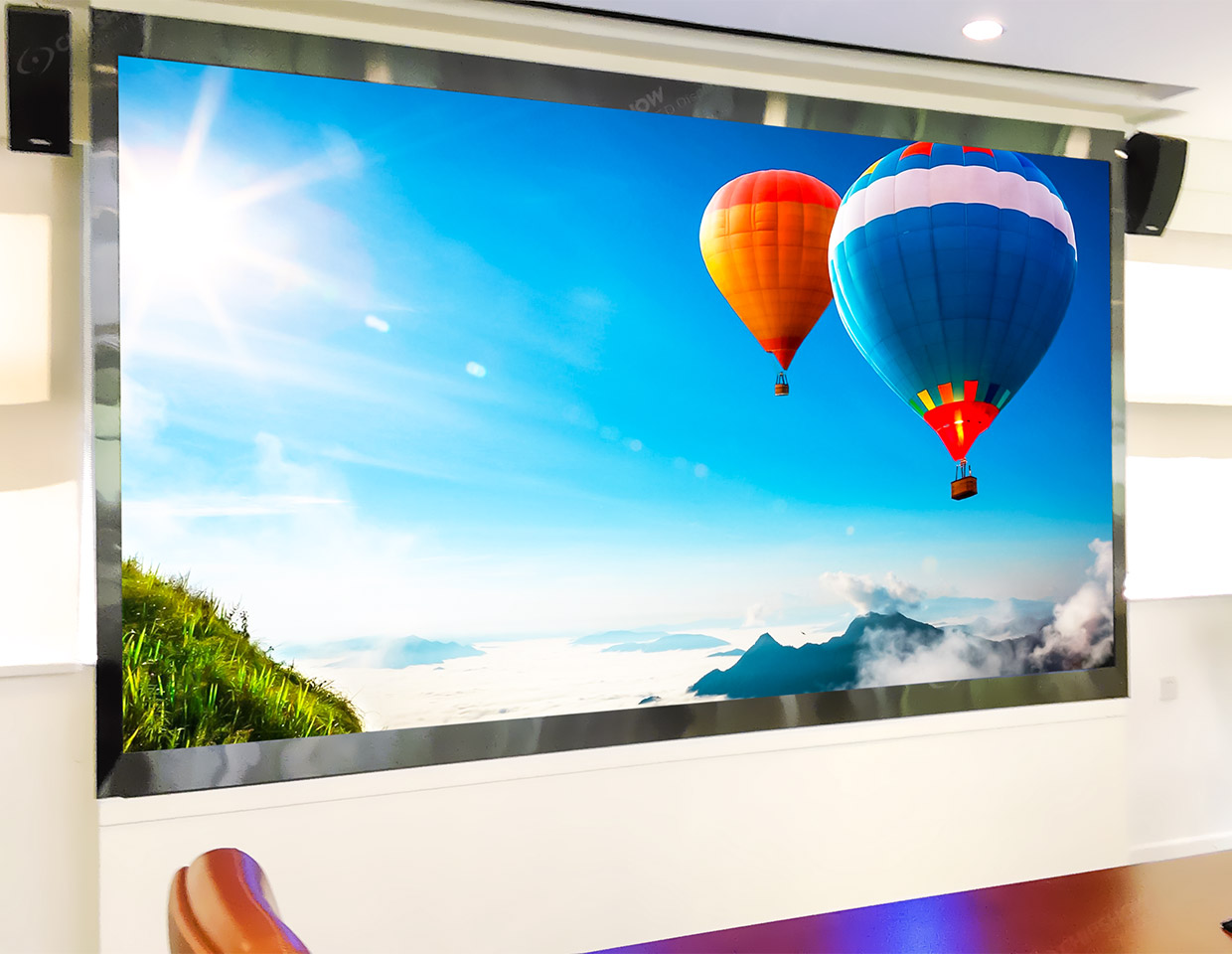

Pair C-Pad-H with conferencing, wireless presentation, and audio integration to build a bezel-free presentation wall that stays readable from every seat in executive rooms.
