Selection fit: curved transparency with cost control
Choose this card when the project needs outdoor transparency and curvature, but budget and viewing distance favor a larger pitch than P3.91-class solutions.
C-Trans Mesh Curved Outdoor Transparent LED P5.2×10.4
Cost-smart mesh for medium-distance, large-scale builds.
C-Trans Mesh P5.2 balances visual impact with budget and permeability intent for larger outdoor surfaces. It is the practical choice for festival stages, roadshows, and building wraps where P3.9-class density is unnecessary—while curved geometry supports creative forms. (Permeability varies by configuration; confirm the target spec early.)
C-Trans Mesh Curved Outdoor Transparent LED P5.2×10.4
Cost-smart mesh for medium-distance, large-scale builds.
C-Trans Mesh P5.2 balances visual impact with budget and permeability intent for larger outdoor surfaces. It is the practical choice for festival stages, roadshows, and building wraps where P3.9-class density is unnecessary—while curved geometry supports creative forms. (Permeability varies by configuration; confirm the target spec early.)
Specification
Pixel pitch H 5.2 mm × V 10.4 mm
Cabinet 750 × 1000 × 82 mm

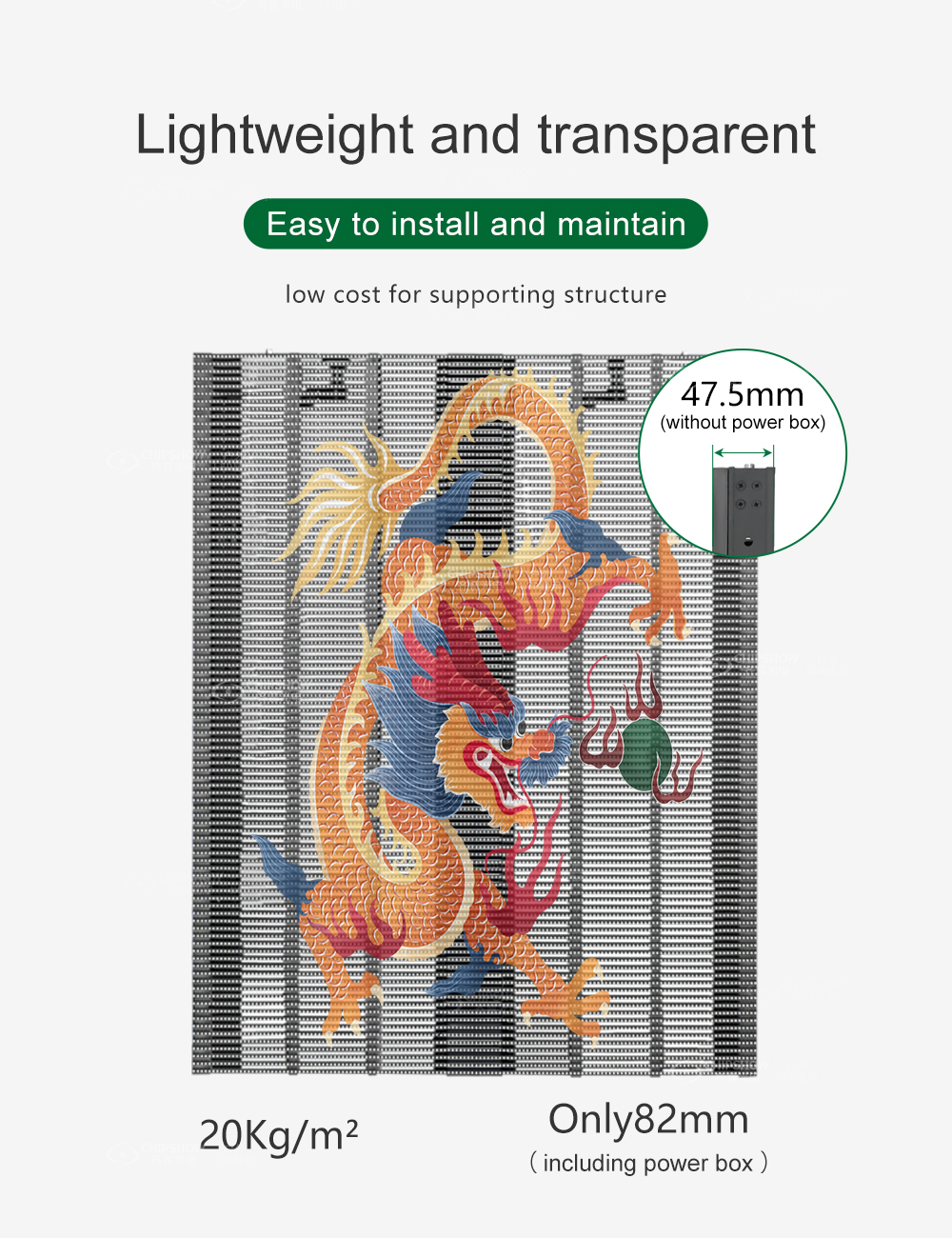

Weight 20 kg/m²
Permeability 30% (features) / 48% (module spec)
White-balance brightness 6000 nit
Protection / Temperature IP65, -20 to 50°C
- Cost-smart pitch: designed for medium-distance messaging without over-specifying resolution.
- Curved flexibility: outer arc 15° and inner arc 10° for creative shapes.
- Dual workflow: can be fixed or leased for recurring event deployment.
- Outdoor baseline: IP65 and stated temperature window for exposed sites.
- OpEx-aware design: PFC power design aims to improve conversion efficiency for large surfaces.

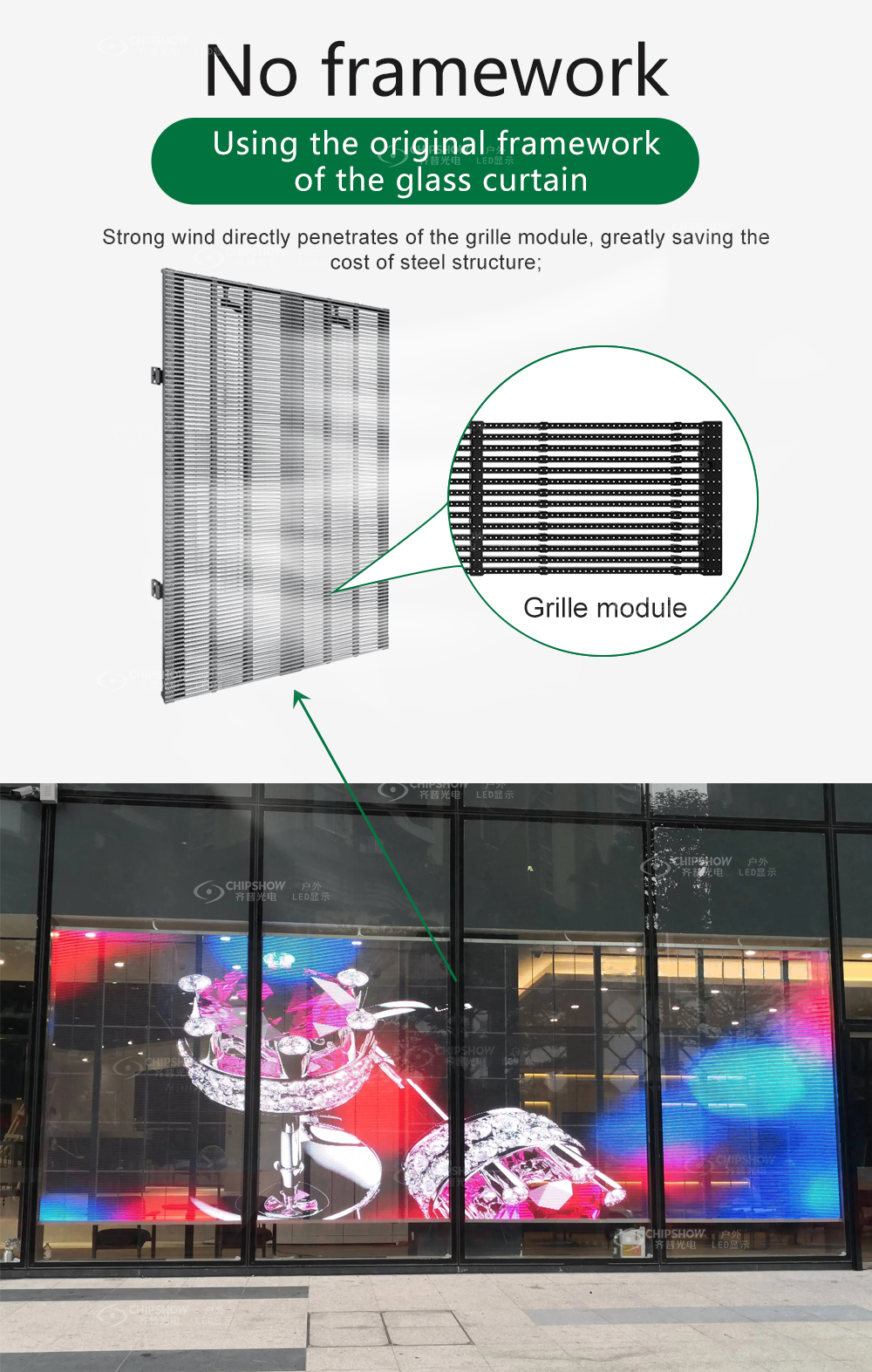

- Retrofit direction: designed to use existing curtain-wall framework where conditions allow.
- Dscription
- Specification
- Application
- Solution
- FAQs

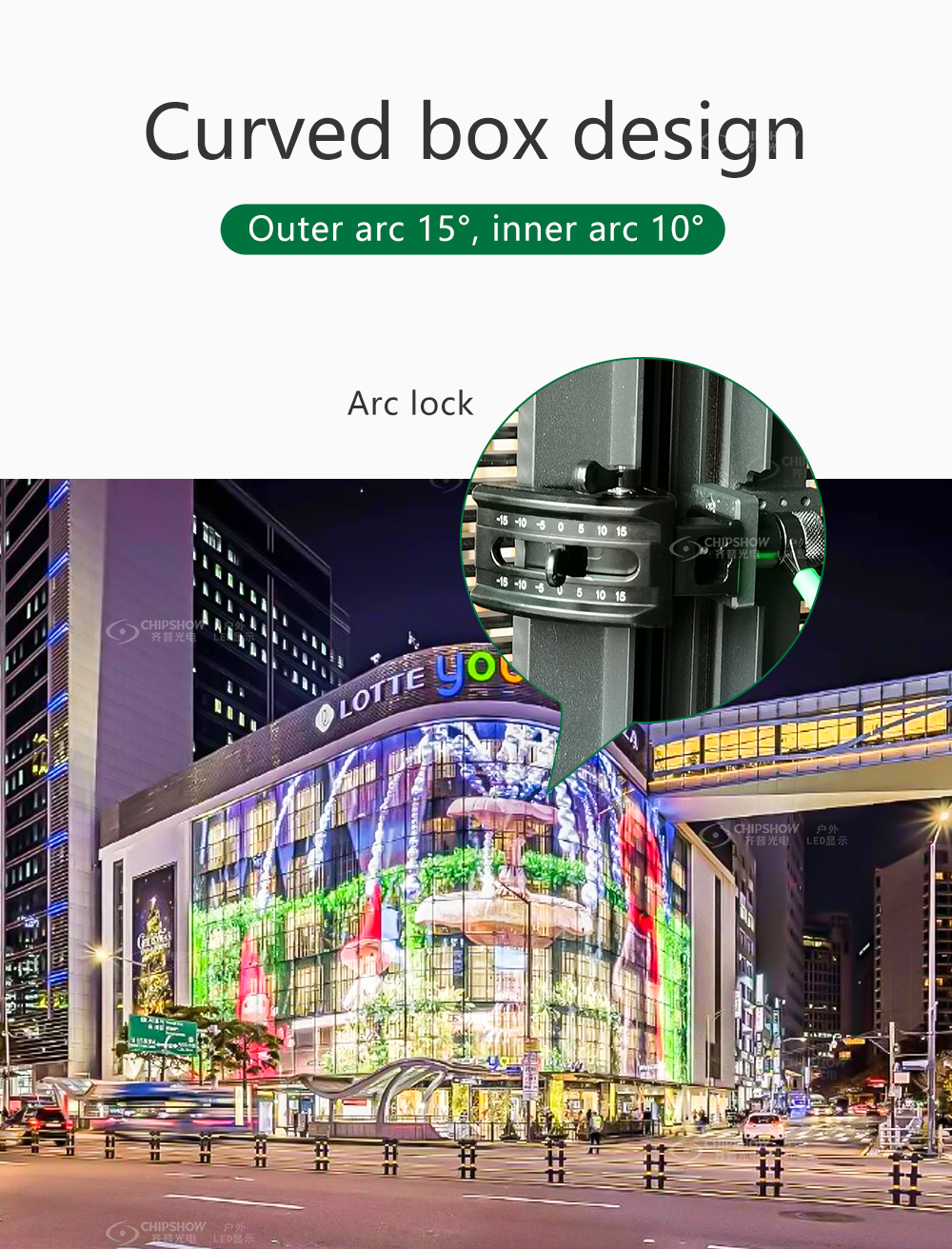

Curved cabinet intent for façades and truss builds
The curved box design supports outer 15° and inner 10° layouts, enabling wraps, waves and corner accents for both fixed façades and touring events.

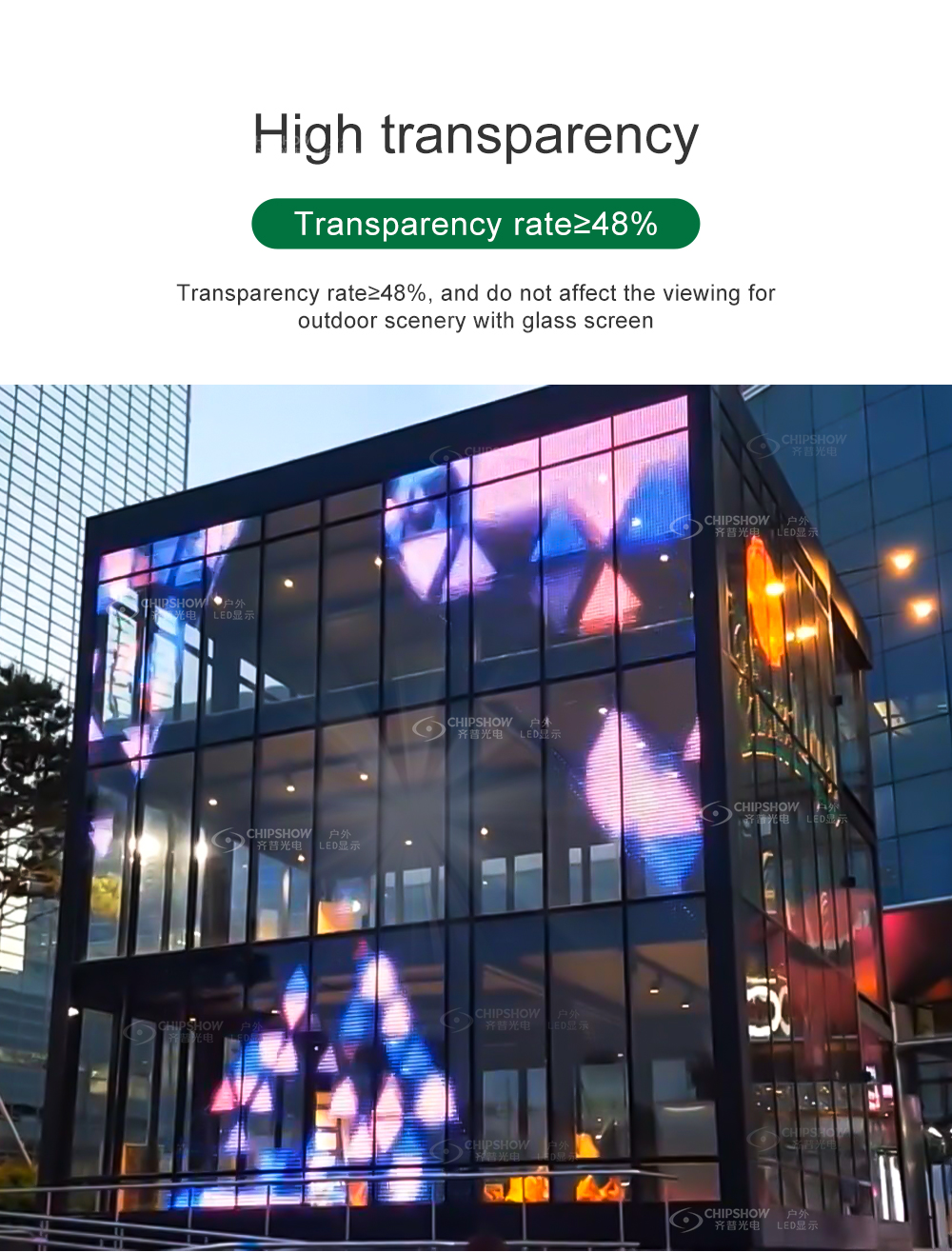

Permeability is configuration-dependent
The spec sheet lists permeability as 30% in the features section and 48% in the module specification. For design and approval, confirm the target configuration early to align visual openness and content contrast expectations.

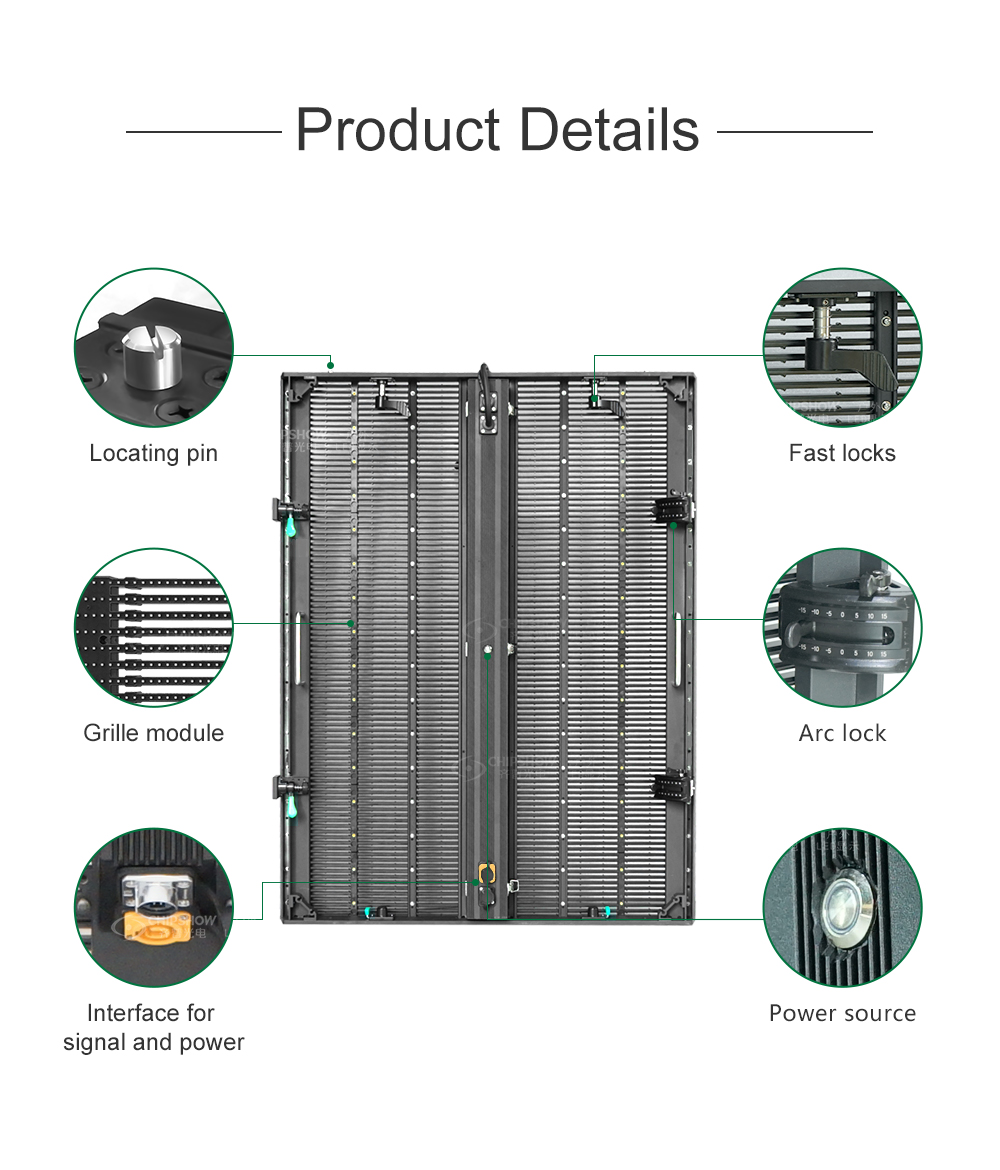

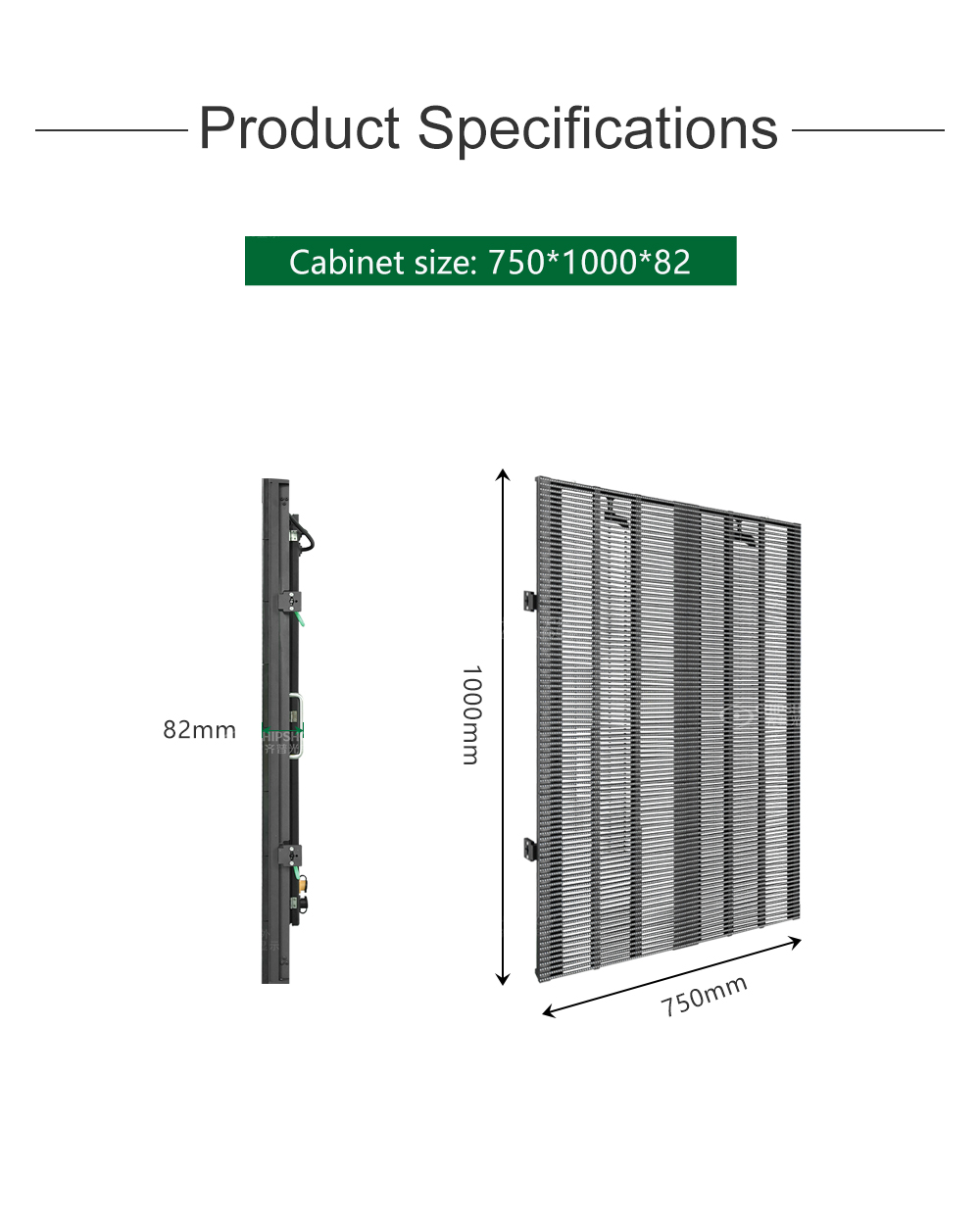

Cabinet format supports predictable panelization
The 750×1000×82 mm platform supports fast layout planning for mid-size façades and modular event builds.
Outdoor baseline for touring schedules
IP65 protection and the stated working temperature range support event planning across changing weather conditions and exposed commercial sites.
Power planning for large surfaces
The spec includes maximum and average power figures, supporting integrators in power distribution and long-run operating planning for outdoor media surfaces.
