A ventilated P16 billboard platform built to reduce wind load and long-term operating cost.
When wind load, IP protection, and electricity spend drive your billboard decisions, C-Vent P16 helps you scale screen area without overbuilding the steel. Its hollow, ventilated structure supports natural airflow cooling and a slimmer cabinet profile, while DIP346 high-bright LEDs keep content readable for long-distance roadside viewing.
Pixel pitch P16, DIP346

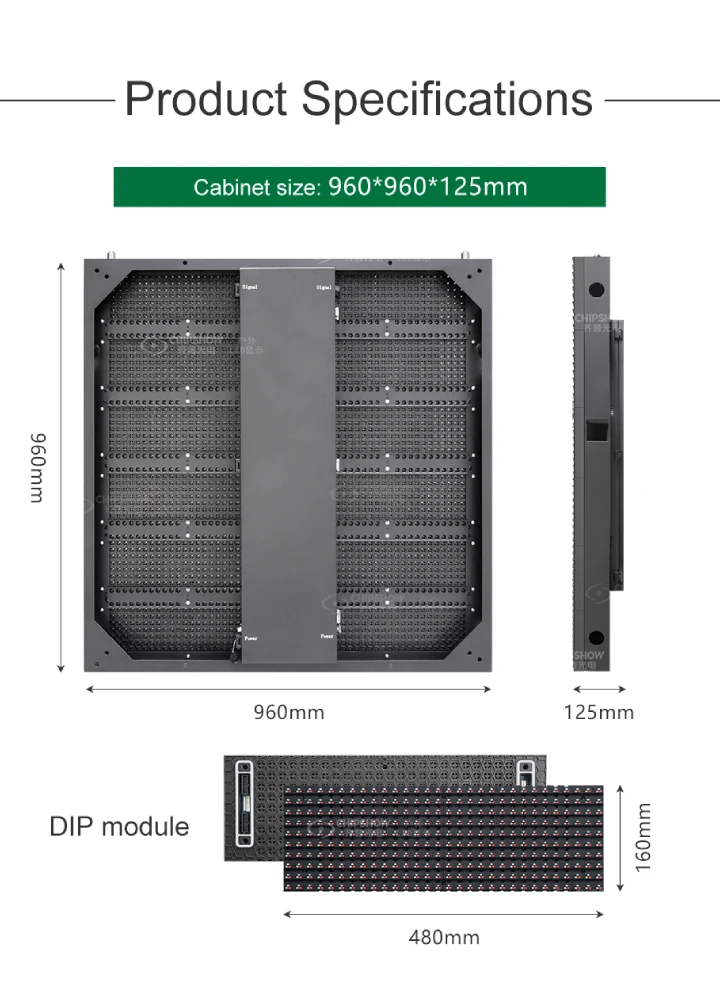

Cabinet platform 960 × 960 mm, ultra-thin 90 mm depth
Protection IP65 front & rear
Brightness 7,500 nits
Power Max 600 W/m², Avg 200 W/m²

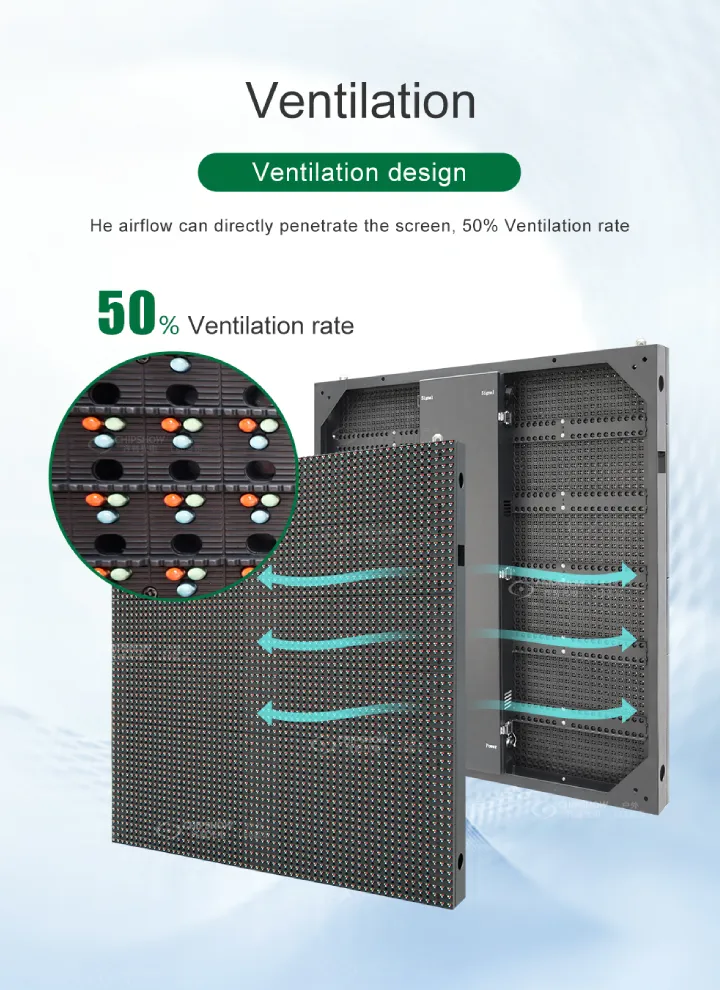

Typhoon Ready: Hollow design allows gale-force winds to pass through, significantly reducing load on the pole.

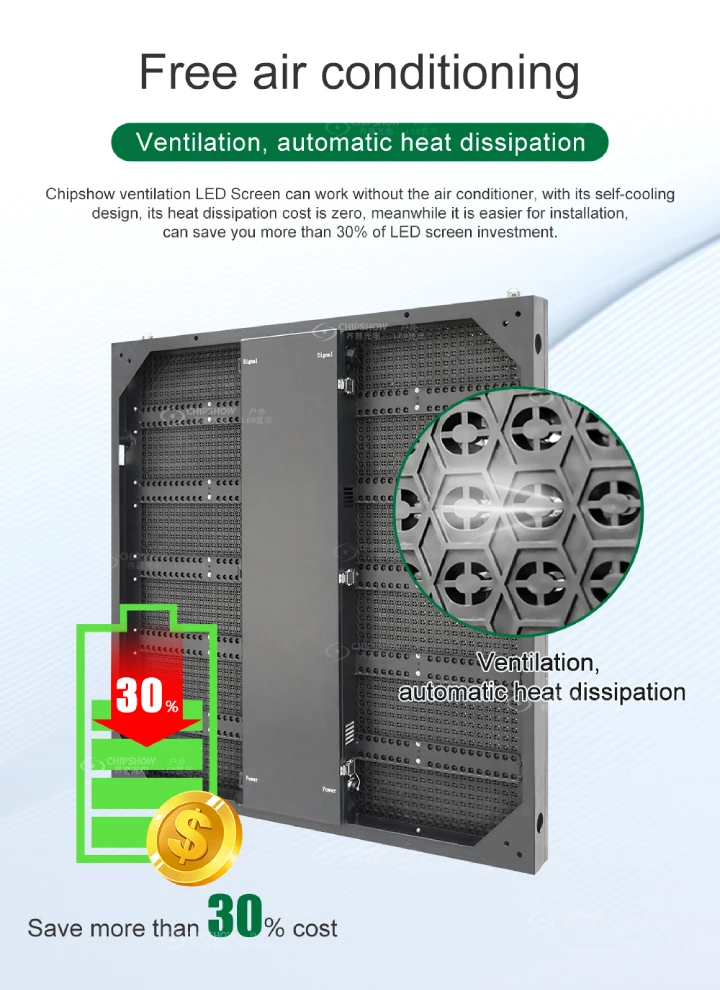

Zero A/C Cost: Self-cooling airflow eliminates the need for air conditioners, reducing electricity OPEX.
Steel Savings: Lower wind load means you can use lighter, less expensive steel columns and foundations.
DIP346 Power: Superior brightness and UV resistance ensure long-distance legibility under direct sun.
Front Service: Modules can be maintained from the front catwalk, avoiding complex rear access issues.

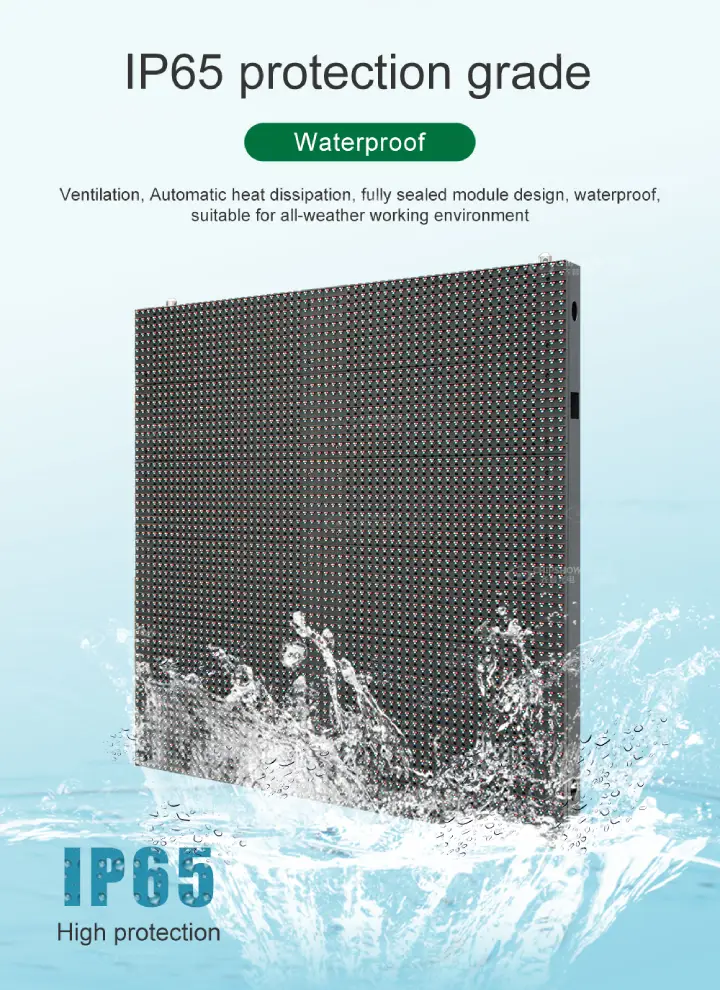

IP65 Protection: Fully sealed modules resist heavy rain, coastal salt spray, and roadside dust.
For highways, coastlines, and open-field sites where wind load impacts structural safety and steelwork cost, use ventilated billboard platforms to reduce wind pressure and simplify long-term operation planning.
