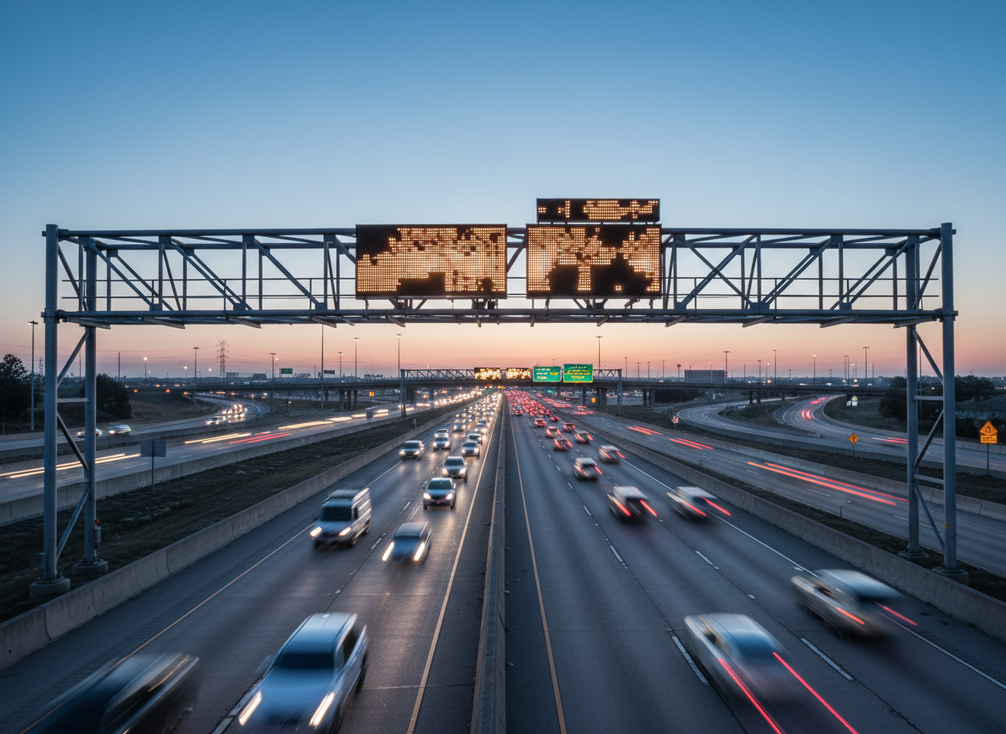

Highway variable message sign mounted above a multilane roadway at dusk, shown as an overhead driver-facing traffic messaging system for a corridor project.

Traffic & VMS LED Display Solution

Optimize urban mobility, slash lane-closure OPEX, and maximize mission-critical uptime.

Get Quote
Home / Solution / Solution/ Highway VMS / Gantry Signs Solution
highway-led-display

The Value Our Solution Delivers

Lower Lane-Closure Cost on Service Visits

Front-access service design supports maintenance work from the gantry walkway, which helps reduce lane-closure hours and the lifting equipment used for routine module and power-supply replacement.



Keep Messages Readable in Adverse Weather

Directional LED optics and anti-glare masking help maintain contrast between the message and its background at highway viewing distances, which supports legibility in bright daylight and low-visibility conditions.



Match Sign Weight to Existing Structures

Cabinet structure and material selection keep sign weight suitable for existing gantry and bridge structures, and ventilated mesh construction further reduces wind load on exposed spans.



  • Highlights
  • Why Choose Us
  • Application
  • Project Case
  • Related Product
  • FAQs

Applications

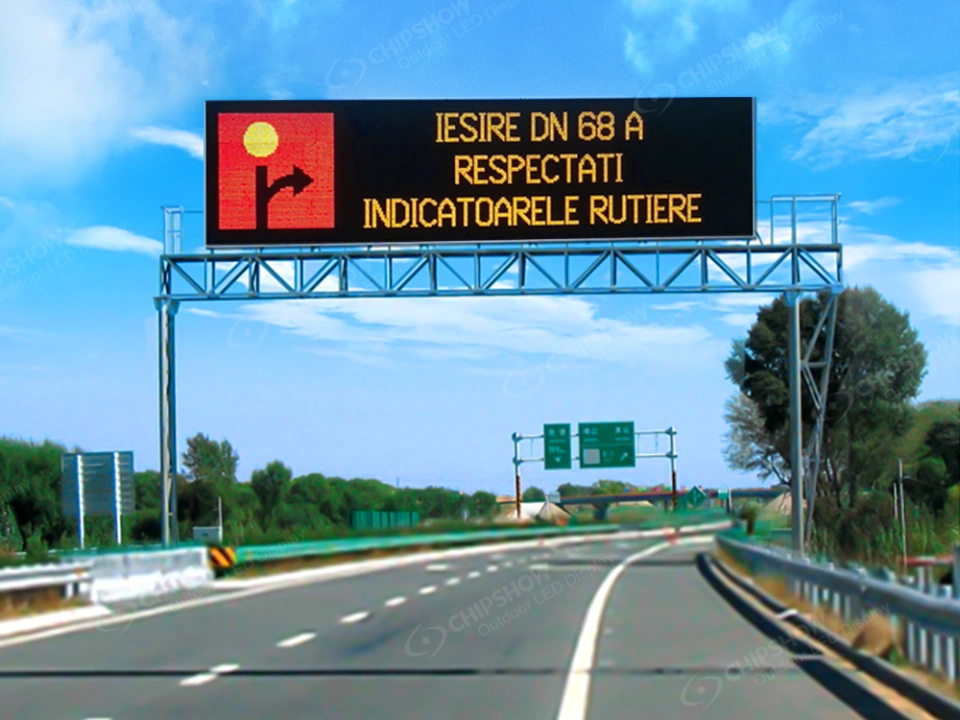

Highway Gantry VMS

Highway Gantry

Benefit: Mainline drivers receive current road and traffic messages over a long approach distance, so guidance keeps pace with changing conditions.

Recommended: P16-P31.25 · 10,000+ nits · Front Service

Suggested Series: C-Tra-KXB Gantry VMS

Why: Individual modules support single-module replacement from the gantry walkway, and the galvanized steel structure stays below 60 kg/m² for mainline gantry spans.

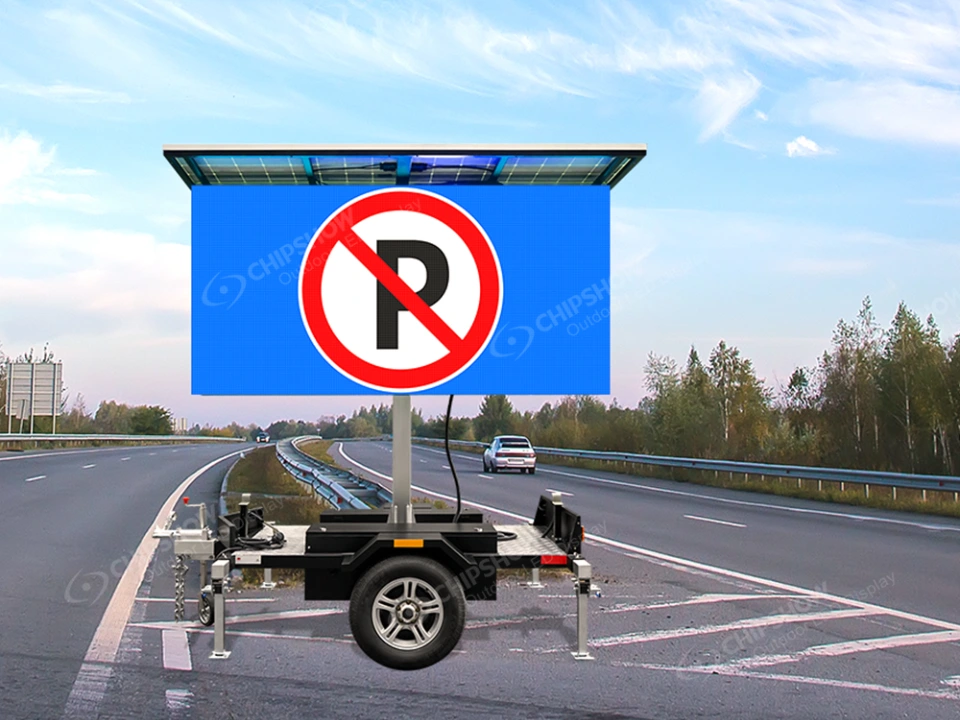

C-Tra-VMS solar trailer with LED traffic display showing a no parking sign on a highway roadside.

Road Work Zones

Benefit: Temporary lane arrangements are announced before drivers reach the taper, which gives approaching traffic time to change lanes.

Recommended: P10 · 6,000 nits · Mobile Trailer

Suggested Series: C-Tra-VMS Solar Trailer

Why: The hydraulic mast raises the display above site traffic, and 330° rotation aligns the screen with the approach direction at each new work front. Message changes are issued over 4G or Wi-Fi as the work area advances.

chipshow

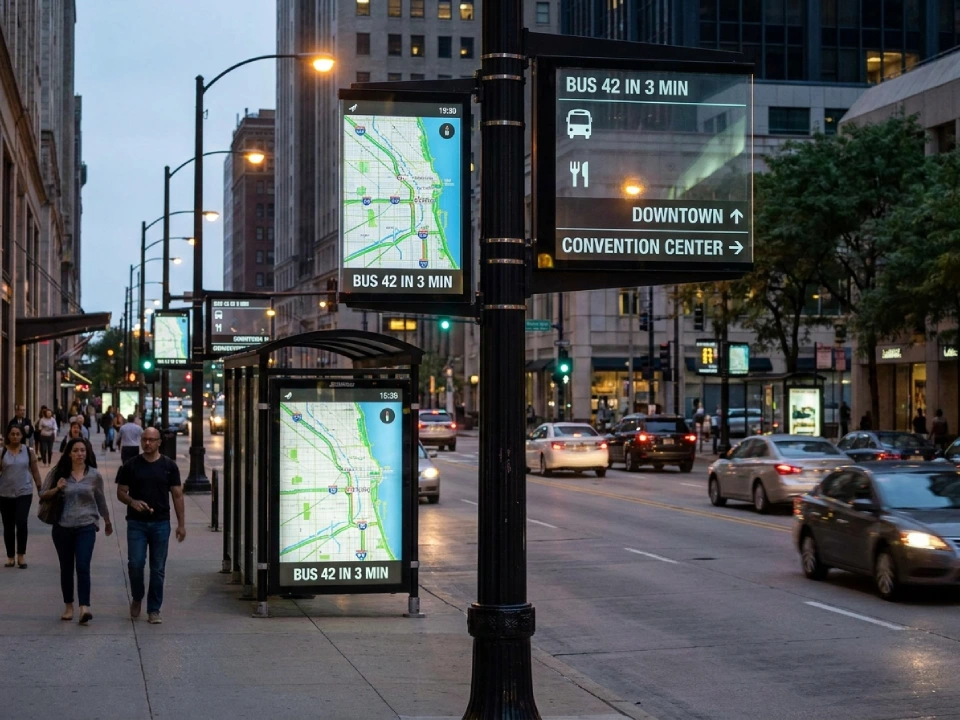

Urban Arterials

Benefit: Messages along a corridor stay current as lane use and signal plans change through the day.

Recommended: P6-P10 · 7,000 nits · Lightweight Design

Suggested Series: C-Pole Smart City Display

Why: A die-cast magnesium aluminum alloy housing reduces structural stress at pole mounting points, and the enclosed IP65 design covers year-round street exposure.

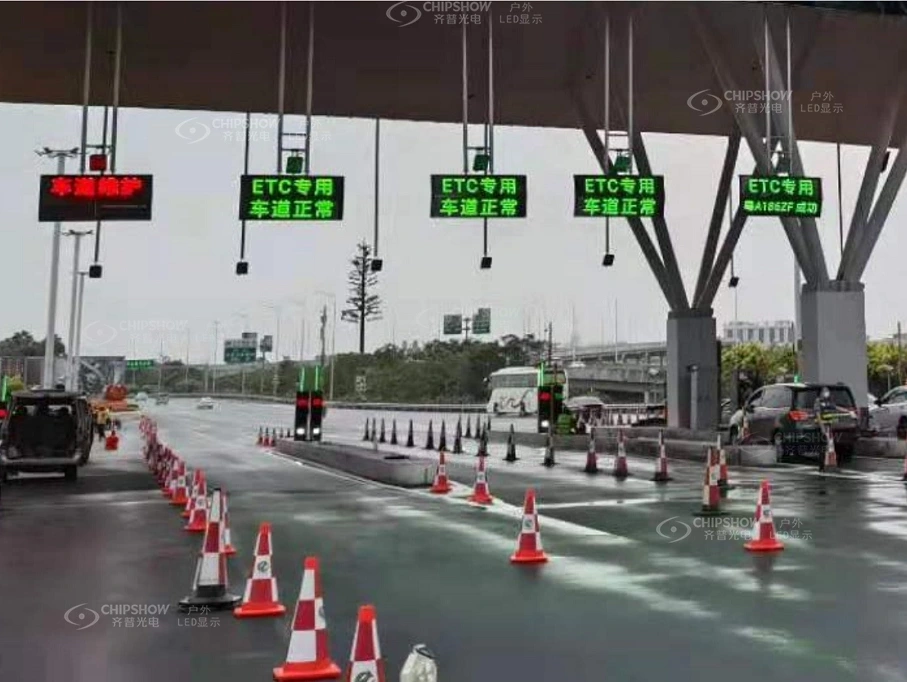

Highway Toll Station LED Display

ETC Lanes

Benefit: Lane status is presented at the point where drivers choose a lane at the booth approach, keeping the decision point clear during peak periods.

Recommended: P6-P10 · 5,500 nits · Dual Maintenance

Suggested Series: C-Tra-Vent Mesh VMS

Why: Cabinet weight of approximately 27 to 30 kg/m² limits added load on toll canopy steelwork, and pixel-level remote monitoring reports module status to a control room.

Emergency Response Units

Roadside Emergency Scenes

Benefit: Incident control extends past the response vehicles themselves, with approaching traffic receiving direction while the scene is being worked.

Recommended: P10 · 5,000 nits · Vehicle-Grade

Suggested Series: C-Tra-VMS Vehicle-Mounted

Why: Reinforced internal structure is built for continuous road shock and engine vibration, and the low-drag housing limits aerodynamic load while the vehicle is moving.

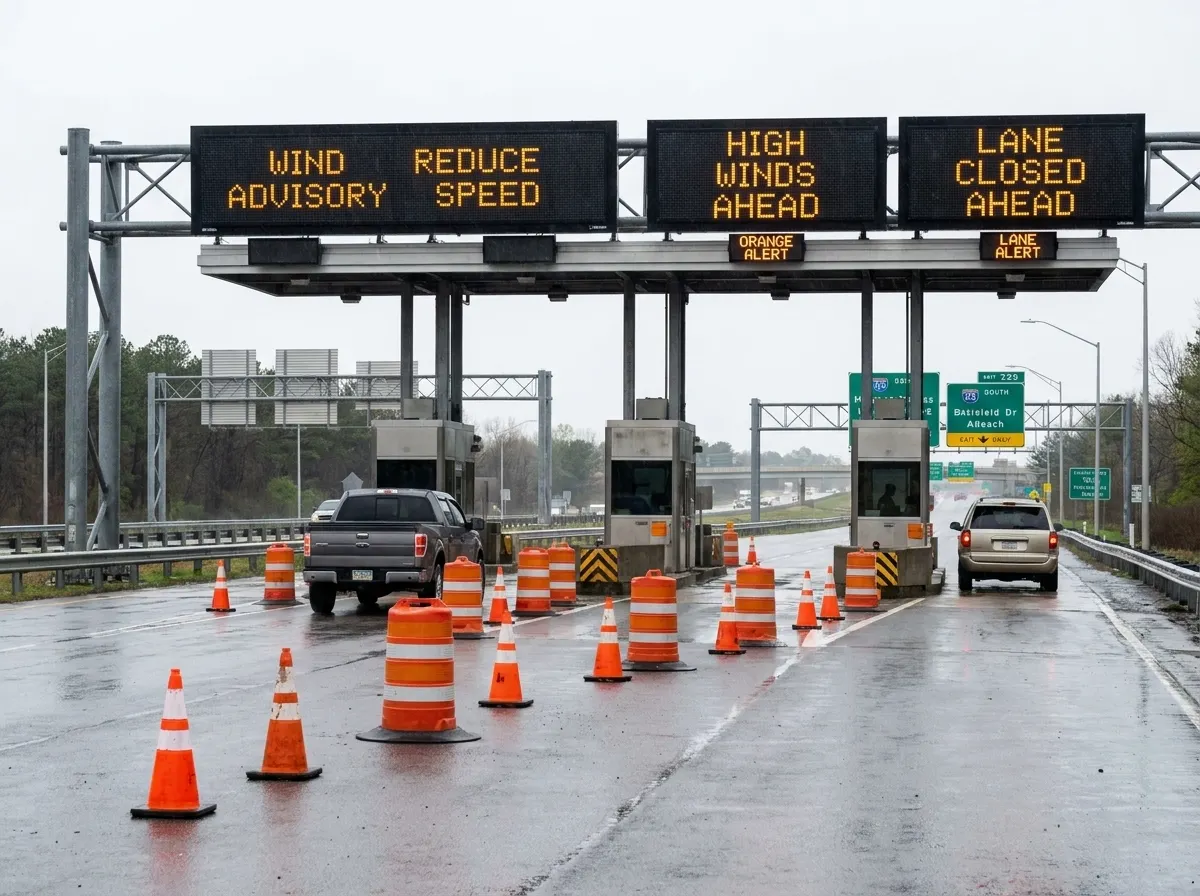

Traffic_sign_for_high-wind_zones

High-Wind/Coastal Zones

Benefit: Safety messages stay available on exposed coastal routes where roadside access is limited.

Recommended: P16-P20 · 7,500 nits · Vent Design

Suggested Series: C-Vent P16 Wind-Resistant Billboard

Why: Sealed modules on both faces carry IP65 protection, which addresses heavy rain, coastal salt spray and roadside dust at high-splash locations. A hollow cabinet structure lowers wind load on poles and foundations.

Recommended Products
DIP Long-View Outdoor LED Display showing a yellow Please Drive Safely traffic VMS signage cabinet.
C-Fit Easy DIP Long-View Outdoor LED Display
Highway-ready LED cabinet for long-distance messages. Built for screens that have one job: be seen early, read fast, and stay reliable beside the road year after year. DIP Long-View prioritizes contrast and clear shapes at distance—and uses larger cabinet sizes to simplify big roadside structures.
Modular Slim Vent P16 Traffic VMS LED display showing front-access installation and easy gantry maintenance.
C-Slim Vent P16 Traffic (VMS)
P16 traffic VMS configuration for long-distance viewing and highway guidance. Engineered for tenders where standards alignment is a gate, not a preference. This ventilated, magnesium P16 platform uses ICE LEDs to reach traffic L3 luminance (12,400 cd/m²) while helping engineers manage wind resistance and streamline on-site service access for gantries, toll plazas, and ITS corridors. Configuration scope: This page presents the P16 (16 mm pixel pitch) SKU for long-distance viewing. The specifications on this page describe this P16 configuration, not every custom version. Chipshow can also configure P4–P10 and P16 displays to suit project requirements, with pixel-pitch availability depending on the selected cabinet. Other pixel pitches require separate confirmation of cabinet compatibility, specifications and applicable certification; the P16 values shown here do not automatically apply to them.

Why Choose Us

certified

Global Infrastructure Certified

Rigorously tested for NEMA TS4, AASHTO, NTCIP 1203, and EN12966 standards, ensuring your project easily passes municipal audits across North America and Europe.
Warehouses

Your Virtual Warehouse

Treat our California and Netherlands hubs as your extension warehouse. Rely on our rapid dispatch and overnight parts to bid on urgent DOT projects without heavy inventory.
chipshow

The Integrator-Friendly Ally

We engineer the hardware; you own the project. We never compete for installation revenue, providing standard protocols and CADs with zero learning curve for your engineers.
chipshow

24 Years of Prudent Engineering

Your clients' investments are protected by decades of B2B manufacturing expertise, delivering industrial-grade ITS assets designed for a decade of continuous revenue and safety generation.
Qualification
R&D
Product Certifications
Management Systems
Design Honors
R&D & Patents
58 patents including 30 inventions (with 7 US and 2 EU), plus 13 utility models, 8 designs, 6 software copyrights.
chipshow
chipshow
chipshow
chipshow
chipshow
chipshow
chipshow
Product Certifications
58 patents including 30 inventions (with 7 US and 2 EU), plus 13 utility models, 8 designs, 6 software copyrights.
chipshow
chipshow
chipshow
chipshow
chipshow
chipshow
chipshow
Management Systems
58 patents including 30 inventions (with 7 US and 2 EU), plus 13 utility models, 8 designs, 6 software copyrights.
chipshow
chipshow
chipshow
chipshow
chipshow
chipshow
chipshow
Design Honors
58 patents including 30 inventions (with 7 US and 2 EU), plus 13 utility models, 8 designs, 6 software copyrights.
chipshow
chipshow
chipshow
chipshow
chipshow
chipshow
chipshow

Send a Comment

Checkboxes
Chat on WhatsApp

About Us

We design and manufacture outdoor & indoor LED display systems, delivering campaigns from concept to go-live. With in-house R&D, disciplined manufacturing, and a global service network, we help advertisers, integrators, and distributors deploy brand-safe screens—on time and at scale.
chipshow
chipshow
Tunnel Lighting Tunnel LightingTunnel Lighting
chipshow
Tunnel Lighting Tunnel LightingTunnel Lighting
chipshow
Tunnel Lighting Tunnel LightingTunnel Lighting
chipshow
Tunnel Lighting Tunnel LightingTunnel Lighting
chipshow
Tunnel Lighting Tunnel LightingTunnel Lighting
Shenzhen
Shenzhen
Shenzhen
Shenzhen
Shenzhen
0+
Established in
0+
Production and operation area
0+
distributor
0+
Development experience
0+
Exporting countries
0+
Success stories
Learn More

Frequently Asked Questions

From specs and compatibility to warranty and support, our FAQ covers everything you need to know to get the most out of your experience.
Why use LED VMS instead of traditional reflective signage?
LED VMS allows for real-time dynamic content, significantly improving response times for traffic accidents and generating higher revenue through ad rotation.
