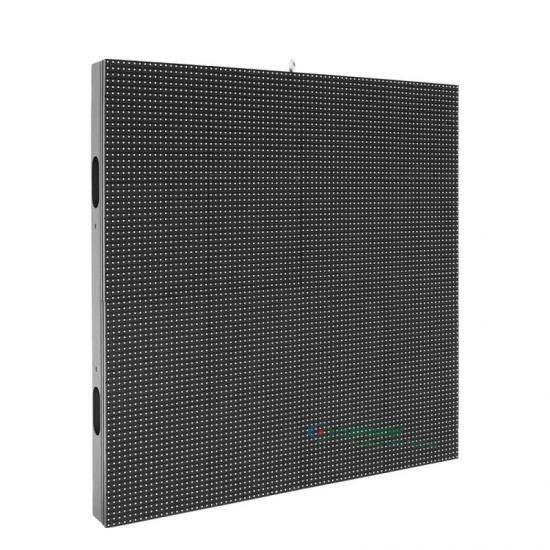

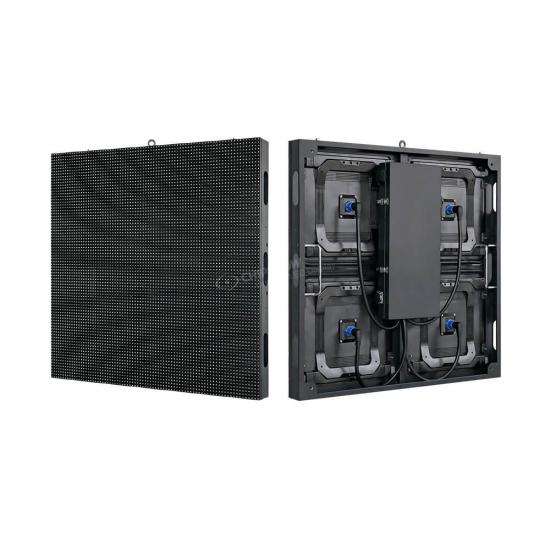

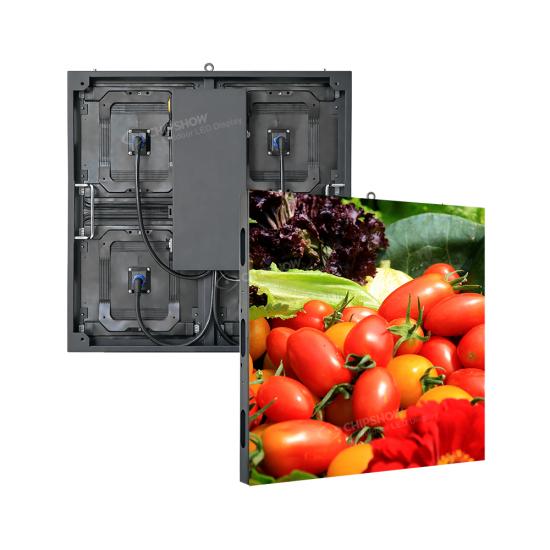

C-Seal P8 Outdoor Front Access Advertising LED Display

C-Seal P8 Outdoor Front Access Advertising LED Display

C-Seal is a front access, energy-saving and high brightness outdoor LED advertising screen.

Features:

1. 10,000 CD/㎡ high brightness: physically brightened by the convex mirror without increasing power consumption and changing system ; the brightness can reach 11000CD/㎡.

2. Energy and power saving: saving 45% power with the same pixel pitch, energy saving and environmental protection.

3. Wall-mounted installation: can be installed on the wall efficiently; small space occupation.

4. Front maintenance: no-screw fast locks, the module and power supply support front maintenance with power on; time and effort saving.

5. High protection: 2-in-1 waterproof cable, fully sealed module and power box, IP65 protection, anti-wind, rain and salt spray.

6. 640*640mm small cabinet design, suitable for outdoor signage such as storefronts, squares, urban roads, highways, etc.

  • Item No.:

    C-Seal
  • Product Details

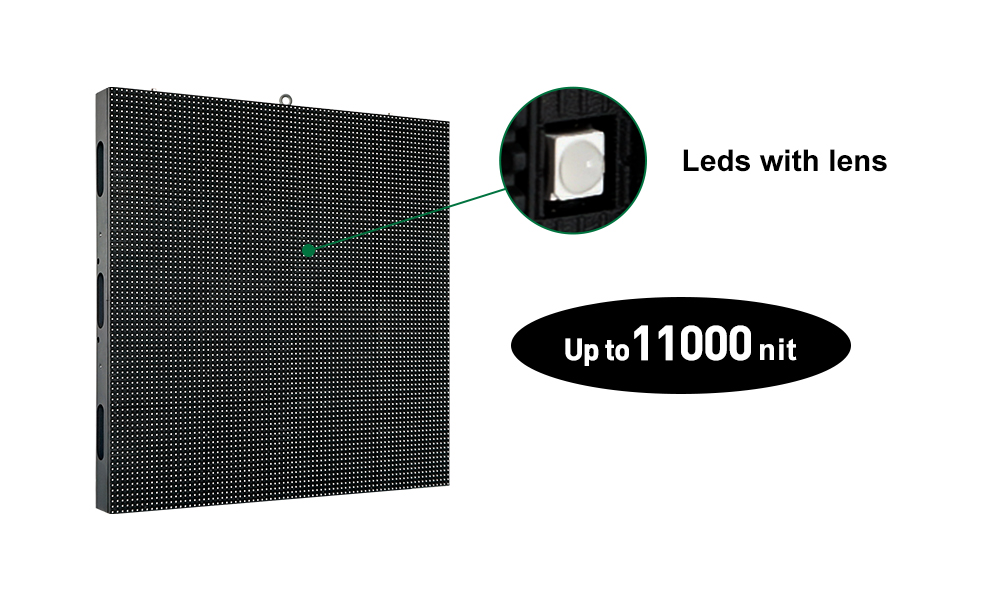

10,000nits-level high brightness

physically brightened by the convex mirror without increasing power consumption and changing system; the brightness can reach 11000nits

Energy and power saving

saving 45% power with the same pixel pitch, energy saving and environmental protection

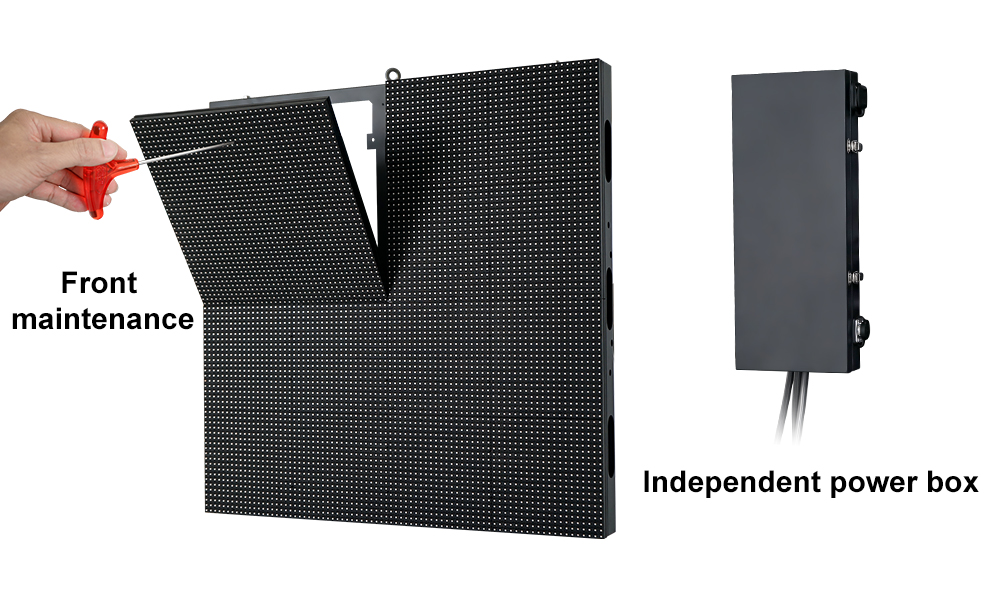

Front maintenance

no-screw fast locks, the module and power supply support front maintenance with power on; time and effort saving

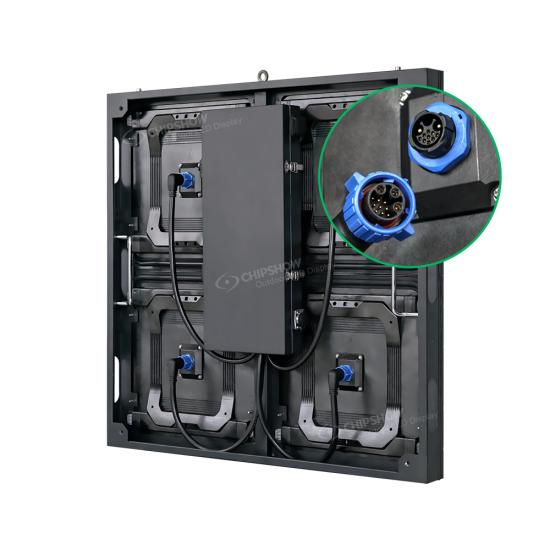

Fast installation

The module is equipped with a two-in-one minimalist cabling, which can be quickly replaced in 10 seconds, convenient and fast

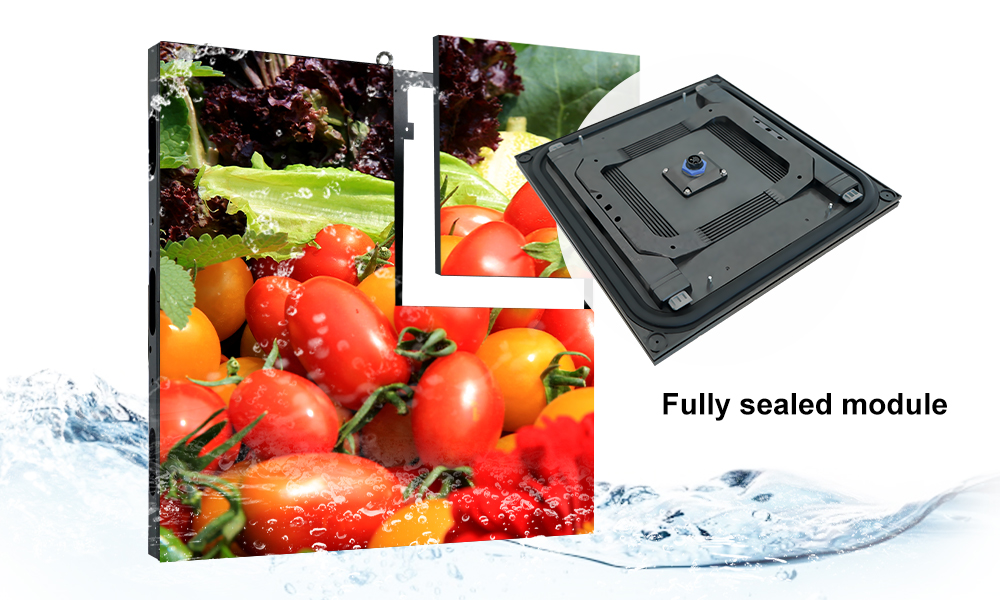

High protection

2-in-1 waterproof cable, fully sealed module and power box, IP65 protection, anti-wind, rain and salt spray


Specifications

Product C-Seal
Module

Module dot pitch

8mm

Module resolution

40*40

Module size

320*320*34mm

Pixel structure

1R1G1B

LED packaging method

 HXA-2727RGBW

Cabinet

Cabinet material

SPCC

Cabinet resolution

80*80

Cabinet size

640*640*88mm

Module arrangement

2*2

Pixel density

15625 dots/㎡

Weight

12Kg

White balance brightness

10000-11000 CD/㎡

Color temperature

6500K-8000K

Viewing angle

H/V:140°/140°

Flatness

<0.5mm

Module gap

<0.5mm

Maximum power consumption

610W/㎡

Average power consumption

200W/㎡

Refresh frequency

1920Hz

Grayscale/color

13bit

Working temperature

-20℃-+50℃

IP rating

IP65/IP54
