C-Poster Outdoor LED advertising display

Categories: , Tag:
C-Poster Outdoor LED advertising display
Learn More
Specification

Pixel pitch P2.5 (2.5 mm)

Brightness ≥5000 nits

Protection IP65

Cabinet 2500×1140×200 mm, 180 kg

Refresh ≥3840 Hz, 16.7 M colors
  • Read clearly at noon — 5000-nit brightness keeps ads legible under direct summer sun, not just cloudy days.
  • Weather it all, IP65 — sealed against dust and rain jets, so the screen stays on through sandstorms, downpours, and snow.
  • Auto day/night brightness — ambient-light sensor dims the panel after dark, lowering energy cost and avoiding glare complaints.
  • Front glass, vandal-resistant — 5 mm tempered glass with ≥92% transmittance, holding up to impacts and graffiti.
  • Modular service, minutes not hours — front-access modules swap in place, no need to roll the cabinet out of its anchor.
  • Install anywhere outdoor — AC 100–240 V universal input, –20 to +60 °C range, pre-drilled base for bolt-down mounting.
Get Quote Now
Share
  • description
  • Specification
  • Application
  • Solution
  • FAQs

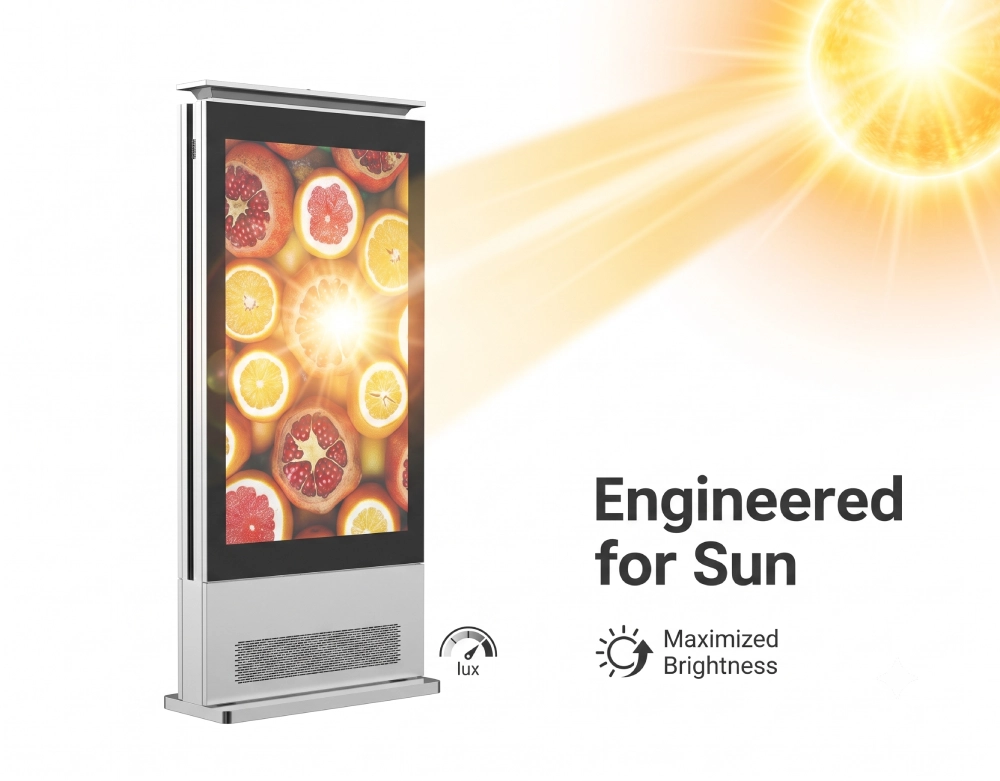

Engineered for Sun Engineered for Sun

Engineered for Sun

5000-nit corrected white balance keeps the screen readable in direct midday sun. At 2.5 mm pixel pitch, type stays crisp at 2–3 m viewing distance — the natural range for pedestrian and slow-vehicle traffic. Outdoor LCD panels fade under the same conditions; the C-Poster keeps brand colors saturated all day.

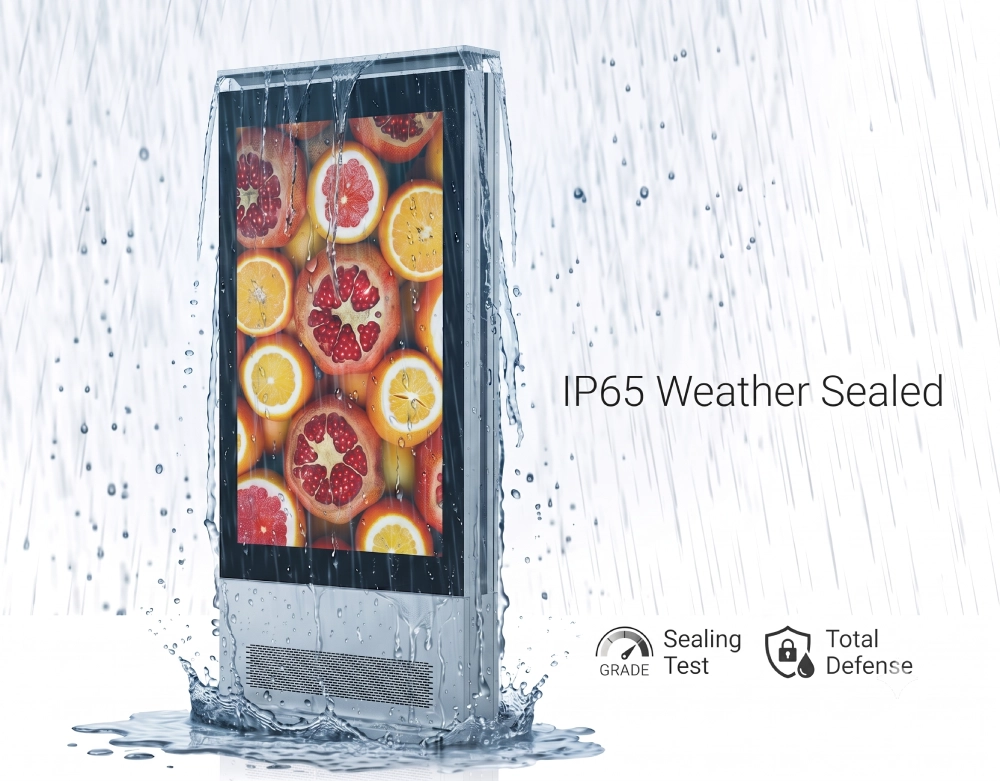

IP65 Weather Sealed IP65 Weather Sealed

IP65 Weather Sealed

IP65 protection shields the cabinet from dust ingress and low-pressure water jets from any direction. Internal components operate from –20 °C to +60 °C and 10–95 % relative humidity, so the display stays online through coastal humidity, desert heat, and freezing winters. AkzoNobel powder coating extends enclosure life beyond 10 years.

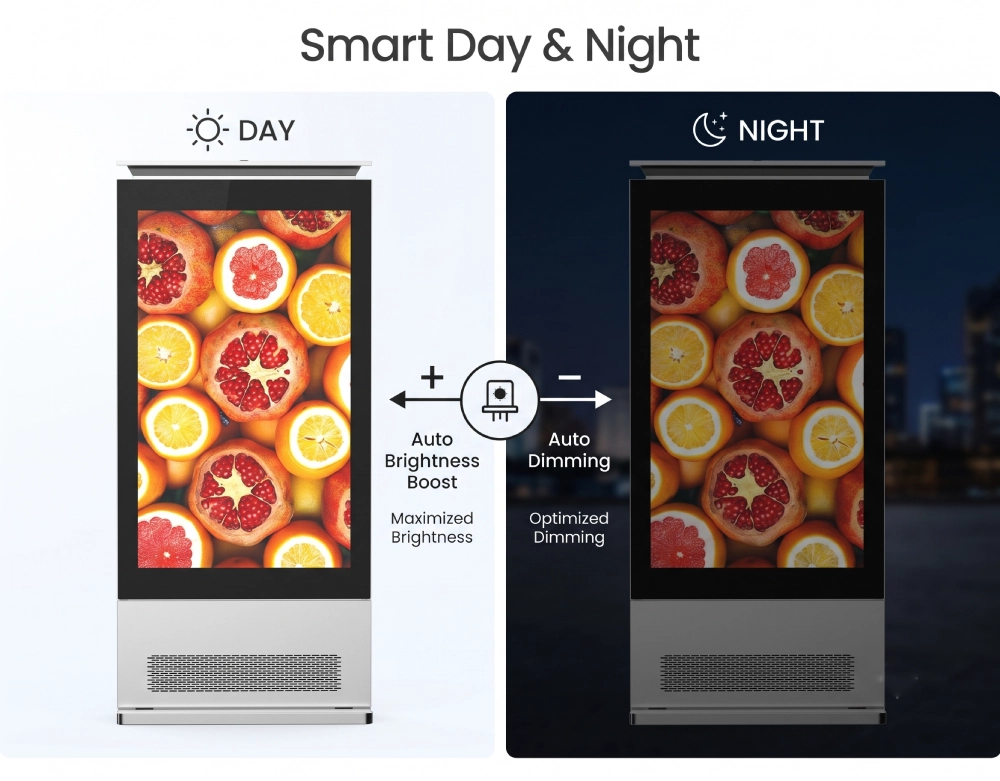

Day & Night Day & Night

Smart Day & Night

An ambient light sensor adjusts brightness in real time: full output at noon, dimmed after dark. Auto on/off programming lets operators set daily, weekly, or monthly schedules, so the screen powers down when the site is empty. Net result: lower OPEX without sacrificing visibility.

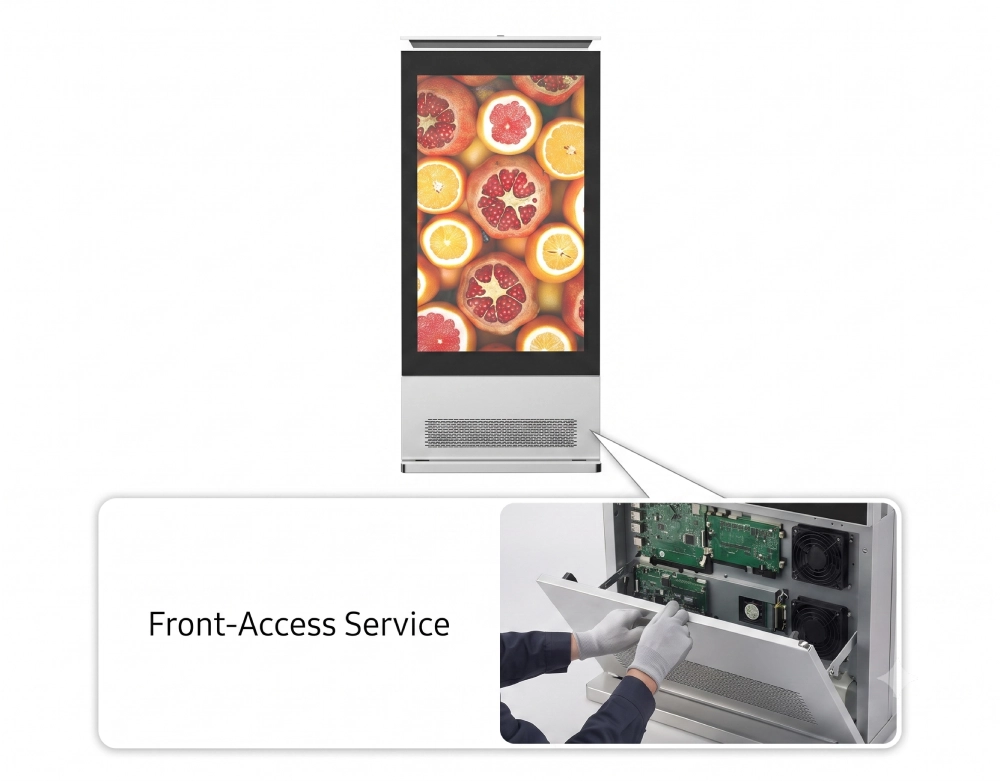

Front-Access Service Front-Access Service

Front-Access Service

Modular front-access design lets a single technician replace a module, power supply, or receiving card in minutes. The cabinet does not need to be unbolted or rolled out of its anchor, which matters for kiosks installed on busy sidewalks or in tight curb zones. Mean time between failures: ≥9000 hours per the spec sheet.

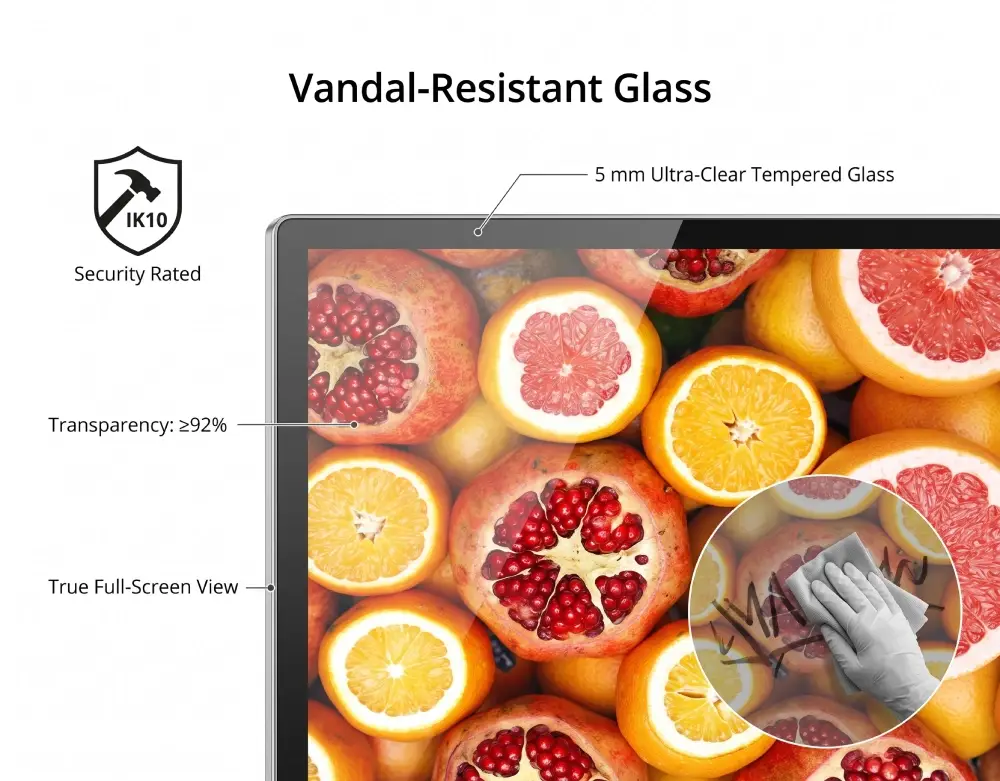

Vandal-Resistant Glass Vandal-Resistant Glass

Vandal-Resistant Glass

The 5 mm ultra-clear tempered-glass front face is rated anti-explosion and lets through ≥92 % of backlight luminance. Edge-to-edge glass spans all four sides for a true 'full-screen' feel and keeps the cabinet body out of the visual field. Graffiti wipes off the non-porous surface.

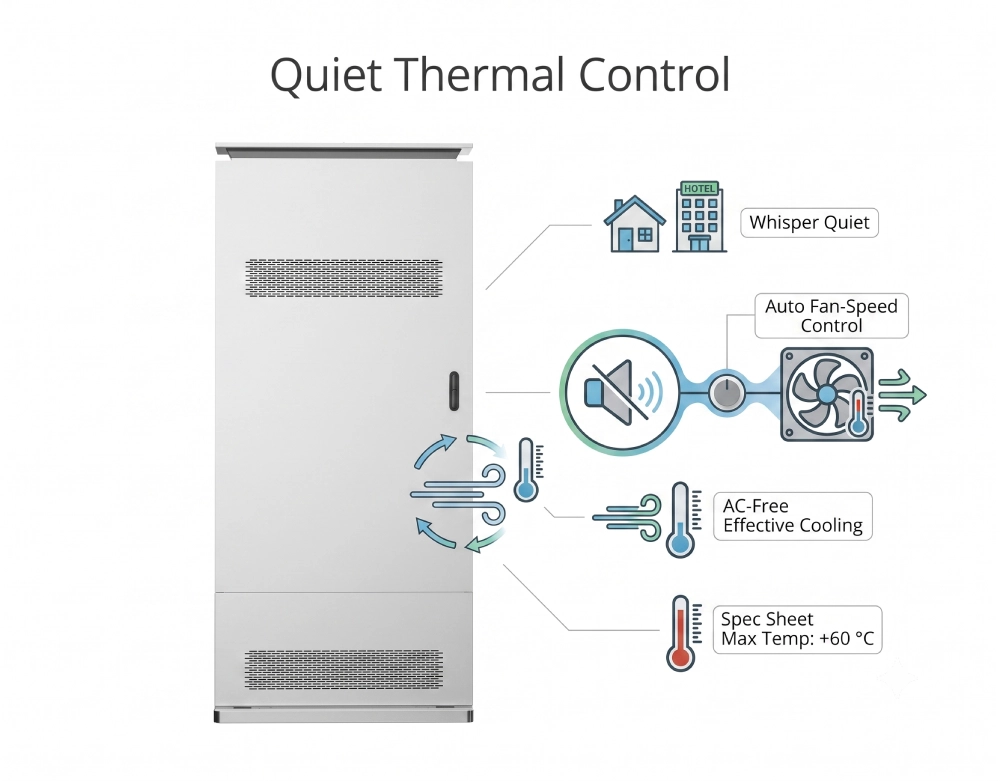

Quiet Thermal Control Quiet Thermal Control

Quiet Thermal Control

Auto fan-speed control ramps with internal temperature, so the cabinet stays cool without an air conditioner. This cuts noise, maintenance, and energy use — a meaningful difference in residential or hotel-adjacent sites. Spec sheet operating temperature ceiling: +60 °C.

Send a Comment

Checkboxes
Chat on WhatsApp

Product Highlight

Engineered for Sun

5000-Nit Sunlight-Ready

Corrected white-balance brightness keeps ads poster-readable under direct midday sun.
IP65 Weather Sealed

IP65 All-Weather Cabinet

Sealed against dust and rain jets; runs from –20 °C to +60 °C, 10–95 % RH.
Day & Night

Smart Day/Night Sensor

Ambient-light sensor dims the panel after dark — saves energy, avoids glare complaints.
Front-Access Service

Front-Access Maintenance

Swap modules, PSU, or receiving cards in minutes — cabinet stays anchored.

Service Support

chipshow
End-to-End Project Support
From design to installation, we handle every step for you.
chipshow
Customization for Every Scenario
Tailored LED screens for any location or shape.
chipshow
Reliable Quality & Smart Maintenance
Stable performance, simple upkeep, and long lifespan.
chipshow
Global Service & Fast Response
Fast delivery and responsive service worldwide.

Related Solution

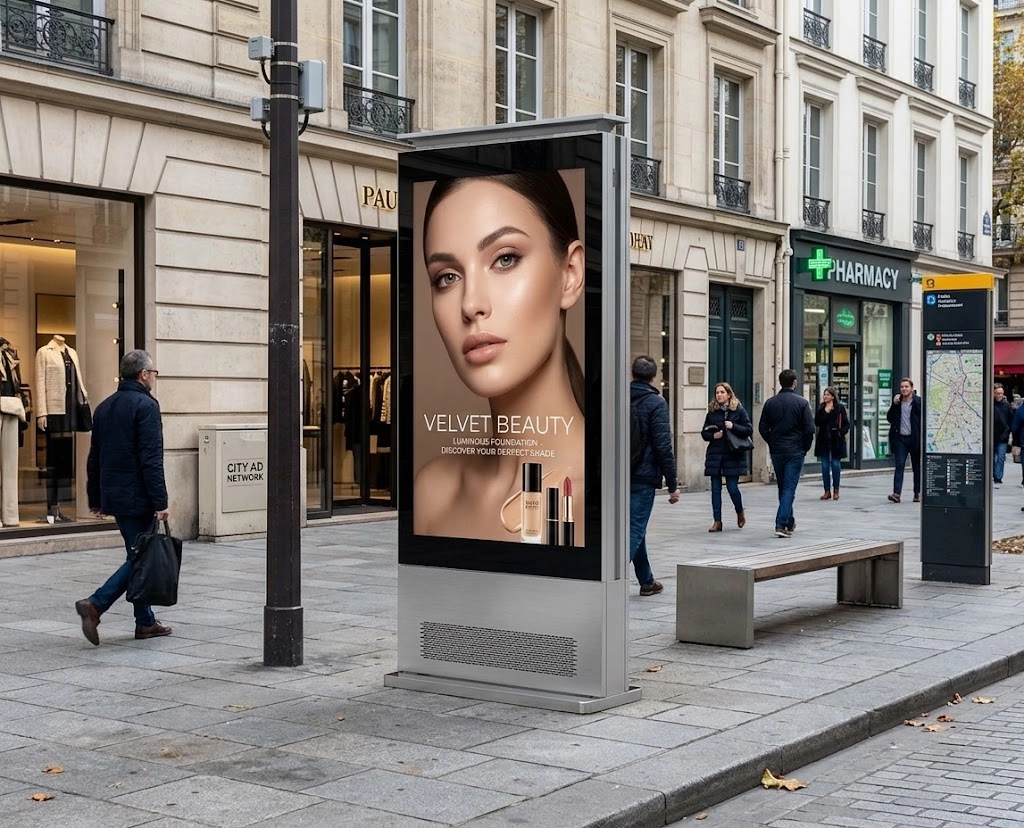

c-pad-m-case c-pad-m-case
