A 3D outdoor LED billboard budget should separate display hardware, structure and installation, creative production, controls, and operating costs. Request dated itemized quotes for the screen geometry and site, then test the business case using local advertiser demand and expected occupancy. Pixel pitch, corner construction, service access, and camera performance can all change the budget.
What Makes a 3D Outdoor Billboard Different from Standard Displays?
Naked-eye 3D billboards are not standard LED screens running 3D video files. They require specific hardware configurations that determine both image quality and total project cost.
High Refresh Rate and Contrast Ratio Requirements
For filmed 3D content, compare the offered refresh and scan configurations using the intended cameras and settings. Test for rolling shutter artifacts and assess contrast with the creative content under the site’s daytime and nighttime conditions.

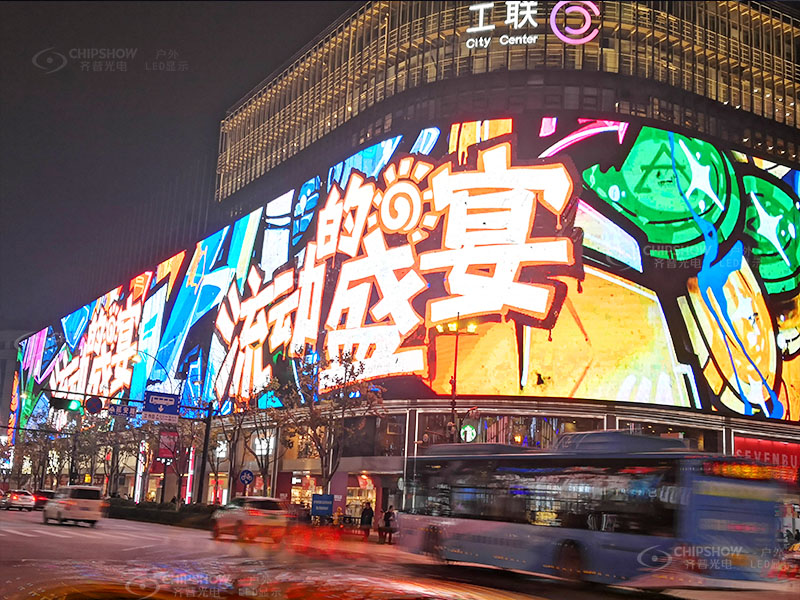

Curved vs. Right-Angle Cabinets for the 3D Illusion
An L-shaped or wrap-corner configuration can support a strong perspective effect, while content must be mapped to the actual geometry and viewing point. Two flat panels meet at a 90-degree angle, or a purpose-built curved cabinet spans the corner continuously.
Right-angle cabinet systems cost less to fabricate but require precise panel alignment. Curved cabinets suit cylindrical or landmark structures but add to both manufacturing cost and structural engineering scope. Check cabinet geometry together with the content mapping and intended viewing point.
Surface Flatness and Seamless Corner Construction
A gap or misalignment at the corner seam is visible to most viewers at standard street-level distances. Agree the seam and flatness acceptance limits, measurement method, and perspective test for the proposed cabinet layout.
Where rear access is blocked, confirm a front-service procedure, working clearances, and the access equipment needed at the actual mounting height.
Breaking Down the 3D Outdoor LED Billboard Cost
Total project cost divides into four budget categories, each of which scales differently with screen size and location. Forecasting them separately produces more accurate project budgets.
Hardware Costs: Pixel Pitch, Brightness, and Cabinet Materials
- Pixel pitch is the largest variable in hardware pricing. For a street-level 3D billboard with a primary viewing distance of 15 to 30 ft (4.5 to 9 m), P4 to P6 outdoor modules are appropriate. Compare finer-pitch samples and hardware quotations with the actual creative content before deciding whether the added detail is useful.
- Brightness and dimming should be compared under the site’s sunlight, orientation, and nighttime operating limits.
- Cabinet material options range from standard extruded aluminum to die-cast aluminum to carbon fiber composite, each with different weight, heat management, and price points.
Hardware-only pricing varies significantly by specification and order volume. Request project-specific, itemized quotes from qualified suppliers before budgeting.

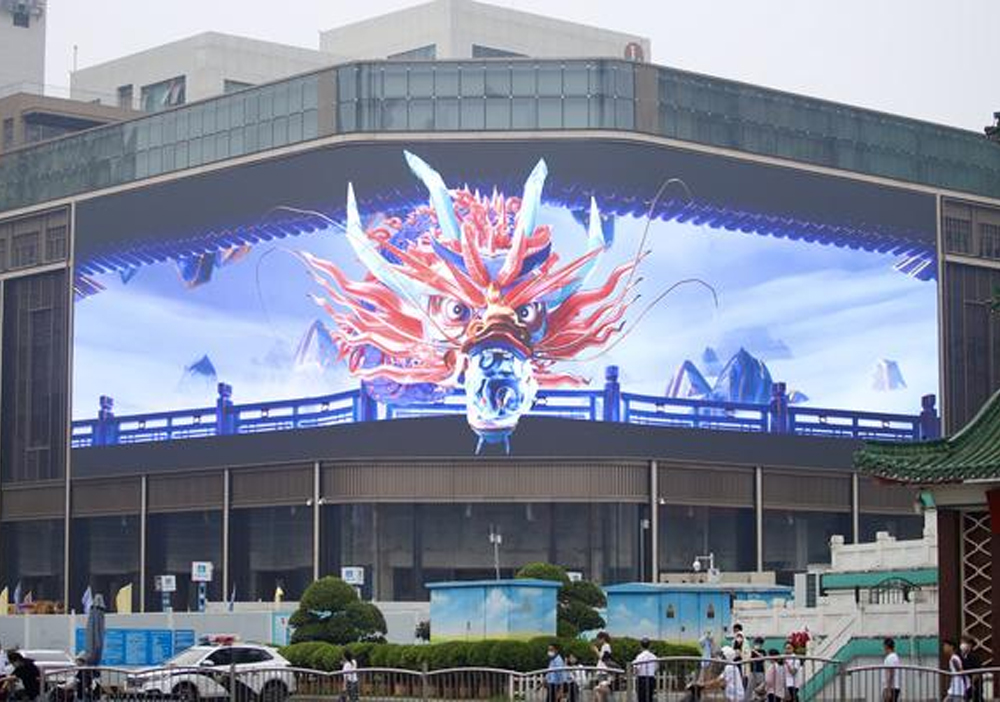

Installation and Structural Engineering
Price engineering, fabrication, lifting, installation, and access separately for the actual screen area, mounting height, and site. Cabinet-free systems such as Chipshow’s Smart series can reduce enclosure weight, while the complete structure and permit submission still need project-specific review.
Include engineering approvals, permit fees, access restrictions, and local contractor costs in the installed budget. Confirm the responsible parties and required drawings before purchase.
Anamorphic 3D Content Production
Request a content quote that states animation duration, scene complexity, revisions, rendering, mapping to the screen geometry, and on-site perspective testing. Keep creative production separate from LED hardware.
Content must be custom-mapped to the exact pixel dimensions and corner geometry of each specific screen. Templates from other installations are not reusable without modification. Agree launch content quantity and formats with the sales plan and prospective advertisers.
Software and Control Systems
Request a controls quote covering the native canvas, corner outputs, synchronization, scheduling software, monitoring, user access, training, and recurring licence fees. Check the actual processor and software feature set.
Backup playback hardware is recommended for high-revenue sites where any downtime means failing to deliver ads already sold to advertisers.
Which Technical Specs Have the Biggest Impact on 3D Billboard Cost?
Specification choices determine both the price of the system and how reliably the illusion performs in the field. Three specs carry the most weight.
Refresh Rate
Select refresh and scan settings using the intended camera tests. A nominal 7,680 Hz or 3,840 Hz value alone does not guarantee footage without rolling bands or other camera artifacts.
Surface Flatness and Corner Precision
Cabinet systems with integrated corner-lock mechanisms and factory-calibrated alignment reduce on-site adjustment time and lower the risk of performance failure after repeated field installations. Use the supplier’s documented alignment limits and the agreed site acceptance method for the proposed layout.
Brightness for Outdoor 3D Depth
Confirm working brightness, dimming range, contrast, and local operating limits for the screen orientation and ambient light. Review the intended 3D content from the planned viewing point at daytime and nighttime settings.

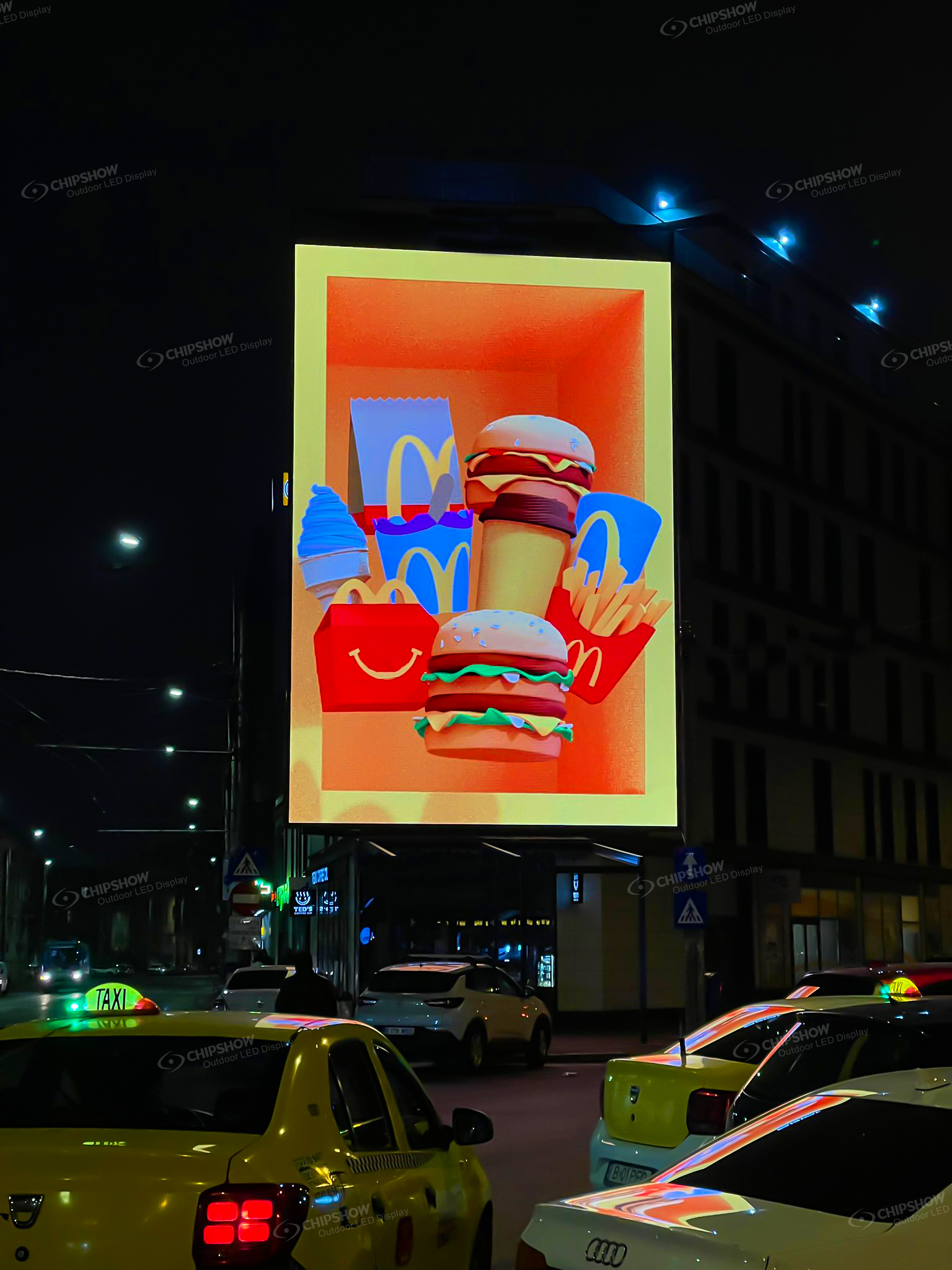

ROI Analysis: Is a 3D Billboard Worth the Premium Price?
Compare the formats using local quotations and rate cards with a stated date, market, and inclusion scope. A premium 3D format creates a sales opportunity; advertiser commitments and occupancy still determine the return.
| Billboard Type | Local Monthly Ad Rate Evidence | Content Redistribution Potential | Payback Calculation Inputs |
| Static Printed Billboard | Dated local rate card | Minimal | Include structure, printed media, and replacement costs |
| Standard Digital LED Billboard | Dated local rate card | Low | Calculate from installed investment and net operating cash flow |
| Naked-Eye 3D LED Billboard | Compare dated local rate cards and advertiser commitments | High: user-generated footage commonly redistributed on social platforms | Calculate from installed investment, occupancy, and net operating cash flow |
The financial advantage of 3D formats depends heavily on location quality, advertiser demand, content refresh frequency, and media sales capability. A premium screen does not automatically guarantee higher occupancy or faster payback.
Model simple payback as upfront installed investment divided by annual net operating cash flow. Deduct energy, maintenance, content updates, software, site costs, and selling costs when estimating that cash flow; test lower-occupancy scenarios as well.
Higher Ad Rates for 3D Slots
3D slots command premium rates because they are scarce and demonstrably different from surrounding inventory. Advertisers pay for the format, not just the location. The rate premium over adjacent standard digital inventory varies by market and should be benchmarked against local rate cards before inclusion in any financial projection.
Organic Reach Through User-Generated Content
A high-quality anamorphic 3D execution can generate substantial organic impressions when viewers film and share the content. This earned reach is not captured in standard OOH audience metrics but is a primary reason national and global brands allocate budget to 3D formats. The footage must reproduce the depth effect cleanly on mobile devices, which makes refresh rate and corner construction the two technical prerequisites for this revenue channel.
Attracting National and Global Advertisers
3D format capability positions a media owner’s inventory in a category most local and regional operators cannot access. Global consumer brands, automotive manufacturers, and technology companies actively seek 3D-capable outdoor placements in major metropolitan markets. Securing anchor advertiser commitments before launch is the most direct way to reduce revenue uncertainty during the first operating year.
How to Reduce 3D Outdoor LED Billboard Cost Without Losing Impact
For 3D billboard projects, Chipshow typically evaluates three engineering priorities before recommending a product configuration: viewing distance, corner structure, and maintenance access. For high-brightness DOOH projects, C-Slim supports lightweight, front-service outdoor installation. For facade or structure-sensitive projects, C-Smart can help reduce cabinet load and simplify integration with building surfaces.
Cost optimization at the specification stage does not require compromising viewer impact, provided specifications are matched to actual viewing distances and use conditions. The five decisions below offer the highest leverage for reducing total project cost.
- Match pixel pitch to the actual viewing positions and content. Compare P4 and P6 samples and itemized quotes before treating a coarser pitch as a saving.
- Specify energy performance using measured average power for the quoted configuration at the planned brightness and content schedule. Keep maximum load visible for electrical design and use average power for the operating-cost model. Compare the Slim series using these inputs.
- Prioritize service access when rear clearance is limited. Front service can help the maintenance plan, but technicians may still need approved lifting or access equipment depending on screen height and the work involved. Review the Slim series against the site’s service route.
- Negotiate a multi-execution content package. Bundling three to five creative executions with a 3D studio at project launch reduces per-unit production cost compared to commissioning animations individually.
- Size the screen to maximize corner visibility. Layouts that prioritize corner prominence over total flat-panel surface area deliver more audience impact per dollar of hardware.
Quick Reference: 3D Outdoor LED Billboard Cost by Project Scale
Use the illustrative area groups below to organize quotations for hardware, structure and installation, creative production, and total launch cost. Request dated quotations for the actual active area, cabinet grid, site, and inclusion scope.
| Project Scale | Total Screen Area | Hardware | Structure + Install | Content (Launch) | Total Quoted Launch Cost |
| Small urban (single corner) | 150 to 250 sq ft (14 to 23 m²) | Supplier hardware quote | Site contractor quote | Creative production quote | Sum quoted launch costs |
| Mid-size urban | 400 to 600 sq ft (37 to 56 m²) | Supplier hardware quote | Site contractor quote | Creative production quote | Sum quoted launch costs |
| Large landmark | 800 sq ft+ (74 m²+) | Supplier hardware quote | Site contractor quote | Creative production quote | Sum quoted launch costs |
Add software, ongoing content refresh, energy, site costs, and annual maintenance to the launch quotations when calculating total cost of ownership.
Calculate Your 3D Outdoor LED Billboard Cost Before You Commit
3D outdoor LED billboard cost becomes predictable when broken into hardware, structure, content, and software. The hardware decisions that most affect both cost and performance are pixel pitch selection relative to viewing distance, cabinet corner construction, and refresh rate specification. Content production and structural engineering are the two most frequently underestimated budget categories.
For media owners evaluating anamorphic 3D for a DOOH project, Chipshow’s outdoor LED display range covers the core specification requirements for high-brightness, front-serviceable outdoor performance. Review the complete product line to request a project-specific technical specification and cost estimate.
FAQs About 3D Outdoor LED Billboard Cost
Q1. Can an Existing Digital Billboard Be Converted to a 3D Anamorphic Configuration?
An existing screen can be considered when its geometry, native canvas, brightness, and planned viewpoint support the content. A flat screen can show perspective-based effects; a corner-wrap concept may require structural and cabinet changes. Review the creative test and hardware survey before deciding what to replace.
Q2. What Are the Annual Maintenance Costs for a 3D Outdoor LED Billboard?
Budget maintenance from the service plan, access equipment, spare components, warranty scope, software support, and local labour. Quote content refresh separately and agree its schedule with the media-sales plan.
Q3. How Long Does a 3D Outdoor LED Billboard Last?
Ask for the exact configuration’s brightness-maintenance rating, operating conditions, warranty, and parts-support plan. LED operating-hour ratings do not establish a fixed service life for the full installed system.
Q4. What IP Rating Does an Outdoor 3D LED Billboard Require?
Check front and rear ingress ratings for the proposed enclosure, and request separate evidence for salt exposure, corrosion, and condensation where relevant.
Q5. How Long Does It Take to Install a 3D Billboard From Order to Launch?
Request a dated schedule covering the site survey, engineering, permits, manufacturing, transport, installation, content mapping, and acceptance. Confirm dependencies and responsible parties before ordering; the launch date should follow the approved project schedule.
