A command center LED wall is only as dependable as the way its weakest failure modes are handled. If the room depends on continuous visibility for operations, dispatch, security, or incident response, command center LED redundancy should be specified by what can fail, how quickly it can be restored, and what the operator will see during the fault. That approach is more useful than a generic "redundant" label because it turns resilience into concrete design choices for cabinets, power, data, control, cooling, and maintenance access.
Why Redundancy Must Follow Failure Modes
For a command center LED wall, the first buying mistake is treating redundancy as a single feature instead of a set of failure-specific safeguards. ISO 11064 is about control-room design and operator performance, not a one-size-fits-all LED recipe, but it does reinforce the bigger point: the display has to support the room’s work reliably, not just look impressive. That is why LED wall failure mode planning belongs at the start of the procurement process.
The practical question is simple: what happens when one part fails? A module fault may leave the wall usable. A controller fault may take down the whole image. A power issue may darken a cabinet or the full wall. Those are different risks, so they deserve different requirements. In a redundant LED video wall command center proposal, "redundant" should never be accepted as a blanket promise without naming the layer it protects.
A useful decision rule is this: if the vendor cannot name the failure mode, the redundancy claim is incomplete. If the quote says only that the wall is redundant, it does not tell you whether the protection covers power, signal, controller, or maintenance access. For 24/7 rooms, that missing detail is where the outage risk lives.
Map the Main Failure Modes
The main value of LED wall failure mode planning is that it keeps buyers from blending different kinds of risk into one vague requirement. Power, signal, controller, module, and service access are separate questions. A wall can be strong in one layer and fragile in another.
Power Paths and Backup Capacity
Power redundancy should be specified by the exact event it is meant to absorb. Is the goal to survive a single power-supply failure, a branch loss, or a broader utility disturbance? Those are not the same. N+1 is useful here as a planning concept: one extra unit or path beyond expected load for a named failure mode. It is not a universal badge for the whole wall.
If the room cannot tolerate a cabinet going dark, ask whether each cabinet has load sharing, spare PSU capacity, or dual feeds. If the room cannot tolerate a wider loss, ask how the wall integrates with the building’s backup power strategy. The answer should be specific enough that a facilities team and an AV team can test the same expectation.
Signal Paths and Automatic Switchover
Signal redundancy usually means a dual-path design so the display can keep operating when the primary transmission path fails. The dual-path signal failover concept matters because the wall may still be physically healthy while the content pipeline is broken. That is a different failure than a dead cabinet.
The buyer question should be: what happens when the active path fails? Automatic switchover is stronger than manual intervention, but even automatic systems need to be verified in the actual room workflow. Check whether the wall holds the last valid image, switches to a backup feed, or blanks briefly during recovery. Those differences affect operator trust during an incident.
Controller and Processing Redundancy
Controller redundancy deserves its own layer because a controller failure can affect the entire wall. That makes it more important than a single faulty module in many control rooms. A practical specification should ask whether the backup controller is hot, standby, or only replaceable after failure, and how long the transition takes.
In procurement terms, this is where N+1 redundancy control room display language can be helpful if it is defined carefully. The point is not to chase the label. The point is to know whether the wall keeps showing live operational content when the primary processing layer fails. If the answer is vague, the room still has a single point of failure.

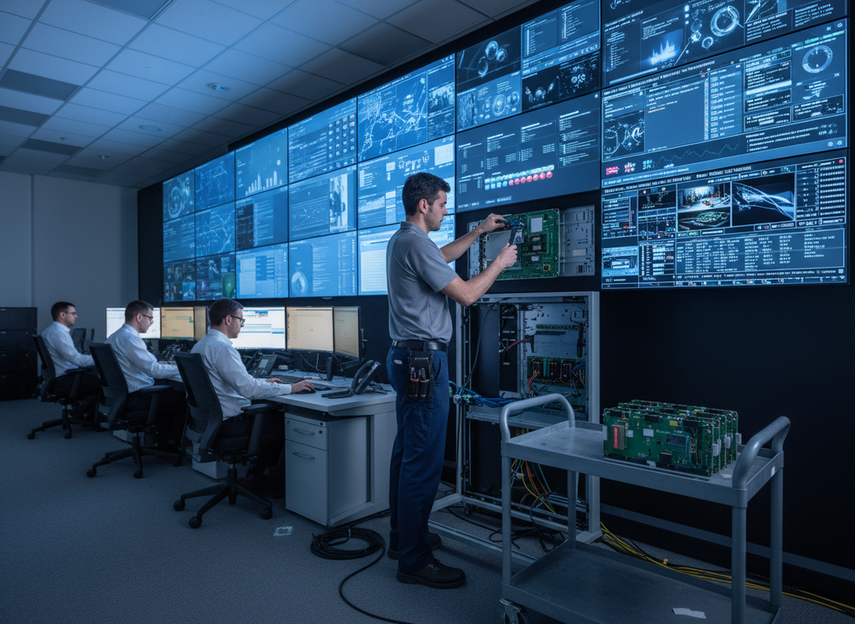

Service Access and Module-Level Recovery
The service layer is where many buyers overread marketing claims. Hot swappable LED modules 24/7 can reduce maintenance downtime, but they do not automatically prove system-wide redundancy. They tell you the display can often be repaired faster, not that every fault is absorbed without interruption.
Use the service layer to ask a simple question: can a failed module be replaced while the rest of the wall stays live? If the answer is yes, ask whether adjacent zones stay online, what access is needed, and whether calibration or re-sync steps follow the swap. This is where front service, rear access, and hot-swap should be treated as different things, not as interchangeable marketing language.
A wall can be technically resilient and still be hard to service if the room layout blocks access or if a repair requires a larger shutdown than expected. That is why the best specification separates replacement workflow from failover workflow. One is about maintenance; the other is about continuity.
Front Service and Hot-Swap Claims
| Claim term | What it should mean in practice | What to verify | Downtime risk if vague |
|---|---|---|---|
| Front service | Components can be reached from the viewing side without major cabinet removal | Access depth, latch clearance, tool path, and whether adjacent cabinets stay active | Repairs may require a larger shutdown than expected |
| Rear access | Maintenance is done from behind the wall | Room clearance, service aisle width, and whether the room can be used during repair | Access may be impossible in tight control rooms |
| Hot-swap module | A failed module can be replaced while the wall remains live | Live replacement procedure, calibration recovery, and operator visibility during the swap | The term may only mean faster repair, not zero interruption |
| Field-replaceable board | A board can be exchanged after a fault, but not necessarily live | Whether replacement requires shutdown, reinit, or readdressing | The wall may be offline longer than assumed |
| Redundant PSU | A second power unit or spare capacity can carry the load if one fails | Load-sharing behavior, alarm visibility, and whether the cabinet keeps operating | A single PSU failure may still blank the cabinet |
For buyers, the most important question is whether maintenance can happen without a full wall outage. The phrase maintenance without downtime only matters if the system can stay operational during the actual replacement step. If a vendor says the wall is front-serviceable, ask whether the live image remains up, whether nearby zones are affected, and what the room must give up to perform the repair.
The cleanest way to use this table is as a checklist during proposal review. If a claim sounds broad, turn it into a concrete test: can the wall stay live, what part fails over, who performs the swap, and what else has to stop while that happens? That is the difference between a service feature and true resilience.
Build an RFP Buyers Can Use
A good RFP turns a general claim into a testable requirement. If the wall is supposed to stay available in a mission-critical room, the document should say what failure mode is covered, what response is acceptable, and what proof the vendor must supply. That is the most reliable way to compare proposals that use different language for the same idea.
- Define the outage you cannot accept. Start with the failure that would cause the most operational harm. For one room, that may be a controller fault. For another, it may be a power disturbance or a service event during live operations.
- Name the protected layer. Separate power, signal, controller, and service access so the vendor answers the same question you are asking. Do not let one strong feature stand in for the rest.
- State the expected behavior. Say whether recovery must be automatic, whether a brief freeze is acceptable, and whether the wall may continue in a degraded state.
- Ask for diagrams and procedures. Request failover diagrams, service steps, spare-part lists, and the maintenance workflow instead of a summary promise.
- Define the acceptance test. Ask the vendor to show what happens when the named failure is simulated, and require the same result in the room layout that will be installed.
This is where the phrase vendor proof requirements becomes practical. A short PDF saying "redundant" is not enough. A useful bid response should explain what remains single-point vulnerable, what is duplicated, and what the operator will see during the fault.
If you are comparing a mission-critical LED wall family against a simpler indoor display, this is also where the trade-off becomes visible. A more resilient system may cost more up front, but the real question is whether it reduces disruption in the room that matters. For 24/7 operations, that comparison should include downtime risk, not just pixel density or cabinet price.
Compare Vendors and Plan the Final Check
When the spec is done, compare vendors in the order the room would actually fail. Start with the layer that would hurt the operation most. For many command centers, that is controller and signal resilience. For others, it is service access because live maintenance is the hardest constraint. The best proposal is the one that protects the room’s real weak point, not the one with the longest feature list.
If two vendors both claim redundancy, separate what is included from what is optional. One may bundle dual power inputs and dual signal paths. Another may charge extra for failover hardware or serviceable modules. That difference matters because a broad claim can hide a narrow included scope. The buying decision is stronger when you know exactly what is standard, what is add-on, and what still depends on site-specific design.
Before approval, ask three final questions. First, what failure mode does each redundancy feature cover? Second, is failover automatic, manual, or dependent on a technician? Third, which maintenance tasks require a shutdown, and which can happen live? Those questions surface the practical gap between brochure language and room behavior.

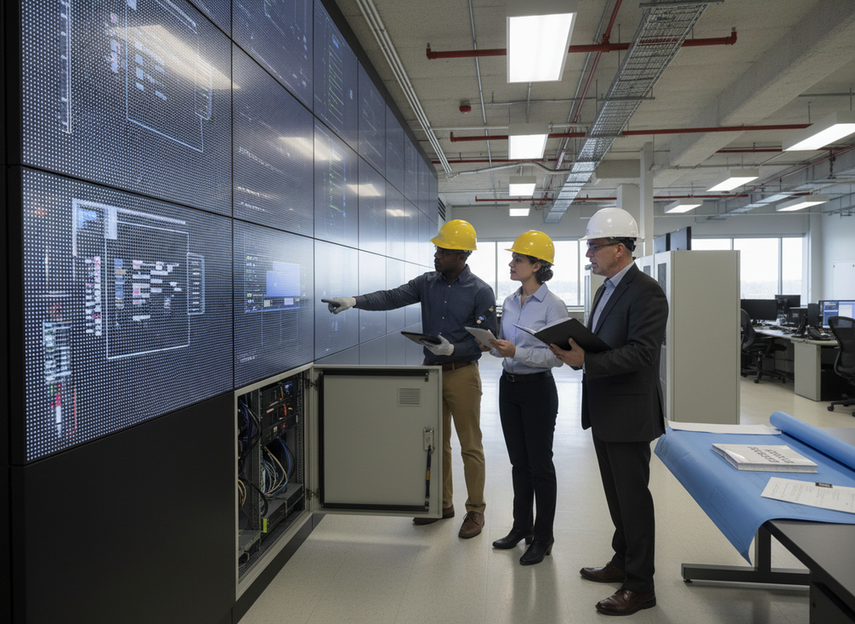

Then validate the wall on site. Confirm cabinet access in the actual room layout, not just in a rendering. Test the path the vendor says will fail over, and watch what happens at the wall and in the control software. Verify spare parts, escalation contacts, and documentation before the purchase order is signed. If the room truly needs continuous visibility, this final check is more valuable than another round of feature comparisons.
Final Takeaway
The safest way to specify command center LED redundancy is to tie every claim to a failure mode. Power, signal, controller, and service access all behave differently, so they should be written and tested differently too. That is the core of a better command center LED wall purchase decision. If you want us to help narrow the right path for your room, start with the failure that would hurt you most, then work outward from there.
FAQs
How Do Redundant LED Video Walls Work?
A true redundant LED video wall command center design usually protects more than one layer, such as power, signal, controller, and service access. The exact behavior depends on the architecture. The key is to ask what the backup path does when the primary one fails and whether recovery is automatic.
What Happens If One LED Module Fails?
In a well-designed wall, a single module failure should stay local and not take down the whole display. The actual impact depends on cabinet design, access path, and whether the module can be replaced live. If the failed part forces a larger shutdown, the system is less resilient than it sounds.
Can You Service a Command Center LED Wall Without Downtime?
Sometimes, yes, but only if the design supports live access and the room layout allows it. Hot-swappable parts and front-service access can reduce interruption, yet they do not guarantee zero downtime. Always verify the exact maintenance sequence, not just the feature name.
What Should N+1 Redundancy Mean for a Control Room Display?
In practice, N+1 means there is one extra unit or path beyond the expected load for a named failure mode. It is a planning concept, not a universal badge. Buyers still need to confirm what is duplicated, what remains single-point vulnerable, and how failover behaves.
What Questions Should Procurement Teams Ask Before Approving a Vendor?
Ask which failure mode each redundancy claim covers, whether recovery is automatic or manual, which tasks require a shutdown, and what proof documents are available. Those questions force vendors to answer the same operational question, which makes comparisons much more reliable.
What Is the Biggest Red Flag in a Redundancy Proposal?
The biggest red flag is a broad "redundant" claim with no named failure mode. If the proposal does not say whether it covers power, signal, controller, or service access, you do not yet know how the wall will behave when something actually breaks.
