NTCIP-Compliant VMS Bid Specification Language for DOT Projects

For DOT teams drafting NTCIP-compliant VMS bid specification language, the job is to state exactly what the project needs without assuming bidders will read your intent the same way. A good spec names the governing documents, the required control and communications behavior, the submittals that prove compliance, and the acceptance steps that close the loop. If your project includes a VMS LED sign, make that form factor clear in the opening scope so bidders know whether the clause applies to portable, gantry, or both.

What NTCIP and MUTCD Clauses Need to Cover

Start with the project’s controlling documents, then write the VMS language around them. For public-road applications, the federal baseline is the MUTCD 11th Edition, but the bid package still has to translate that baseline into agency-specific requirements for hardware, communications, and acceptance. In other words, the standard sets the frame; the solicitation tells bidders what they must deliver.

A clean clause set usually separates four things: what the project requires, what the contractor must furnish, what the agency will verify, and what documents must be submitted before award or fabrication. That split matters because vague language like "compliant" or "compatible" can hide different assumptions about the controller, the message library, or the acceptance path.

Portable and gantry units should also be called out separately when their mounting, mobility, or attachment hardware differs. If the project uses both forms, do not let one generic clause cover both unless the same verification path truly applies.

Sample Bid Clauses for Core Requirements

For NTCIP-compliant VMS bid specification language projects, the most useful clauses are the ones that tie communications, documentation, and responsibility to something the agency can check.

A conservative hardware-and-protocol clause can read like this: "Provide a variable message sign system that supports the project-specified NTCIP communications requirements and operates with the agency’s designated control environment. Furnish all hardware, software, interfaces, cables, mounting elements, and accessories necessary for a complete and functional installation."

For controller and communication language, the NYSDOT VMS specification example is a useful model because it ties the sign controller to NTCIP communication between the TMC and the sign. That kind of wording gives bidders a concrete target and avoids letting proprietary protocols creep into functions the project expects to manage through NTCIP.

On the submittal side, the ALDOT dynamic message sign requirements are a strong example of how to push required objects and MULTI tags into the bid package instead of leaving them implicit. If the project depends on specific display behavior, say so in the contract documents rather than hoping bidders infer the same object set.

Display and Message Requirements

Write the display clause around project-defined legends, symbols, or messages, not around a marketing promise. If the project has a visibility or readability expectation, tie it to the project documents and the agency’s inspection method. Avoid blanket brightness or viewing-distance claims unless the solicitation already defines those values.

A useful decision sentence is: if the agency needs a specific message set or symbol behavior, the clause should name it; if not, the clause should keep the requirement at the function level and leave the exact content to the project schedule.

Control, Communication, and Documentation

The control clause should tell bidders which system architecture they must fit. State the required communication method, the controller environment, and the documentation that proves the interface works. If the project uses NTCIP, identify the required scope of that NTCIP behavior instead of relying on a one-line compliance label.

A second decision sentence helps here: if the agency can test the interface only after installation, the specification must require enough pre-award documentation to show the integration path before fabrication starts.

Submittals and Responsibility Language

Make the bidder responsible for drawings, wiring details, product data, configuration files, and exception notices. The clearest specs say that deviations must be identified before award or fabrication, not after the sign is on site. The TxDOT special specification example is useful here because it treats object definitions and other technical details as part of the submittal burden, not as an optional extra.

That approach reduces disputes because the agency can reject incomplete submittals without arguing over what was implied. It also helps procurement teams separate mandatory requirements from optional features when the package has alternates or add-ons.

Optional Features Without Bid Ambiguity

If the agency allows extras, place them in a separate schedule or alternate section. Do not bury them inside the base technical specification. Otherwise, bidders may price them as mandatory, ignore them, or assume they are negotiable after award.

A practical rule is simple: mandatory items belong in the base specification, while optional items should be labeled as alternates, owner-directed additions, or project-specific allowances.

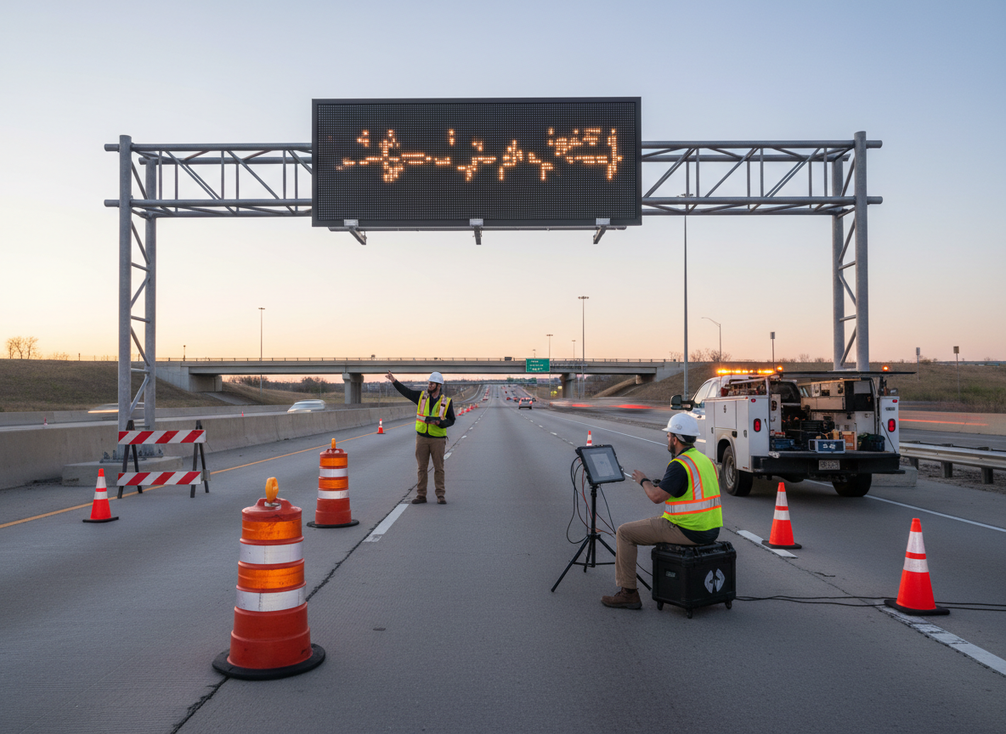

How to Write Acceptance Testing Language

Acceptance language should describe what the agency will witness, what gets recorded, and what happens if the unit fails. A defensible structure is to separate factory review from site verification. The FAT and SAT framework is a useful model because it distinguishes factory readiness checks from site acceptance after installation.

For VMS projects, that usually means the clause should require successful startup, verified communications with the designated controller or management system, correct display of project-defined test messages, confirmation of alarm and status reporting, and delivery of operation and maintenance materials. The project can add witness points and recordkeeping rules, but it should not rely on a vague promise that the sign is simply "accepted."

A useful boundary: if the project documents do not require a formal factory test, do not force one into the spec as if it were universal. Keep the acceptance process project-specific, but make the handoff steps explicit enough that the owner can enforce them.

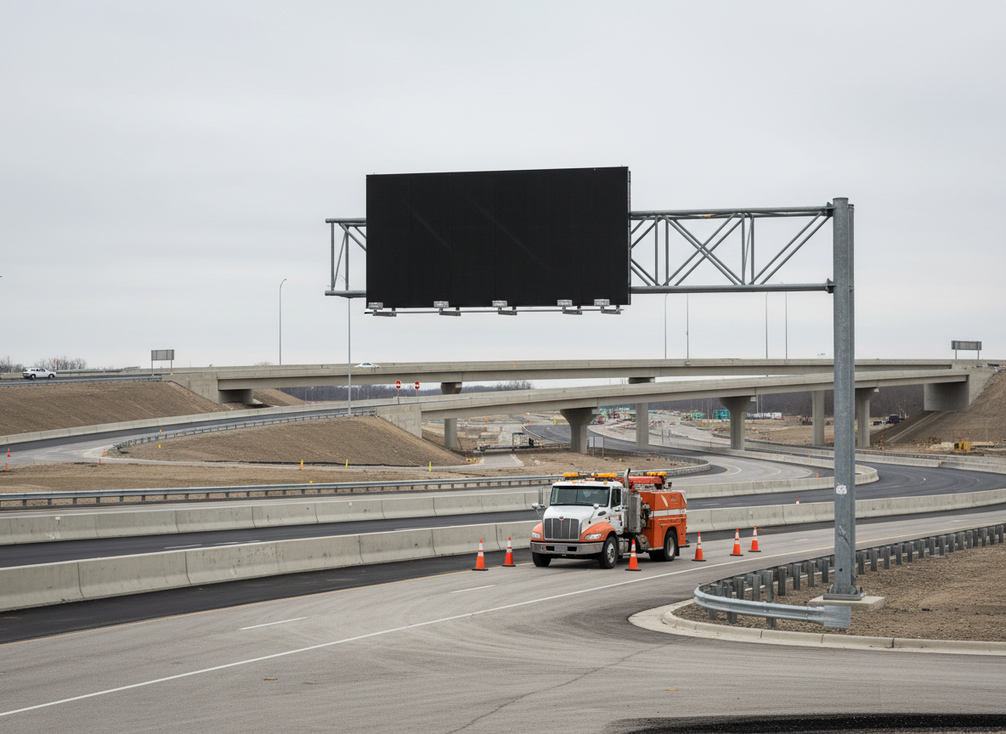

Portable Versus Gantry VMS Requirements

Portable and gantry VMS units often share the same general goal, but the procurement language usually changes where mounting, mobility, and attachment hardware change. That is why portable and gantry VMS clauses should not be copy-pasted without review.

If the project includes both types, write separate clauses or clearly divided sub-sections. That keeps the procurement comparison fair and prevents bidders from assuming the same acceptance steps apply to both installations.

Bid Package Checks Before Release

Before release, verify that every compliance term points to a document, drawing, or submittal item the bidder can answer. Confirm that mandatory and optional items are separated, and check that the VMS LED sign scope matches the installation type shown in the drawings. Review any protocol or certification language for exactness, because loose wording is where DOT VMS RFP clause examples tend to drift into ambiguity.

Use this short release check:

• The VMS type and installation context are stated clearly.
• The required communications behavior is defined, not implied.
• The required submittals prove what the bidder will supply and configure.
• The acceptance steps name witness points, records, and failure handling.
• Any addenda or district edits preserve the same terminology throughout the package.

If the drawings, special provisions, and bid form do not match, bidders will price the uncertainty or ask for clarification. Review the draft once more before issue, then move it to release if the terminology still lines up.

FAQs

What Does "NTCIP-Compliant" Mean for a VMS Bid?

In a bid spec, it should mean the project has defined the control, communication, and documentation expectations the sign must meet. The safest approach is to tie compliance to named project documents, required objects or interfaces, and the evidence needed to prove the system works as specified.

How Do You Separate Mandatory and Optional VMS Requirements in an RFP?

Put mandatory items in the base technical specification and move alternates, add-ons, or owner-directed options into a separate section. That keeps bid comparison cleaner and helps avoid the common mistake of making an optional feature look required by accident.

What Should Acceptance Testing Language Cover for Highway VMS?

It should cover who witnesses the test, what gets recorded, what functions are verified, and what happens if the unit fails. For most projects, the key boundary is whether the acceptance steps are factory-side, site-side, or both, because that changes who owns the corrective action.

Can Portable and Gantry VMS Use the Same Specification Clause?

They can share some base language, but they should not share the same mounting, mobility, or attachment language unless the installation method is truly the same. If the support structure changes, the acceptance evidence and field checks usually need to change with it.

Why Do Bid Packages Get Flagged for VMS Compliance Ambiguity?

They are usually flagged when "compliant," "compatible," or "equal" is not tied to a test basis, a communication path, or a submittal requirement. The quickest fix is to make the bidder prove the interface, list the deliverables, and define the acceptance record before the package is released.
