Businesses evaluating large-format display technology often begin with a simple question: LED video wall or projector. The answer is not about which technology is better—it is about which technology aligns with the ambient light conditions, the viewing distance, the operating hours, and the total cost of ownership over the deployment period. A meeting room that runs presentations four hours a day, a retail storefront visible from the street in direct sunlight, and a 24/7 control room monitoring critical infrastructure each demand a different set of priorities. This comparison covers the technical differences, the cost structure over time, and the environmental fit for each technology.
How the Two Technologies Differ
The fundamental distinction between an LED video wall and a projector is how each produces an image. A projector emits light through a lens onto a reflective surface—a screen or a wall. The viewer sees reflected light. An LED video wall emits light directly from each pixel; each diode on the panel surface is an independent light source. This single difference determines almost everything else about how the two technologies perform in real-world commercial environments.
Brightness is the most visible consequence of this distinction. A projector rated at 10,000 ANSI lumens distributing light across a 10-metre-wide screen produces approximately 100 lux at the surface—adequate in a darkened room, but visibly washed out under the ambient light of a retail store or a sunlit corporate lobby. An LED video wall operating at 1,000 nits produces a picture that remains clear and legible under the same ambient conditions. For outdoor or semi-outdoor commercial environments, LED panels rated at 5,000 nits or higher are readable in direct sunlight; no projector in the same price category can match that output across a comparable surface area.
Image formation also differs. For a projector, evaluate the native resolution, projected image size, lens setup and projection surface together. For an LED wall, the native resolution depends on pixel pitch and the wall’s physical dimensions, while module alignment and calibration affect image uniformity. A P2.5 label does not guarantee clear text at 2.5 metres, nor does P1.5 guarantee it at 1.5 metres. Compare both systems with representative content from the intended viewing positions before confirming the specification.
Lifespan is the third commercial differentiator. A standard projector lamp lasts 2,000 to 5,000 hours before requiring replacement. Laser-phosphor projectors extend this to 10,000 to 30,000 hours. An LED panel, by contrast, is typically rated for 50,000 to 100,000 hours of operation—equivalent to over a decade of 12-hour daily use before brightness degrades to half of the original output.
Comparing Cost Over Time
An LED wall vs projection cost comparison cannot stop at the purchase invoice. The total cost over the deployment period tells a different story for each technology.
A mid-range laser projector capable of driving a 5-metre-wide image in a controlled indoor environment costs less to acquire than an LED video wall of equivalent surface area at P2.5 pitch. The projector requires a projection surface—a screen or a treated wall—and mounting hardware, but the total initial outlay is typically lower. However, the projector’s ongoing cost includes lamp or laser module replacement at scheduled intervals, filter cleaning or replacement, and, in many commercial environments, additional ambient light control measures such as blackout blinds or dimmable lighting. These costs accumulate across the operating life of the installation.
An LED video wall carries a higher initial cost—the panels, the mounting frame, the video processor, and the installation labour—but the ongoing cost is limited to electricity consumption and occasional module replacement. There are no lamps, no filters, and no light-control infrastructure to maintain. For a 10 m² installation operating 12 hours daily at commercial electricity rates, standard SMD panels draw approximately 250–300 W/m² at operational brightness, while common-cathode COB panels draw 180–220 W/m². The cumulative electricity cost difference between these two LED technologies over five years can approach the cost of additional spare modules, a factor that should be included in procurement comparisons.
The break-even point between projector and LED depends on three variables: the daily operating hours, the cost of ambient light control in the specific environment, and the local electricity rate. In controlled indoor environments with moderate daily use—a conference room operating four hours a day—the projector’s total five-year cost is typically lower. In environments with extended operating hours and uncontrolled ambient light—a retail storefront, a transport hub information display, an outdoor DOOH billboard—the LED wall’s lower ongoing cost and higher brightness typically produce a lower total cost of ownership over the deployment period.
Matching Technology to Environment
The decision between LED and projection is often settled by the physical environment before any cost comparison is made. An LED display vs projector evaluation begins with the room, not the spec sheet.
Retail storefronts and commercial lobbies expose a display to high and variable ambient light. Floor-to-ceiling windows, skylights, and internal retail lighting create conditions that degrade projected images below commercial acceptability. An LED video wall at 1,000 nits or higher maintains legibility and colour accuracy through these lighting conditions, making it the standard choice for ground-floor retail windows, shopping mall atria, and corporate headquarters lobbies. Indoor commercial LED series such as Chipshow’s C-Max provide the brightness and front-service architecture suited to these permanent installation environments.
Conference rooms and training facilities operate under controlled lighting—dimmable ceiling fixtures, blinds on windows, minimal ambient interference. A laser projector driving a large surface in this environment can deliver image quality that meets the requirements of most presentation and video-conferencing use cases, and the projector’s lower initial cost makes it the practical choice for rooms with moderate daily usage. In conference rooms where ambient light cannot be fully controlled—for example, spaces with floor-to-ceiling glass that faces an atrium or an exterior window wall—an LED video wall maintains legibility without requiring blackout measures. An LED installation also suits rooms where zero-maintenance uptime is a priority, such as a boardroom used for client-facing presentations with no tolerance for a lamp failure during a meeting.
Control rooms and network operations centres run 24 hours a day and require absolute image stability—no colour drift, no brightness fall-off, and no lamp failures during a shift. LED is the standard technology for these environments. The combination of consistent output across a 100,000-hour rated lifespan and the absence of consumable components eliminates the operational risk that lamp-based projection introduces into continuous-duty environments.
Outdoor DOOH and billboard applications are LED-only. A projector cannot compete with direct sunlight. The brightness requirement for an outdoor digital billboard is typically 5,000 nits or higher—a figure no commercial projector can achieve across a billboard-sized surface without extraordinary cost that exceeds an LED installation. Beyond brightness, outdoor environments impose conditions that projectors are not engineered to handle: continuous exposure to rain, dust, UV radiation, and temperature extremes throughout the year. The display must remain operational through every weather condition without the protective enclosure of an indoor space. For outdoor advertising, the technology decision is settled before the procurement process begins. High-brightness outdoor LED series such as Chipshow’s C-Slim, rated for 5,500 nits and above, are designed specifically for these daylight-visible commercial applications.
Multi-use venues—sports facilities, auditoriums, event spaces—may benefit from a hybrid approach. LED walls serve daytime or high-ambient-light programming; projectors handle evening or cinematic content where ambient light is controlled and the softer image characteristics of projection are desirable. The hybrid model does not apply to fixed commercial installations but is increasingly common in venues that cycle between different event types.
What Specification Sheets Leave Out
Beyond brightness, resolution, and cost, three operational factors influence the long-term experience of owning either technology in a commercial environment.

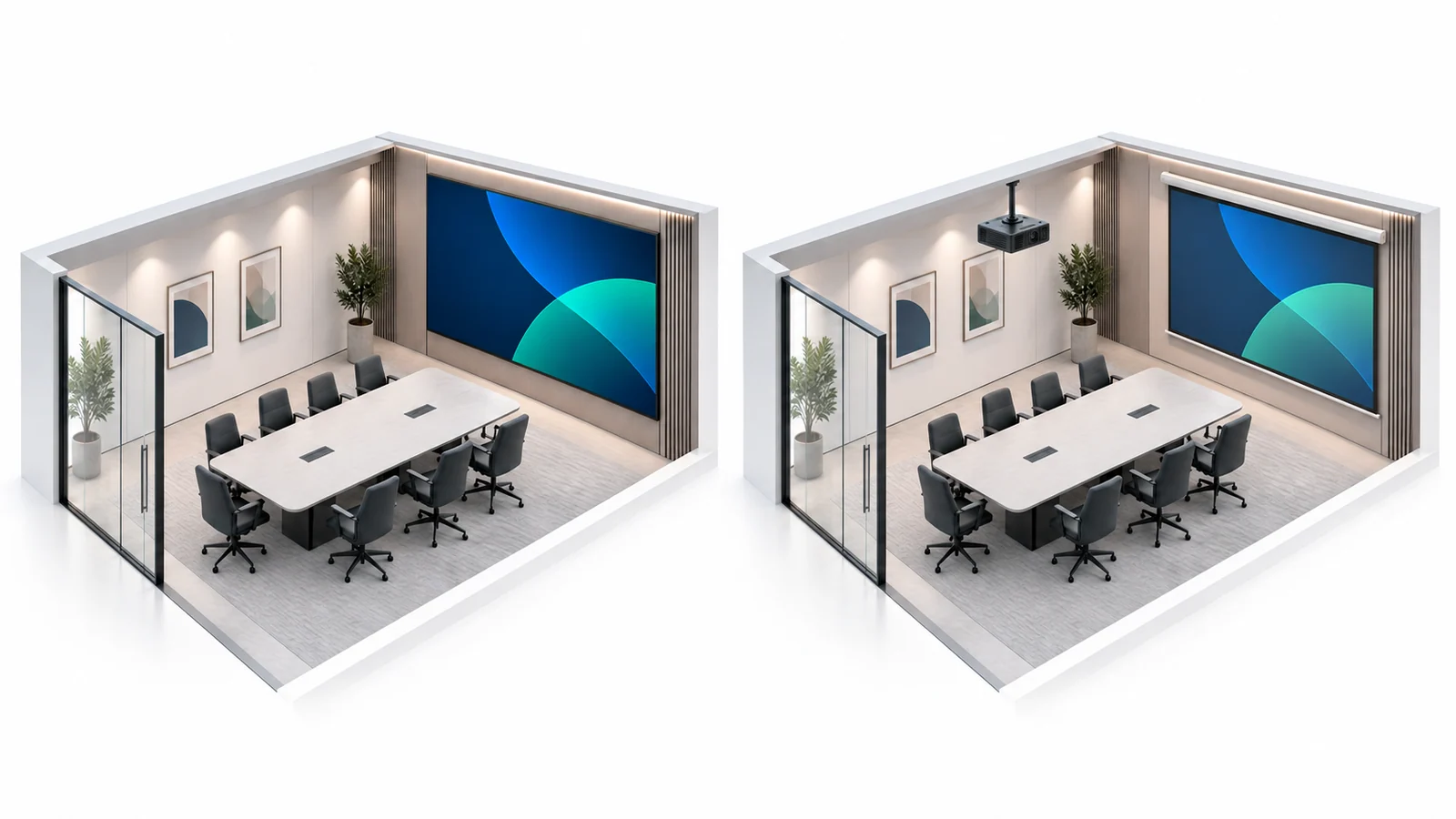

Concept illustration comparing a direct-view LED wall with a projection screen in the same room. Compare both under your own lighting and content before choosing a system.
Maintenance access. A projector mounted on a ceiling requires a ladder or lift for lamp replacement and filter cleaning—routine tasks that occur several times a year in heavy-use environments. An LED wall with front-service modules allows a technician to replace a failed panel from the front face without accessing the rear of the installation. In retail environments where the display backs against a wall and rear access is unavailable, front-serviceability is a binary requirement that eliminates certain product designs before any other comparison criteria apply.
Noise and heat. Projectors generate audible fan noise and radiate heat into the room. In a quiet corporate boardroom or a small conference space, the projector’s cooling fan is a distraction. LED walls with fanless or passive cooling designs operate silently, making them suitable for environments where ambient noise is a concern. The heat generated by either technology affects HVAC load; LED panels operating at lower brightness levels produce less waste heat than equivalent-surface-area projection systems, but this advantage narrows as brightness increases.
Content adaptability. A projector produces a single rectangular image of fixed aspect ratio—typically 16:9. An LED wall can be assembled into non-rectangular shapes and custom aspect ratios, supporting curved, L-shaped, and irregular configurations that follow architectural features. This flexibility is relevant for corporate lobbies, flagship retail stores, and creative installations where the display is integrated into the building design rather than mounted as a standalone screen.
Conclusion
The choice between an LED video wall and a projector for a commercial environment is determined primarily by ambient light, operating hours, and the total cost of ownership over the deployment period, not by the purchase price alone. LED walls provide the brightness, lifespan, and maintenance profile required for retail, lobby, control-room, and outdoor applications. Projectors remain a cost-effective solution for dimmable indoor environments with moderate daily use. Chipshow’s indoor and outdoor LED display systems—including the C-Max, C-Slim series—serve commercial fixed installations worldwide. Contact Chipshow for specification assistance and a project-specific comparison of LED display options.
Frequently Asked Questions
Q1: Is an LED video wall always better than a projector?
No. The correct technology depends on the environment. In a bright retail storefront, an outdoor DOOH location, or a 24/7 control room, LED is the appropriate choice because of its higher brightness, longer lifespan, and lower ongoing maintenance cost. In a dimmable conference room with moderate daily use, a laser projector delivers comparable image quality at a lower initial cost. The decision should follow the use case, not a technology preference.
Q2: How much does an LED video wall cost compared to a projector?
The initial acquisition cost of an LED video wall at P2.5 pitch is typically higher than a laser projector driving a comparable surface area in a light-controlled indoor environment. However, the five-year total cost comparison shifts as daily operating hours increase. In environments with extended operating hours and uncontrolled ambient light, the LED wall’s lack of consumable components—no lamps, no filters—produces a lower cumulative cost over the deployment period.
Q3: How does LED vs projector lifespan compare?
LED panels are typically rated for 50,000 to 100,000 hours of operation before brightness degrades to half of the original output. A standard projector lamp lasts 2,000 to 5,000 hours; a laser-phosphor projector extends this to 10,000 to 30,000 hours. In a retail or commercial environment running 12 hours daily, an LED installation can operate for over a decade before significant brightness degradation.
Q4: Can a projector be used outdoors?
Not effectively. Projectors cannot compete with direct sunlight. Outdoor digital displays require brightness levels of 5,000 nits or higher, which no commercial projector in a comparable price range can achieve across a large surface. Outdoor DOOH and billboard applications are served by LED technology.
Q5: What pixel pitch is appropriate for close viewing?
Select pixel pitch using the nearest viewing position, the wall dimensions and the smallest text or image detail that must remain legible. Compare shortlisted pitches with the actual content at the intended brightness and viewing angles. A room type or a matching distance in metres is not enough to establish the required pitch; control-room and broadcast projects also need checks specific to their content and camera use.
