True Circular Splicing
Break away from "polygon" approximations. C-Arc uses a multi-linkage structure and flexible module substrates to achieve smooth, continuous circles and pillars with a minimum diameter tailored to your architectural needs.

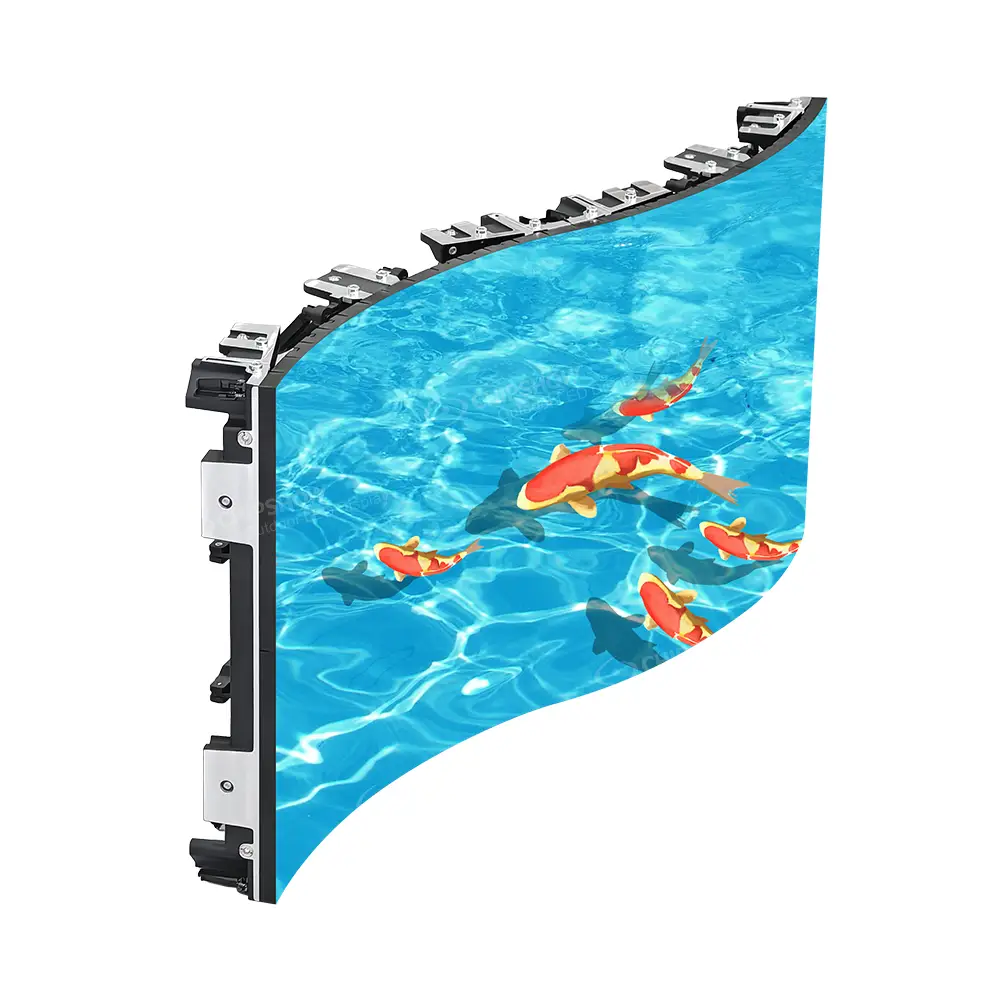

C-Arc Series Creative Curved LED

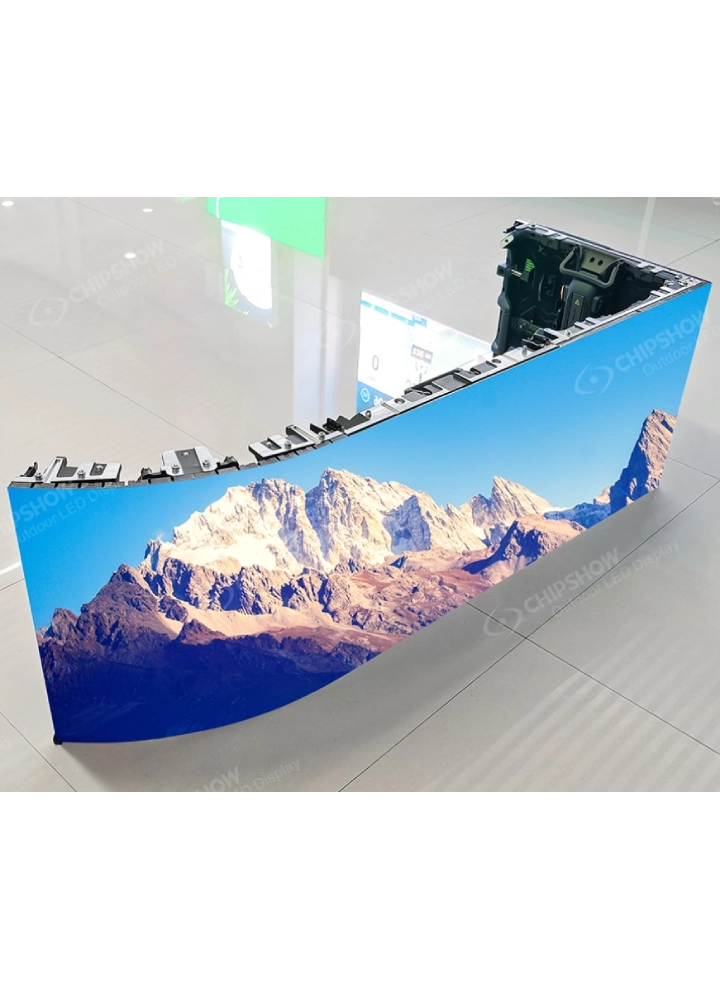

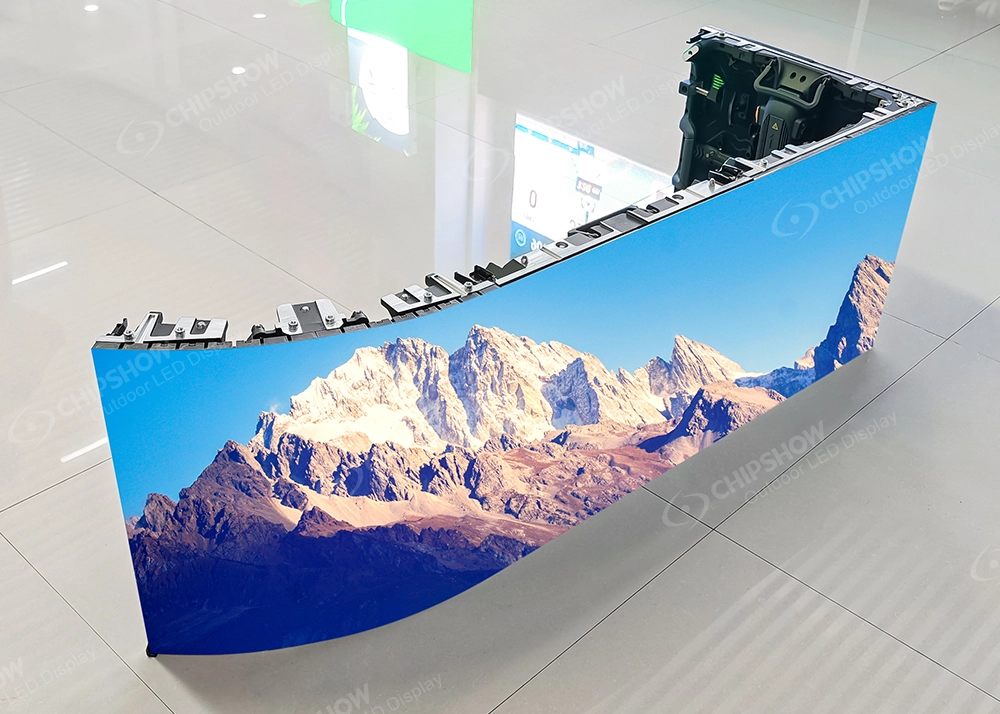

C-Arc is a flexible, curved LED display for concave, convex and S-shaped layouts. Its modular cabinets wrap columns, round architectural corners and create continuous visuals for immersive spaces.
C-Arc Series Creative Curved LED
C-Arc is a flexible, curved LED display for concave, convex and S-shaped layouts. Its modular cabinets wrap columns, round architectural corners and create continuous visuals for immersive spaces.
Specification
Pixel Pitch 2.604 mm / 2.97 mm
Brightness 800 cd/m² (Indoor)
Refresh Rate 3840 Hz
Cabinet Weight 7.5 kg/unit
Cabinet Bend -45° to +45°

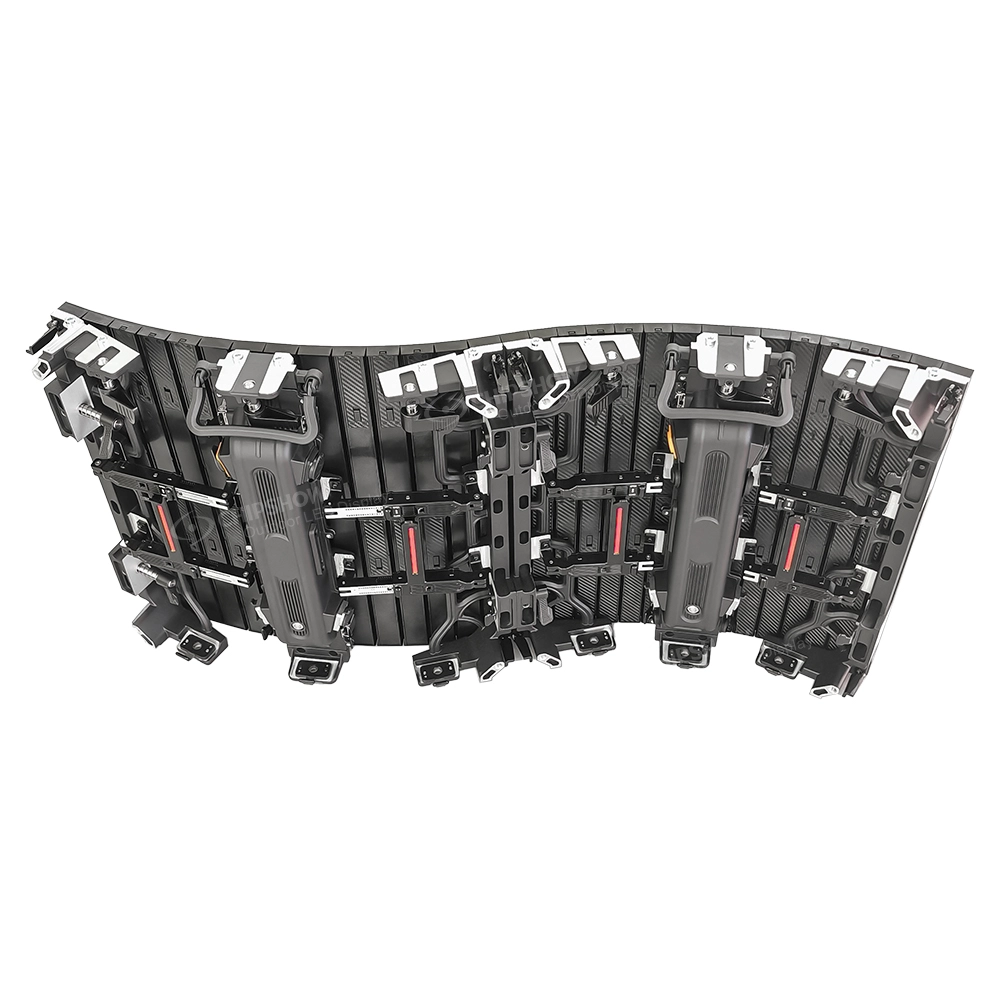

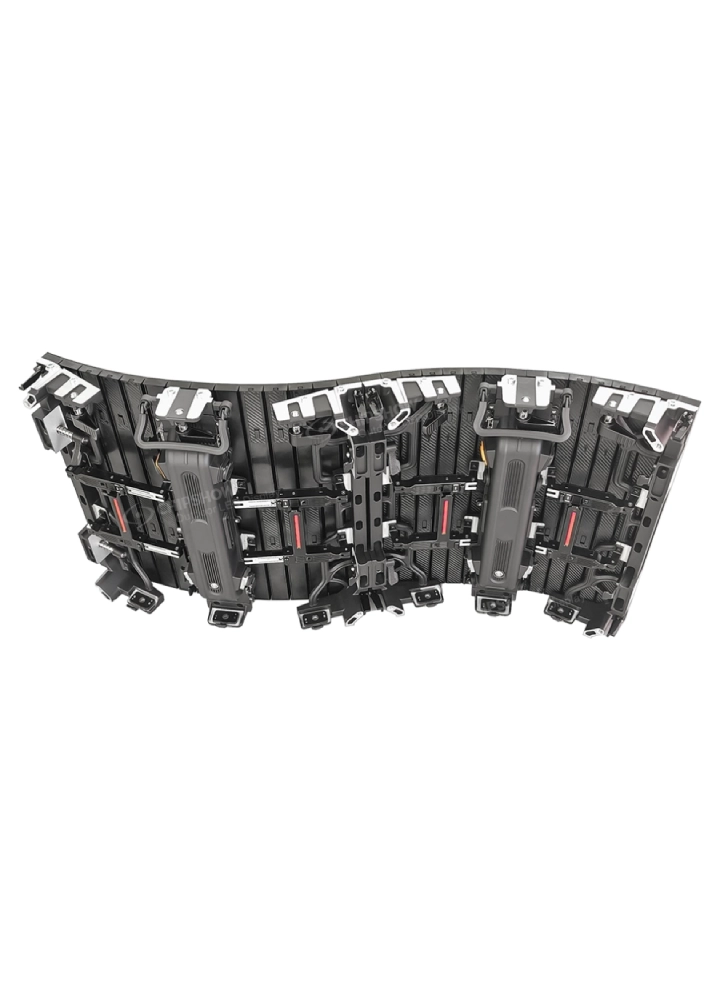

- Curve Freely: Single cabinets bend from -45° to +45°.
- Mix Shapes: Combine curved and flat cabinets.
- Wrap Columns: Eight cabinets form a complete ring.
- Round Corners: Two cabinets create a 90° rounded corner.
- Smooth Transitions: Soft-PCB modules follow each curve.
- Even Color: Point-by-point calibration aligns the image.
- Dscription
- Specification
- Application
- Solution
- FAQs
High-Fidelity Visual Performance
Engineered for the spotlight. With a ≥3840Hz refresh rate and 14-bit grayscale, C-Arc maintains vibrant color depth and motion smoothness, making it the preferred choice for TV studios and high-end brand launches.
Precision Die-Casting Chassis
Flexibility requires a stable foundation. Our die-casting aluminum cabinet provides the rigorous structural support needed to keep flexible modules perfectly aligned, preventing the "warping" common in low-end flexible screens.
Efficiency in Motion

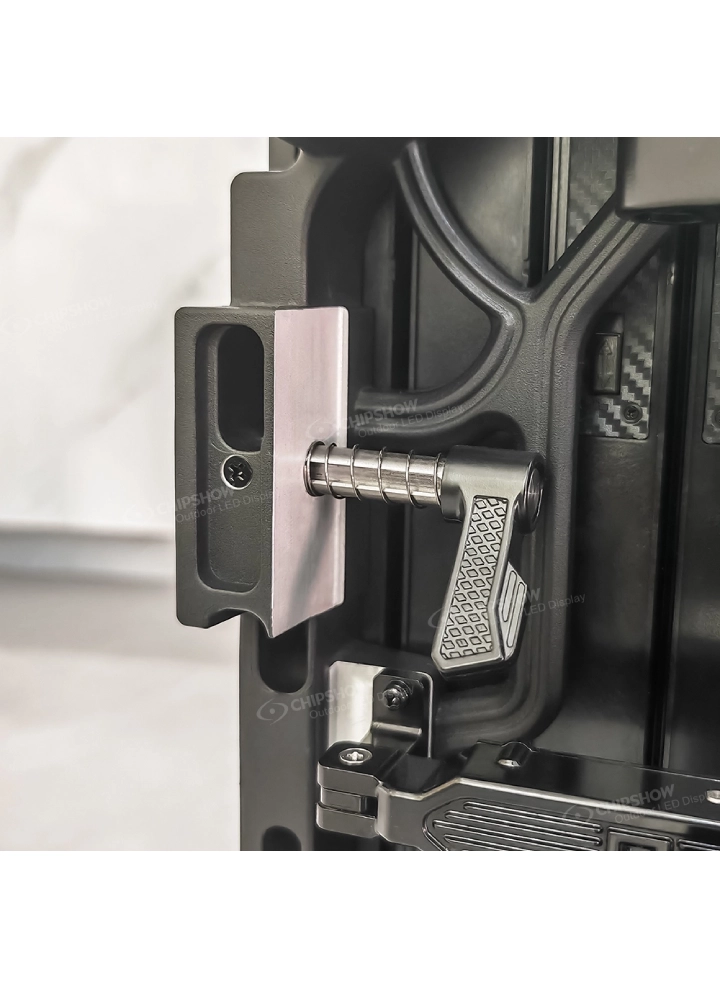

Speed is critical for event ROI. Weighing only 6.7kg with fast-lock connectors, C-Arc allows a single technician to assemble complex wave-shaped stages quickly, reducing labor costs and setup time.
Smart Magnetic Maintenance
No rear access? No problem. The C-Arc modules are equipped with strong permanent magnets, allowing for 100% front-access service. A simple vacuum tool can swap a module in under 10 seconds.
Thermally Optimized Fanless Design
Perfect for quiet environments like galleries and corporate lobbies. The efficient heat dissipation of the aluminum frame allows for a fanless, silent operation, ensuring the focus remains entirely on your content.
Send a Comment
Product Highlight
±15° Flexibility

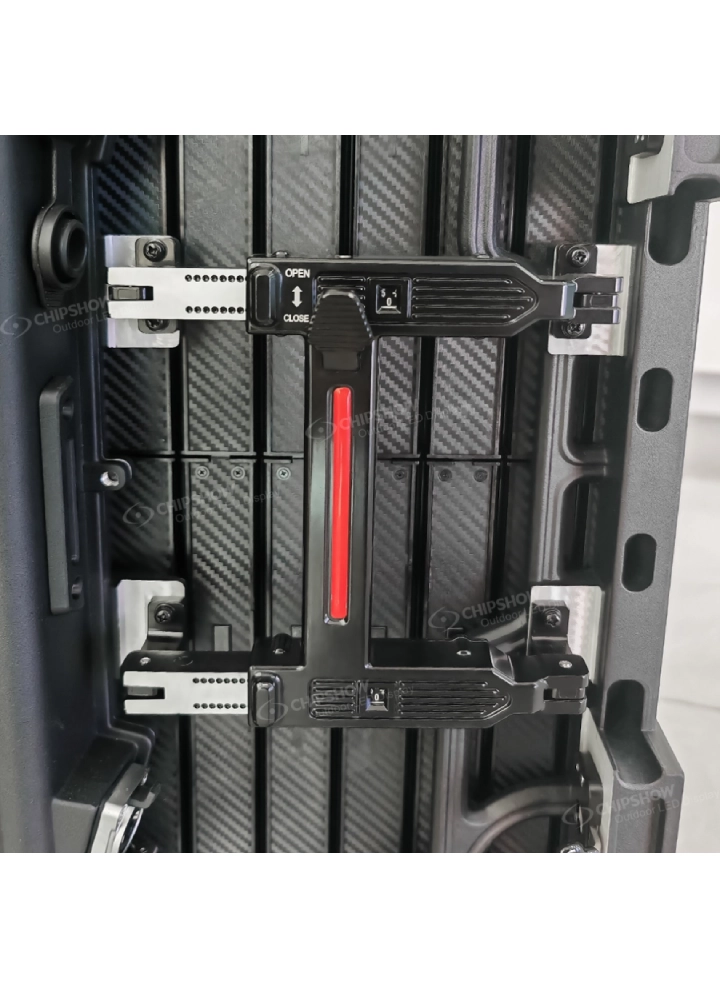

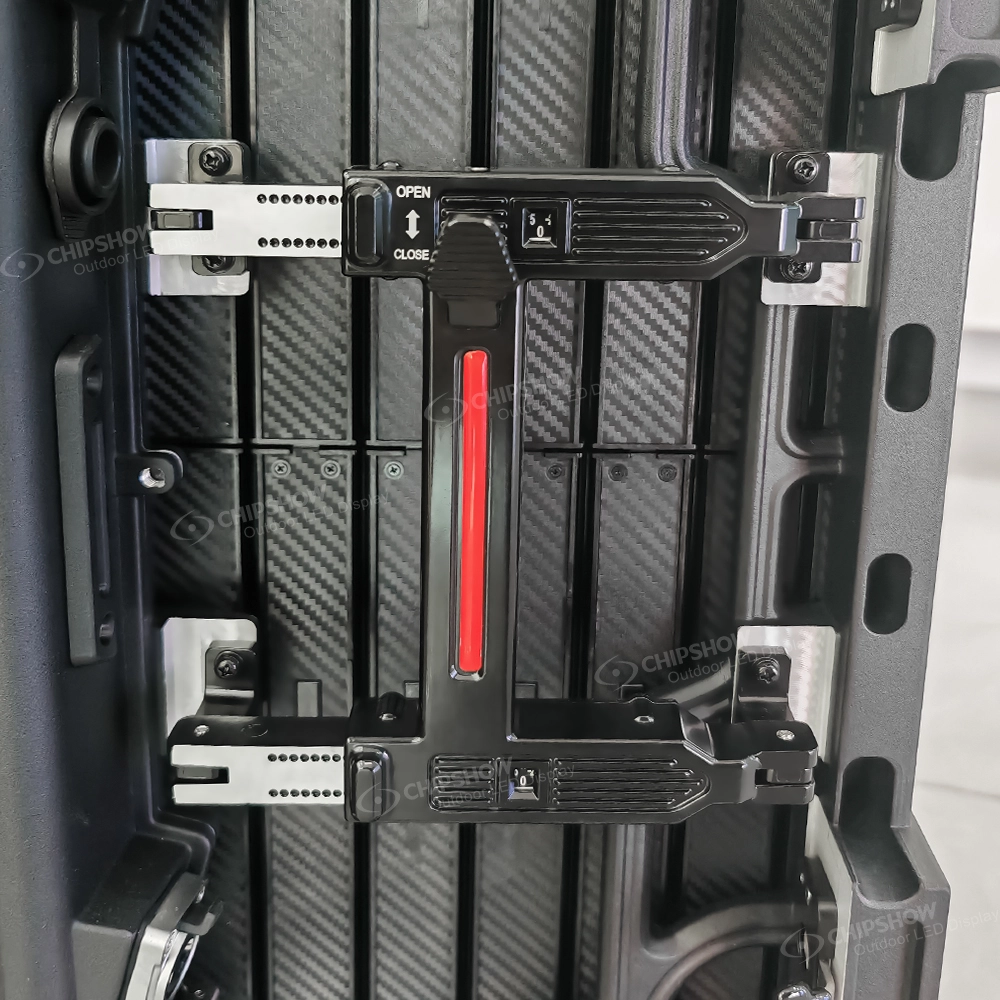

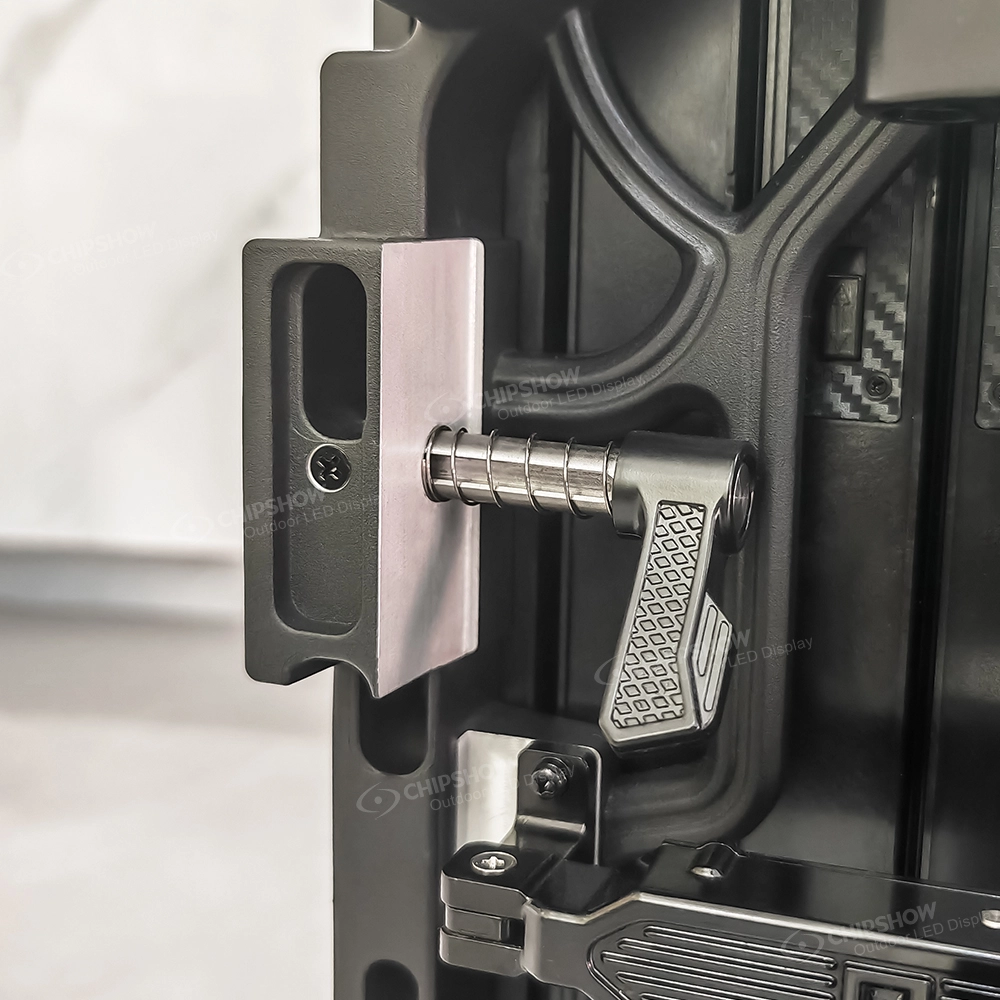

Precision angle locks for perfect arc control.
Ultra-Slim 87mm
Minimal footprint for wall-integrated designs.
Gold-Wire SMD
High-durability LEDs for consistent long-term brightness.
Low Power Ops
Energy-efficient ICs reduce operational heat and cost.
Related Solution

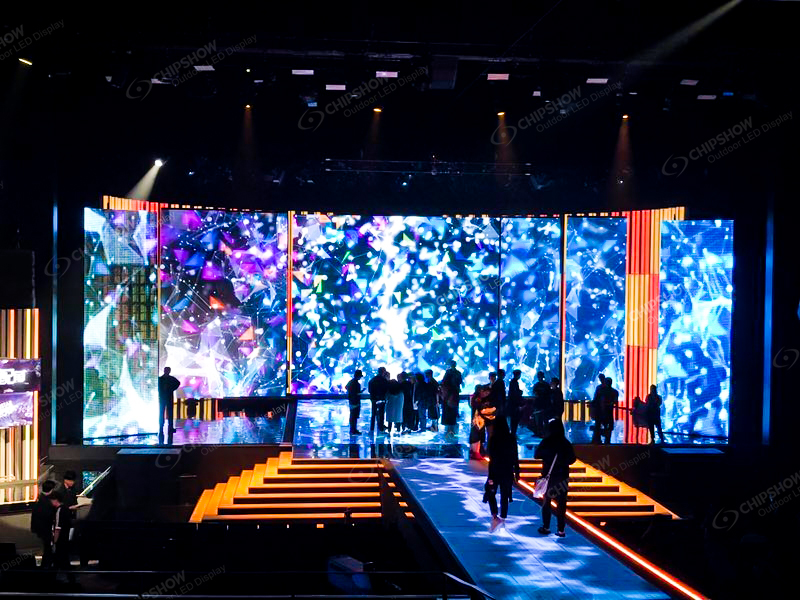

Creative Studio & Broadcasting
Enhance your studio with curved backdrops that offer better depth and viewing angles for multi-camera setups.
Recommend
Purpose-built platforms for iconic moments
Pixel Pitch
3.91 mm
Dimensions
1000×1000×83.75 mm
Features
Advanced Carbon Fiber Frame
20 kg lightweight panel
6,000 Nits Extreme Output
Smart Active Cooling
Pixel pitch
H 5.2 × V 10.4 mm
Dimension
750 × 1000 × 82 mm
Feature
Curve 15°/10°
6000 nit Bright
20 kg/m² Load
IP65 Outdoor
Pixel pitch:
P3.91 / P4.81 / P6.25
Dimension:
1200 / 1500 / 2000 mm(or Custom)
Feature
Tailor-match window grids
Up to 90% transparency
Featherlight 5 kg/m² load
Frameless floating video
Pixel pitch
P1.25 to P4.0
Dimension
640 × 480 × 70 mm(native 4:3)
Feature
Native 16:9/4:3 LCD Retrofit
Die-Cast Aluminum/Magnesium
Cross-Pitch Module Compatibility
Full Front Serviceable
Pixel pitch
P1.53 / P1.86(COB)
Dimension
640 × 480 × 70 mm cabinet (native 4:3)
Feature
4H Hardened Collision-Proof Surface
True Black High Contrast Technology
Cable-Free Internal Architecture
Superior Eye Comfort for Operators
Frequently Asked Questions
From specs and compatibility to warranty and support, our FAQ covers everything you need to know to get the most out of your experience.
What is the minimum diameter for a circular LED pillar using C-Arc P2.6?
Based on our 500mm cabinet width and flexible module design, the C-Arc can achieve smooth curves. For a perfect circle, the minimum diameter depends on the degree of curvature per cabinet (up to ±15°). Please contact our engineering team for a customized CAD layout.
Can the C-Arc series be used for outdoor rental events?
Does the flexible LED module affect the image seamlessness?
