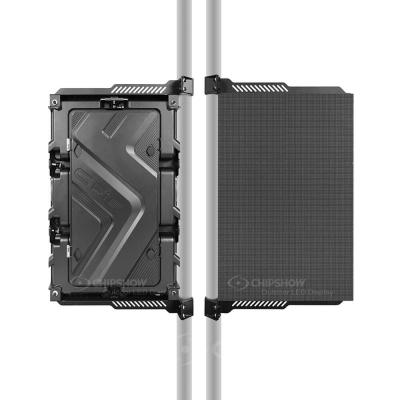

Dual-sided 19-2C-Slim Vent P16 Eco-DOOH LED module: front pixel grid and rear ventilated magnesium housing.
Side-angled view of the 19-2C-Slim Vent P16 Eco-DOOH LED module highlighting the high-density pixel grid and slim frame.
Rear view of the 19-2C-Slim Vent P16 magnesium cabinet with passive cooling vents and modular internal build quality.
Modular rear design of P16 Eco-DOOH LED panel with magnesium cabinet, locking handles, and cooling ventilation slots.
Dual-sided 19-2C-Slim Vent P16 Eco-DOOH LED module: front pixel grid and rear ventilated magnesium housing.
C-Slim Vent P16 Long-view Eco-DOOH (Outdoor)
Side-angled view of the 19-2C-Slim Vent P16 Eco-DOOH LED module highlighting the high-density pixel grid and slim frame.
Rear view of the 19-2C-Slim Vent P16 magnesium cabinet with passive cooling vents and modular internal build quality.
Modular rear design of P16 Eco-DOOH LED panel with magnesium cabinet, locking handles, and cooling ventilation slots.
Dual-sided 19-2C-Slim Vent P16 Eco-DOOH LED module: front pixel grid and rear ventilated magnesium housing.
C-Slim Vent P16 Long-view Eco-DOOH (Outdoor) - Image 6
C-Slim Vent P16 Long-view Eco-DOOH (Outdoor) - Image 7

C-Slim Vent P16 Long-view Eco-DOOH (Outdoor)

A long-view Eco-DOOH screen for outdoor billboard networks.

The C-Slim Vent P16 combines 16 mm DIP346 lamps, 8,000 cd/m² white-balance brightness, and a 960×960 mm die-cast magnesium cabinet below 25 kg. Average power stays under 90 W/m², and front IP65 sealing with side waterproof rings keeps modules protected in outdoor service from -20℃ to +50℃.

Categories: , ,
C-Slim Vent P16 Long-view Eco-DOOH (Outdoor)
A long-view Eco-DOOH screen for outdoor billboard networks. The C-Slim Vent P16 combines 16 mm DIP346 lamps, 8,000 cd/m² white-balance brightness, and a 960×960 mm die-cast magnesium cabinet below 25 kg. Average power stays under 90 W/m², and front IP65 sealing with side waterproof rings keeps modules protected in outdoor service from -20℃ to +50℃.
Learn More
Specification

Pixel pitch 16 mm (P16)

Brightness 8,000 cd/m² white balance

Cabinet 960×960×95 mm

Serviceability Front & Rear Access

Protection Front IP65 / Rear IP54
  • 8,000 cd/m² in daylight — white-balance brightness keeps billboard content readable through direct sun on roadsides and rooftops.
  • Under 25 kg per cabinet — die-cast magnesium construction at 95 mm thick reduces steelwork and installation effort on 960×960 mm frames
  • Below 90 W/m² average power — static-drive design keeps 24/7 advertising networks on a lean electricity budget.
  • IP65 front sealing — fully enclosed modules with side waterproof rings and hidden wiring stand up to rain, dust, and heat from -20℃ to +50℃.
  • 3840 Hz refresh rate — 13-bit gray scale keeps video smooth and camera footage stable at sports events and image campaigns.
Get Quote Now
Spec Sheet
Share
  • Description
  • Specification
  • Application
  • Parameter
  • Form
  • Product Highlight
  • FAQ
Indoor LED video wall installed in a conference hall

16 mm Pitch for Long-View Readability

The C-Slim Vent P16 uses a 16 mm pixel pitch at 3,906 dots/m², a density tuned for large-format screens read from far away. Viewing angles of 100° horizontal and 50° vertical keep brightness and color consistent across a wide roadside corridor. One screen face therefore serves traffic approaching from multiple lanes and distances.
chipshow

8,000 cd/m² Brightness for Daylight Hours

White-balance brightness reaches 8,000 cd/m², with color temperature adjustable from 6,000K to 8,000K to match ambient light through the day. Content keeps its contrast at midday, when billboard audiences are on the road. The DIP346 lamp configuration carries this output across the full screen face.
c-clim-vent

DIP346 Packaging for Long-Term Reliability

The screen uses DIP346 Semi-DIP lamps in a 1R1G1B configuration. Compared with SMD displays, the Semi-DIP package is firmer and more durable for years of outdoor duty. Static driving through the ICND1069AN IC holds current steady at the module level, with each module drawing up to 40 W at DC 4.2 V.
c-slim-vent

Magnesium Die-Cast Cabinet Under 25 kg

Each 960×960×95 mm cabinet weighs less than 25 kg and carries 2×3 modules, a total of 60×60 dots per cabinet. Die-cast magnesium alloy keeps the frame rigid at this weight and thickness. Lighter cabinets reduce steelwork load, handling time, and freight cost; shipping is estimated at 120 kg per case of four cabinets, packed in a wooden bracket with paper packaging and pearl cotton at 1020×560×1140 mm.
IP65

Front IP65 Sealing for Outdoor Seasons

Fully enclosed modules carry IP65 protection at the front and IP54 at the rear. Side waterproof rings seal each module-to-cabinet joint, and hidden wiring keeps the interior safe, clean, and stable in rain and dust. The operating range spans -20℃ to +50℃, covering winter and summer deployments alike.
Concept scene of a film-stage XR LED volume during a pre-call uniformity check, the curved wall displaying a realistic dusk desert landscape with no readable text; a crew member reviews a reference monitor; illustrative only, not a real production, installation or product record.

3840 Hz Refresh for Camera-Friendly Footage

A 3840 Hz refresh rate works with 13-bit gray scale and a 60 Hz frame frequency to render smooth gradients on video. When cameras shoot from typical viewing positions, footage stays stable on screen for event coverage and brand films. This suits sports competitions and image publicity projects that mix live footage with on-site filming.

Product Highlight

highway led

8,000 cd/m² Daylight Bright

DIP346 lamps hold white-balance output through direct midday sun.
c-slim vent

25 kg Magnesium Cabinet

960×960×95 mm die-cast frames cut steelwork load and freight cost.
ip65

IP65 Front / IP54 Rear

side waterproof rings seal enclosed modules from -20℃ to +50℃.
Refresh

3840 Hz Camera-Ready Refresh

13-bit gray scale keeps event footage stable on camera.

Service Support

chipshow
End-to-End Project Support
From design to installation, we handle every step for you.
chipshow
Customization for Every Scenario
Tailored LED screens for any location or shape.
chipshow
Reliable Quality & Smart Maintenance
Stable performance, simple upkeep, and long lifespan.
chipshow
Global Service & Fast Response
Fast delivery and responsive service worldwide.

Roadside DOOH billboard (long-running campaigns)

chipshow

Outdoor Billboard & Façade DOOH

Build stable, serviceable outdoor LED walls for long-term campaigns—designed around real structure limits and maintenance access.

Frequently Asked Questions

From specs and compatibility to warranty and support, our FAQ covers everything you need to know to get the most out of your experience.
chipshow
+86 18148555033
chipshow
[email protected]
chipshow
5F Tower C,Baoshi Technology Park,Baoshi Road,Shiyan Street,Bao'an District.Shenzhen City China 518102
What applications suit a P16 outdoor screen?
The 16 mm pitch targets long-view, large-format DOOH: outdoor advertising billboards, government and enterprise projects, cultural tourism, sports competitions, image publicity, and commercial real estate. At 3,906 dots/m², image detail is tuned for audiences reading from a distance.
