On May 24, Chipshow held the third round of
new product launch in Shenzhen company. Many departments including R &
D department, European and American department and domestic business department
were invited to participate in the meeting. The relevant heads of R &
D, art engineering and marketing department introduced the advantages of the
new products in detail. The meeting achieved good results.
In the past 22 years, our R & D
department has fully investigated the market, deeply studied the pain points of
the industry, and continuously developed innovative high-end outdoor display
products. Three products were introduced in this new product launch, namely:
Outdoor fully enclosed double maintenance
c-seal
Outdoor transparent screen c-trans
Outdoor grille screen c-vent
The three new outdoor products have their
own advantages, and their respective characteristics are as follows:

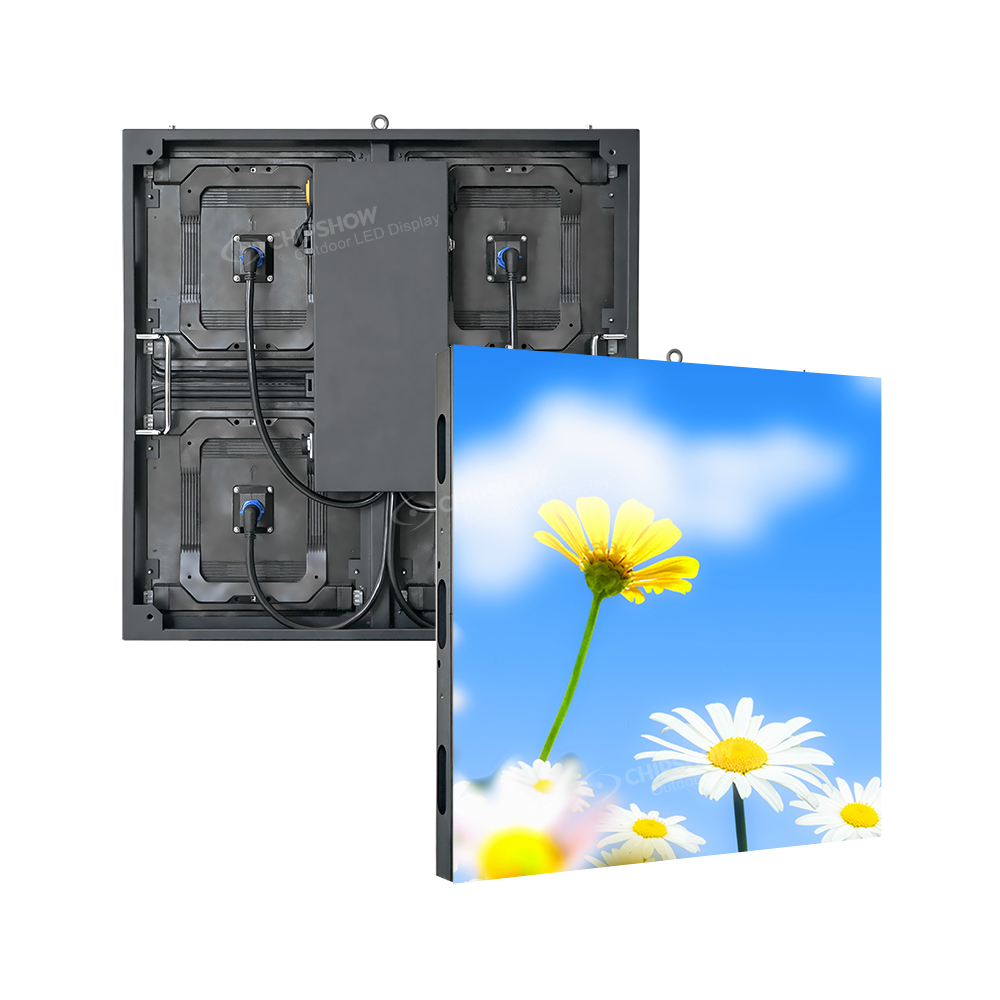

Outdoor fully enclosed double maintenance c-seal
characteristic:
1. 10000 level highlight: do not change the
system, do not increase power consumption, and physically brighten the convex
mirror; Brightness up to 11000cd / ㎡; With the same
pixel spacing, it can save 45% power and save energy and environmental
protection. (convex mirror lamp highlight version)
2. Wall mounting: the module and power box
can be independently disassembled and installed before maintenance, saving
structural space;
3. Quick maintenance: quick disassembly and
assembly without screws, supporting hot plugging; The module is equipped with
two in one waterproof aerial plug, which can be replaced quickly in 10 seconds,
which is convenient and fast;
4. High protection: high protection: fully
enclosed module, power box, excellent sealing effect, weather and salt fog
resistance, suitable for all kinds of high, low temperature and humid climate
environments;
5. Flexible size: 640 * 640mm small box
design, easy to assemble and combine small-size outdoor identification signs;

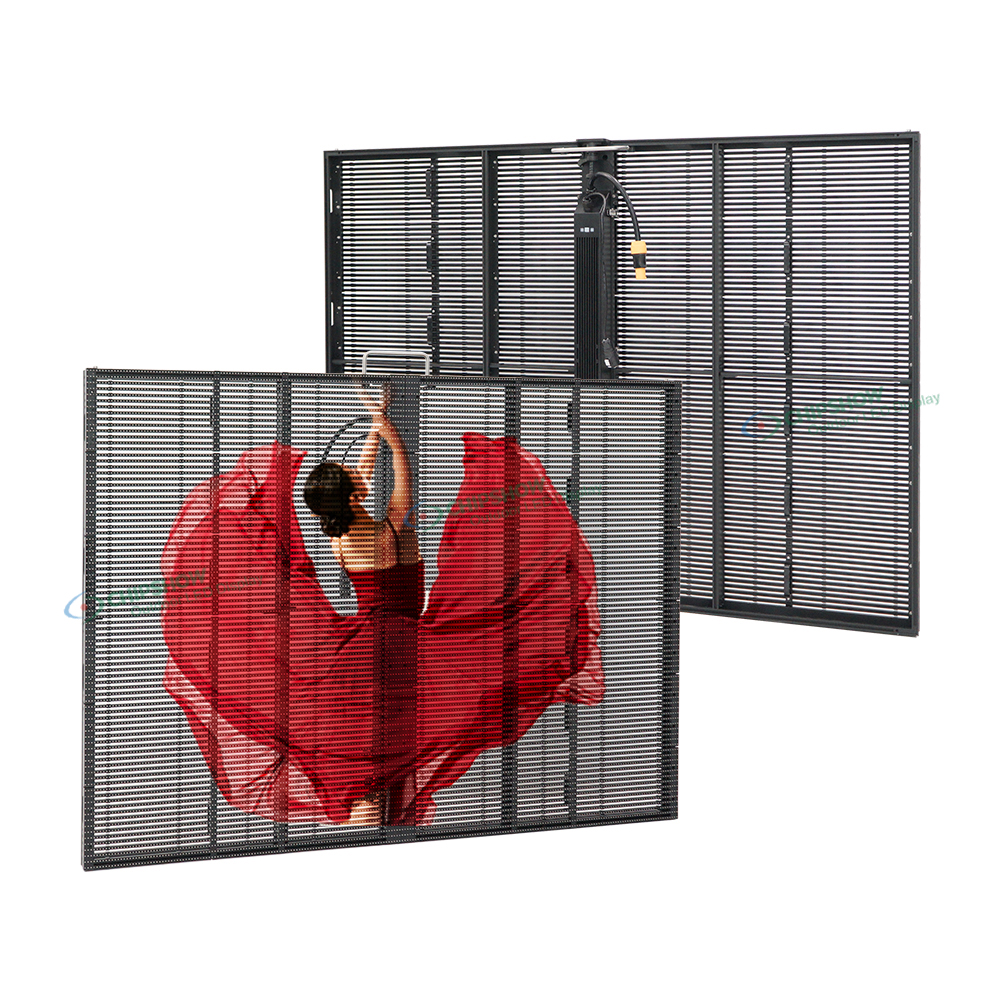

Outdoor transparent screen c-trans
characteristic:
1. Light, thin and transparent: the weight
is only 14.2kg/m2, the weight of a single box is 15.3kg, and the thickness of
the box is 47.5mm (including 97mm power box)
2. Easy installation: easy installation and
maintenance, and the size is not limited by the size of building glass curtain
wall or window;
3. High transparency: ≥ 48%
permeability, installed on the outer wall of the building, which does not
affect the outdoor view through the window;
4. High protection: fully enclosed module
and power box, with excellent sealing effect, and the front and rear protection
grade is IP65;
5. Ventilation: the module is grid shaped,
and the wind can directly pass through the module, which has low wind
resistance and greatly saves the cost of steel structure;
6. Front and rear maintenance of the
module: it can be installed and maintained from front to back, so as to improve
the adaptability of the product to the on-site installation conditions;
7. Large box: 1.2m * 0.9m large box design
to reduce the installation workload;

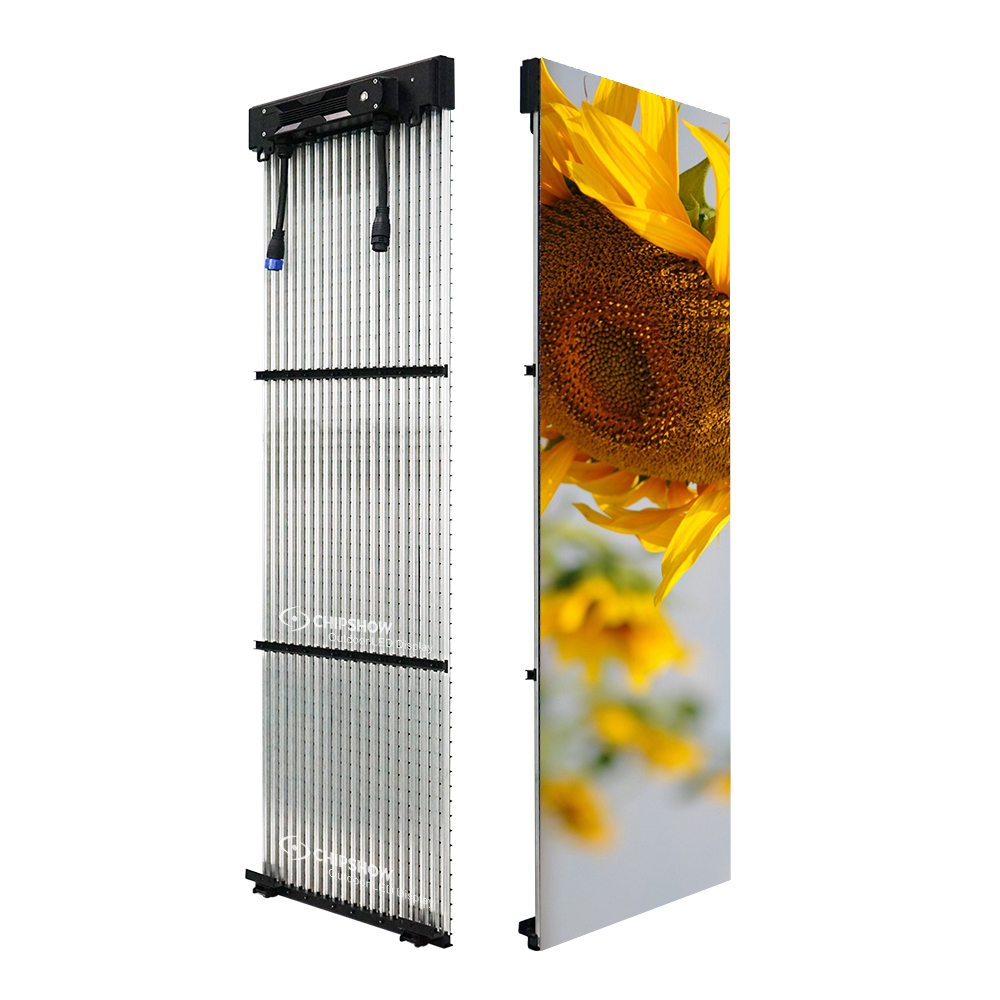

Outdoor grille screen c-vent
characteristic:
1. Light, thin and transparent: the weight
is only 15kg / ㎡, which is easy to install and maintain without supporting structure
reinforcement, with high cost and benefit;
2. Clear and transparent: the 16mm small
spacing grid can provide higher resolution picture effect, and has 46% high
permeability, which does not affect the outdoor view through the window;
3. High protection: fully enclosed module,
power box, excellent sealing effect, weather and salt fog resistance, suitable
for all kinds of high, low temperature and humid climate environment;
4. Highlight energy saving: highlight dip
lamp is adopted, and the energy saving of large screen is more than 50%;
5. Front and rear maintenance: it can be
installed and maintained from front to back, greatly improving the adaptability
of products to on-site installation conditions;
6. Efficient heat dissipation: the light
bar is made of aluminum profile, with good strength and heat dissipation
performance.
In the post epidemic era, the business
environment is becoming more and more severe. Chipshow knows that innovation is
the continuous vitality of the enterprise! Facts have proved that our high-end
innovative route is correct. The low-end and low-quality products will be
abandoned, and standing still will be submerged by history.
Chipshow will continue to be committed to
the R & D and production of innovative and feasible outdoor high-end
LED displays, and continue to increase R & D investment. More sharp
goods will be launched this year. Please pay attention!
