C-Smart ultra-bright outdoor LED display screen with common cathode and energy saving P6.67 outdoor large screen

C-Smart ultra-bright outdoor LED display screen with common cathode and energy saving P6.67 outdoor large screen

1.  New ultra-bright and energy-saving smart LED display; Brightness≤10000cd/㎡; Average power consumption ≤ 150W/㎡;

2.  Low framework cost: Fully enclosed module+bracket=large screen, saving the cabinet and framework cost;

3.  640 * 320mm large module, good flatness; users can quickly assemble signs of different sizes;

4.  Low transportation cost; Light-weighted module; ≤ 25KG/㎡, small volume and light-weighted, saving storage and transportation costs;

5.  Wall mounted design, module, power supply and the control system can be maintained from front and rear, easy for maintenance;

6.  Fast installation: Fast lock installation, two in one signal and power cable with fast connection, labor saving, beautiful cabling;

7.  Low noise: no fan is designed to ensure the noise less than 25 decibels.

8.  High protection level: IP65 front and rear,

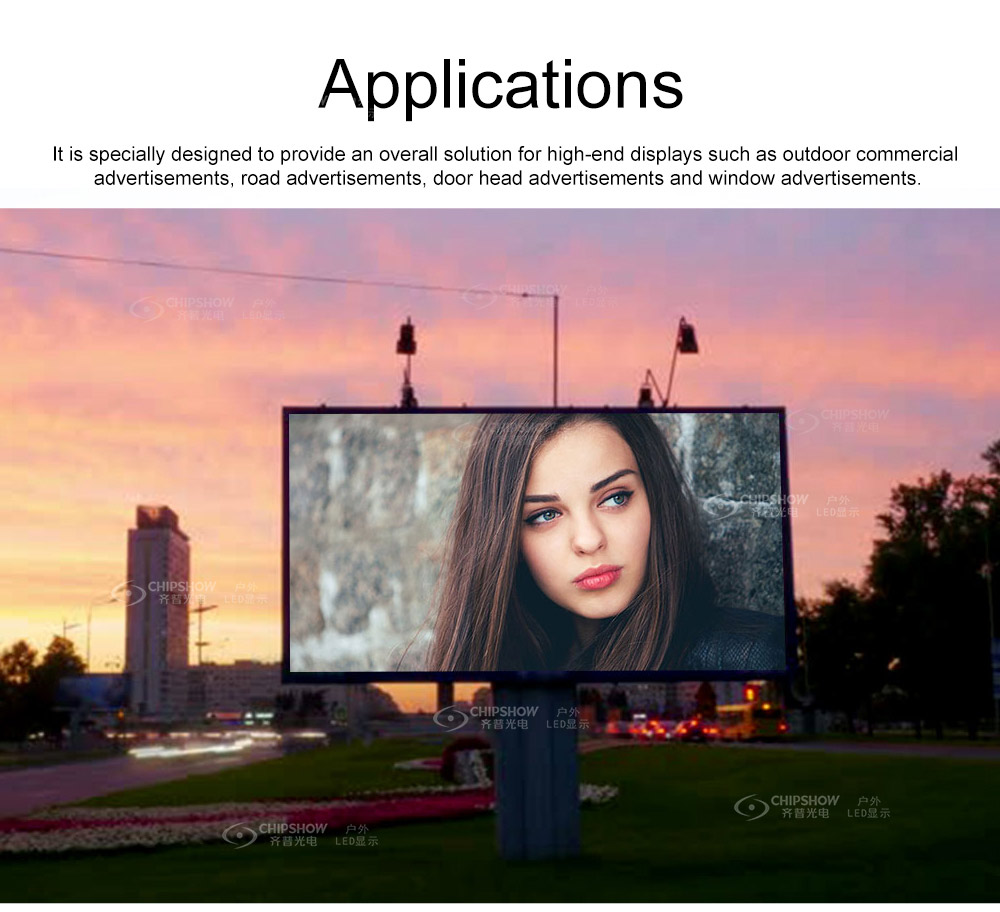

9.  It is specially designed to provide an overall solution for high-end displays such as outdoor commercial advertisements, road advertisements, door head advertisements and window advertisements.

  • Item No.:

    C-Smart super-highli
  • Product Details

Item
Specification Parameter
Pixel Pitch、Resolution rate、size
6.67mm、48*96 Dots、320*640mm

Pixel color Pixel LED


1R1G1B、 SMD2727
Working voltage、Module Power

DC4.6V53W


Driving IC、Driving way
ICND2069、1/6
HUB
QP640X320-HUB43(I6)-A1.2
Material、Cabinet Weight(kg/Cabinet)
Alloy cabinet、3.16kg,3.65kg/PCS
Resolution rate、size、Module quantity
192*144Dots、640*320*75mm、2*3
Density
22500 Dots/㎡
White balance 、Color temperature
≤10000 CD/㎡、6500-8000K
view angel、Non-Flatness、Module interval
H:110°;V:110°、<0.5mm、<0.5mm
Maximal power/㎡、Average power/㎡
520W/㎡、150W/㎡
Frame frequency、Refresh frequency、Gray grade
60Hz、3840Hz、13bit
Control system、System supports
CHIPSHOW、Windows XP, WIN 7
Working temperature、Protection grade
-20~50℃、Front/Back:IP65/IP54
