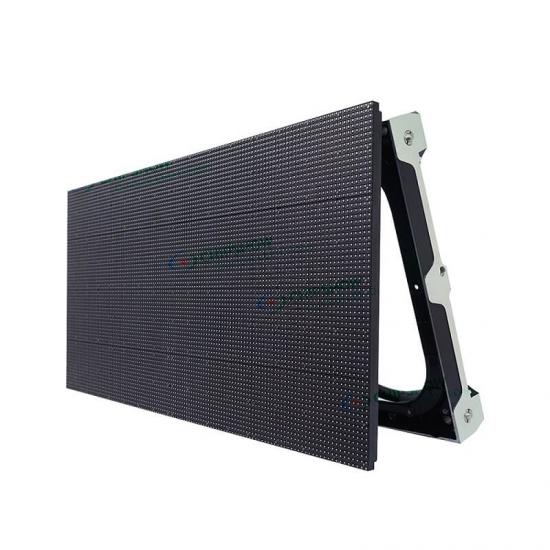

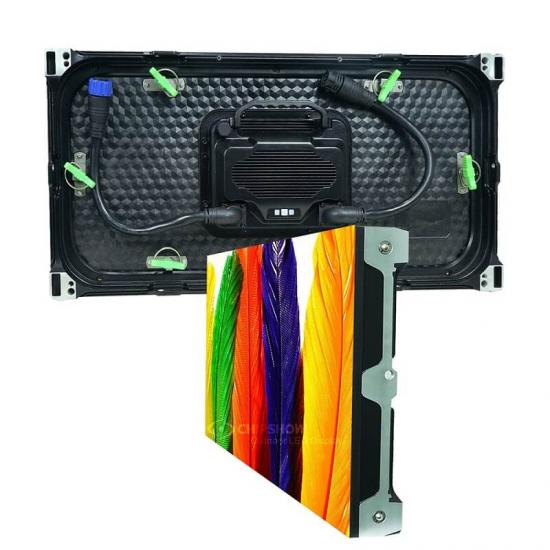

C-Smart P4,5,6.6,10 Outdoor LED Sign Non-Cabinet

C-Smart P4,5,6.6,10 Outdoor LED Sign Non-Cabinet

C-Smart is an simple integrated front and rear serviceable LED screen. No cabinet design, only need a simple frame to hold the modules, which can reduce a big cost of installation.

Advantages:

1. Fully modular design for easy assembly and repair.

2. Light weight: weight of modules is 3.55kg/pcs.

3. Don't need space on the back for maintenance, it can save space of 800~1000mm than normal back maintenance screen.

4. Bulit-in receiving card and power supply with data memory.

5. Fully sealed components, simplified waterproof connections.

6. Fan-less nature cooling.

7. Maximum brightness

8. Low power consumption.

Application:

Used for monument signs, led message center, pole signs and pylon signs etc, it can also be assembled into a big billboard.

  • Product Details

Fully modular design

Fully modular design for easy assembly and repair


Light & Thin

The weight of modules is 3.55kg/pcs


Non-cabinet Design

Only need a simple frame to hold the modules, which can reduce a big cost of installation

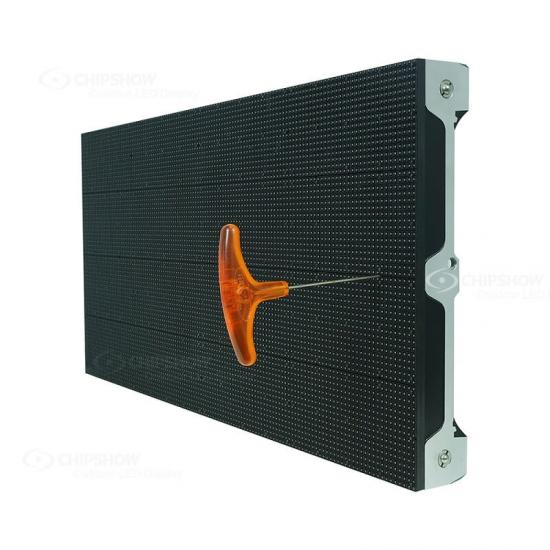

Front Maintenance

When the screen is right aganist the wall, no need maintenance tunnel on the back, it can reduce 800~1000mm on the back.

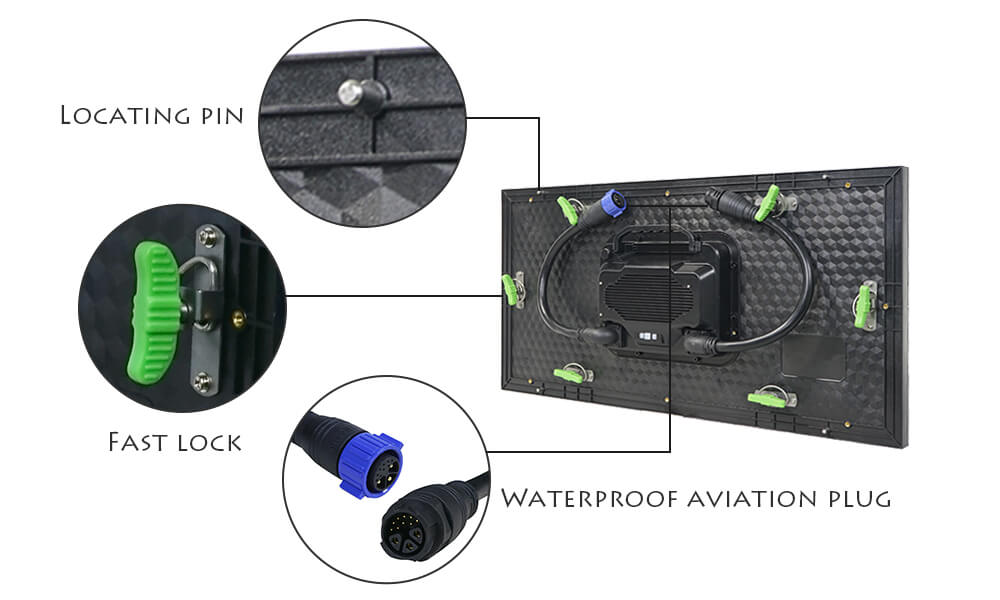

Quick Install

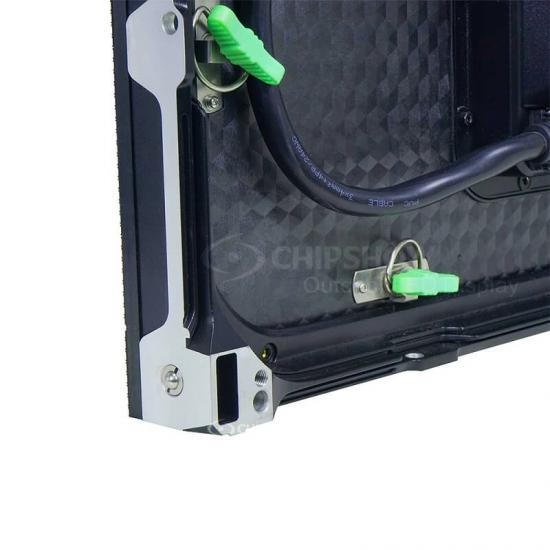

Located pin, fast locks, no screws needed, power cable and net cable 2 in 1, easy and fast to install


Low noise without fans

Low noise: without fans, the noise is < 25db

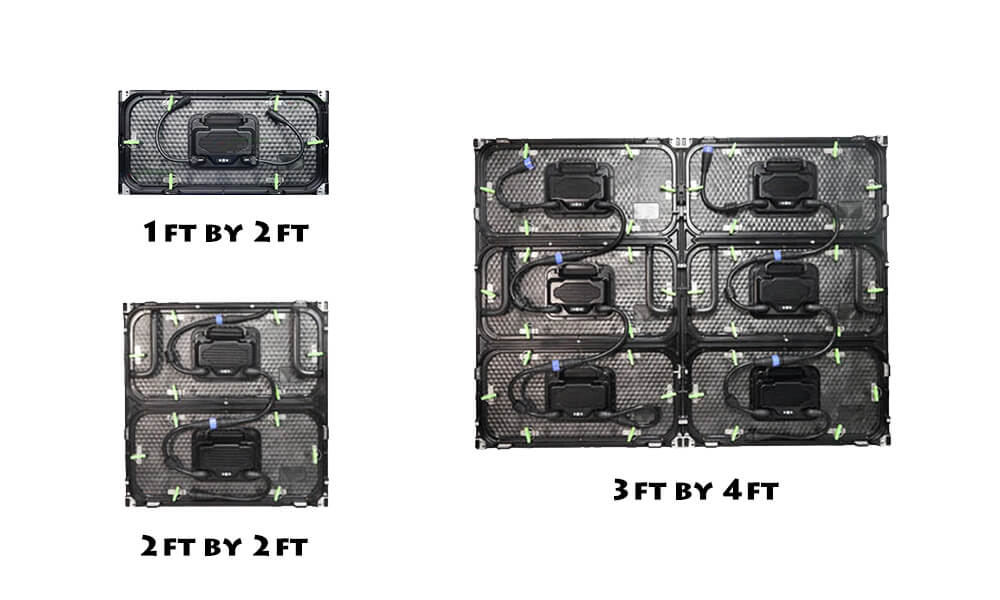

Flexible on Screen Dimension

The integrated module dimension is 640*320mm, the users can make it any size of screen.


Specifications

Product

 C-Smart

Pixel Pitch

 4,5,6.67,10(SMD),10(DIP)mm

Module size

640*320mm

Module weight 3.55kg/pc

Panel size

640*320*75mm

Panel weight

6.5kg/pc

Brightness

 4500~8500nits

Color temperature

 6500~8000K

Refresh frequency

 1920~3840HZ

Working temperature

 -20~50℃

IP grade

 IP65 front & rear


Product  Video
