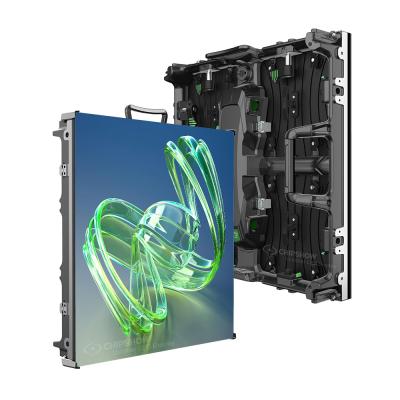

C-Fit P4,5,6.6,8,10 Outdoor Multi-functional Advertising LED Display

C-Fit P4,5,6.6,8,10 Outdoor Multi-functional Advertising LED Display

C-Fit P4,P5,P6,P6.6,P8,P10 LED screen is multi-functional outdoor advertising solution, it's worth every penny of it.

Advantages:

1. Thinner and lighter: 15kg/m2 lighter and 20% thinner than iron cabinet,saving transportation space, reducing delivery weight and bearing requirements of buildings and steel structures

2. Multi-function: advertising fixed installation, adding flying bar, connectors and fast lock for rental, adding rubber cushion and bracket for perimeter display

3. Cost-effective: magnesium alloy cabinet,corrosiveness resistance and rusty

4. Standard modules: P3 to P20 outdoor modules available

5. Fast delivery: automatic batch products, huge stocks, shorten the delivery time

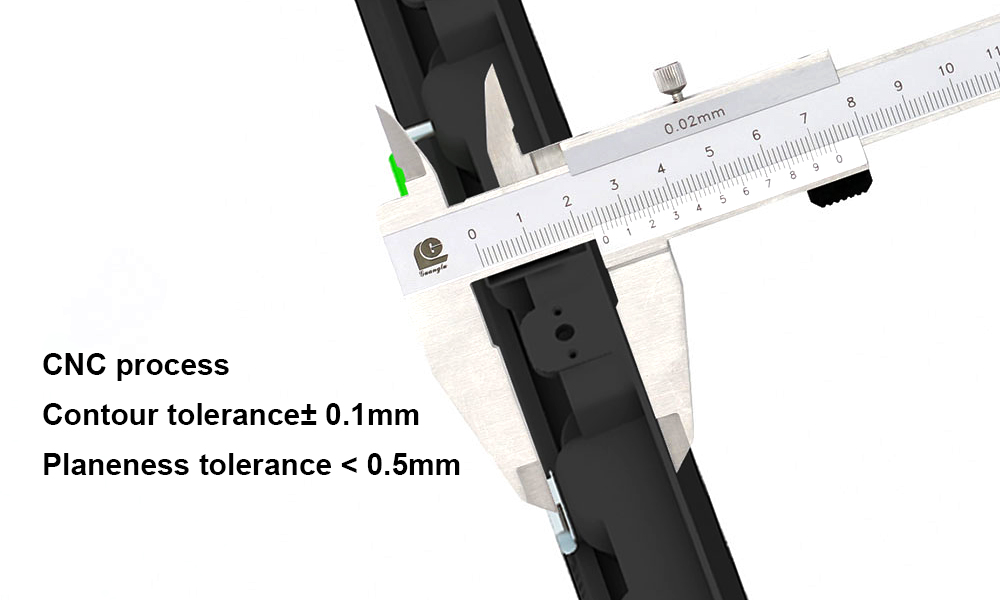

6. Higher precision: CNC process, contour tolerance± 0.1mm, planeness tolerance < 0.5mm. integral moulding, indeformable, fast assembly

  • Product Details

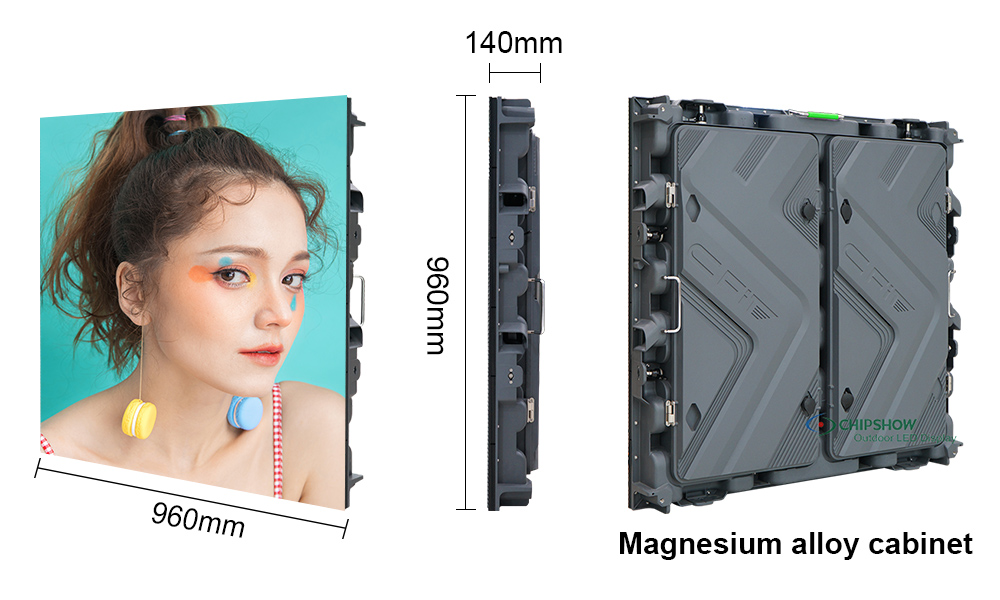

Magnesium alloy cabinet

15kg/m² lighter and 20% thinner than iron cabinet, saving transportation space, reducing delivery weight and bearing requirements of buildings and steel structures.

Outdoor Advertising LED Display

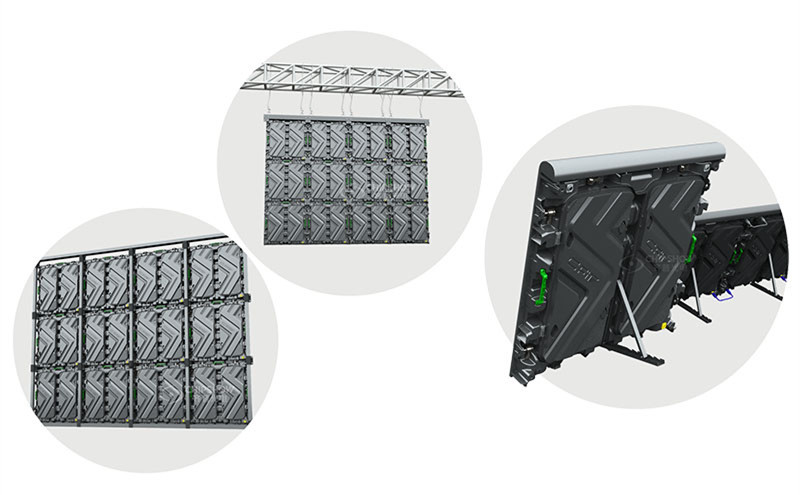

Multi-function

Advertising fixed installation, adding flying bar,connectors and fast lock for rental, adding rubber cushion and bracket for perimeter display.

Outdoor Advertising LED Display

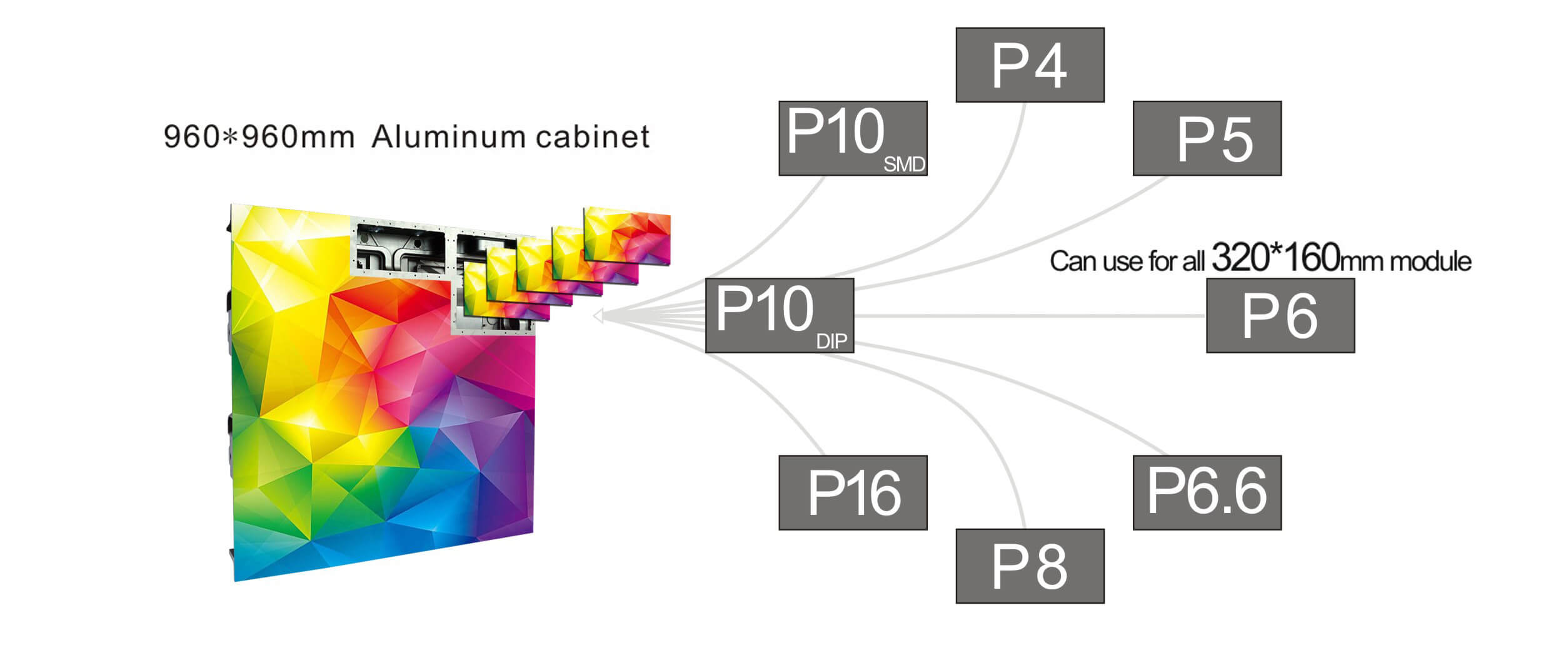

Standard Modules

 P4 to P16 outdoor modules available. A cabinet match all pixel pitch modules for lower upgrade costs.

full color LED display

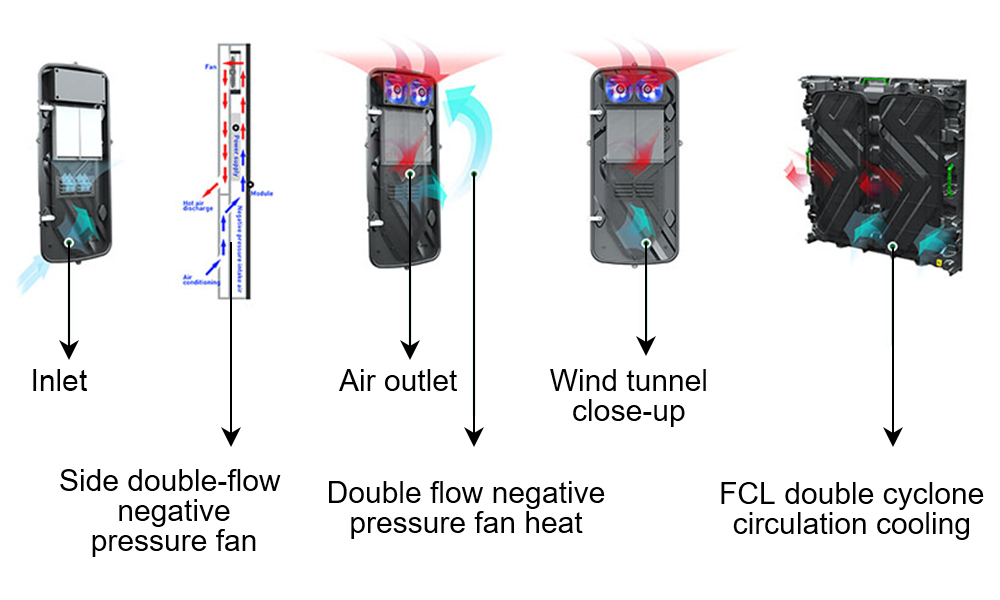

Efficient Cooling System

Double flow negative pressure cooling system and heat-dissipating technologies in the outdoor cabinets

full color LED display


Cabinet Structure Design

full color LED display

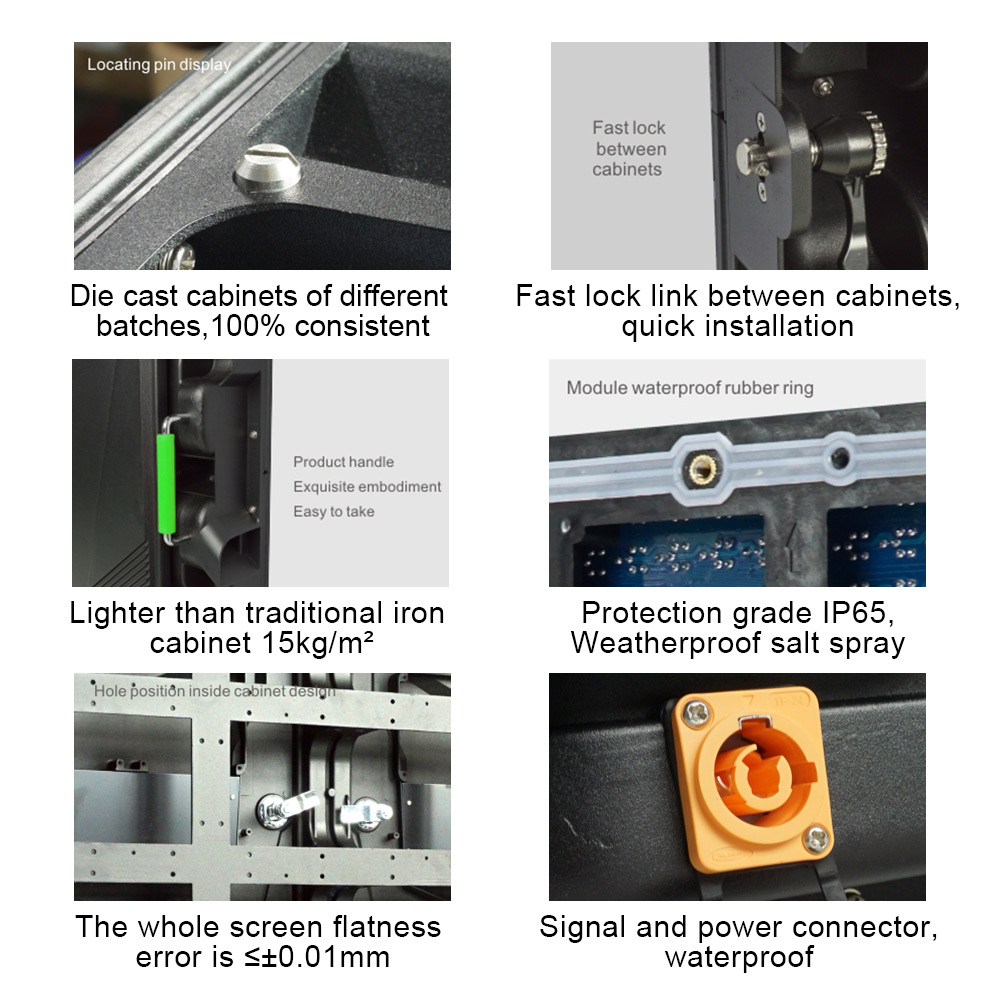

Cabinet Details

Locating pin display,  Fast Lock,  Hole position inside, Handle,  Waterproof rubber ring, Water singal and power connector

full color LED display


Specifications

Product Serises

C-Fit

Pixel Pitch

4,5,6,6.67,8,10(SMD),10(DIP)mm

Cabinet size

960*960*140mm
Cabinet weight 28±0.5kg

Brightness

6000~9000nit

Color temperature

 6500~8500K

Refresh frequency

1920~3840HZ

Working temperature

 -20~50℃

Protection grade

 IP65/IP54
