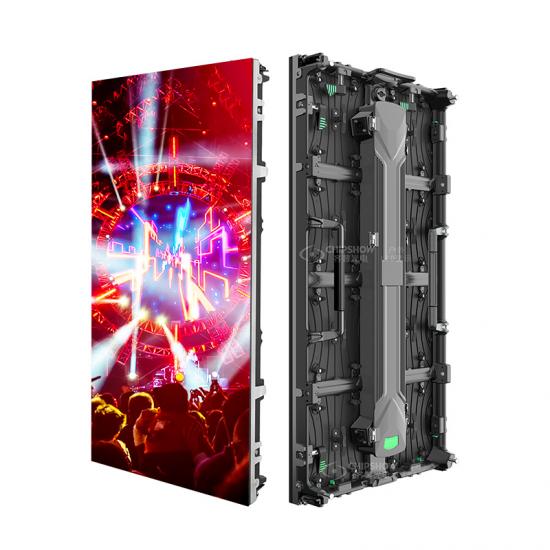

C-Beetle is a magnetic front maintenance LED screen, different sizes can be combined together, and the edge has a protective corner, used for various events.
Features
1. 500*500mm and 500*1000mm available.

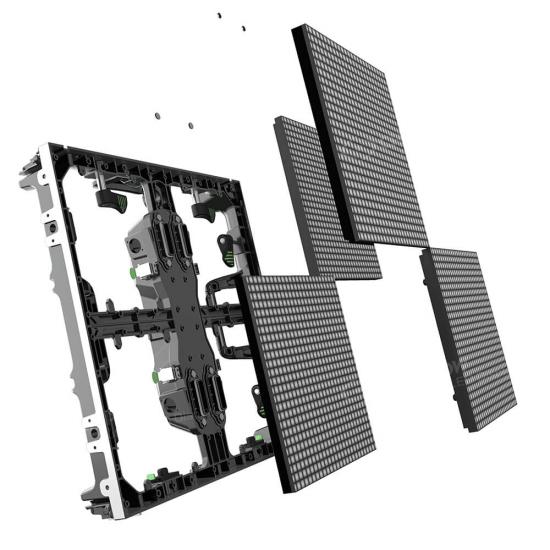

2. Magnetic module, front service.
3. Power box with independent plug-in maintenance.
4. Die-cast aluminum design, high precision.
5. Fast locks, locating pin and alignment slot for quick installation.
6. Reinforced corner protector for better protection for the LEDs.
7. Excellent cooling design, no fans or air-conditioners needednoiseless, low power consumption, cost-effective.
8. 500*500mm and 500*1000mm cabinet can assemabled together.
Item No.:

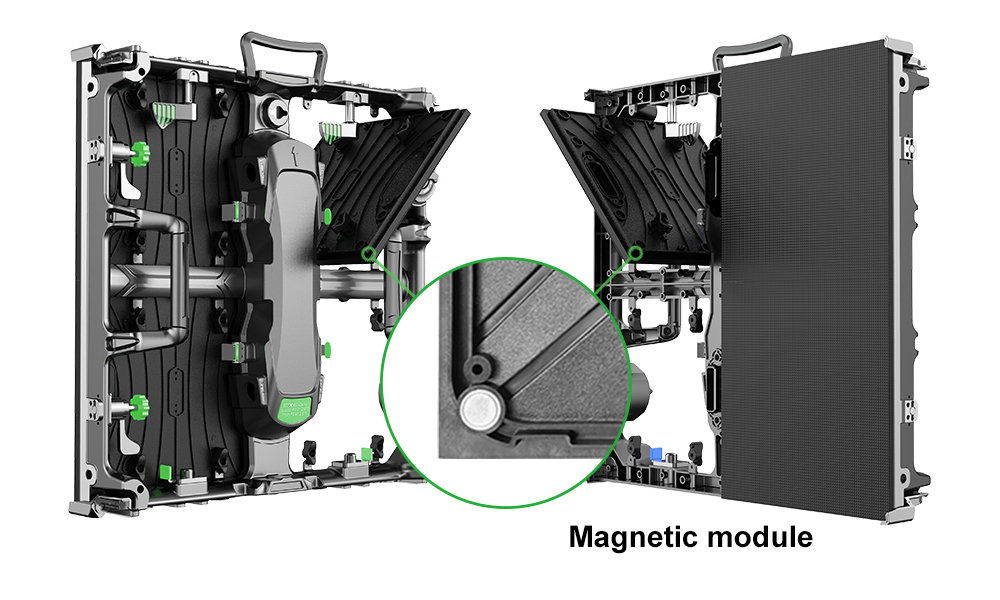

C-BeetleMagnetic front access

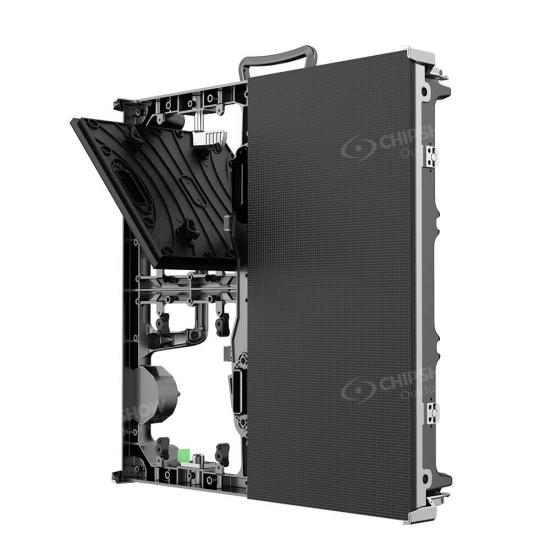

Magnetic module, front service
Fully front service

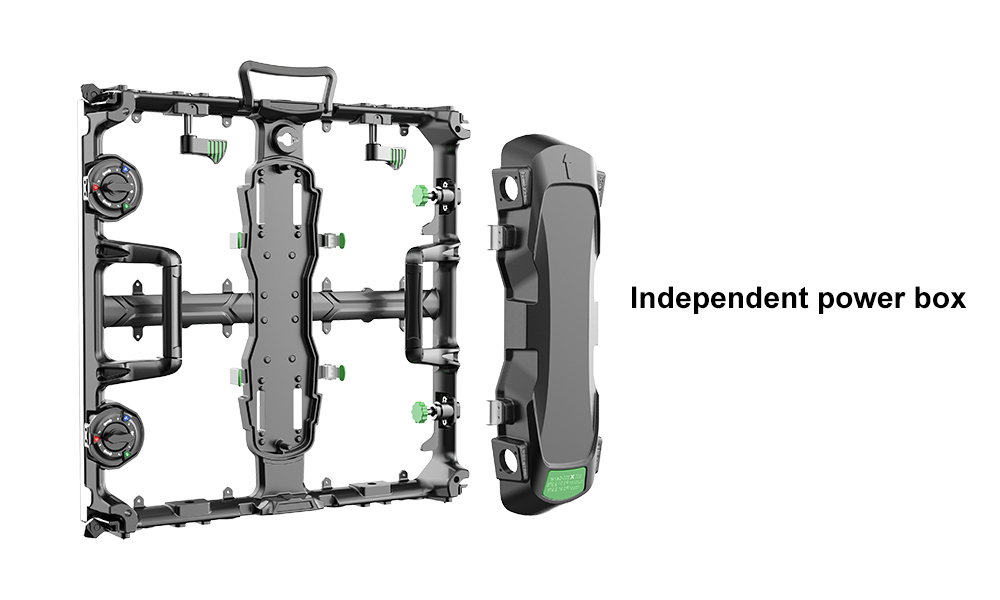

Power box with independent plug-in maintenance

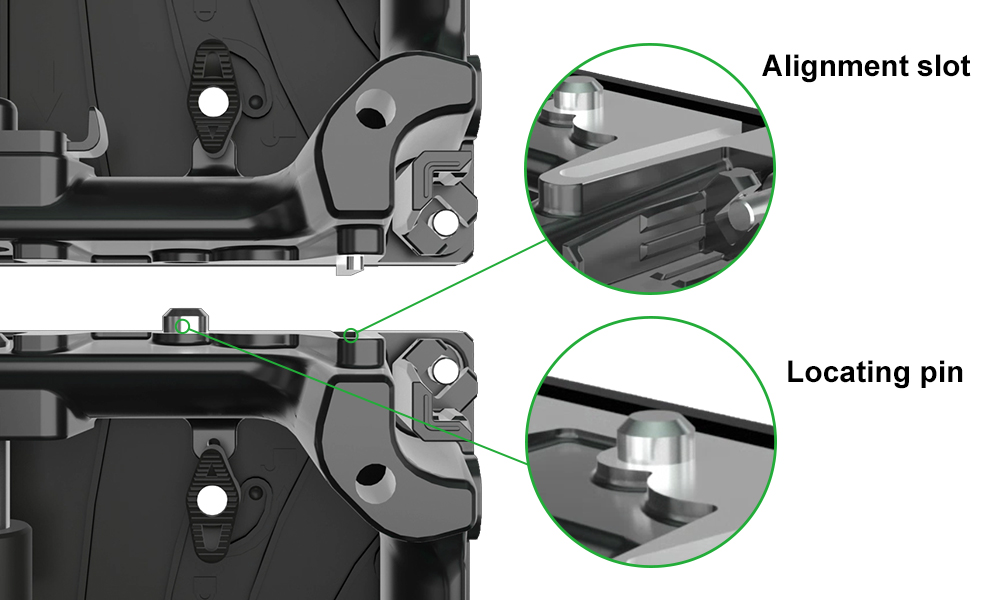

Quick Installation
Fast locks, locating pin and alignment slot for quick installation.

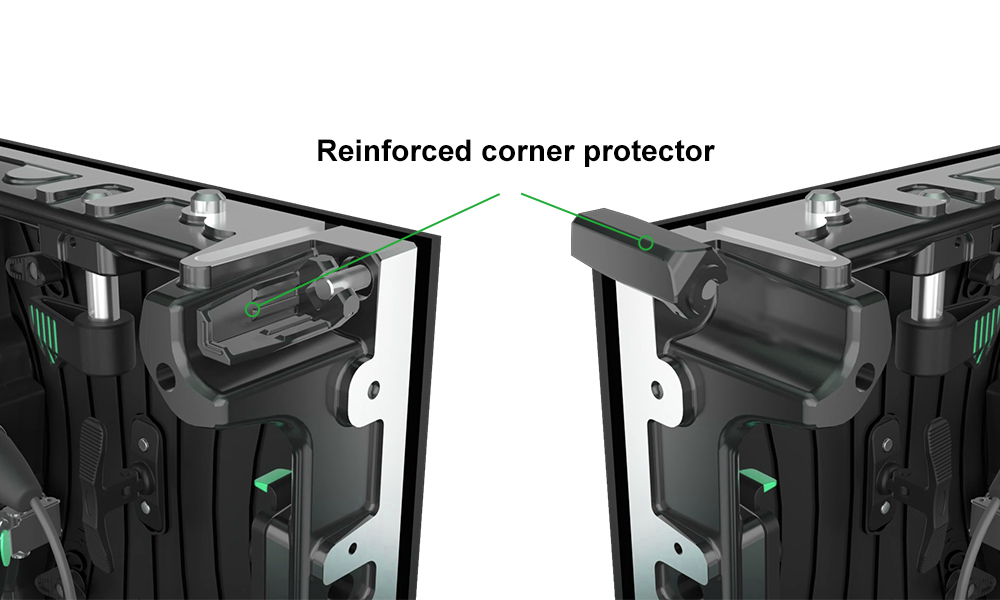

Reinforced corner protector
Reinforced corner protector for better protection for the LEDs

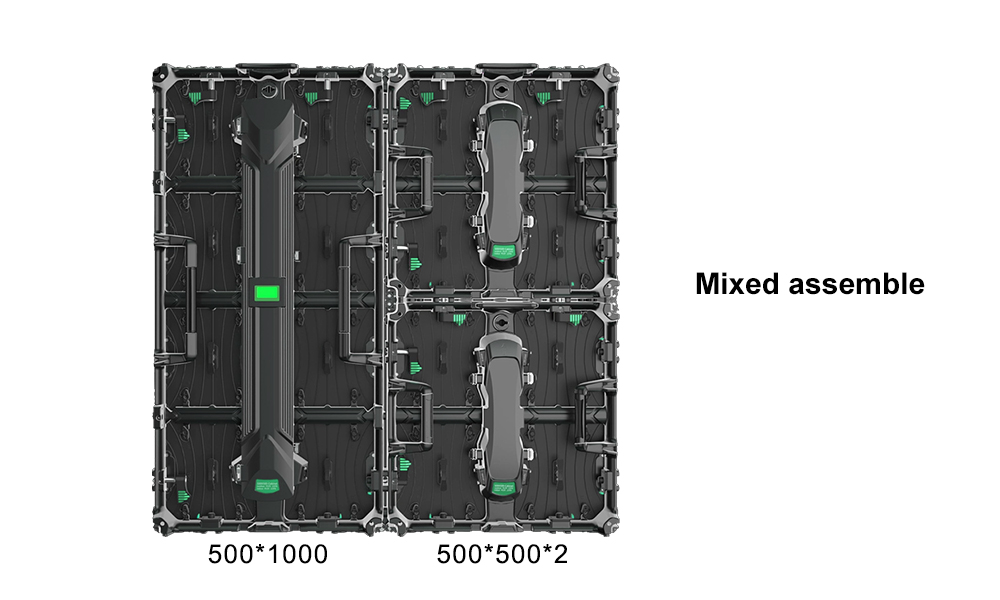

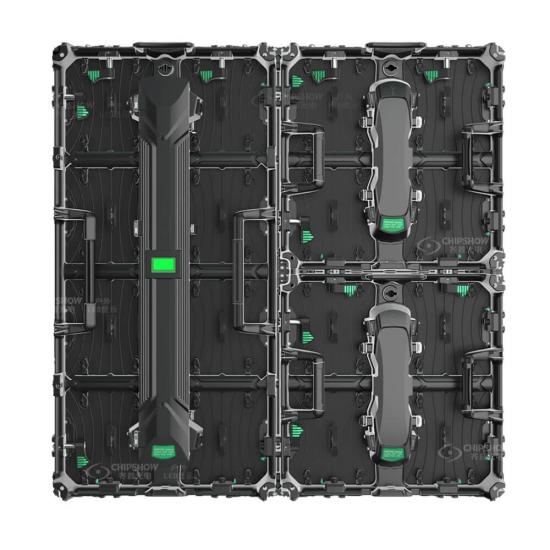

Different Size Mixed Installation
500*500mm and 500*1000mm cabinet can assemabled together

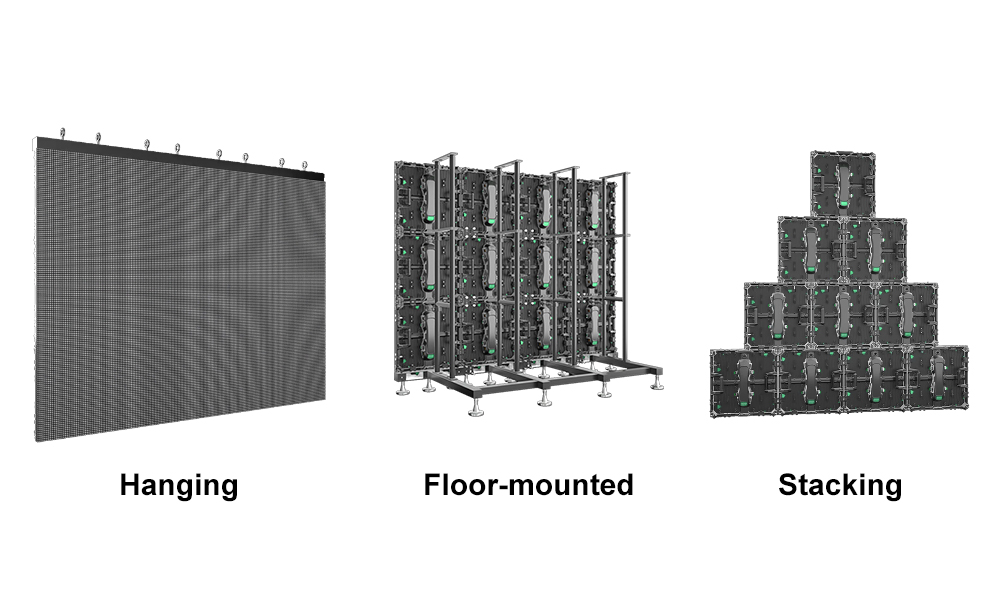

Multiple Installation Types
Pixel Pitch |
3,3.91,4.81mm |
Module size |
250*250*16mm |
Pixel color |
1R1G1B |
Pixel LED |
SMD1921 |
Cabinet material |
Cast aluminum |
Cabinet weight |
26kg/㎡ |
Cabinet size |
500*500/1000*85mm |
White balance |
5000CD/㎡ |
Color temperature |
6000K-8000K |
View angel |
H/V:120°/120° |
Non-Flatness |
<0.2mm |
Module interval |
<0.2mm |
Maximal power |
720W/㎡ |
Average power |
240W/㎡ |
Refresh frequency |
1920Hz-3840Hz |
Gray grade |
≥13bit |
Working temperature |
-20~50℃ |
Protection grade |
Front/Back:IP40 |
