C-beetle P2.97 P2.6 3.91 led video wall rental led display

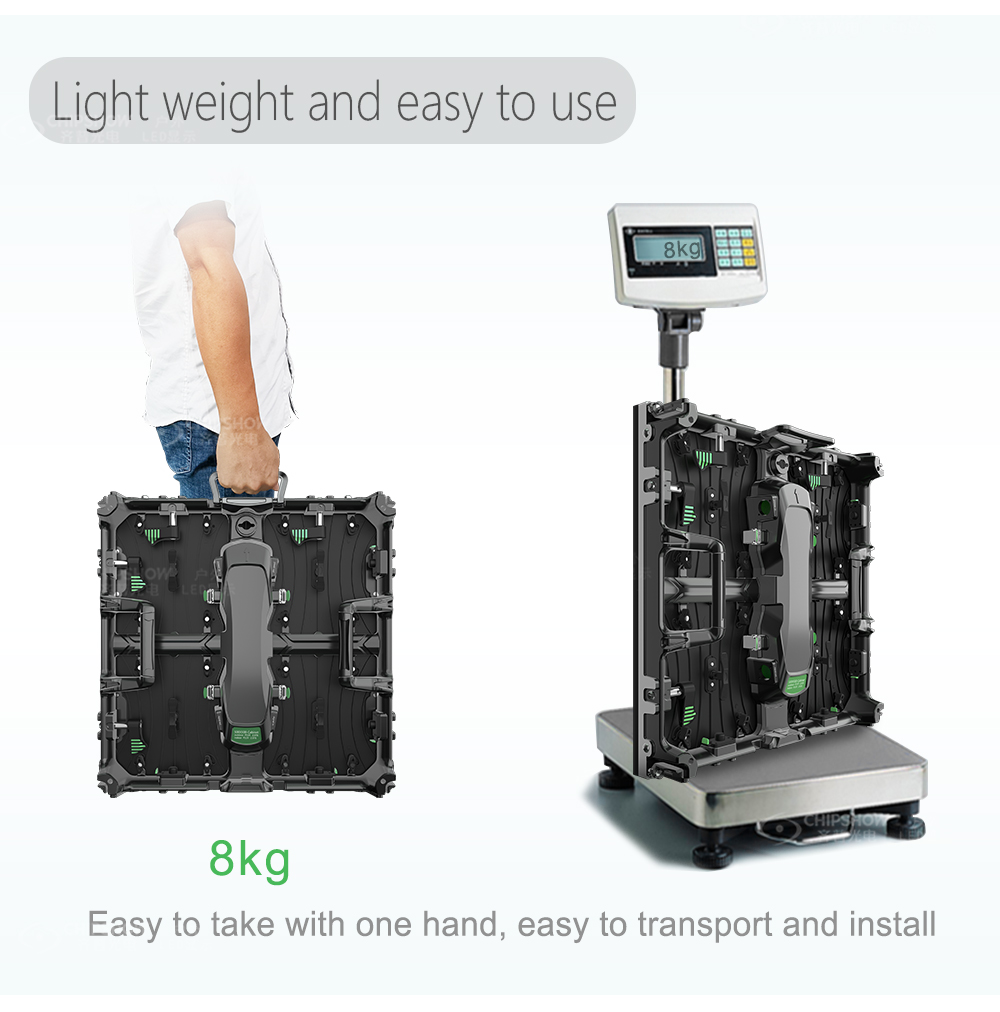

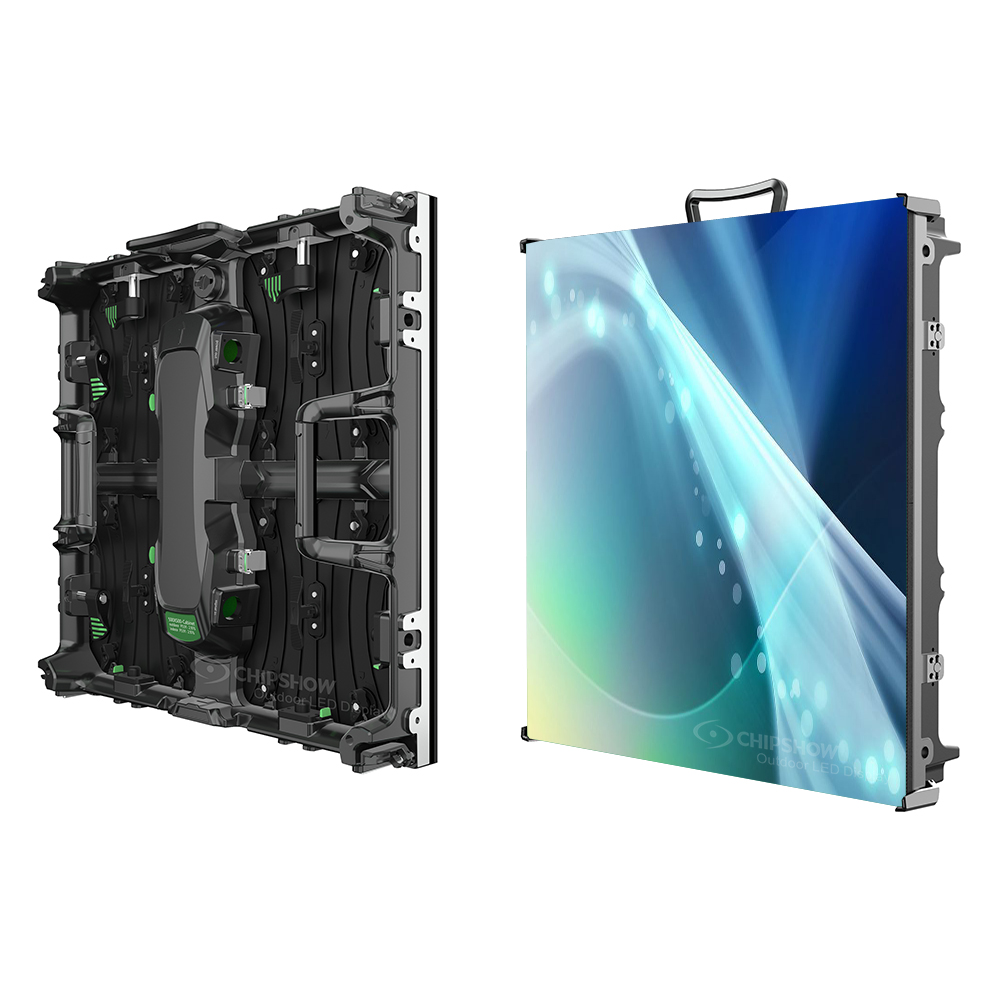

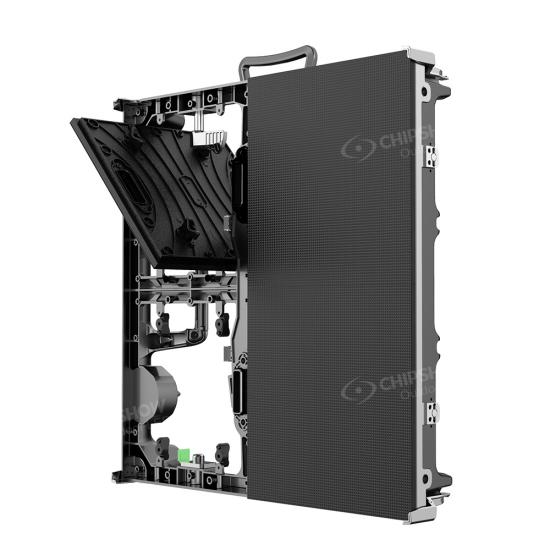

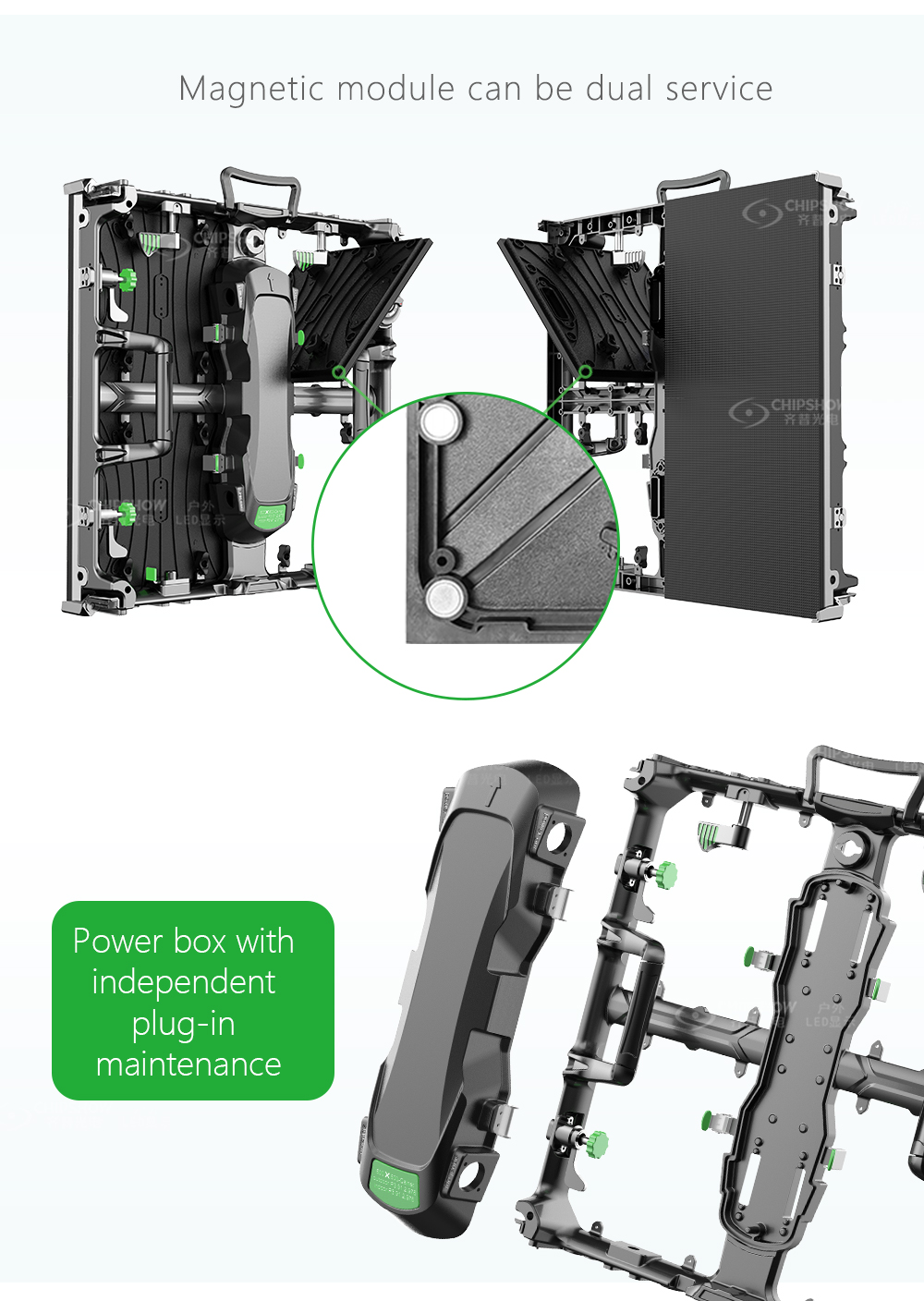

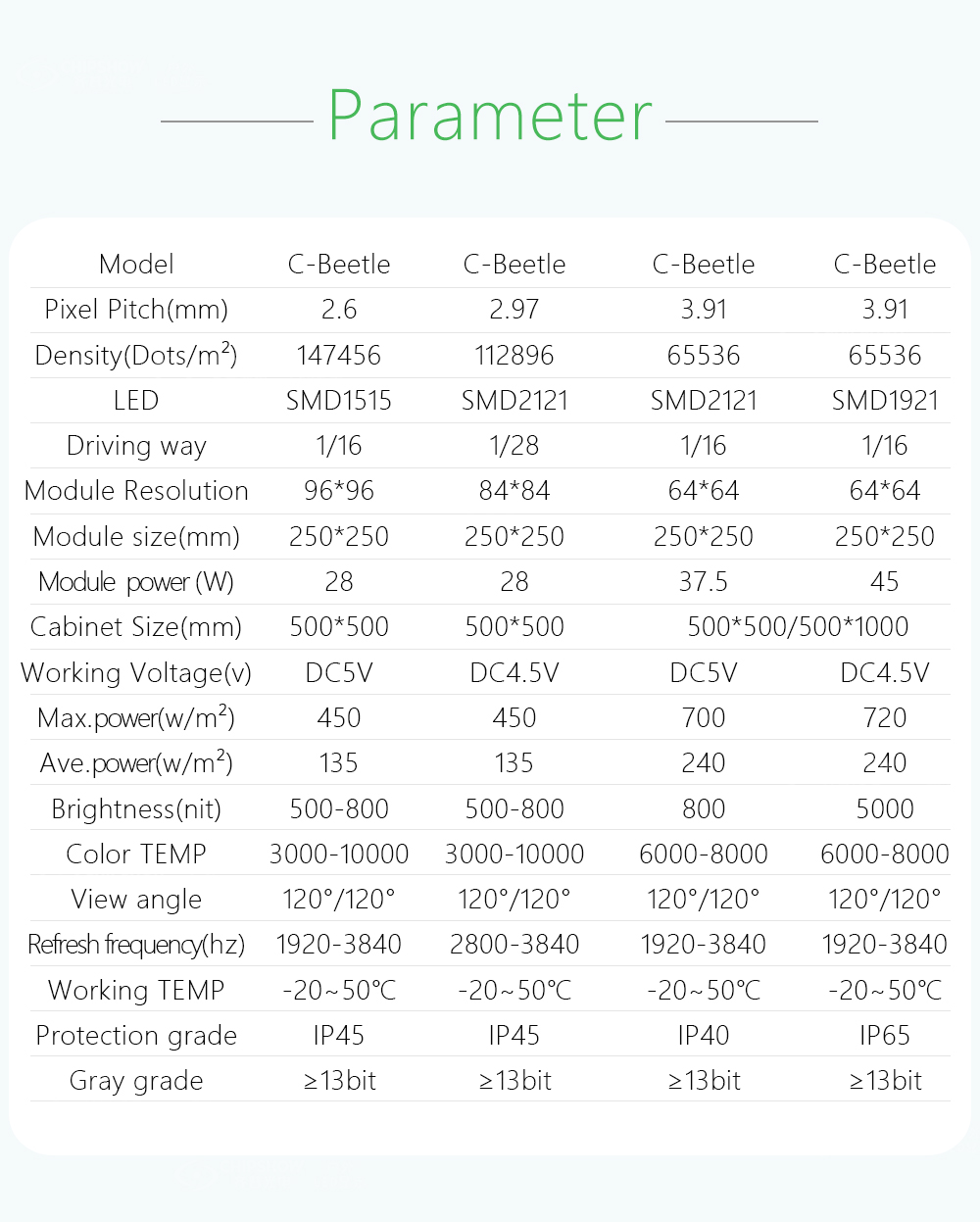

C-Beetle is a magnetic front maintenance LED screen, different sizes can be combined together, and the edge has a protective corner, used for various events. Features 1. 500*500mm and 500*1000mm available. 2. Magnetic module, front service. 3. Power box with independent plug-in maintenance. 4. Die-cast aluminum design, high precision. 5. Fast locks, locating pin and alignment slot for quick installation. 6. Reinforced corner protector for better protection for the LEDs. 7. Excellent cooling design, no fans or air-conditioners needednoiseless, low power consumption, cost-effective. 8. 500*500mm and 500*1000mm cabinet can assemabled together.

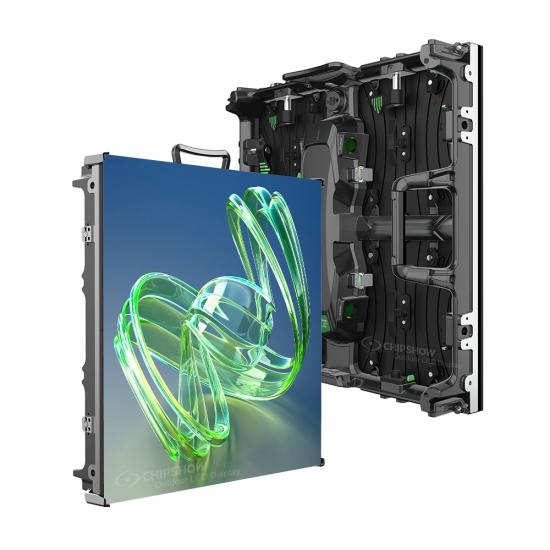

C-lite is high performance-cost rental LED screen for varieties of activities, die-casting aluminum cabinets with fast locks and cable connectors help users install & disassemble quickly and easily for varieties of events. meanwhile, it’s able to add scale locks to make curve LED screen. Features: 1. Pixel pitch: 2.6, 2.97, 3.91, 4.81mm (outdoor and indoor) 2. Size: 500*500/500*1000mm 3. Modules magnetic installation (indoor), fast assembly and dismounting. 4. The cabinets of different batches are of the same size, solid and durable, not easy to deform. 5. Casting-aluminum cabinet, ultra-high flatness, whole cabinetflatness≤0.01mm. 6. Power and data connected fast, long life devices, 500000 times pull and plug. 7. Easy operation, one click to light up screen. Application: Rent for wedding, conference, concert, launch events, etc. all kinds of activities and also can be used for advertising fix installation as truck led screen.

C-Lite-D is high-end rental LED screen for varieties of activities, its control box can be clicked out by locks and protection pad prevent lamps at corners against damage, it'll bring you better experience on installation and disassembling. Features 1. Available pitch: P2.6,P2.97,P3.91,P4.81 indoor/outdoor 2. Cabinet size: 500*500mm/500*1000mm 3. Brightness: 800~1000nit(Indoor), 4500~6500nit(outdoor). 4. Integrated Power supply and receiving card. Plug in and out within 1 second. 5. Fast locks from up and down, left and right, 2 seconds to connect cabinets. 6. Die-casting aluminum, high-strength, high-tenacity, high-precision, ultra-high flatness, whole screen flatness error ≤ 0.01 mm. 7. Anti-collision design at the bottom of the cabinet, positioning beads on the side for precise alignment. 8. Good heat dissipation design, no need fan and air-conditioner, less noise during working. 9. High protection, weather and salt spray corrosion resistance. 10. A variety of installation methods, can be lifting, fixed, stacking.

C-Angel with 45° clipped corner for right angle screen, optional arc fast lock, to make curved screen, four-sided screen, five-sided screen, etc. Features: 1. 500*500*87mm, 6.8kg/cabinet, P2.97, P3.91 indoor are available. 2. Die-casting aluminum cabinet, high strength, accurate precision, strong toughness, and not easy for deformation. 3. Flat Error<0.2mm, effectively eliminating the concave and convex mosaic phenomenon of the whole screen; 4. Fast lock, locked within 2 seconds, aviation connector for quick wiring. 5. Optional magnetic front maintenance module 6. Optional arc fast lock, -15°~15° adjustment, can be 90° corner screen, curved screen, four-sided screen, five-sided screen, six-sided screen, etc.; 7. High gray level and high refresh rate, gray scale ≥13 bit, refresh rate 3840Hz; 8. Excellent heat dissipation, silent operation without external fan air conditioner.

Features: 1. Two-way maintenance—In order to adapt to various installation environments in the field of rental and fixed installation, the 640X480 rental display adopts a dual maintenance design scheme of gear and rack, which is convenient for maintenance; 2. Ultra-thin-the cabinet is made of aluminum alloy die-casting, with high strength, not easy to deform, and the thickness of the cabinet is only 69mm; 3. Ultra-light—the empty weight of aluminum alloy die-casting is less than 6.4kg, and the weight of the finished cabinet is less than 11kg, which saves time and effort in transportation; 4. Good display effect—special circuit design, no color cast, no ghosting and other defects when the display is low gray and white balance, clear image, strong layering, uniform color, and more delicate display screen. 5. High-precision-after the cabinet is CNC processed, the accuracy is higher, and it can be seamlessly spliced; 6. High degree of protection-the special cabinet structure ensures that the cabinet can reach lP65 (front) and the rear can reach lP54; 7. Fast—The cabinet is connected up and down, left and right, with a quick locking mechanism, and the installation of a cabinet can be completed in 10 seconds, with high installation accuracy; 8. Pixel pitch: outdoor P5, P4.

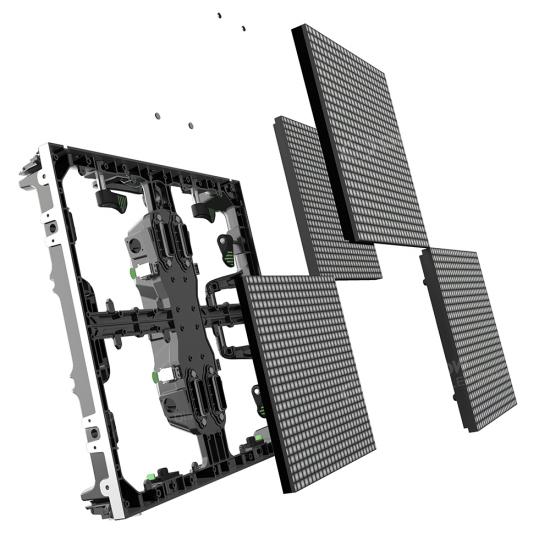

Module features： 1.Easy：Modular design, easy assembly and maintenance. 2.module size：250*250mm ,Smooth surface, module gap small ，High precision Cabinet features： 1. Light：Cabinet size:500*500*86mm, Weight:8.6kg/pc. 2.Thin：Die-cast aluminum design, high precision, thickness only 86mm. 3.Fast：Fast locks, Easy to assemble and disassemble. 4.Compatibility：Available pixel pitch for P2.6，P2.97, P3.91，P4.8； 5.Low：Excellent cooling design, no fans or air-conditioners needed noiseless, low power consumption, cost-effective.

1.  Fla：ADC12 high-strength die-cast aluminum cabinet, can be frequently assembled and disassembled without deformation, good flatness; 2.  Practical：The extremely simple and practical design, firm handle, convenient fast lock, the simplest and most practical; 3.  Magnetic locating：Fast and precise locating by the magnetic location pin on cabinet sides,  fast and easy installation for rental use; 4.  Dual service：fast lock module design, easy maintenance from front or back; 5.  Economical：Low cost, stable and reliable, and super cost-effective; 6.  Global hot sale over 50,000 square meters. Ready stock, fast delivery.

C-Fit P4,P5,P6,P6.67,P8,P10 LED screen is multi-functional outdoor advertising solution, it's worth every penny of it. Advantages: 1. Thinner and lighter: 15kg/m2 lighter and 20% thinner than iron cabinet,saving transportation space, reducing delivery weight and bearing requirements of buildings and steel structures. 2. Multi-function: advertising fixed installation, adding flying bar, connectors and fast lock for rental, adding rubber cushion and bracket for perimeter display. 3. Cost-effective: magnesium alloy cabinet,corrosiveness resistance and rusty. 4. Standard modules: P4 to P16 outdoor modules available. 5. Fast delivery: automatic batch products, huge stocks, shorten the delivery time. 6. Higher precision: CNC process, contour tolerance± 0.1mm, planeness tolerance < 0.5mm. integral moulding, indeformable, fast assembly.
