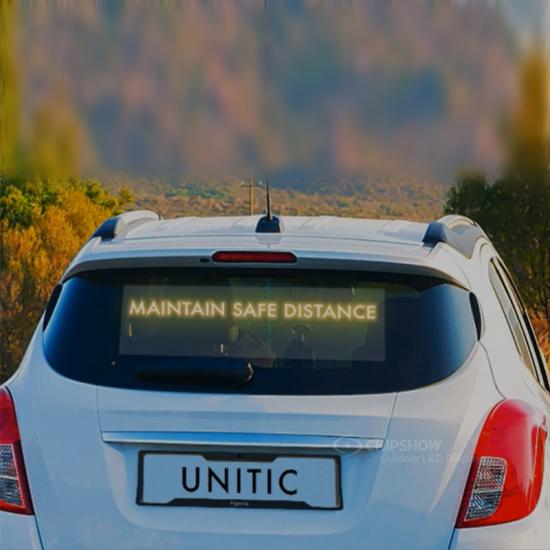

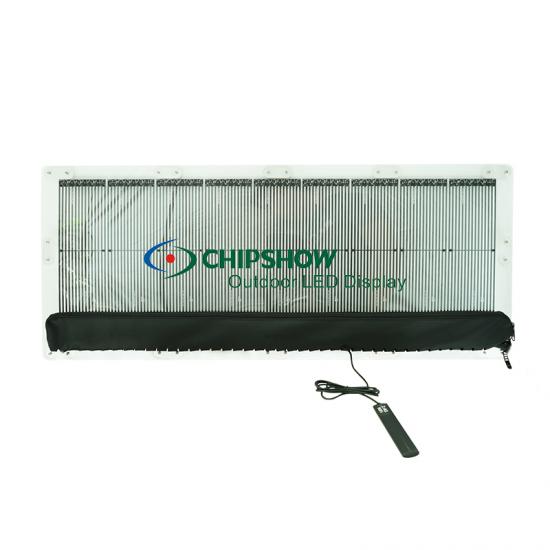

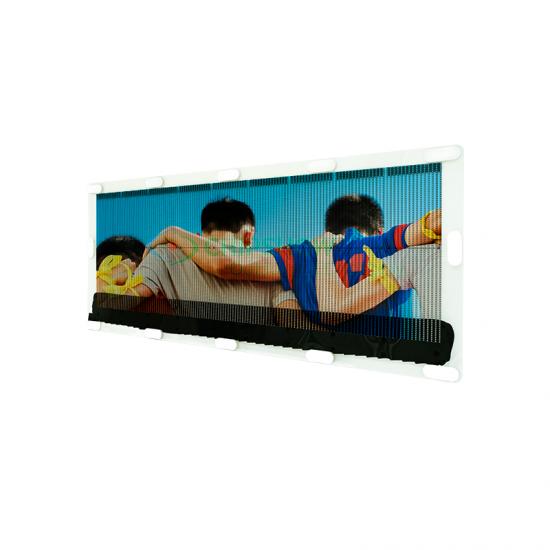

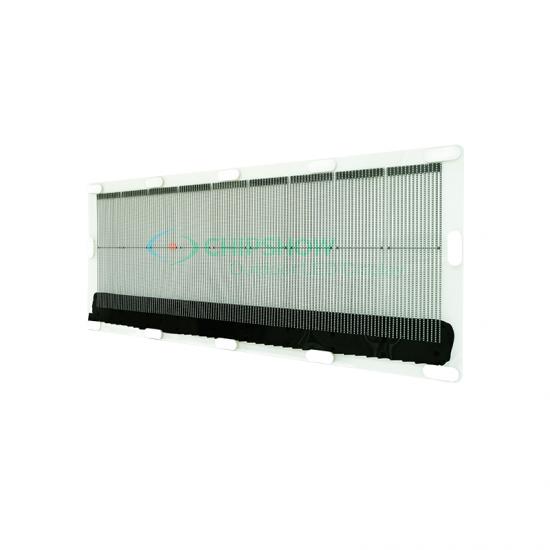

C-Tra-TaxiW car rear window taxi screen full color advertising LED display

C-Tra-TaxiW car rear window taxi screen full color advertising LED display

1.COB integrated encapsulation transparent display panel + mobile phone 4G control system play card + GPS positioning + WIFI function, easy to operate and play;
2.Advertising brightness can be adjusted according to the intensity of the light, more energy-efficient, slower Leds attenuation, and longer life span;
3.The light transmittance at the hollow of the transparent display panel reaches 52%, and the addition of the reversing screen function does not affect the reversing vision of the driver;
4.The flame-retardant semi-PU composite fabric protects HUB boards, control cards, 4G cards, etc., plus a soft bag that has better bending ability during mounting;
5.Weight of the screen is less than 1.5kg, and it can be installed quickly and without damaging the glass or bracket. The screen body and the flexible deformation two-dimensional bending fit the mounting surface;
6.Can play graphic advertisements, subtitles, videos, lunar calendar, dial, timing, temperature, humidity, announcements, weather forecasts, etc.


  • Product Details

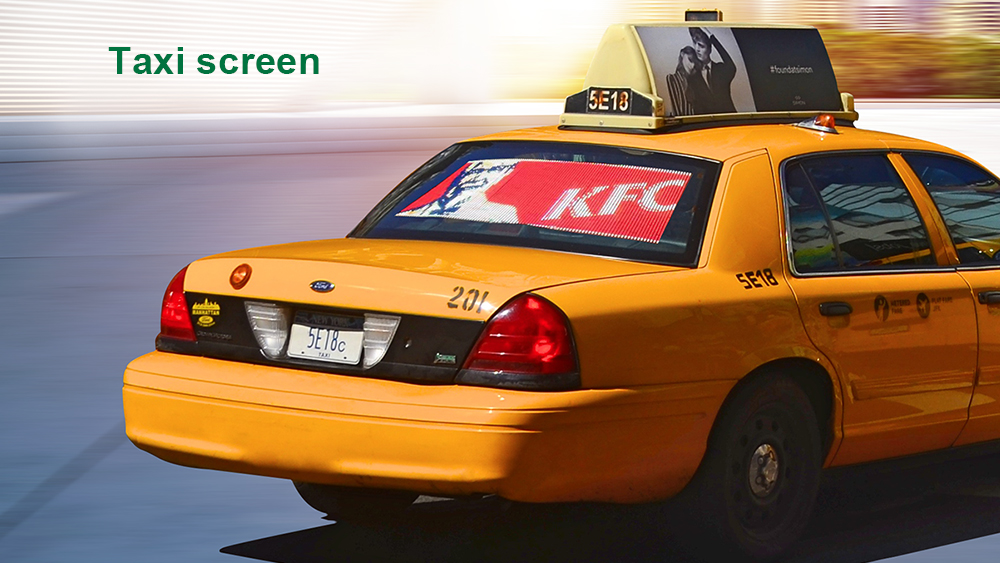

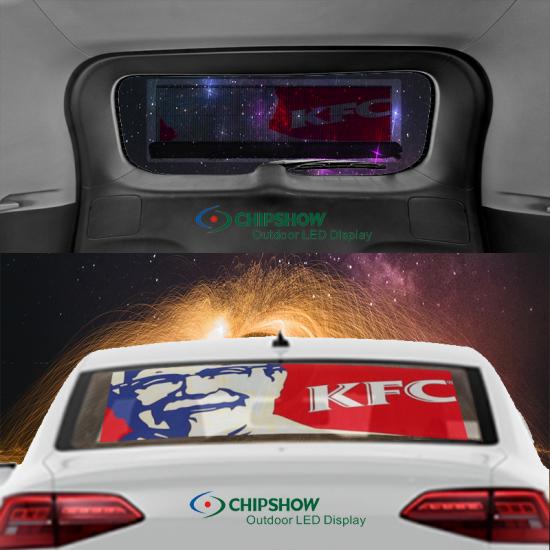

A great rear window taxi screen


Taxi screen

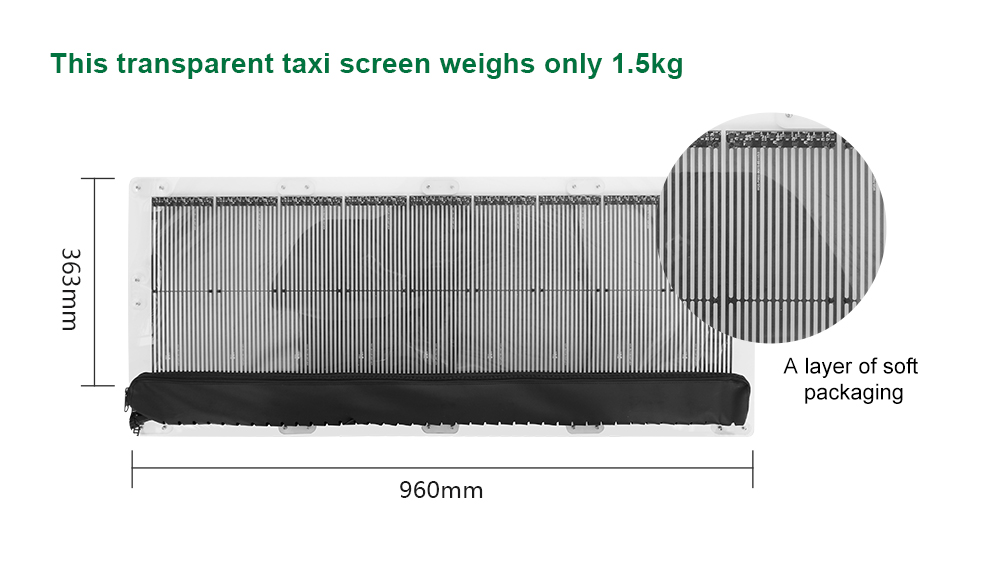

Ultra light weight


This transparent taxi screen weighs only 1.5kg, which greatly reduces the burden on the windows and greatly increases the safety. Because of this, you can glue the display screen to the window with 3M glue, which is very convenient to install. The display screen also has a layer of soft packaging, which can adapt to the bending radian of the window, and there is no need to worry about not being installed in place.


Taxi advertising screen

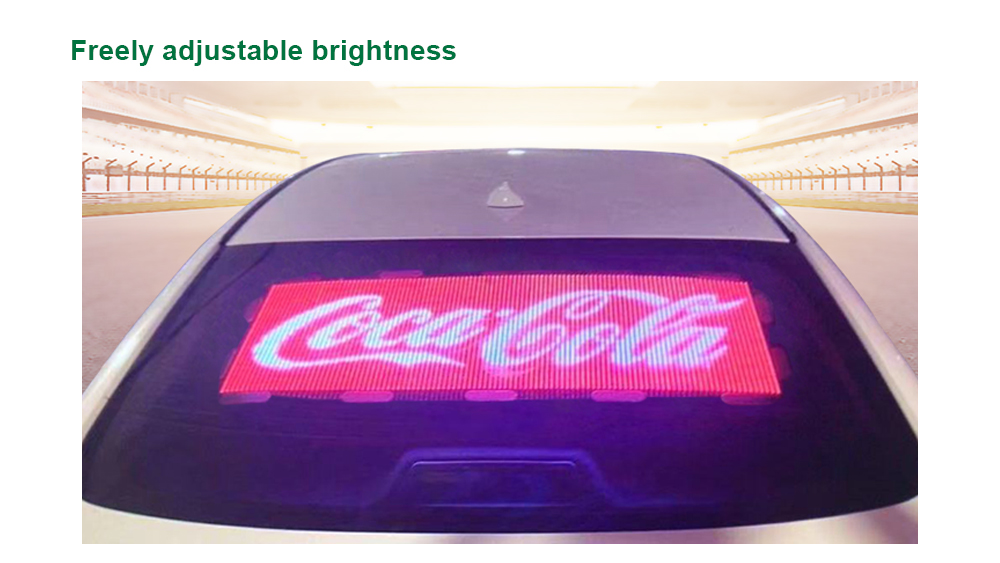

Freely adjustable brightness


Whether it's day or night, when you think the LED display is too bright or too dark, you can adjust its brightness at any time. When you do this, the power consumption of the display screen is reduced, and the life of the lamp bead will become longer.


led display

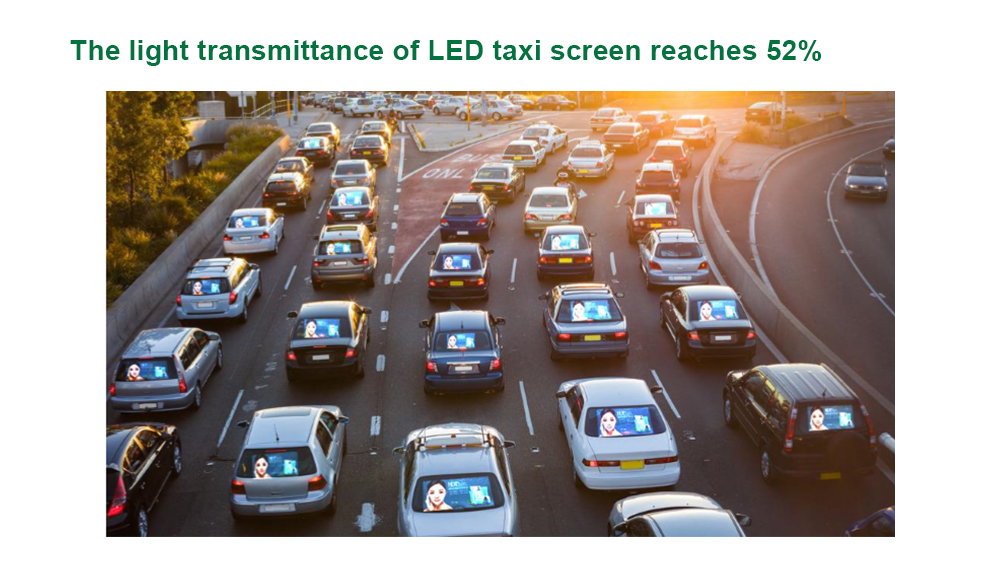

Excellent light transmittance


The light transmittance of LED taxi screen reaches 52%. When you don't use it, your line of sight will not be affected. And when reversing, the LED display screen will automatically turn off, which will not affect the reversing line of sight. It is safe!


led screen


Intelligent operation


You can use your mobile phone to control the LED taxi screen, and the display screen also comes with WiFi function. In short, the mobile phone can completely handle it, which is very convenient.


On board LED screen


Specifications



Item
Specification Parameter
Pixel Pitch、Resolution rate、size
6X2.92mm、15*96 Dots、90*280*2mm

Pixel color Pixel LED


1R1G1B、 COB 3 in 1
Working voltage、Module Power

DC4.2V12.5W


Driving IC、Driving way
MY9866QF、1/8S
HUB
-
Material、Cabinet Weight(kg/Cabinet)
Acrylic panel、<2kg/pcs
Resolution rate、size、Module quantity
150*96 Dots、960*363mm、8X2
Density
57142 Dots/㎡
White balance 、Color temperature
≤4300 CD/㎡、6500 K
View angel、Non-Flatness、Module
H:>175°;V:>175°、<1mm、<1mm
Maximal power/㎡、Average power/㎡
≤125W/㎡、≤35W/㎡
Frame frequency、Refresh frequency、Gray
60Hz、≥1920Hz、13bit
Control system、System supports
Chipshow、,Linsn、Microsoft XP,WIN 7
Working temperature、Protection grade
-20℃ - +50℃、front/rear:IP65/IP54
Power suppply,weight of power supply
input9~-36,out 4.2V,1kg(cables included)
