C-Special P3.07 Car Roof Full Color LED Screen

C-Special P3.07 Car Roof Full Color LED Screen

Features

1. The shell is made of cast aluminum and transparent board, and it is installed in an inverted style, which has good rainproof effect;

2. The exterior of the screen adopts a bright surface spraying process, which can be well matched with the car paint;

3. There is a hole at the bottom of the screen for installation with the roof bracket for easy installation;

4. Using DC to DC wide voltage 9 to 36 volt power supply, which can be used by almost all cars;

5. The screen body comes with a delayed start-up function, which does not affect the start of the car;

6. Accurate and efficient with Global GPS fixed-point placement;

7. Wireless control with mobile phone and pad, and the operation interface is simple and practical;

8. Real-time monitoring of the screen;

9. Full color cloud sending Android system architecture, Full Netcom 4G communication;

10. Ali Cloud in-vehicle TAXI_HUB dedicated platform service escorts you in-vehicle interconnection;

11. Standard WiFi module, support platform hotspot Internet access, car hotspot Internet access;

12. Support third-party APP, platform, microservice docking, safe, efficient and reliable;

13. Traffic trajectory, mileage, advertising log statistics, graphical and intuitive.

  • Product Details

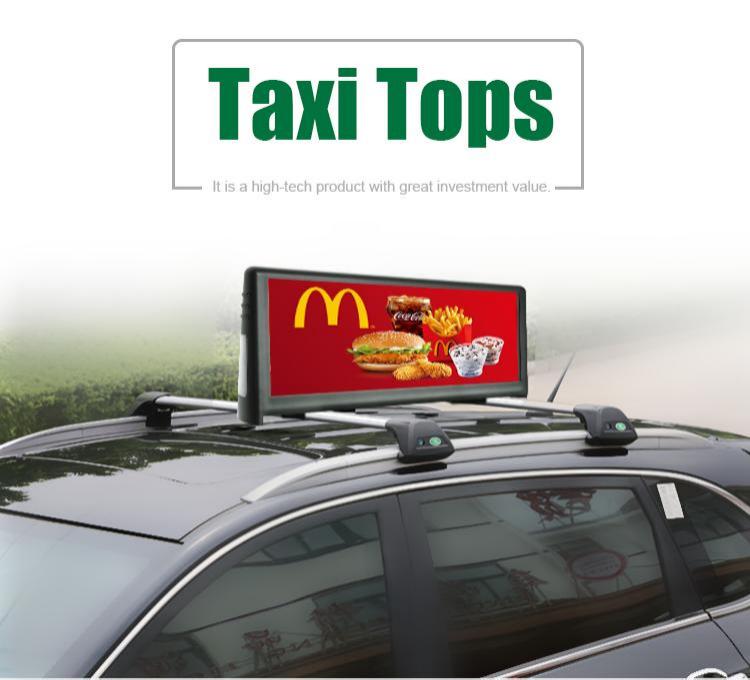

taxi top led display


Product Size

taxi top led display

Easy installation

there is a hole at the bottom of the screen for installation with the roof bracket for easy installation


taxi top led display

Good waterproof

The shell is made of cast aluminum and transparent board, and it is installed in an inverted style, which has good rainproof effect


taxi top led display


System architecture

taxi top led display

Fixed-point put into circulation

Accurate and efficient with Global GPS fixed-point placement


taxi top led display

Specifications

Product

Car Roof LED Screen

Module

Pixel Pitch

3.076mm

Module Resolution rate

104*52

Module size

320mm*160mm

Pixel color

1R1G1B

Pixel LED

 SMD1415

Working voltage

DC4.2V

Driving way

1/13
Cabinet

Material

Cast aluminum

Weight

20kg

Resolution rate

312*104Dots

Size

1089*434*167mm

Module quantity

3*2

Density

105625 Dots/㎡

White balance

4000-4500 CD/㎡

Color temperature

6000K-8000K

View angel

H/V:120°/120°

Non-Flatness

<0.2mm

Module interval

<0.2mm

Maximal power/㎡

≤656.3W

Average power/㎡

≤197W

Frame frequency

60Hz

Refresh frequency

3840Hz

Gray grade

13bit

Working temperature

-20~50℃

Protection grade

Front/Back:IP65/IP54
