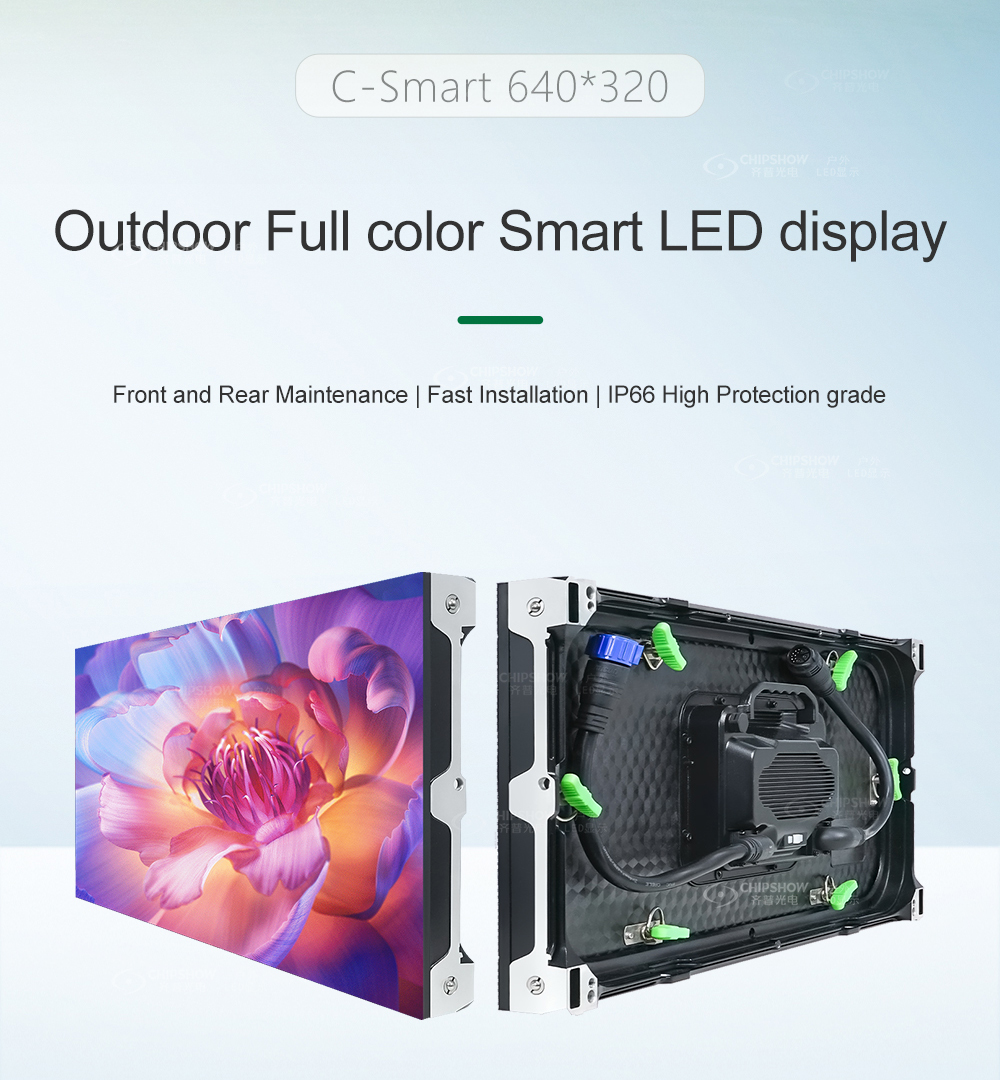

C-Smart P4/5/6.67/10 Outdoor LED Signs, Easy To Install And Maintain

C-Easy P5,P6.67,P8,P10,P16 is a front and rear serviceable, energy-saving, outdoor waterproof replaceable LED modules. Advantages: 1. Energy-saving≥30%. 2. Brightness≤8500Nits 3. High accuracy and high flatness. 4. Replaceable modules, fast and easy replace. 5. Front and rear service. 6. IP65 protection grade 7. 320*320mm module size, you can assemble it into different size screens.

1 Fully enclosed LED modules: every module has a central control box and a power supply box that is connected with 4 unit models; 2 Simple bracket design: the modules just require a simple aluminum profile to complete installation, saving the cost of cabinets and frame structure; 3 Wall-mountable installation: the modules, power supply units, and control systems support front service, saving installation space greatly; 4 Self-expansion: the big-sized modules (size: 640*320 mm) can be seamlessly spliced due to their excellent flatness; you can quickly build screens with different sizes; 5 Quick screen connection: the modules adopt 2-in-1 signal power cables for convenience of quick connection and installation; in addition, the wiring is also relatively tidy; 6 Ultra light, ultra-thin: the weight of an entire cabinet is only 23.5KG/㎡; therefore, transportation costs can be saved; 7 High-level protection: the fully-enclosed modules with a rating of IP66 ensure the screens can be seasoned to various outdoor conditions; 8 Comprehensive display solution: the screens are especially suitable for outdoor advertising at different scenes (e.g. shopping mall, roadside, door header, and shop window); Specification： Chipshow C-Smart-Outdoor Led Screen P6.67U0604S27-C96X48-CA1280X640 Qualification： C-Smart IP66,LVD,EMC EP3761294 Patent

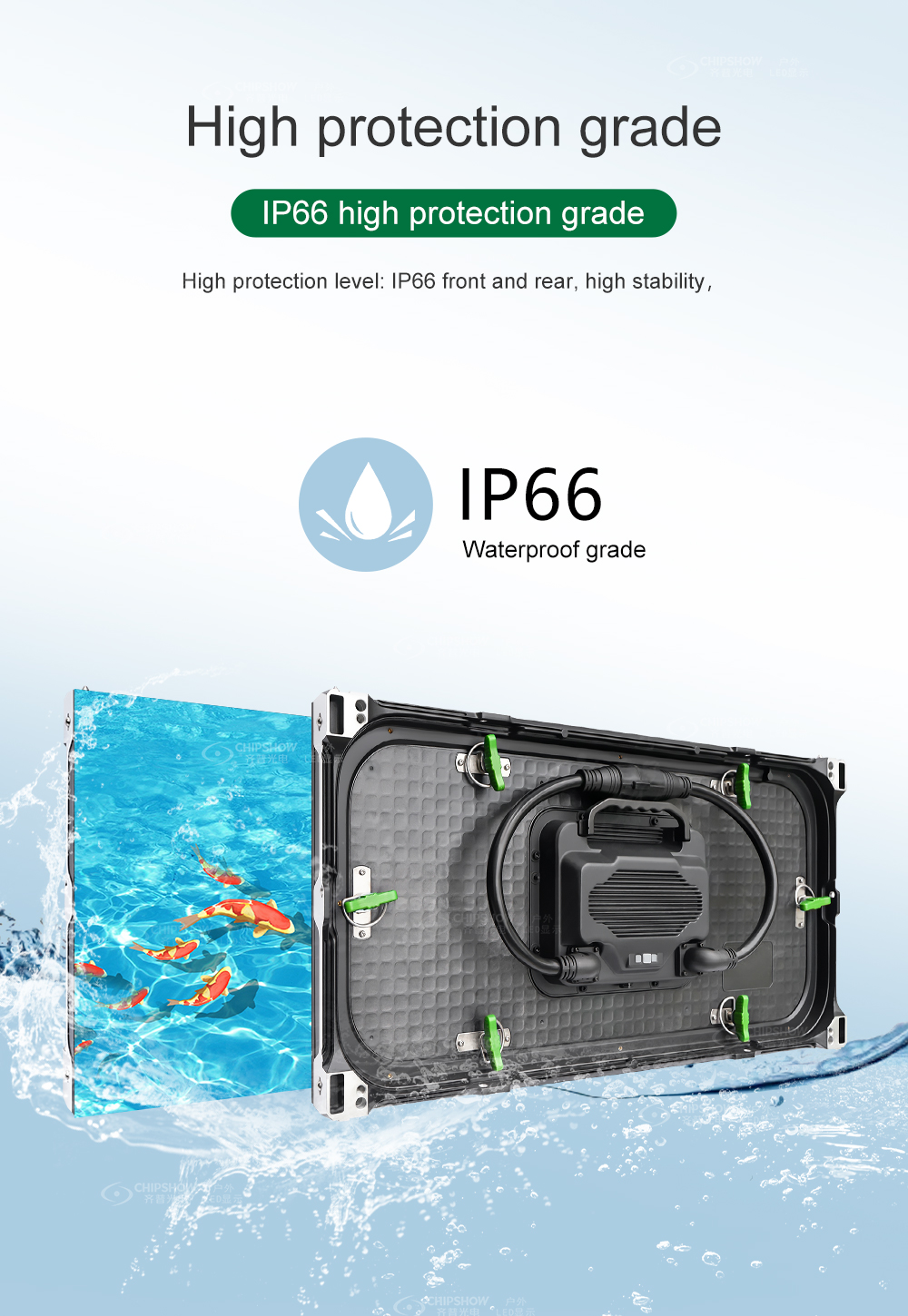

1 Low structural cost: the modules just require a simple bracket to form a big LED screen; the module’s weight is lower than 29 kg/㎡; this can help you save transportation costs and load-bearing structures; 2 Wall-mountable installation: the C-Smart-4IN1 smart LED display screens are usually mounted on the wall without being obtrusive; all the components including the LED modules, controller system cards, and power supply units support front service; 3 Low cost of maintenance: the module (size: 640*32 mm) is divided into 4 independent modules with the size of 320*160 mm, which lowers the cost of maintenance significantly; 4 Safe and tidy: every module has a 2-in-1 signal and power cable with the auto-locking function; the connection between cables is very convenient, and the wiring is very tidy; 5 Reliability: both the front and rear of the modules reach the protection grade IP66; this ensures high stability of performance; 6 Low noise: no-fan design ensures the working noise is always under 25Db; 7 Wide Applications: the C-Smart-4IN1 series can be assembled into various sizes of LED video signs for multiple purposes, such as wall-mounted signs, hanging signs, and standing signs;

Features: 1 High-precision die-casting aluminum cabinets: the cabinets are quite light and thin; (the weight of each cabinet is less than 8kg, and the cabinet thickness is less than 79mm); 2 Good compatibility: the C-Rock series comes in two cabinet sizes (500mm*500mm, and 500mm*1000mm), and multiple cabinets with different sizes can be spliced up and down to meet users' assembly needs; 3 Quick disassembly: all the cabinets are equipped with quick-release control boxes for the convenience of quick disassembly; 4 Splicing with arc locks (optional): you can opt to use arc locks to splice cabinets together into a curved screen that supports -10° to 15°; 5 Front service: the C-Rock series adopts magnetic modules that support front maintenance; 6 Each cabinet is equipped with 2 captive screws to prevent assembly errors caused by vibration during movement; this ensures the longevity and performance of your application; 7 Easy operation: even a single person can accomplish the quick installation of the cabinets; it greatly helps reduce the installation costs; 8 Silent running: the modules do not use fans to dissipate heat; while working, its noise level is always under 40db; it does not affect the live audio-visual effects; 9 Suitable as large stage backdrop screens: the C-Rock series LED display screens have DSLR background effects, and its high refresh rate can catch up with the camera’s shutter speed up to 1/3000s with no ghosting and no flicker ; 10 Applicable for indoor and outdoor use: as a comprehensive LED display solution for stage performances, conferences, and events, the C-Rock series for indoor use is available in pixel pitches of 1.95mm, 2.604mm, and 3.91mm; and the C-Rock series for outdoor use is available in pixel pitches of 2.604mm, 2.97mm, 3.9mm, and 4.8mm;

Features: 1 Thin and light: the C-Carbon series adopts a carbon fiber integrated frame that only weighs 12.5kg/㎡; this makes it easy to install and maintain ; 2 Good transparency: the transparency level reaches 65%; when mounted on a glass wall, the glass wall can be transformed into a vivid video wall; meanwhile, it does not affect the view of the glass wall; 3 Magnetic design: the C-Carbon series supports the front-&-rear maintenance; through magnetic modules, cabinets can be precisely located during installation; and the rental installation method is very cost-effective; 4 Heat dissipation design: it adopts smart temperature-controlled fans that can automatically regulate agitation rate according to the temperatures inside the cabinet; a lot of energy can be saved while it is working to improve the heat-dissipation efficiency; 5 High reliability: the waterproof grade of the front and rear of the modules reaches IP65; it can work normally under common outdoor conditions; 6 Wide application: it can support ground-mounted installation, wall-mounted installation, and hanging installation. It can be used as a versatile display solution for scenarios that are related to industries that include military, public security, justice, energy, transport, IT, and so on;

Features: 1 Good flatness: the screen adopts die-casting aluminum cabinets with a tolerance within 0.1mm; 2 Ultra-thin: the die-casting aluminum cabinets are 20% thinner and 15kg/㎡ than iron cabinets, which helps reduce transportation and framework costs significantly; 3 Easy to upgrade and replace: the cabinets are adapted to our P2.5~P16 modules; so you do not have to change the cabinets for an upgrade, this will save a lot of manpower and cabinet costs; 4 Multiple purposes: As a large display solution, the C-Fit series is widely used as outdoor advertising screens, stage rental screens, and stadium perimeter LED display screens; the C-Fit series is not only used as permanently wall-mounted screens but also used as ground-stacked screens for small events or spaces with low ceilings; 5 High brightness: the brightness reaches 3700~4200CD/㎡, so the screen can still present clear pictures under strong light; 6 Slow temperature rise, efficient heat dissipation: the heat-dissipation device adopts aluminum magnesium alloy material with excellent heat conduction; 7 Highly cost-effective: an IP65-rated enclosure provides protection against all kinds of bad weather conditions, such as water jets, salt spray, salt corrosion, and wind erosion; 8 High reliability: all the modules adopt seal technique and high-quality copper wire;

Module features： 1,Easy：Modular design, easy assembly and maintenance. 2，module size：250*250mm ,Smooth surface, module gap small ，High precision Cabinet features： ●  Light：Cabinet size:500*500*86mm, Weight: 8.5kg/pc. ● Thin：Die-cast aluminum design, high precision, thickness only 86mm. ● Fast：Fast locks, Easy to assemble and disassemble. ● Compatibility：Available pixel pitch for P2.6，P3, P3.91，P4, P5, P6. ● Low：Excellent cooling design, no fans or air-conditioners needed noiseless, low power consumption, cost-effective.

C-pad-d indoor small spacing display screen is a very excellent product. It has super display effect. We have given it many high-end processes and accessories to make you feel its power in use. 1： High quality LED lamps are adopted; 2： Standard resolution, box screen aspect ratio 16:9 3： The positioning pin is accurately positioned to ensure the flatness of box splicing; 4： The effect has no granules, good color uniformity and no mosaic phenomenon; 5： It can be displayed in any area, with large visual range, soft display image and high pixel density, which is suitable for indoor viewing; 6： Multilayer circuit board structure design, uniform current distribution, low power consumption, fast heat dissipation, effectively prolong the service life of the screen and high reliability; 7： The box can be disassembled and installed on the front and back, and the front of module and control box can be maintained; 8： Integrated control box, without separate power supply, receiving card and hub board, simple, fast and easy to maintain; 9： Die casting aluminum box design, light and ultra-thin, high precision; 10： Working noise: no fan, bright light, greatly reducing the noise of the screen. The normal operation of the equipment shall not exceed 40dB; It will not affect the on-site viewing effect; 11： Bright and dumb black LED lamp is adopted, with low attenuation, high reliability, good consistency and high weather resistance; 12： The whole board adopts bright and dumb black LED lamp, with excellent color mixing performance and high contrast (5000:1); 13： Point to point adjustment: it has the brightness and color point-to-point adjustment technology to improve the overall consistency and uniformity of the display unit; 14： The SLR camera takes continuous photos with a 1 / 3000 second shutter, and the photos are free of flicker, ghost and scanning line;
