C-Sport P8 Professional Stadium LED Screen

P8,P10 C-Fit-Sport LED display adopt virtual replacement technology. Virtual ads could be transmitted to different countries instead of the real ads in stadium. Advantages: 1. Intelligent perimeter LED display. 2. Virtual replacement technology, powered by IR LED. 3. Fast Installation and maintenance cabinet design. 4. Soft protection kit design to protect players from harm. 5. Negative pressure heat-dissipation system, further guarantees the reliability. 6. Available for remote monitoring by App.

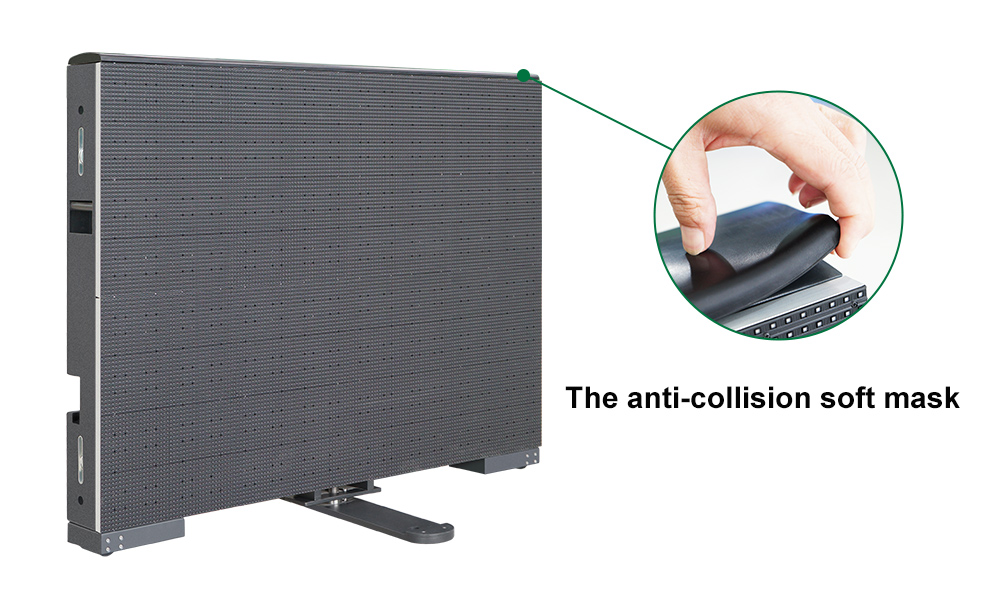

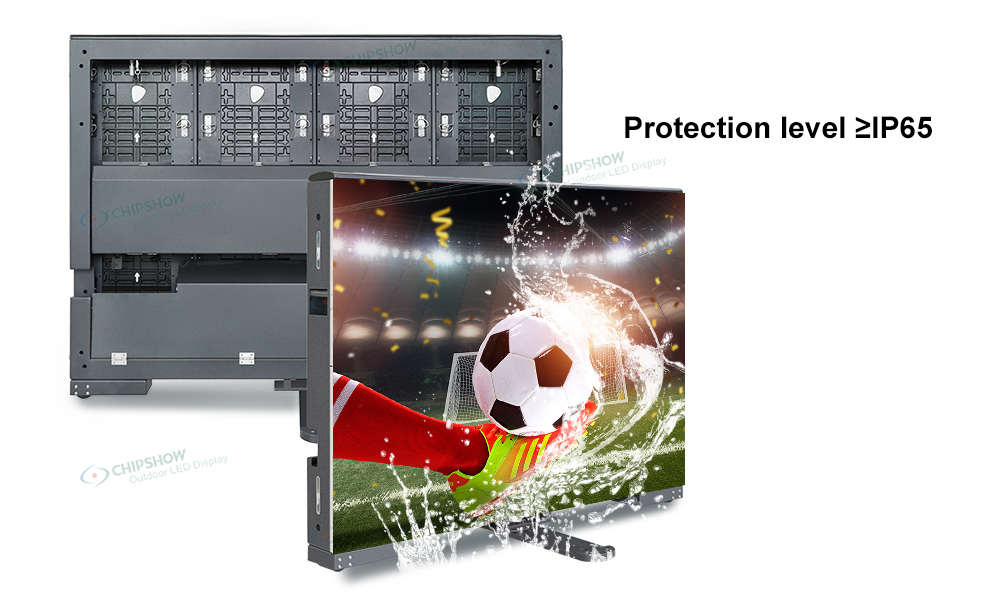

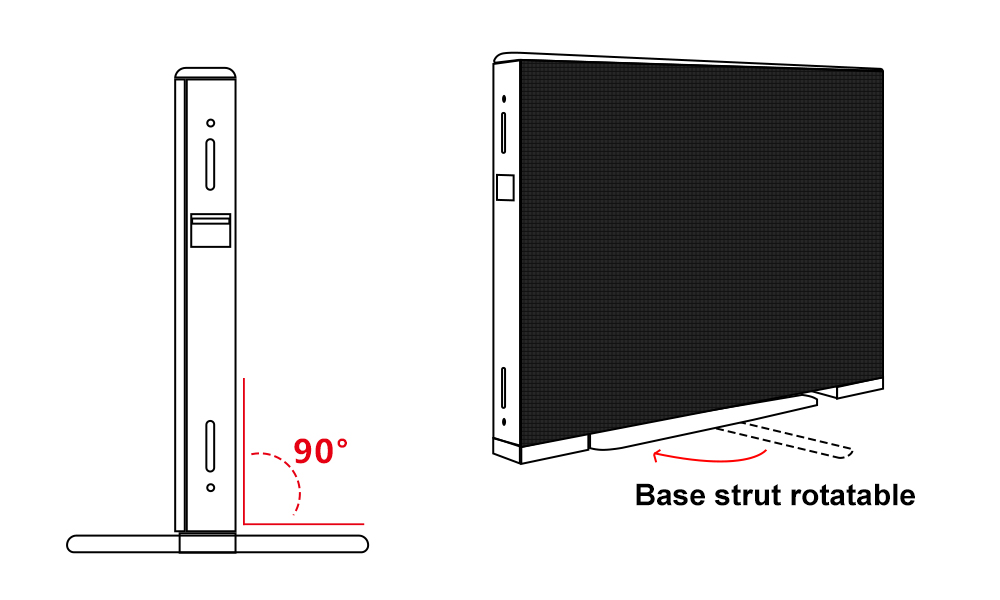

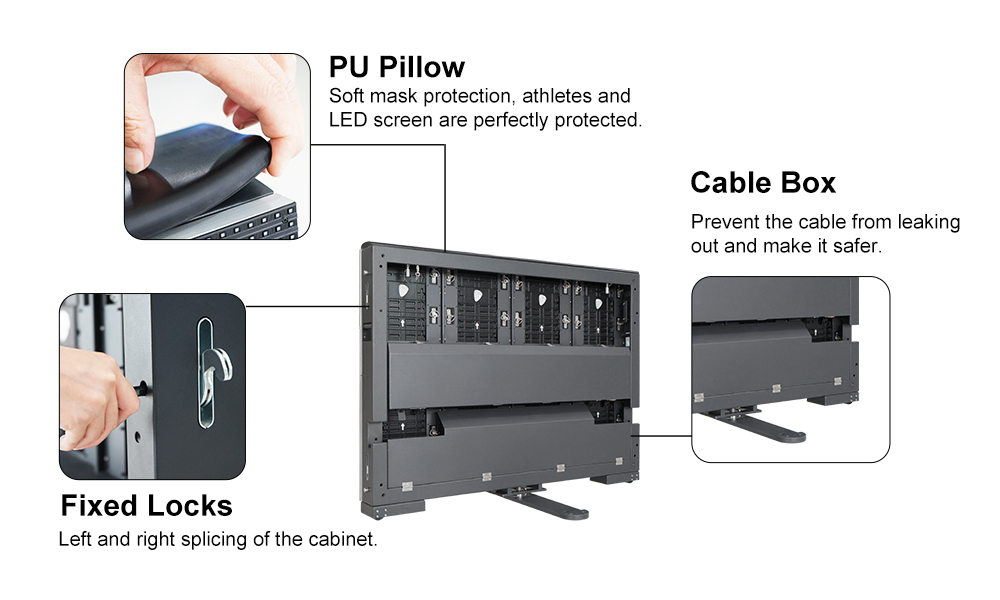

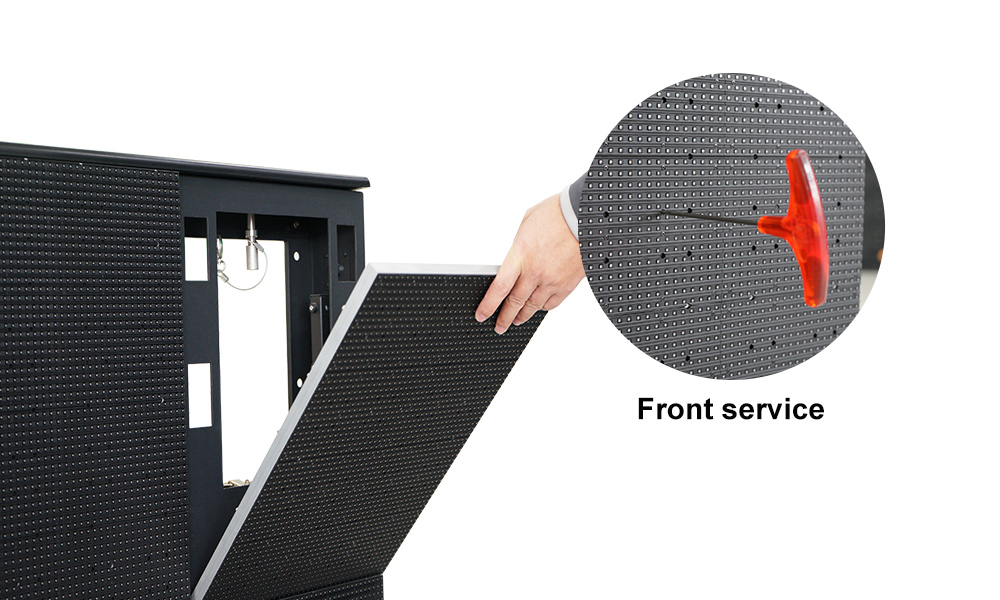

C-Sport P8 stadium perimeter LED screens are widely used for digital perimeter advertising; Features: 1 Every cabinet is equipped with left & right fast locks, and an adjustable 90 degree rotating bracket for convenience of quick assembly of perimeter display; 2 Every screen comes with soft pillow protectors, soft LED module masks, so both athletes and LED screens can be fully protected; 3 The aluminum power box not only has light weight but also has excellent performance in heat dissipation; this effectively slows the aging process of power modules; 4 Every LED module supports front-and-rear service, this makes the operation easy during installation and later maintenance; 5 The front and back of the cabinet is dustproof and waterproof, and reaches IP65 protection level; 6 Compared with conventional LED display screens, Chipshow C-Sport series is energy-saving – about 1/3 energy consumption can be saved; this greatly reduces the operating cost; 7 The screen also comes with professional perimeter advertising software that supports diverse video input sources, such as DP, HDMI, VGA, SDL, and DVD;

1 It adopts the plug-pull installation method: every cabinet comes with guide rails, and can be quickly plugged in and pulled out; this makes the disassembly and maintenance process simple; 2 The cabinet is made from high-precision aluminum profiles; this ensures the good flatness of the screen; 3 It is advisable to adopt the wall-mounted installation method; every module can be maintained from both front and rear; when you align all the modules in a straight line, the screen looks tidy; 4 High reliability: the fully enclosed modules plus IP65 plug-in components ensure the normal running of the screen in outdoor places; 5 The ultra-thin, ultra-light alloy cabinet will greatly save the cost of transportation and installation; 6 The C-Special stadium series is particularly used as a display solution for stadium walls, and stands around stadiums;

C-Sport P8 stadium perimeter LED screens are widely used for digital perimeter advertising; Features: 1 Every cabinet is equipped with left & right fast locks, and an adjustable 90 degree rotating bracket for convenience of quick assembly of perimeter display; 2 Every screen comes with soft pillow protectors, soft LED module masks, so both athletes and LED screens can be fully protected; 3 The aluminum power box not only has light weight but also has excellent performance in heat dissipation; this effectively slows the aging process of power modules; 4 Every LED module supports front-and-rear service, this makes the operation easy during installation and later maintenance; 5 The front and back of the cabinet is dustproof and waterproof, and reaches IP65 protection level; 6 Compared with conventional LED display screens, Chipshow C-Sport series is energy-saving – about 1/3 energy consumption can be saved; this greatly reduces the operating cost; 7 The screen also comes with professional perimeter advertising software that supports diverse video input sources, such as DP, HDMI, VGA, SDL, and DVD;

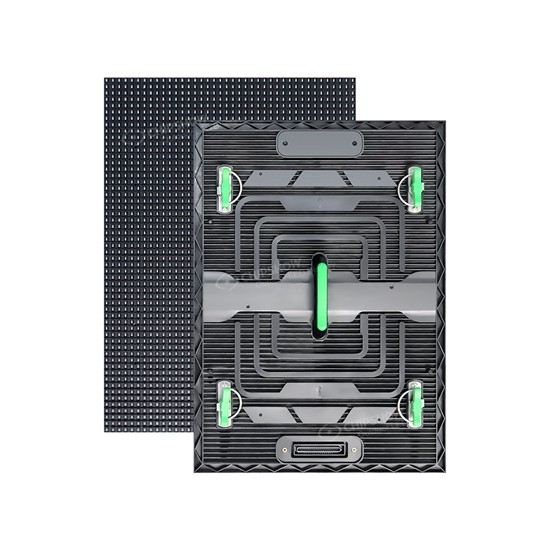

1 Fully enclosed LED modules: every module has a central control box and a power supply box that is connected with 4 unit models; 2 Simple bracket design: the modules just require a simple aluminum profile to complete installation, saving the cost of cabinets and frame structure; 3 Wall-mountable installation: the modules, power supply units, and control systems support front service, saving installation space greatly; 4 Self-expansion: the big-sized modules (size: 640*320 mm) can be seamlessly spliced due to their excellent flatness; you can quickly build screens with different sizes; 5 Quick screen connection: the modules adopt 2-in-1 signal power cables for convenience of quick connection and installation; in addition, the wiring is also relatively tidy; 6 Ultra light, ultra-thin: the weight of an entire cabinet is only 23.5KG/㎡; therefore, transportation costs can be saved; 7 High-level protection: the fully-enclosed modules with a rating of IP66 ensure the screens can be seasoned to various outdoor conditions; 8 Comprehensive display solution: the screens are especially suitable for outdoor advertising at different scenes (e.g. shopping mall, roadside, door header, and shop window); Specification： Chipshow C-Smart-Outdoor Led Screen P6.67U0604S27-C96X48-CA1280X640 Qualification： C-Smart IP66,LVD,EMC EP3761294 Patent

Advantages of Ventilation display : Easy：Front-maintenance module is convenient for disassembly and assembly Ultrathin design: It is ultra light and ultrathin and requires low load bearing. It has ultrathin design, the thickness of the whole cabinet is only 90mm and it is 50mm thinner than the routine cabinet that makes installation more easier. Low windage: Because the screen is ventilation, it reduce the windage and can  save the structure costs. Good ventilation: Its transmittance is over 7% and gain the homogeneous emission.Do not need to use air conditioning fan and save cost. Strong adaptability:waterproof, dustproof and airproof design. Environmental protection and energy saving. Download： INTRODUCTION TABLE FOR VMS P20, SMD LED(ICE LED), 7680MM X 1280 MM INTRODUCTION TABLE FOR LCS P10, SMD LED, LED MATRIX 1280MM x 1280MM INTRODUCTION TABLE FOR VMS P10, SMD LED, LED MATRIX 1760MM x 1280MM

1 The cabinets are made of die-cast aluminum and adopt ultra-light and ultra-thin design; the thickness of a cabinet (size:500*500mm) is only 87mm, and the cabinet weight is lower than 6.8kg; 2 The curved cabinets can be spliced with planar cabinets from the left and right sides; by the way, the C-Arc series can be spliced together with our C-Shine series (P2.604); so you can make cabinets with more shapes; 3 As a type of concave-convex curved LED screen, the curved angles (the angles of inner and outer arc) that the C-Arc series allows range from -30° to 30°； 4 The modules adopt soft PCB boards with special layout designs; this ensures that the arc surface of the screen is always smooth; 5 The cabinets adopt a no-fan design; the generated noise is always under 40DB when the screen is working; this will not impact the live visual and acoustic effects; 6 The C-Arc series presents HD visual effects – by the technology of white balance and point-by-point color calibration, the high uniformity and consistency of the images are guaranteed; 7 3 cabinets can be put together into a screen with a 90°arc; in other words, 12 cabinets can form into a circular-shaped screen; 8 As curved LED screens, the C-Arc series is widely used as stage screens for rental services, and mainly applied in trade shows and indoor stage shows; in addition, it can also be applied as indoor fixed screens;

The C-lite series is a type of highly cost-effective rental LED screen for varieties of activities; the die-casting aluminum cabinets with fast locks and convenient cable connectors will help users install & disassemble quickly and easily. Meanwhile, you can also add scale locks to make a curved LED screen. Features: 1. Pixel pitch: 2.6, 2.97, 3.91, 4.81mm (outdoor and indoor) 2. Size: 500*500/500*1000mm 3. Modules magnetic installation (indoor), fast assembly, and fast dismounting. 4. The cabinets of different batches are of the same size, solid and durable, and not easy to deform. 5. Casting aluminum cabinet, ultra-high flatness, whole cabinet flatness≤0.01mm. 6. Power and data connected fast, long life devices, 500,000 times pull and plug. 7. Easy operation, one click to light up the screen. Application: Rental screens for weddings, conferences, concerts, launch events, and all kinds of activities; also can be used as mobile display solutions and permanent display solutions, such as led screens for mobile trailers, and stadium perimeter display screens.
