C-Slim corner 3D screen, high brightness, energy saving

C-Slim corner 3D screen, high brightness, energy saving

Pixel Pitch、Resolution rate、size: 5mm、12*64Dots、60*320

Pixel color、 Pixel LEDL: 1R1G1B、 SMD1921

Working voltage、Module Power: DC4.6V、≤10W

Driving IC、Driving way Standard configuration: ICND2153、1/8

HUB: HUB75

Material、Cabinet Weight(kg/Cabinet): Sheet metal aluminum 、15kg/Cabinet

Resolution rate、size、Module quantity: 120*192Dots、600*960*95mm、10X3

Density: 40000 Dots/㎡

White balance 、Color temperature: 5000CD/㎡、6000-8000K

view angel、Non-Flatness、Module interval H/V:120°/120°、<0.2mm、<0.2mm

Maximal power/㎡、Average power/㎡: ≤560W/㎡、≤170W/㎡

Frame frequency、Refresh frequency、Gray grade: 60Hz、3840Hz、13bit

Control system、System supports CHIPSHOW,Windows XP,WIN 7

Working temperature、Protection grade: ﹣20~50℃、 Front/Back:IP65/IP54

  • Product Details







Product Demonstration:


Product Features:

1 High brightness, energy-saving: the screen adopts a 4.6V power supply, and the brightness level can reach more than 5000CD/㎡;



2 Excellent display effects: even if in low gray-scale settings, the screen does not have common image quality defects like color deviation and shadows of ghosts;



3 Dual service (front-and-rear maintenance): Both the cabinets and modules adopt the front-and-rear maintenance design to meet all kinds of installation requirements;



4 Minimum radius: you can splice the LED modules to form an outer curved screen with a minimum radius of 382mm, or a cylindrical screen with a minimum diameter of 764mm;

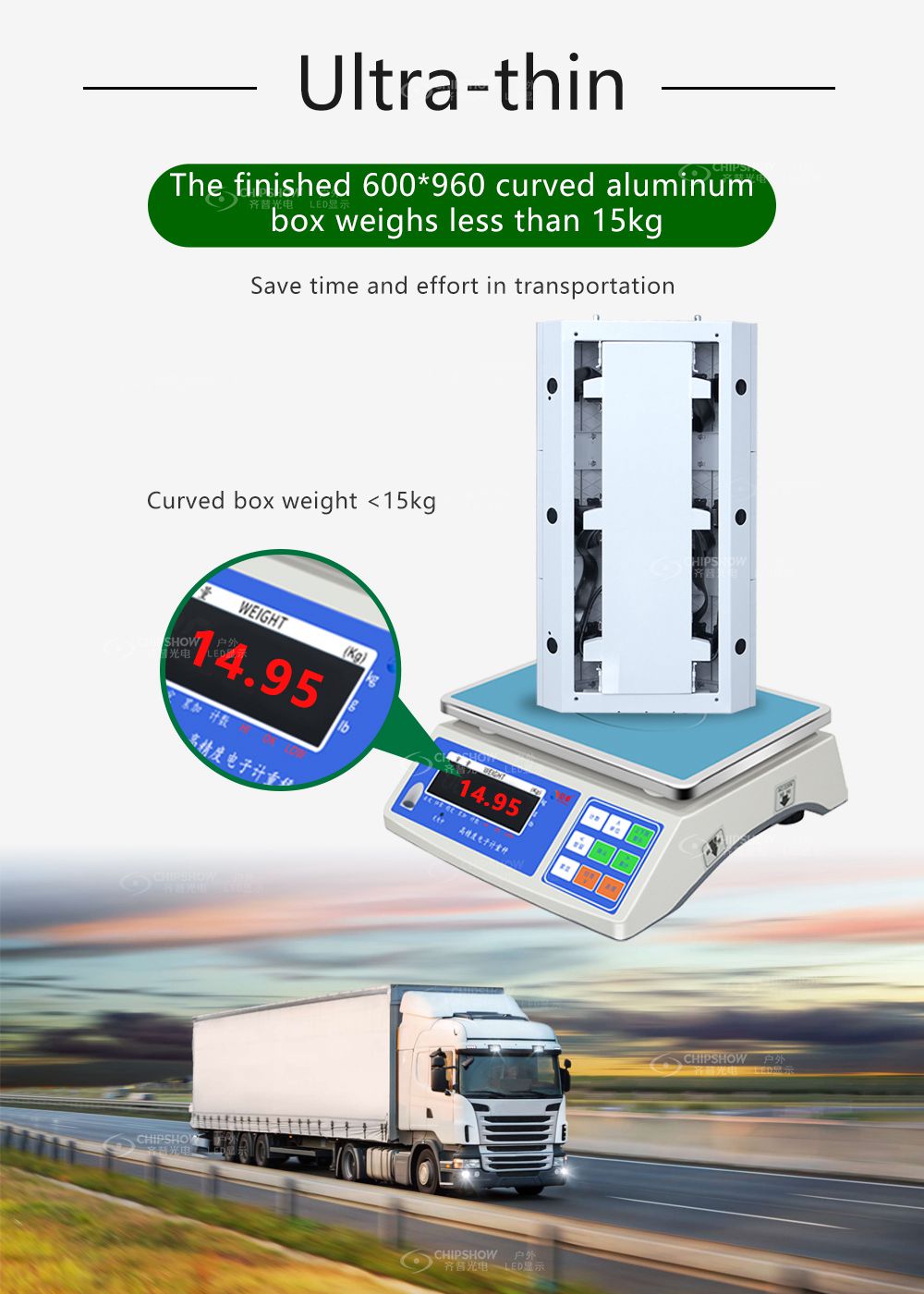

5 Ultralight weight: the cabinet (size: 600*960 mm) weight is lower than 15kg/pcs (25kg/㎡), which will bring users much convenience during installation and transportation;

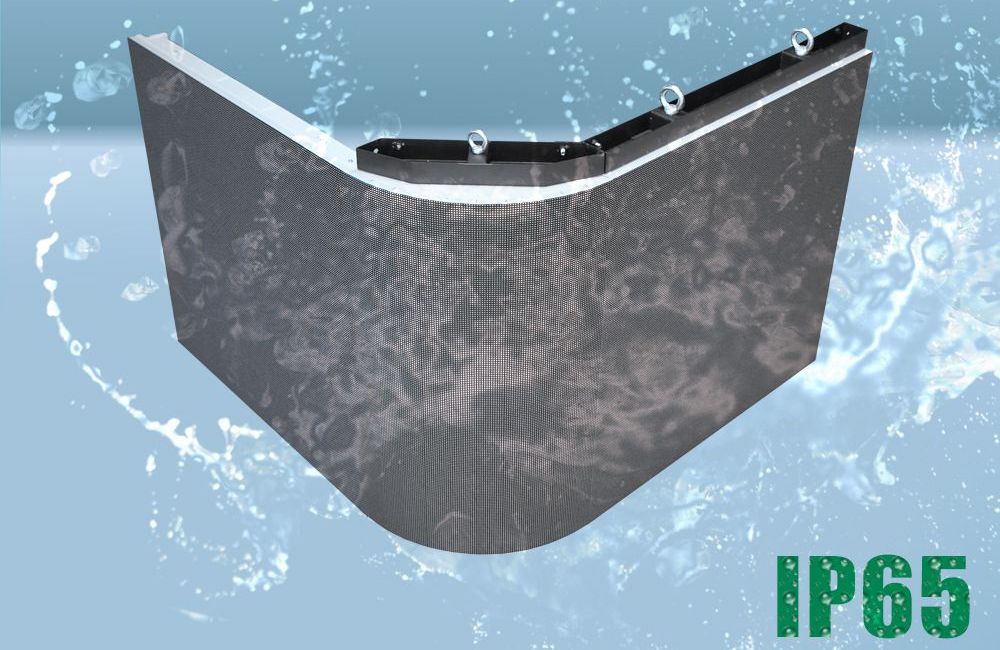

6 High protection level: the LED modules are fully enclosed, and the front and back of every module have reached an IP65 rating;



Applications: the C-Slim Corner 3D screens are widely used in large outdoor scenarios, such as outdoor sports arenas, schools, and, hotels, shopping malls, and other outdoor commercial buildings or public places of entertainment/culture/science;
