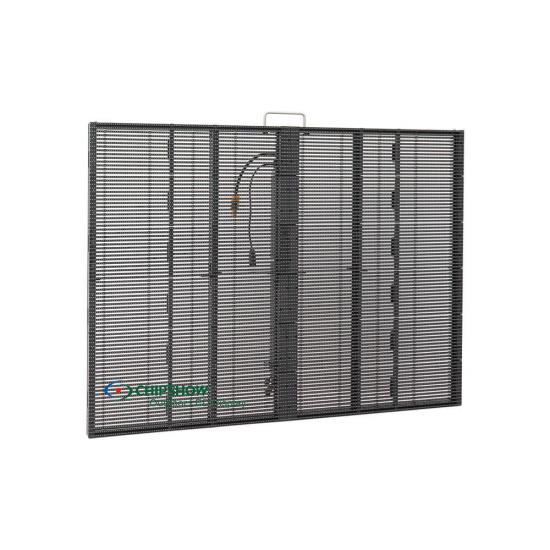

C-Trans P5.35 Outdoor Transparent LED Screen

Product Features: 1 Front and rear maintenance: all the components can be maintained from the front, this will help you save a lot of space during installation and maintenance; 2 Waterproof: every side of the cabinets is fully waterproof; 3 High stability: the LED modules are fully enclosed; both the front and back reach IP65 protection level; all the wires are concealed, this not only gives a tidy appearance but also improves operation safety; 4 High-quality cabinets: the cabinets are constructed from full die-casting aluminum that features high strength, thin thickness, and low weight; 5 Energy Saving (for P6.67/8/10): The C-slim P6.67, P8, and P10 screens adopt the common cathode scheme that can save up to 30% of energy compared with conventional outdoor LED screens; 6 Dual voltage power supply (for P6.67/8/10): the dual-output power supply system can adjust the output voltage automatically to maintain a stable power supply; 7 Main application: the C-Slim series is a good outdoor display solution that can be used in commercial advertising, promotion of government projects, event marketing, enterprise image publicity, and so on;

Product Features: 1 High precision: the cabinets adopt high-pressure die-casting aluminum, and the tolerance is less than 0.1mm; this ensures accurate assembly of cabinets, and the surface of a whole screen will have good flatness; 2 Ultra-thin and ultra-light: the cabinet is 15kg/㎡ lighter in weight and 20% thinner than an iron cabinet; this will help you greatly reduce the cost of transportation, and the cost of construction of a steel frame structure; 3 Multiple purposes: the C-Fit billboard screen can be used as a cost-effective fixed display solution, rental display solution that supports hanging installation, and display solution for stadium perimeter fences; 4 Front-service design: the LED modules support front service; therefore, when it comes to wall-mounted installation, you can easily assemble and disassemble the modules; 5 Easy upgrade and replacement: the cabinets can adapt to our P4~P20 modules; therefore, you do not have to spend extra cost in replacing cabinets if you consider upgrading the billboard screen; 6 High brightness: the brightness level reaches more than 5500 CD/㎡; even though under strong light, the billboard screen still can present clear images; 7 High protection grade: the protection grade of the C-Fit-Easy series reaches IP65; and this type of billboard screen is very suitable for large-format outdoor advertisements, such as outdoor LED walls, and LED screens with a ground stack system;

Features: 1 Thin and light: the C-Carbon series adopts a carbon fiber integrated frame that only weighs 12.5kg/㎡; this makes it easy to install and maintain ; 2 Good transparency: the transparency level reaches 65%; when mounted on a glass wall, the glass wall can be transformed into a vivid video wall; meanwhile, it does not affect the view of the glass wall; 3 Magnetic design: the C-Carbon series supports the front-&-rear maintenance; through magnetic modules, cabinets can be precisely located during installation; and the rental installation method is very cost-effective; 4 Heat dissipation design: it adopts smart temperature-controlled fans that can automatically regulate agitation rate according to the temperatures inside the cabinet; a lot of energy can be saved while it is working to improve the heat-dissipation efficiency; 5 High reliability: the waterproof grade of the front and rear of the modules reaches IP65; it can work normally under common outdoor conditions; 6 Wide application: it can support ground-mounted installation, wall-mounted installation, and hanging installation. It can be used as a versatile display solution for scenarios that are related to industries that include military, public security, justice, energy, transport, IT, and so on;

1. Low power consumption, low temperature rise, energy saving, average power consumption ≤180W/㎡; 2. Totally enclosed module; The disassembly and assembly of the module has no screws and can be quickly disassembled； 3. The connection between the module and the box adopts a side waterproof leather ring, which has high waterproof reliability； 4. All-cast aluminum box, ultra-light and thin; weight≤29kg, thickness≤105mm 5. High waterproof level, the whole box is IP65； 6. Application fields: outdoor advertising media, government and enterprise projects, cultural tourism, sports competitions, image promotion, commercial real estate, etc.

Pixel Pitch、Resolution rate、size: 5mm、12*64Dots、60*320 Pixel color、 Pixel LEDL: 1R1G1B、 SMD1921 Working voltage、Module Power: DC4.6V、≤10W Driving IC、Driving way Standard configuration: ICND2153、1/8 HUB: HUB75 Material、Cabinet Weight(kg/Cabinet): Sheet metal aluminum 、15kg/Cabinet Resolution rate、size、Module quantity: 120*192Dots、600*960*95mm、10X3 Density: 40000 Dots/㎡ White balance 、Color temperature: 5000CD/㎡、6000-8000K view angel、Non-Flatness、Module interval H/V：120°/120°、＜0.2mm、＜0.2mm Maximal power/㎡、Average power/㎡: ≤560W/㎡、≤170W/㎡ Frame frequency、Refresh frequency、Gray grade: 60Hz、3840Hz、13bit Control system、System supports CHIPSHOW，Windows XP，WIN 7 Working temperature、Protection grade: ﹣20~50℃、 Front/Back：IP65/IP54

1 High brightness, energy saving: this C-Fit series adopts a 2.8V/3.8V low-voltage power supply that offers excellent energy efficiency, and meanwhile, the ICE LED beads deliver high brightness along with low power consumption; 2 Fine picture quality: it adopts the leading edge blanking circuit to eliminate ghost lines effectively; with the white balance under a low gray level, it achieves fine picture quality with no color deviation; 3 Ultra-thin: the cabinet uses die-casting magnesium alloy (weight of the empty cabinet: ＜15kg, weight of the finished cabinet: ＜35kg; thickness of the cabinet: 87mm); this makes it easy to transport and install the cabinets; 4 High-precision: every cabinet is made through the die-casting process and the CNC process, thus, every cabinet can be seamlessly spliced; 5 High protection level: the protection grade of the front side of the cabinet reaches IP65; the C-Fit series LED screens can withstand common outdoor conditions; 6 High-efficiency heat dissipation: the self-developed heat dissipation system ensures that heat in any corner of the cabinet can be dissipated quickly through doubled current and negative pressure; this ensures that the  LED screen can always run normally without problems of heat dissipation； 7 Fast installation:  every cabinet is connected with fast locks, and it just takes you 10 seconds to splice two cabinets; 8 Wide application: As a wall-mounted/hanging display screen, the C-Fit series can be widely used in a variety of outdoor public places, such as stadiums, shopping malls, docks, bus stations, schools, and roadsides;

Product characteristics： 1.Light and transparent: weight 15kg/㎡, easy to install and maintain, no support structure reinforcement, high efficiency; 2. Transparency: 35% permeability, so that the glass curtain into a realistic video wall, does not affect the outdoor view; 3. All-weather: low temperature, high temperature, humidity and other working conditions; 4. Low power consumption: using positive luminous LED lights, high conversion efficiency PFC power supply, large screen energy saving more than 50%; 5. Multi-purpose: curved box design, outer arc 10°, inner arc 10°; Can be fixed, can be leased; 6. No steel structure: Direct use of the original glass curtain wall steel structure, can reduce the weight of steel structure per square meter about 50kg;bout 50kg;

Front and rear maintenance: all the components (e.g. modules, system cards, and power supply units) support front service; it can save you space during maintenance; and it also supports wall-mounted installation; Good waterproof performance: side waterproofing technology is applied between cabinets; the fully-enclosed modules are IP-65-rated waterproof and are ideal for outdoor use; Ultra light and thin: the cabinets are made of magnesium alloy with excellent strength; every cabinet (size: 480mm * 640mm) is only 7.2KG in weight; Low noise: the display screen works without using fans, the noise is under 25Db; Quick installation: it uses fast locks and aviation plugs to finish the connection and setup; much labor and time can be saved; Flexible assembly: the small unit size (480mm * 640mm) provides convenience for users of assembly of different sign/signage/billboard sizes; it also supports splicing with the C-Slim big-sized cabinets (size: 960mm * 960mm); for example, a display screen with the 16:9 aspect ratio can be easily spliced; Application: it can be widely used for a wide range of outdoor advertising/broadcast projects, such as advertising/broadcasting in sports competitions, advertising for real estate, government/enterprise image publicity, and so on;
