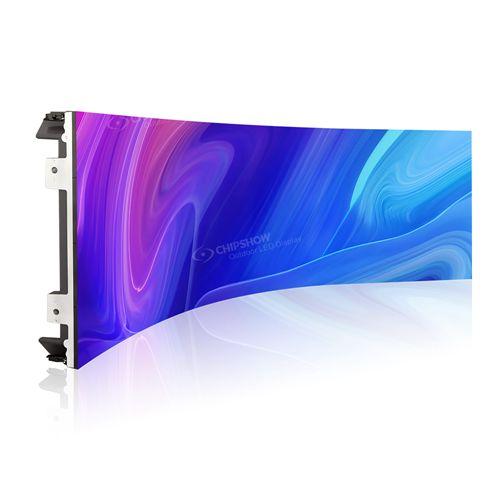

C-Arc curved LED screen, arc/flat splicing, indoor display (P2.6)

C-Arc curved LED screen, arc/flat splicing, indoor display (P2.6)

1 The cabinets are made of die-cast aluminum and adopt ultra-light and ultra-thin design; the thickness of a cabinet (size:500*500mm) is only 87mm, and the cabinet weight is lower than 6.8kg;
2 The curved cabinets can be spliced with planar cabinets from the left and right sides; by the way, the C-Arc series can be spliced together with our C-Shine series (P2.604); so you can make cabinets with more shapes;
3 As a type of concave-convex curved LED screen, the curved angles (the angles of inner and outer arc) that the C-Arc series allows range from -30° to 30°;
4 The modules adopt soft PCB boards with special layout designs; this ensures that the arc surface of the screen is always smooth;

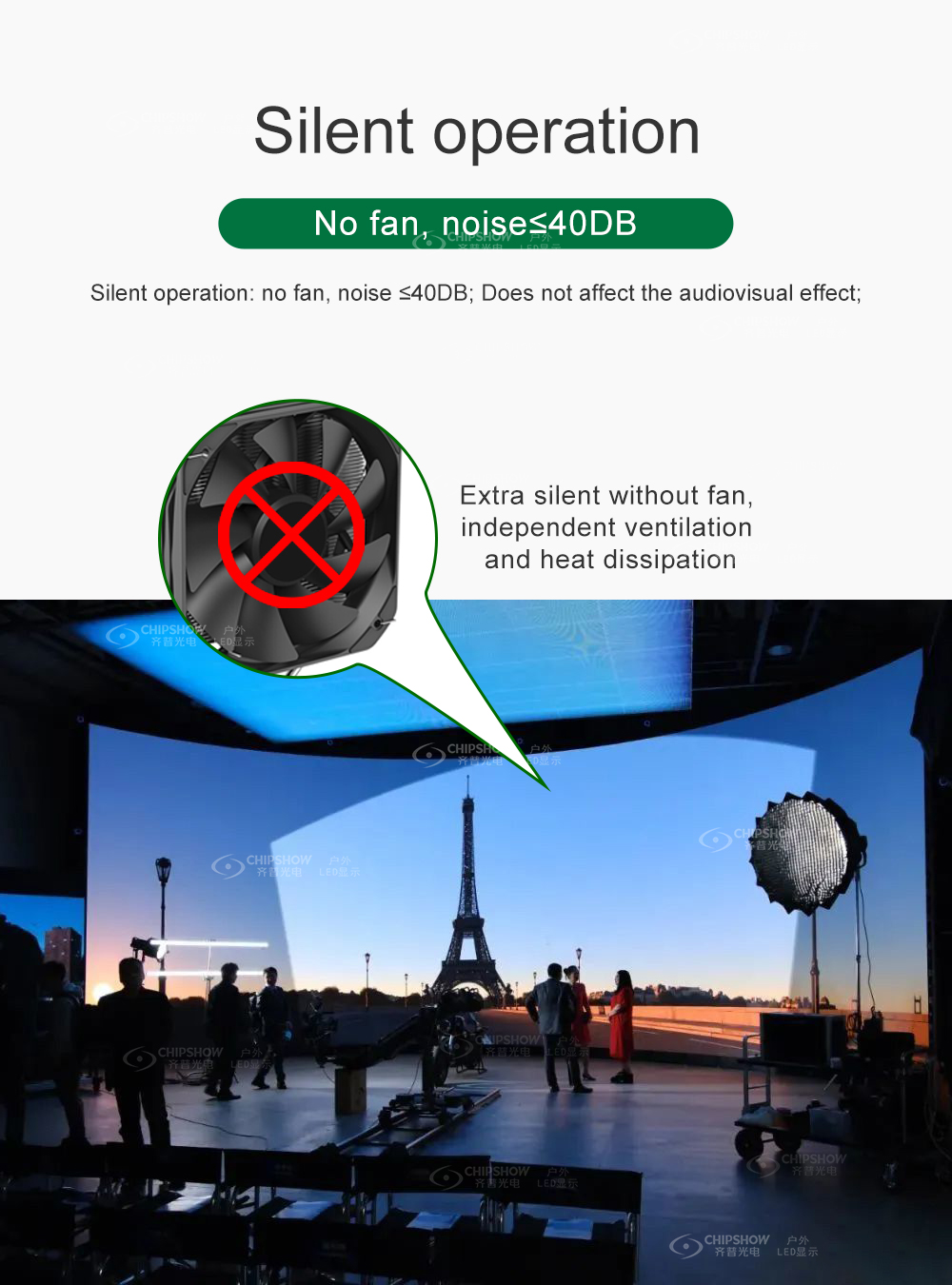

5 The cabinets adopt a no-fan design; the generated noise is always under 40DB when the screen is working; this will not impact the live visual and acoustic effects;
6 The C-Arc series presents HD visual effects – by the technology of white balance and point-by-point color calibration, the high uniformity and consistency of the images are guaranteed;
7 3 cabinets can be put together into a screen with a 90°arc; in other words, 12 cabinets can form into a circular-shaped screen;
8 As curved LED screens, the C-Arc series is widely used as stage screens for rental services, and mainly applied in trade shows and indoor stage shows; in addition, it can also be applied as indoor fixed screens;





  • Item No.:

    C-Arc
  • Product Details







curved led screen


curved led screen


curved led screen


curved led screen


curved led screen


curved led screen


curved led screen


curved led screen


curved led screen


curved led screen


curved led screen


curved led screen


curved led screen
