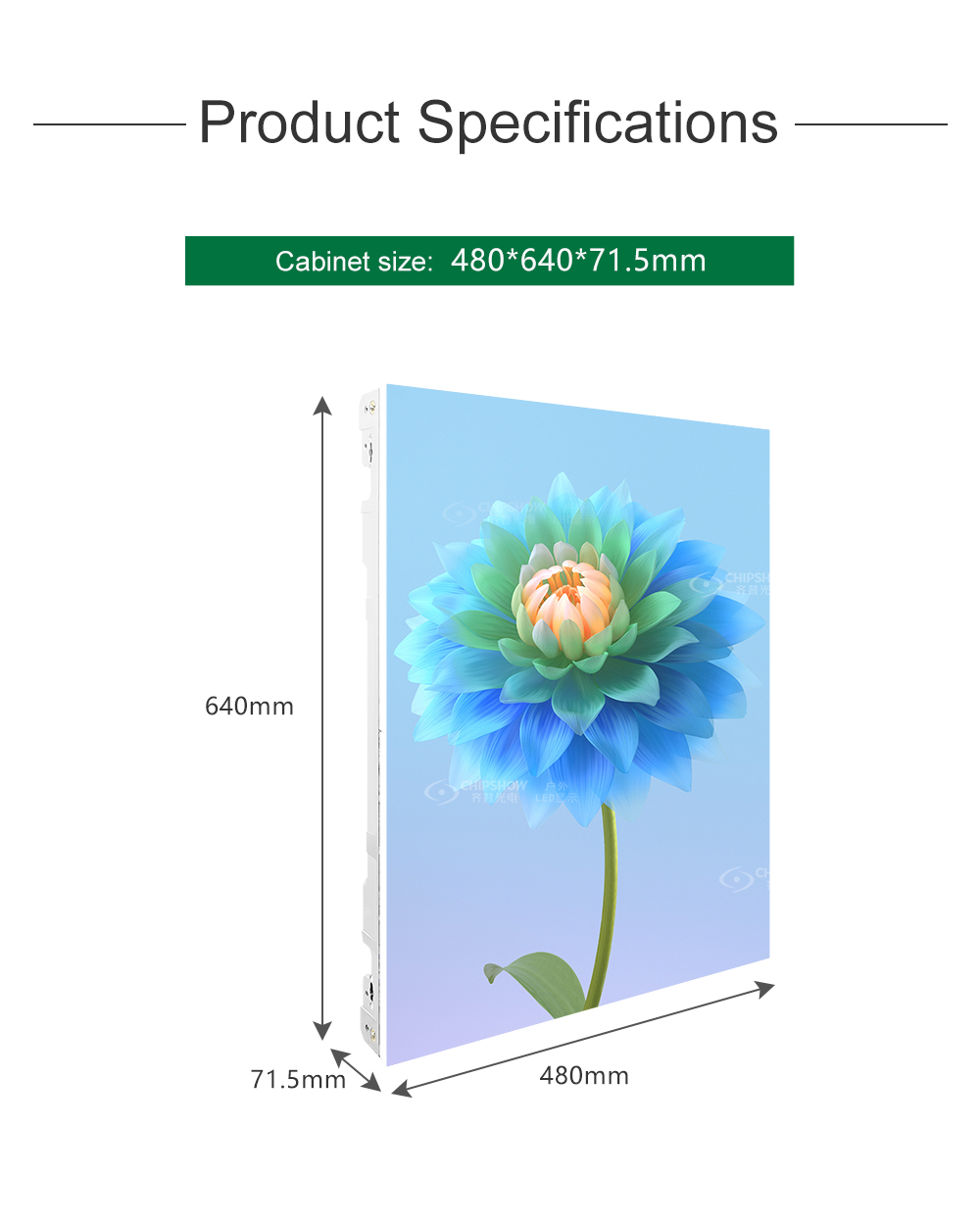

C-Slim outdoor advertising LED display – Small-sized cabinet (P4/5/6/8/10)

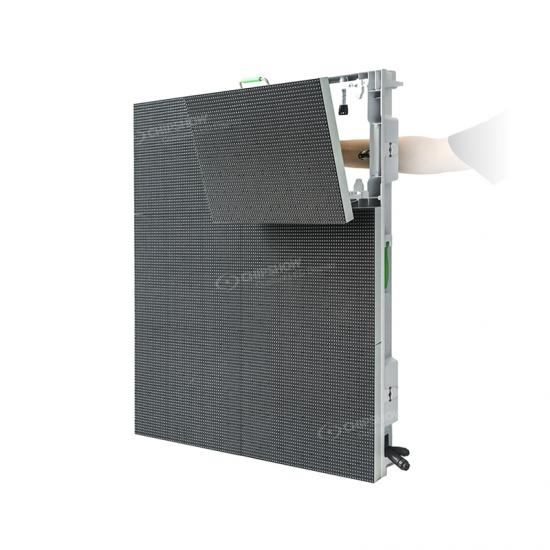

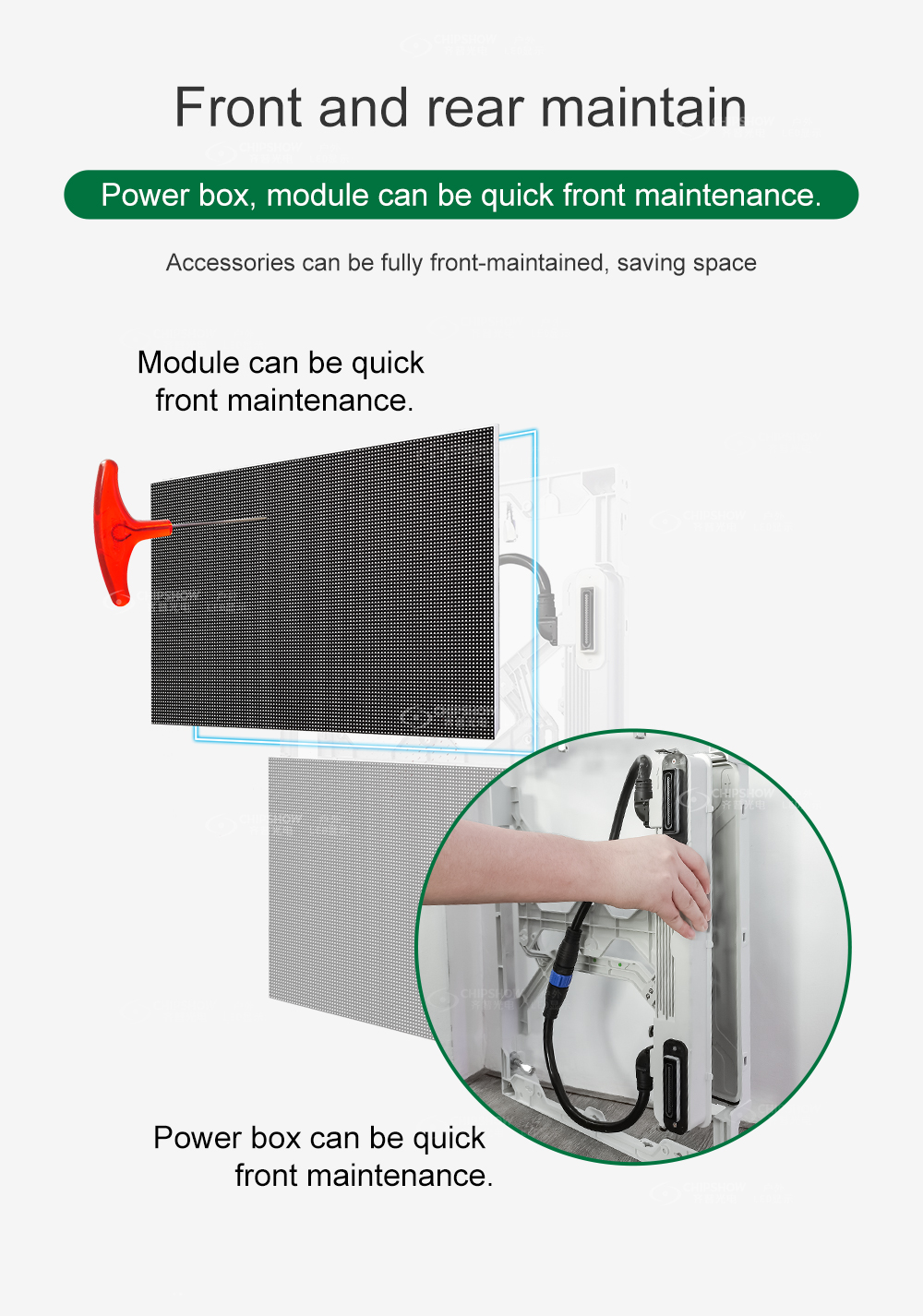

Product Features: 1 High precision: the cabinets adopt high-pressure die-casting aluminum, and the tolerance is less than 0.1mm; this ensures accurate assembly of cabinets, and the surface of a whole screen will have good flatness; 2 Ultra-thin and ultra-light: the cabinet is 15kg/㎡ lighter in weight and 20% thinner than an iron cabinet; this will help you greatly reduce the cost of transportation, and the cost of construction of a steel frame structure; 3 Multiple purposes: the C-Fit billboard screen can be used as a cost-effective fixed display solution, rental display solution that supports hanging installation, and display solution for stadium perimeter fences; 4 Front-service design: the LED modules support front service; therefore, when it comes to wall-mounted installation, you can easily assemble and disassemble the modules; 5 Easy upgrade and replacement: the cabinets can adapt to our P4~P20 modules; therefore, you do not have to spend extra cost in replacing cabinets if you consider upgrading the billboard screen; 6 High brightness: the brightness level reaches more than 5500 CD/㎡; even though under strong light, the billboard screen still can present clear images; 7 High protection grade: the protection grade of the C-Fit-Easy series reaches IP65; and this type of billboard screen is very suitable for large-format outdoor advertisements, such as outdoor LED walls, and LED screens with a ground stack system;

Outdoor transparent LED display solution Features 1 Light-weight: the weight is only 14.2kg/㎡，the screen just weights 15.3kgs（cabinet thickness without power box: 47.5mm, cabinet thickness with power box: 97mm）, It is quite easy to install and maintain, and there is no requirement for structural strengthening; 2 High transparency: the transparency of the screen is more than 48%; when mounted on a glass wall, the screen turns into a lifelike video wall; and you can still get a clear outward view through the transparent LED screen; 3 Adaptable to all weather conditions: the screen has high resistance at low/high temperatures and high humidity; it can work normally under different outdoor environments; 4 High ventilation: the grid-shaped LED modules ensure that wind can directly pass through gaps between grids; this will save you a significant cost that should have been used in the enhancement of the steel structure; 5 Front-And-Rear maintenance: you can install and maintain the screen from its front and back, so it has a very loose requirement of on-site installation conditions; 6 Large cabinet size: the screen adopts large-sized cabinets (cabinet size: 1.2meter * 0.9meter) to reduce the workload of installation;

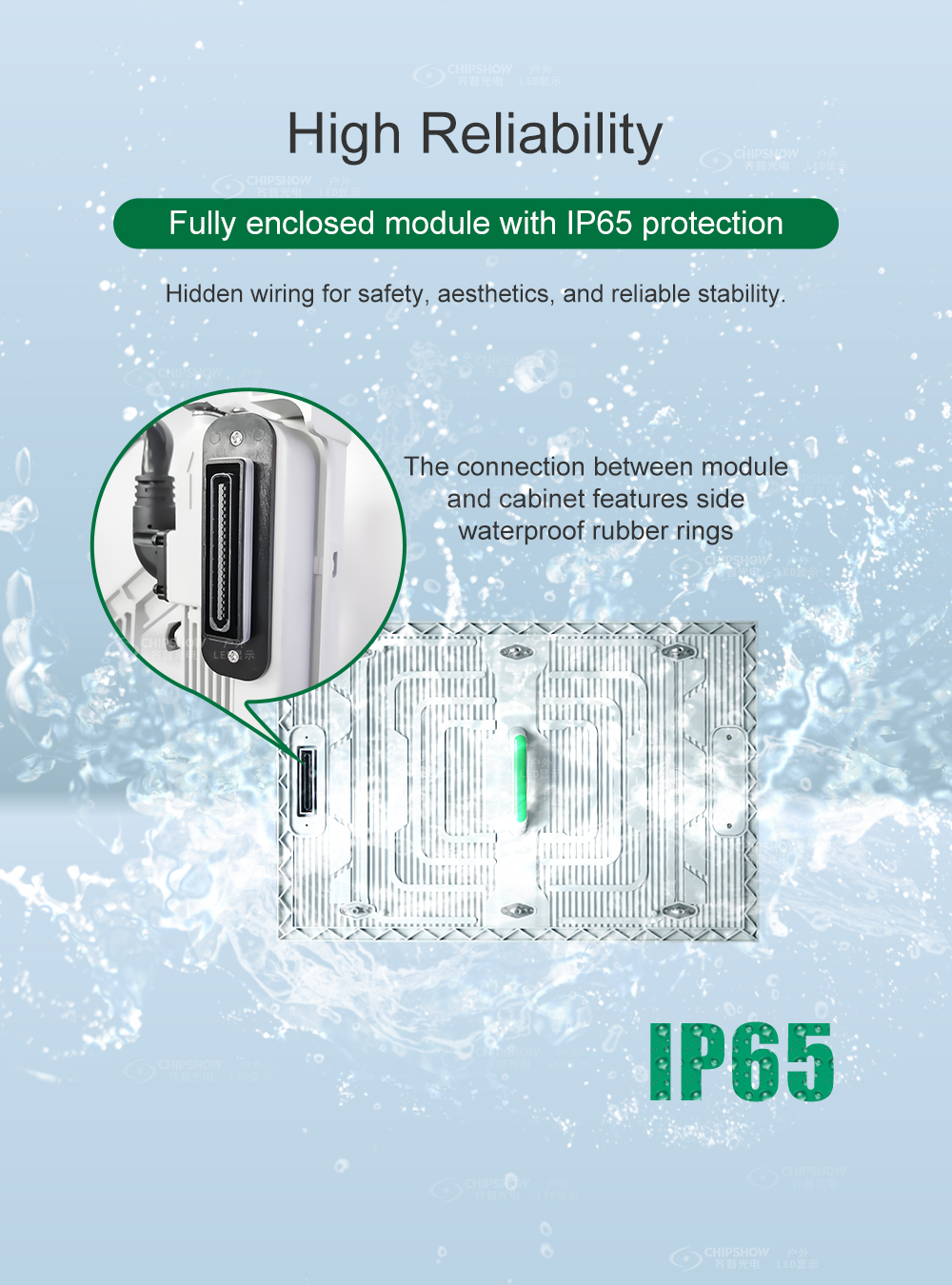

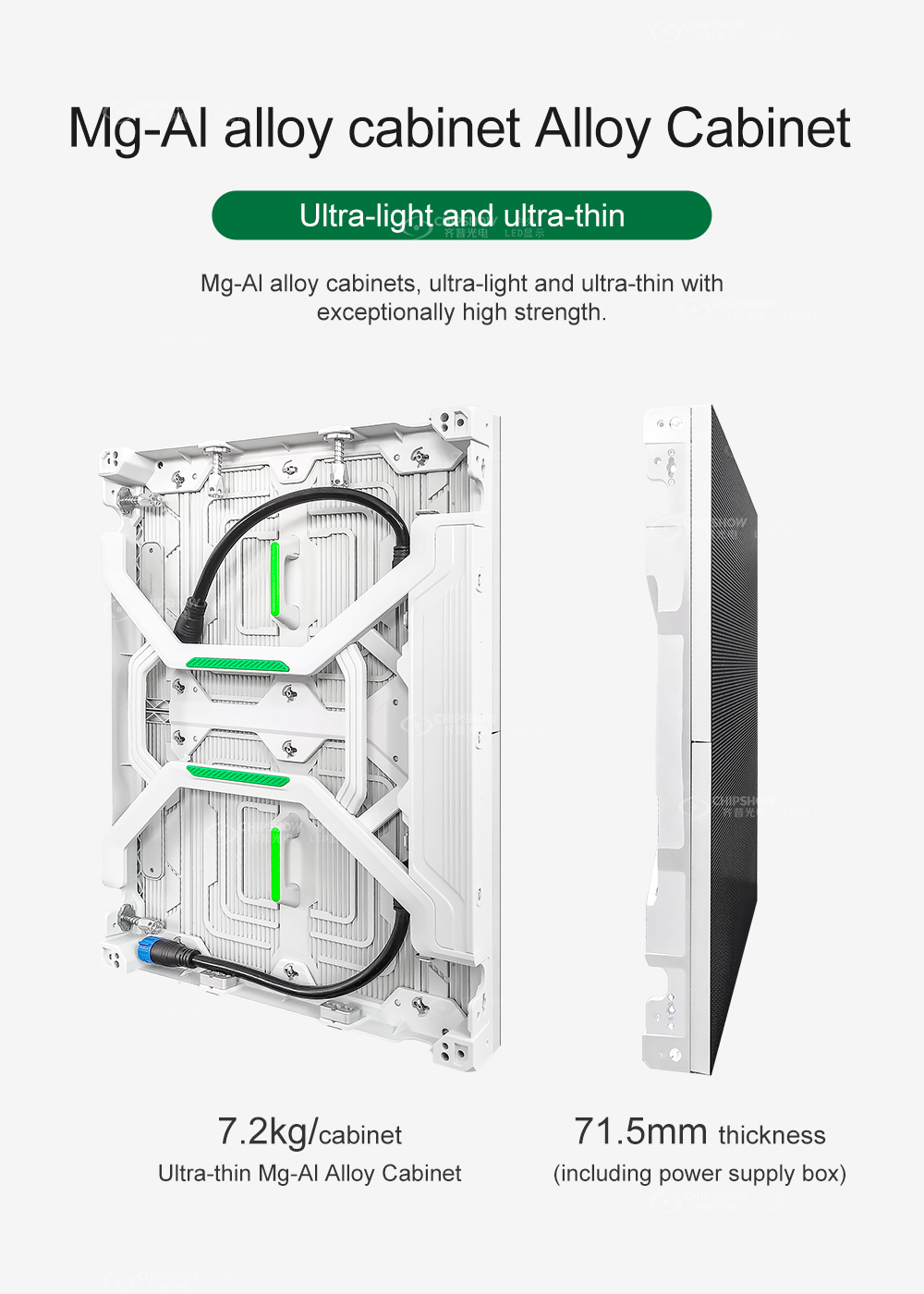

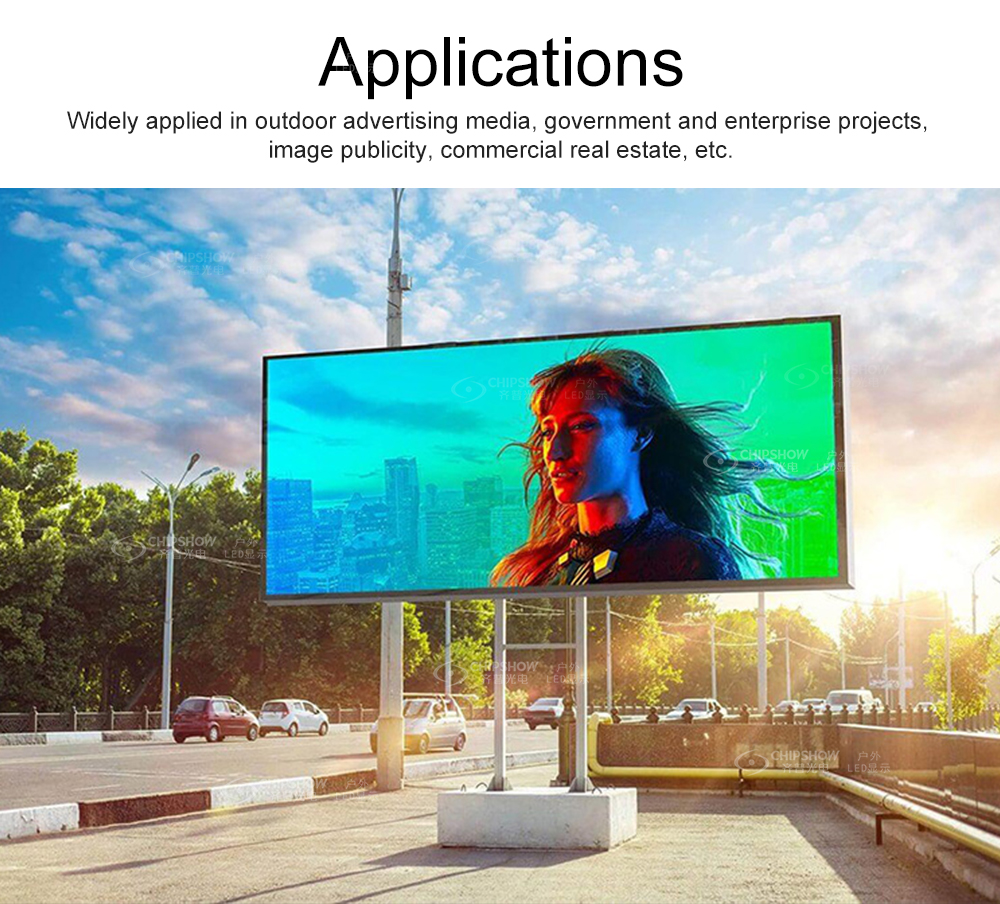

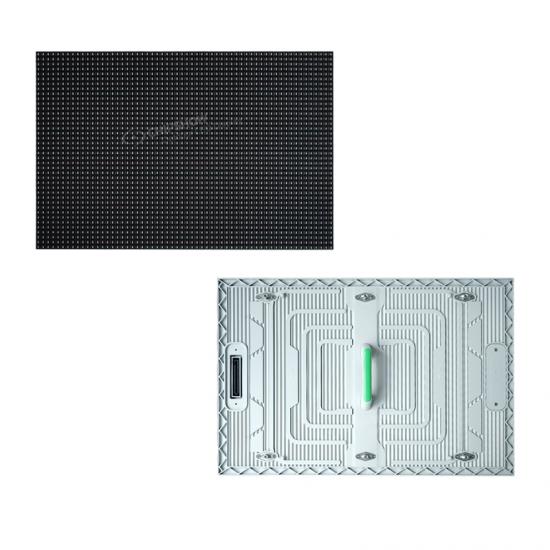

1. Low power consumption, low temperature rise, energy saving, average power consumption ≤180W/㎡; 2. Totally enclosed module; The disassembly and assembly of the module has no screws and can be quickly disassembled； 3. The connection between the module and the box adopts a side waterproof leather ring, which has high waterproof reliability； 4. All-cast aluminum box, ultra-light and thin; weight≤29kg, thickness≤105mm 5. High waterproof level, the whole box is IP65； 6. Application fields: outdoor advertising media, government and enterprise projects, cultural tourism, sports competitions, image promotion, commercial real estate, etc.

Pixel Pitch, Resolution rate, size: 5mm, 12*64Dots, 60*320 Pixel color, Pixel LEDL: 1R1G1B, SMD1921 Working voltage, Module Power: DC4.6V, ≤10W Driving IC, Driving way Standard configuration: ICND2153, 1/8 HUB: HUB75 Material, Cabinet Weight(kg/Cabinet): Sheet metal aluminum, 15kg/Cabinet Resolution rate, size, Module quantity: 120*192Dots, 600*960*95mm, 10X3 Density: 40000 Dots/㎡ White balance , Color temperature: 5000CD/㎡, 6000-8000K view angel, Non-Flatness, Module interval H/V：120°/120°, ＜0.2mm, ＜0.2mm Maximal power/㎡, Average power/㎡: ≤560W/㎡, ≤170W/㎡ Frame frequency, Refresh frequency, Gray grade: 60Hz, 3840Hz, 13bit Control system, System supports CHIPSHOW, Windows XP, WIN 7 Working temperature, Protection grade: ﹣20~50℃,  Front/Back：IP65/IP54

1 High brightness, energy saving: this C-Fit series adopts a 2.8V/3.8V low-voltage power supply that offers excellent energy efficiency, and meanwhile, the ICE LED beads deliver high brightness along with low power consumption; 2 Fine picture quality: it adopts the leading edge blanking circuit to eliminate ghost lines effectively; with the white balance under a low gray level, it achieves fine picture quality with no color deviation; 3 Ultra-thin: the cabinet uses die-casting magnesium alloy (weight of the empty cabinet: ＜15kg, weight of the finished cabinet: ＜35kg; thickness of the cabinet: 87mm); this makes it easy to transport and install the cabinets; 4 High-precision: every cabinet is made through the die-casting process and the CNC process, thus, every cabinet can be seamlessly spliced; 5 High protection level: the protection grade of the front side of the cabinet reaches IP65; the C-Fit series LED screens can withstand common outdoor conditions; 6 High-efficiency heat dissipation: the self-developed heat dissipation system ensures that heat in any corner of the cabinet can be dissipated quickly through doubled current and negative pressure; this ensures that the  LED screen can always run normally without problems of heat dissipation； 7 Fast installation:  every cabinet is connected with fast locks, and it just takes you 10 seconds to splice two cabinets; 8 Wide application: As a wall-mounted/hanging display screen, the C-Fit series can be widely used in a variety of outdoor public places, such as stadiums, shopping malls, docks, bus stations, schools, and roadsides;

Product characteristics： 1.Light and transparent: weight 15kg/㎡, easy to install and maintain, no support structure reinforcement, high efficiency; 2. Transparency: 35% permeability, so that the glass curtain into a realistic video wall, does not affect the outdoor view; 3. All-weather: low temperature, high temperature, humidity and other working conditions; 4. Low power consumption: using positive luminous LED lights, high conversion efficiency PFC power supply, large screen energy saving more than 50%; 5. Multi-purpose: curved box design, outer arc 10°, inner arc 10°; Can be fixed, can be leased; 6. No steel structure: Direct use of the original glass curtain wall steel structure, can reduce the weight of steel structure per square meter about 50kg;bout 50kg;

Features: 1 High reliability: C-Max COB series LED screens are water-proof protection, moisture-proof, and easy to clean; 2 High durability: the surface hardness of the COB LED screen reaches 4H; this significantly reduces the likelihood of dead LED lights caused by collision during movement and installation; 3 Good compatibility: the pixel pitches of the C-Max COB series is available in 1.25mm, 1.53mm, and 1.86mm; the cabinets can be compatible with our C-Max series (P1.2/1.3/1.5/1.6/1.8/2/2.5/3/3.3/4) modules; so when it comes to further solution upgrade for higher quality images, it can save you a considerable cost in cabinets; 4 Ultra light and thin: the cabinets are made of magnesium alloy which is characterized by light weight, thin thickness, and elegant appearance; 5 Wall-mounted installation: the system cards, power supply units, and modules support front service, which saves space greatly and is quite suitable for high-end commercial scenarios; 6 Compatible screen proportion: the aspect ratio supports 16:9 or 4:3, which is compatible with LCD aspect ratios; so it will be very convenient if you consider replacing your LCD video walls with our C-Max COB series LED video walls; 7 Wide applications: the C-Max COB series can be applied in various indoor scenarios, such as auditorium rooms, conference rooms, exhibition halls, CCTV centers, and traffic command centers;

Features: 1 The c-flex series is quite flexible; it can support a large range of bending angles; multiple c-flex flexible LED modules can be spliced together to form different-shaped display screens according to your project needs, such as curve-shaped, cylinder-shaped, and arc-shaped screens; 2 Due to the adoption of special material and advanced manufacturing techniques, the flexible LED modules are ultra-thin, and ultra-light in weight; this makes it easy for you to create a variety of display effects (such as rolling, bending, and swinging); 3 The flexible LED modules are installed together by strong magnetic adsorption; this installation method is not only convenient but also safe and stable; 4 By upgrading the driver of the LED chip, the refresh rate of the flexible screen can reach more than 3000HZ, displaying pictures without delaying, ghosting, and smearing; 5 The c-flex series has wide application; it can be used as a creative display solution in various scenes (e.g. lobby, stage, bus/train station, theater, supermarket, and theme park);
