C-Special magic cube indoor LED display p2.5 Video Panel

C-Special magic cube indoor LED display p2.5 Video Panel

characteristic:

1.Strong visual impact: 360 degree viewing angle,pay videos in multiple directions to attract audiences and make the advertisement more visually impactful;
2.Simple play: Support one-click upload and playback via mobile APP, and realize remote seamless switching of advertising contents, simple and convenient;
3.Assembly-free:No assembly is required, simple installation, and ready to use;
4.Colorful: The cube LED display has a wide color gamut, supports thousands of colors, and perfectly reproduces the advertising;
5.Wide use: It is suitable for museums, science and technology exhibition halls, gymnasiums, waiting halls, star hotels, shopping malls, bars and other places.

  • Item No.:

    C-Special
  • Product Details

Led magic cube screen


This is an LED display with a similar shape to the magic cube, so it is called the magic cube display. In many cases, LED display screen needs to show sufficient sense of technology and vision. There is no doubt that the novel shape of magic cube display screen can meet this. Therefore, this led display is so beautiful and practical.


led display


No installation, buy and use


The main body of the LED display screen has been installed. In fact, it can be used after you buy it. We only need to fix it in the right place, or use a bracket to fix the display screen, which will show the best effect, which saves a lot of installation energy compared with other LED displays.


led screen


Mobile control


Without complex system, users can realize the remote control of LED screen with mobile phone, and can upload and play the content you want anytime and anywhere, which is simple and convenient.


Advertising signboard


Strong visual impact


This led screen has a 360 degree viewing angle and can play videos in multiple directions, giving the audience a great visual impact. And the LED screen has a wide color gamut, and the content played is bright and moving.


Indoor advertising screen

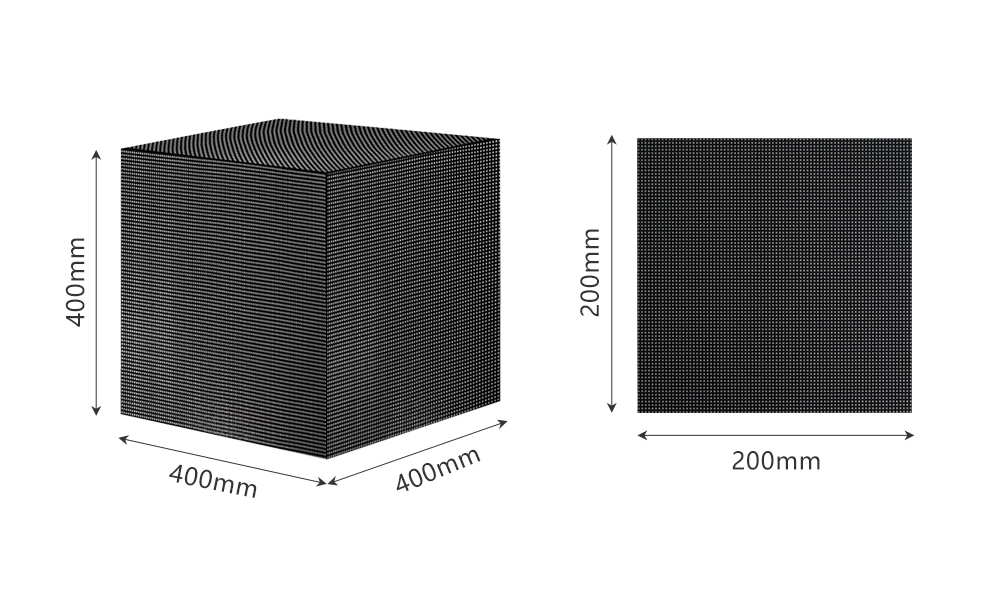

size

LED full color screen

Installation scenario


Led magic cube screen


Table parameters


Item
Specification
Pixel Pitch、Resolution rate、size
2.5mm,80*80dots,200mm*200mm

                         Pixel color Pixel LED

1R1G1B 、SMD2020
Working voltage、Module Power

                                                 5V15w

Driving IC、Driving way
-、1/40
HUB
-
Material、Cabinet Weight(KG/Cabinet)
sheet metal 、16kg/cabinet
Resolution rate、size、Module quantity
160*160Dots/side、400*400*400mm、2*2*5/side
Density
160000Dots/㎡
White balance 、Color temperature
600cd/m²、  6000~8000K
View angel、Non-Flatness、Module interval
H/V:140°/140°、≤0.5mm、≤0.5mm
Maximal power/㎡、Average power/㎡
240W/set、75W/set
Frame frequency、Refresh frequency、Gray
50Hz、3840Hz、13bit
Control system、System supports
Nova,ColorLight,,CHIPSHOW,Windows XP/Win7/10
Working temperature、Protection grade
-20~+60℃、IP40
