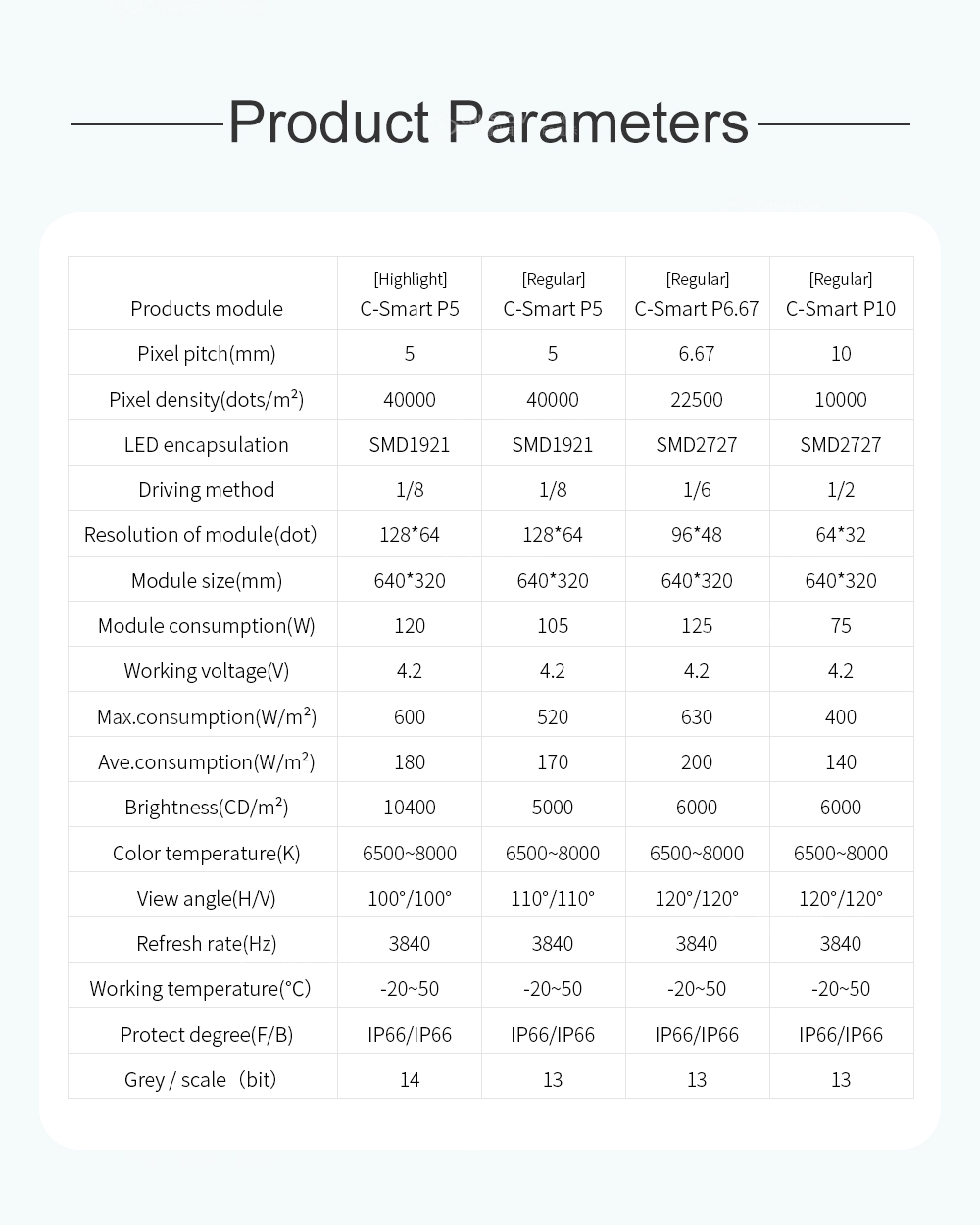

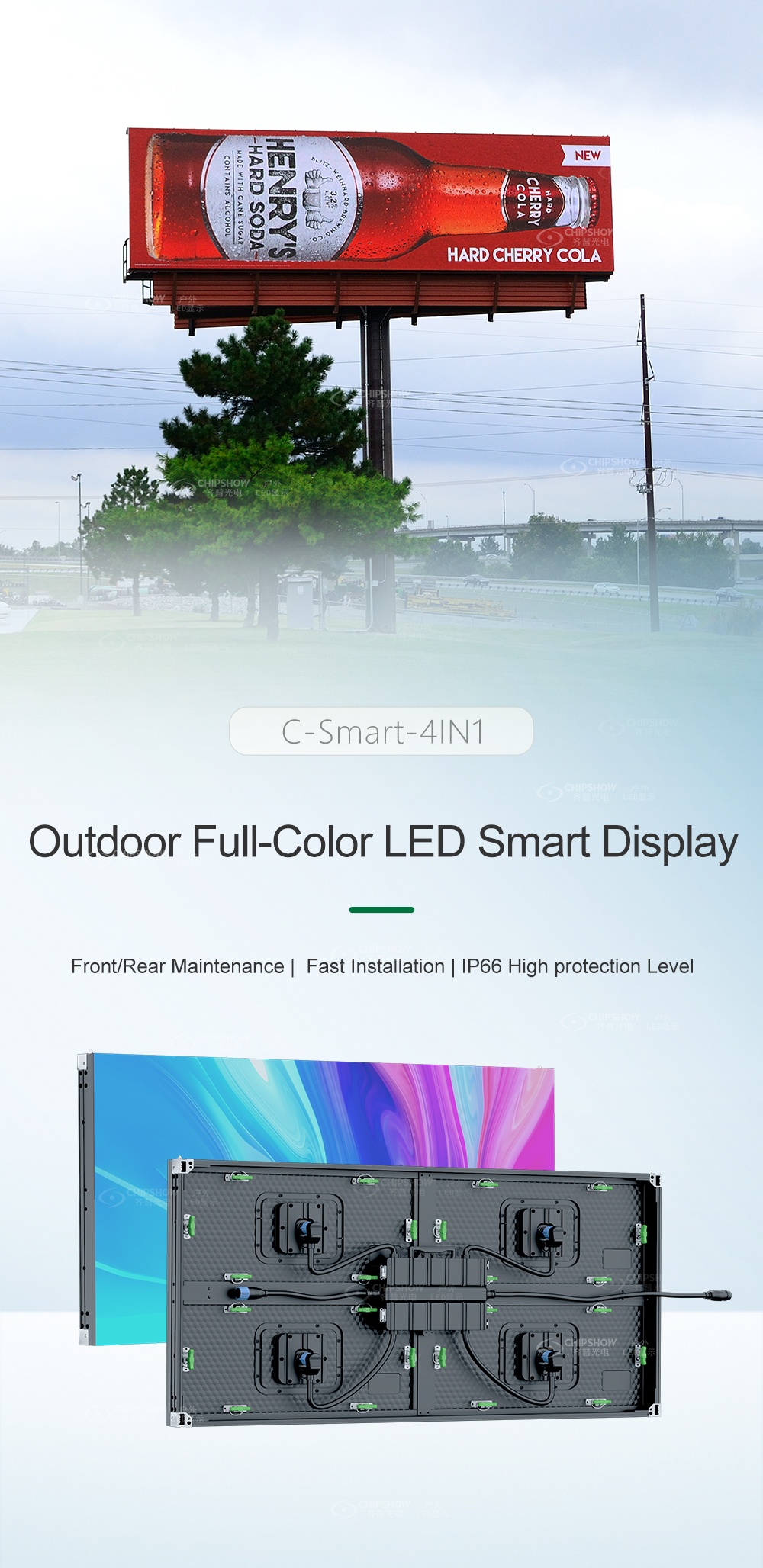

C-Smart 4-in-1 outdoor video sign – Easy to install (P5/6.67/10)

C-Smart is a simple integrated front and rear serviceable LED screen. No cabinet design, only need a simple frame to hold the modules, which can reduce a big cost of installation. Advantages: 1.      Integration of the module and cabinet, replacing the traditional cabinet , and cost-saving. 2.      Ultra-thin design, wall-mounted installation, easier maintenance front and rear. 3.      Unique mask design, dark color, high contrast. 4.      Module size 640mm*320mm, larger size, better flatness. 5.      Constant current drive, 1/10 scan. 6.      High brightness up to 8500nit/m2 optional, and has the advantages of a good light distribution curve and good angle consistency. 7.      IP66 waterproof grade of the module. 8. Wide applications: it can be used as LED signs for outdoor commercial outlets (e.g., stores, gas stations, vehicle tolls, and gyms) and public organizations (e.g., churches, communities, schools);

C-Easy P5,P6.67,P8,P10,P16 is a front and rear serviceable, energy-saving, outdoor waterproof replaceable LED modules. Advantages: 1. Energy-saving≥30%. 2. Brightness≤8500Nits 3. High accuracy and high flatness. 4. Replaceable modules, fast and easy replace. 5. Front and rear service. 6. IP65 protection grade 7. 320*320mm module size, you can assemble it into different size screens.

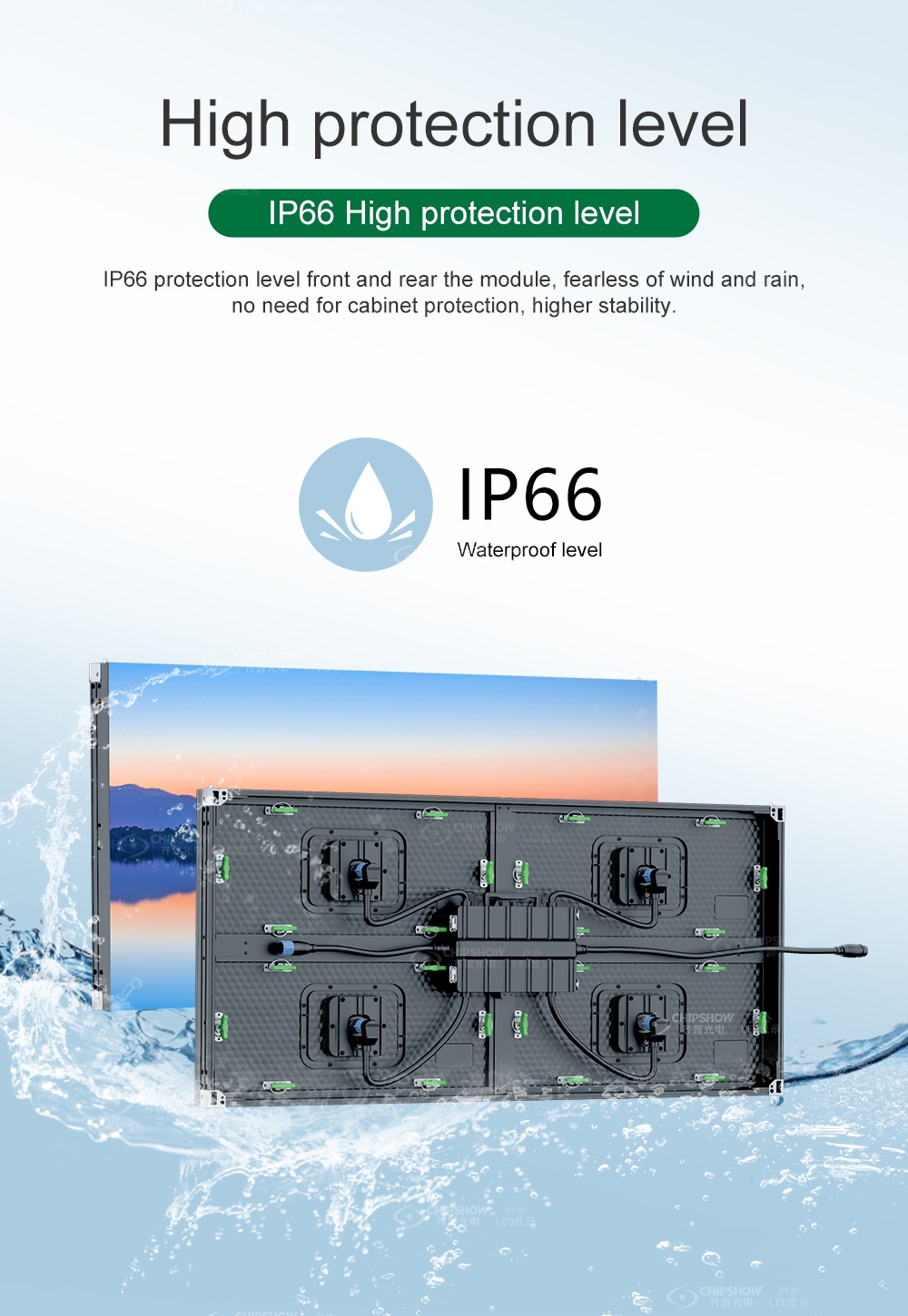

1 Low structural cost: the modules just require a simple bracket to form a big LED screen; the module’s weight is lower than 29 kg/㎡; this can help you save transportation costs and load-bearing structures; 2 Wall-mountable installation: the C-Smart-4IN1 smart LED display screens are usually mounted on the wall without being obtrusive; all the components including the LED modules, controller system cards, and power supply units support front service; 3 Low cost of maintenance: the module (size: 640*32 mm) is divided into 4 independent modules with the size of 320*160 mm, which lowers the cost of maintenance significantly; 4 Safe and tidy: every module has a 2-in-1 signal and power cable with the auto-locking function; the connection between cables is very convenient, and the wiring is very tidy; 5 Reliability: both the front and rear of the modules reach the protection grade IP66; this ensures high stability of performance; 6 Low noise: no-fan design ensures the working noise is always under 25Db; 7 Wide Applications: the C-Smart-4IN1 series can be assembled into various sizes of LED video signs for multiple purposes, such as wall-mounted signs, hanging signs, and standing signs;

Features: 1 Waterproof and dampproof: the bottom shell, mask, signal cable, and power cable are all equipped with dampproof and waterproof materials, and the cabinet is made of low moisture-absorption materials, the waterproof grade of the front and back of the cabinet reaches IP40; 2 Wear-resistant and anti-slip: the mask of the floor tile screen adopts high-performance PC materials that feature high wear-resistance, high flexibility, and good high-and-low temperature resistance; in addition, the mask also has excellent anti-slip performance and good load-bearing capacity; 3 Ultra-silent heat dissipation: the power box uses a special heat dissipation device to achieve ultra-silent heat dissipation; 4 Ultra high capacity of load bearing: according to experimental results, the ultimate load-bearing capacity of each component of the screen can reach up to 2 tons/㎡.

Professional advertising display screen for indoor transparent glass wall: 1: Ultra-light and ultra-thin: the weight of the aluminum cabinet is less than 5kg/m², and the cabinet has good resistance to deformation and extension; every cabinet is highly smooth and can be seamlessly spliced; this makes it easy for the transparent mesh LED screen to be mounted on a glass wall; 2: High transparency: the transparency rate reaches more than 40%; when the screen is displaying, the images look as if they are appearing in the air; 3: Customizable background color: the background color of the display screen can be customized according to specific requirements (for example, if the color of the wall is black, the background color of the screen can be set to black); during daytime, the transparent mesh screen does not change the building’s original style when it does not work; 4: Easy to install and maintain: the transparent mesh screen can be installed and disassembled from the front, and all the connectors adopt professional-grade aviation plugs; the efficiency of installation and maintenance is high; meanwhile, the installation and maintenance cost is low; 5: No flicker, no ghosting: the light and shadow are smooth and natural; the mesh screen performs with a high frame rate and 16-bit grayscale lossless output; 6: Silent and energy-saving: it adopts a quiet no-fan design and autonomous ventilation system to dissipate heat effectively; compared with common transparent mesh screens in the market, the Chipshow C-Mesh series can save nearly 30% of the cost that should have been used in heat dissipation; 7: The C-Mesh transparent mesh screens are widely used in a variety of indoor commercial premises, such as shopping malls, hotels, tourist spots, fences around commercial properties, exhibition halls, retail stores, and glass-covered bridges;

Quick Details • Cabinet size: 1280*960mm/pcs • Brightness: 6000~6500nits • Front and rear maintenance Advantages • New stadium base design，The angle between the screen and the ground can be adjusted from 30° to 90° to ensure the viewing angle of the audience. • Soft face shield protection, athletes and LED screens are perfectly protected. • The cabinet is made of cast aluminum, which is light and thin, and has good heat dissipation, which slows down the aging of the power module. • The module can be maintained quickly and the operation is simple and convenient. • High protection, protection level ≥IP65. • Strong compatibility, both indoor and outdoor courts can be hoisted and stacked to meet the needs of customers in multiple occasions. • Energy-saving, about 1/3 energy-saving than the traditional screen, greatly reducing the operating cost of the display. • Professional stadium playback software, diversified input of camera video sources, support for DP, HDMD, VGA, SDL, DVD, etc.

Simplicity and durable, indoor commercial preferred. • 640x480mm cabinet size, it can be assembled with a variety of 4:3 and 16:9 LED large screens, directly mounted on the wall, saving space and labor. • The same proportion of video source as LCD, directly replacing the original LCD. • Widely used in auditorium, conference room, banquet hall, security monitoring, command system. Module features: • Easy: Modular design, easy assembly and maintenance. • Module size: 320*160mm, Smooth surface, module gap small, high precision Cabinet features: • Light: Cabinet size: 640*480*72.5mm, Weight: 7.5kg/pc. • Thin: Die-cast aluminum design, high precision, thickness only 72.5mm. • Fast: Fast locks, Easy to assemble and disassemble. • Compatibility: Available pixel pitch for P2.5, P3, P3.3, P3.91, P4, P5, P6. • Low: Excellent cooling design, no fans or air-conditioners needed. noiseless, low power consumption, cost-effective.

Features: 1 Continuing transfer from breaking point: the C-Film series has broken the conventional design pattern of transparent LED film - even though a single point of failure is hit during signal transfer, it does not affectthe display of other parts (the backup date automatically starts, seamlessly switching without impacting the display effects of other points); in other words, the C-Film series has the breakpoint continuation function which provides a more stable performance; 2 High transparency: the transparency of the LED film is more than 78%, it does not affect the daylighting of glasses; 3 High grayscale: the RGB channel adopts the linear regulation (32-level current level) to display the 16-bit grayscale image under any current; so you do not have to worry about the requirement of current input whether in indoor circumstances or semi-outdoor circumstances; 4 Simple installation: no requirement for the support of steel structure, you just need to stick the film onto glasses, and then it can start to display after the power signal is connected; 5 Light-weight and thin: the film is as thin as 2.5mm, and the cabinet is as light as 5KG; 6 Flame retardant and anti-ultraviolet: the film’s flame retardant grade reaches V-1, and the film can resist ultraviolet for more than 8 years without yellowing; 7 Wide application: the LED film display is very common in indoor commercial outlets, and is widely used for advertising on transparent media, such as glass curtain walls, acrylic walls, glass guardrails…
