C-Neat P2.6,2.97,3.91,4.81 Stage Rental LED Screen

C-Neat P2.6,2.97,3.91,4.81 Stage Rental LED Screen

C-Lite-D is high-end rental LED screen for varieties of activities, its control box can be clicked out by locks and protection pad prevent lamps at corners against damage, it'll bring you better experience on installation and disassembling.

Features

1. Available pitch: P2.6,P2.97,P3.91,P4.81 indoor/outdoor

2. Cabinet size: 500*500mm/500*1000mm

3. Brightness: 800~1000nit(Indoor), 4500~6500nit(outdoor).

4. Integrated Power supply and receiving card. Plug in and out within 1 second.

5. Fast locks from up and down, left and right, 2 seconds to connect cabinets.

6. Die-casting aluminum, high-strength, high-tenacity, high-precision, ultra-high flatness, whole screen flatness error ≤ 0.01 mm.

7. Anti-collision design at the bottom of the cabinet, positioning beads on the side for precise alignment.

8. Good heat dissipation design, no need fan and air-conditioner, less noise during working.

9. High protection, weather and salt spray corrosion resistance.

10. A variety of installation methods, can be lifting, fixed, stacking.

  • Item No.:

    C-Neat
  • Product Details

Light & Thin

500*500mm, thickness only for 86cm, 7.5~8.5kg/cabinet; one person can carry, saving time and effort

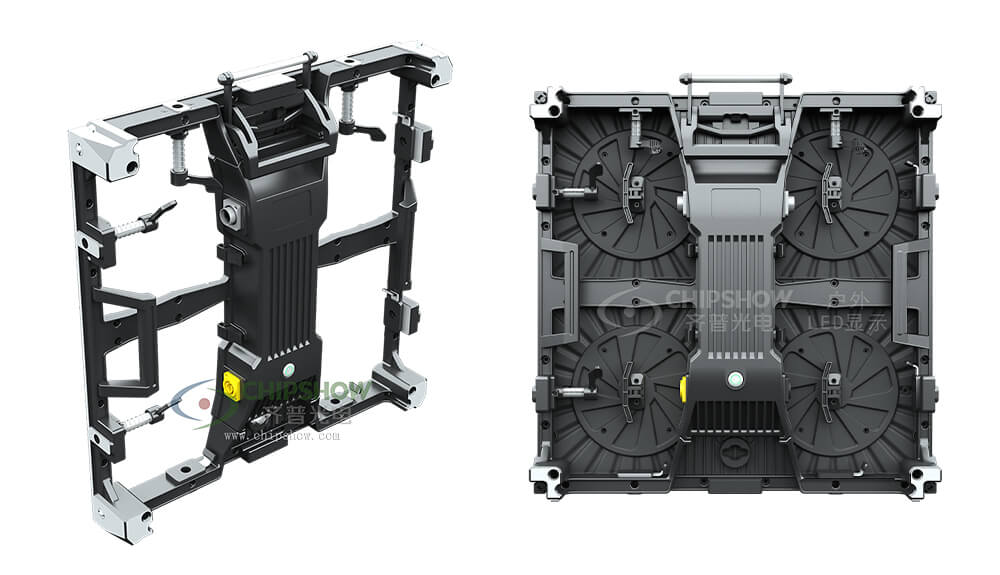

Die-casting aluminum cabinet

High-strength, high-tenacity, high-precision

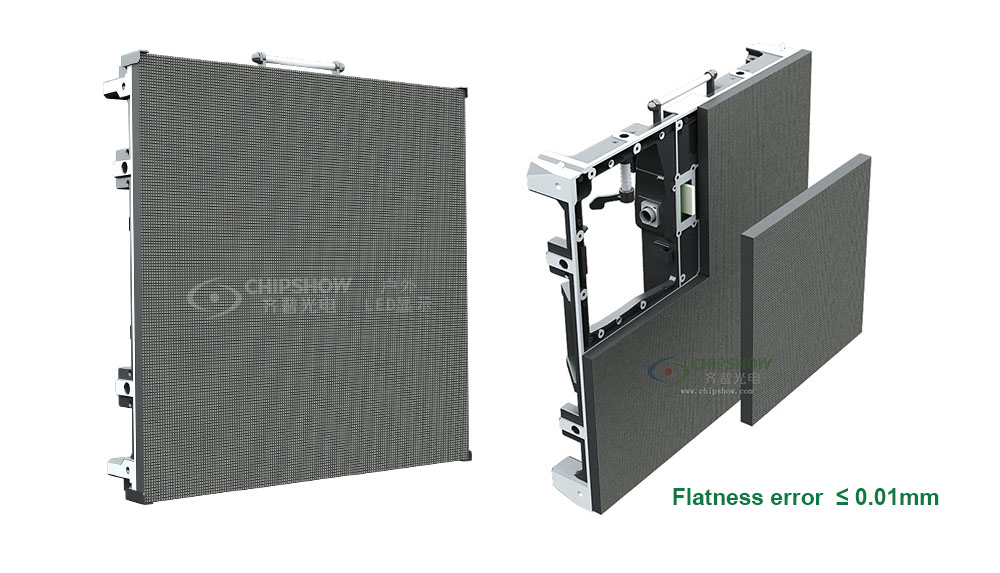

High flatness

Ultra-high flatness, whole screen flatness error ≤ 0.01 mm



Fast installation

Cabinet UDLR use fast lock, two seconds locked adjacent cabinets, air plug wiring connect more fast.


Magnetic front maintenance

Fast replacement. Magnetic modular design for indoor cabinet



Installation method

Stacking brackets, hanging bar for options



Specifications


Product Serises

C-Lite-D

Pixel Pitch

2.6, 2.97, 3.91, 4.81mm

Cabinet size

500*500/500*1000mm

Brightness (indoor)

800~1000nit

Brightness (outdoor)
4000~5000nit

Color temperature

6500~8500K

Refresh frequency

3840HZ

Working temperature

-20~50℃

Protection grade

IP65/IP54(outdoor)


Product video
