C-Tra-VMS solar HD full-color car screen P6.67 ultra-bright outdoor LED display

C-Tra-VMS solar HD full-color car screen P6.67 ultra-bright outdoor LED display

1.  High brightness and energy saving: 3.2/4.2V low-voltage power supply, 4535 3in1 high brightness Leds, brightness ≥ 10000CD/㎡; The brightness can be adjusted automatically;

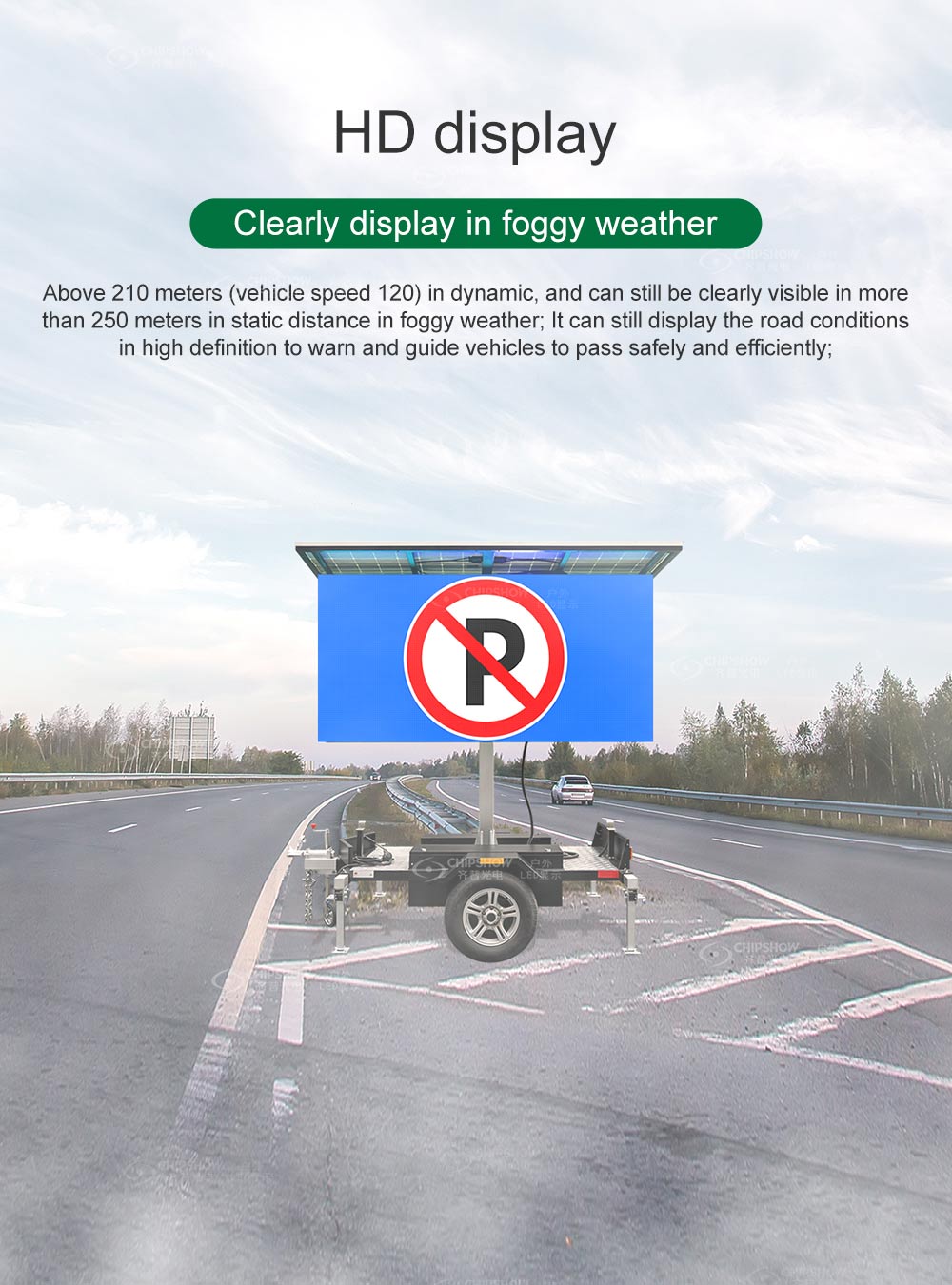

2.  HD display: Above 210 meters (vehicle speed 120) in dynamic, and can still be clearly visible in more than 250 meters in static distance in foggy weather; It can still display the road conditions in high definition to warn and guide vehicles to pass safely and efficiently;

3.  Efficient heat dissipation: Large flow negative pressure heat dissipation in the cabinet, efficient heat discharge, and more stable operation of LED display;

4.  Solar charging+9.6KWH large capacity battery, which can continuously power on the LED display 365 days a year;

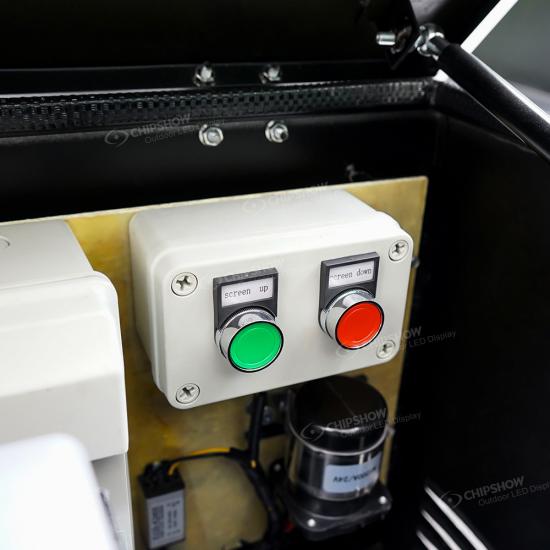

5.  Hydraulic lifting+ rotating structure; The whole screen hovers at 1M height and 360 ° to play information at any height and angle.

6.  Double safety towing structure, 10mm safety chain, 80 level towing hook ring with safe and convenient dragging.

7.  7-core signal connector can control EMARK certified trailer indicator, brake light, turn light and side light in the whole vehicle.

8.  Support GPS positioning; Support U disk/mobile phone/tablet/computer/4G/WiFi playback; Support video and picture playback such as MP4/AVI/jpg/;

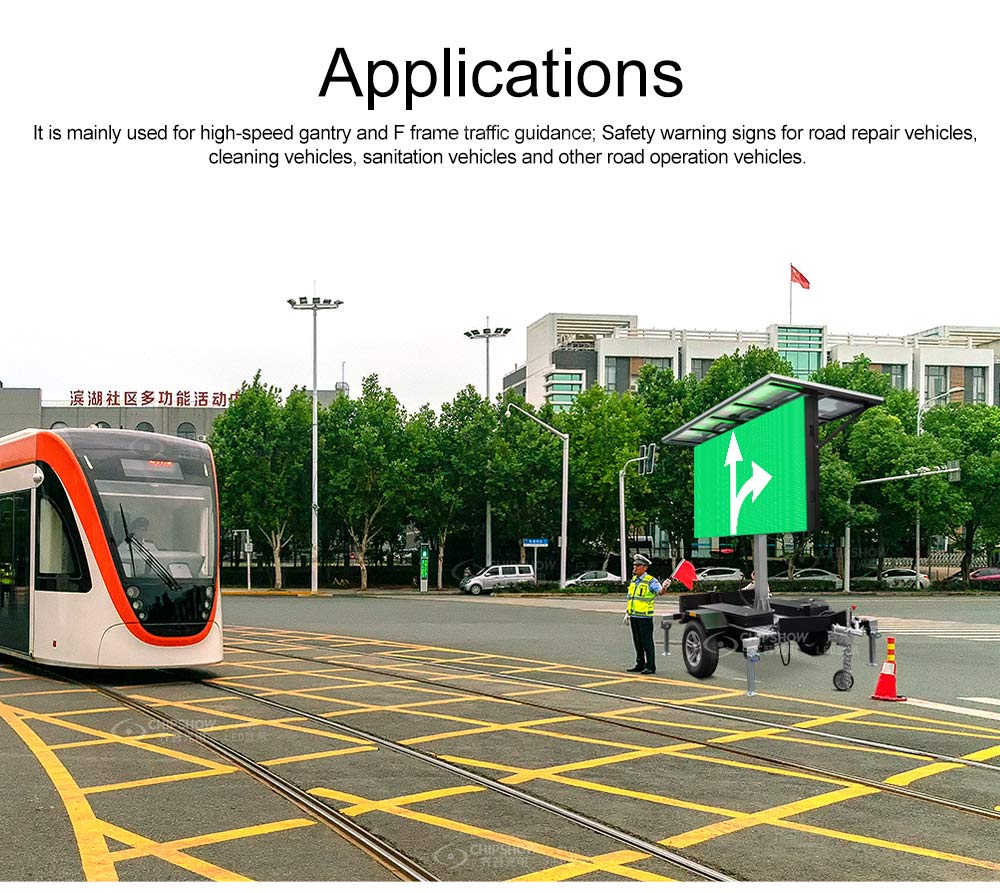

9.  It is mainly used for high-speed gantry and F frame traffic guidance; Safety warning signs for road repair vehicles, cleaning vehicles, sanitation vehicles and other road operation vehicles.

  • Item No.:

    C-Tra-VMS
  • Product Details





Item
Specification Parameter
Pixel Pitch、Resolution rate、size
6.67mm、48*24、320*160mm

Pixel color Pixel LED


1R1G1B、HZ-4535RGB4MEX-M00
Working voltage、Module Power

DC 4.23.8V5W


Driving IC、Driving way
ICN2069、1/8
HUB
HUB75
Material、Cabinet Weight(kg/Cabinet)
Sheet metal cabinet、930kg
Resolution rate、size、Module quantity
384*192Dots、2560*1280mm、2*2
Density
22478 Dots/㎡
White balance 、Color temperature
≥10000 CD/㎡、6000-8000K
view angel、Non-Flatness、Module interval
H/V:120°/120°、<0.2mm、<0.2mm
Maximal power/㎡、Average power/㎡
<350W/㎡、<120W/㎡
Frame frequency、Refresh frequency、Gray grade
60Hz、3840Hz、13bit
Control system、System supports
CHIPSHOW,Windows XP,WIN 7
Working temperature、Protection grade
﹣20~50℃、Front/Back:IP65/IP54
Trailer size、Torsion shaft
2700×1800×2280mm、1 ton 5-114.3/1P
Supporting leg
440~700 load 1.5 tons/4P
Max speed、Breaking
100Km/h、Hand brake
Tire
185R14C 5-114.3/2P
Connector
50mm ball head, 4 hole Australian impact connector, wire brake
Axle
Single axle/Torsional axle
RIM
SIZE:14*5.5、PCD:5*114.3、CB:84、ET:0
The battery Dimension
181mm*192mm*356mm
Battery specification
2V400AH*12Pcs/9.6KWH
Multimedia control system Player
Nova TB50-4G
receiving card、Luminance sensor
NOVA MRV416、NOVA NS060
Hydraulic lifting、Manual rotation
1000mm、330 degrees
wind resistance
Against level 8 wind
Trailer power
Battery/solar panel/generator
Kinds of play
Usb flash disk play ,remote play
Packing、Container
Nude packing with fixed in container、20GP
Dimension
1480mm*670mm*4PCS
Power
200W*4=800W
Solar controller
(Tracer3210AN/Tracer4210AN)
input voltage、Output voltage
9-36V、24V
Rated charging power
780W/24V
Maximum power of photovoltaic array
1170W/24V
