C-Traffic P16 Traffic lens LED display High brightness large screen

C-Traffic P16 Traffic lens LED display High brightness large screen

Features:

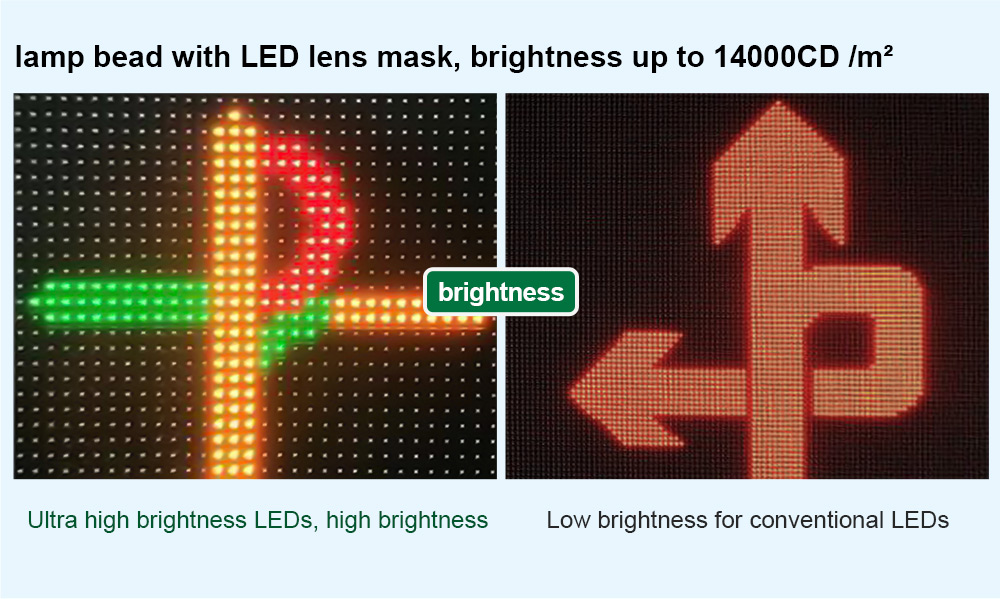

1.High brightness - the module has a special LED lens mask,and the brightness can reach 14000CD/㎡ ;

2.Energy saving - energy and power saving,65% energy saving than conventional screens;
3.Strong penetrating- above 210 meters (vehicle speed 120) in dynamic, and can still be clearly visible in more than 250 meters in static distance or foggy weather , ensuring high-speed safety;

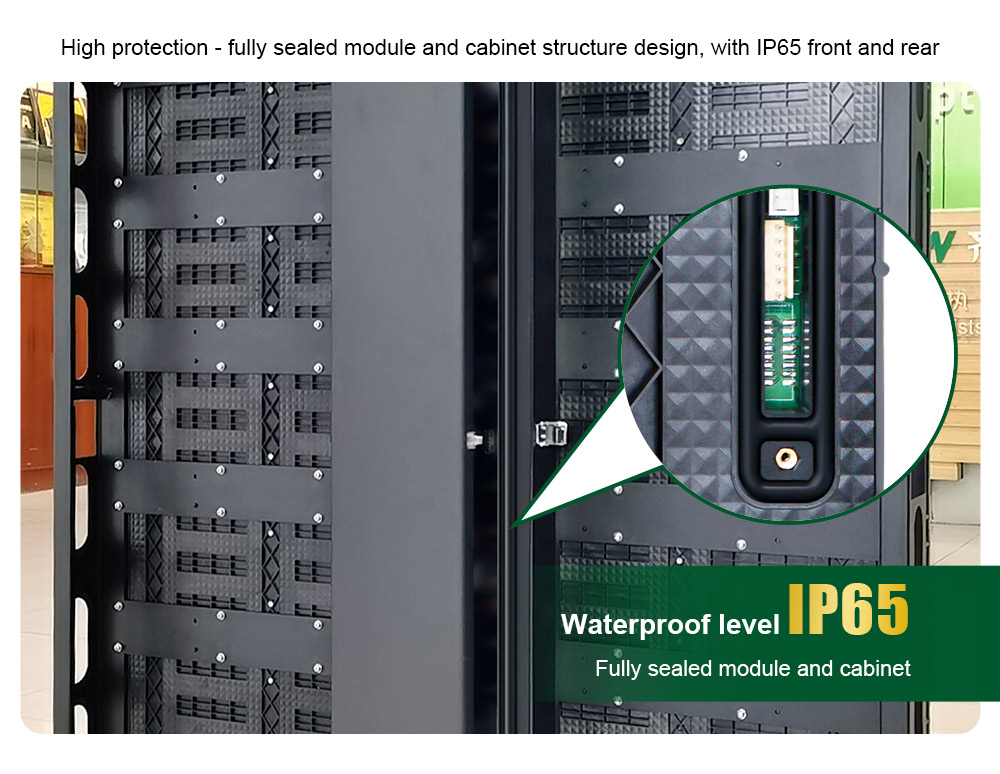

4.High protection - fully enclosed module and cabinet structure design, with IP65 front and rear;
5.Quick maintenance - quick assemble and disassemble design, saving half of the time compared with conventional screen;

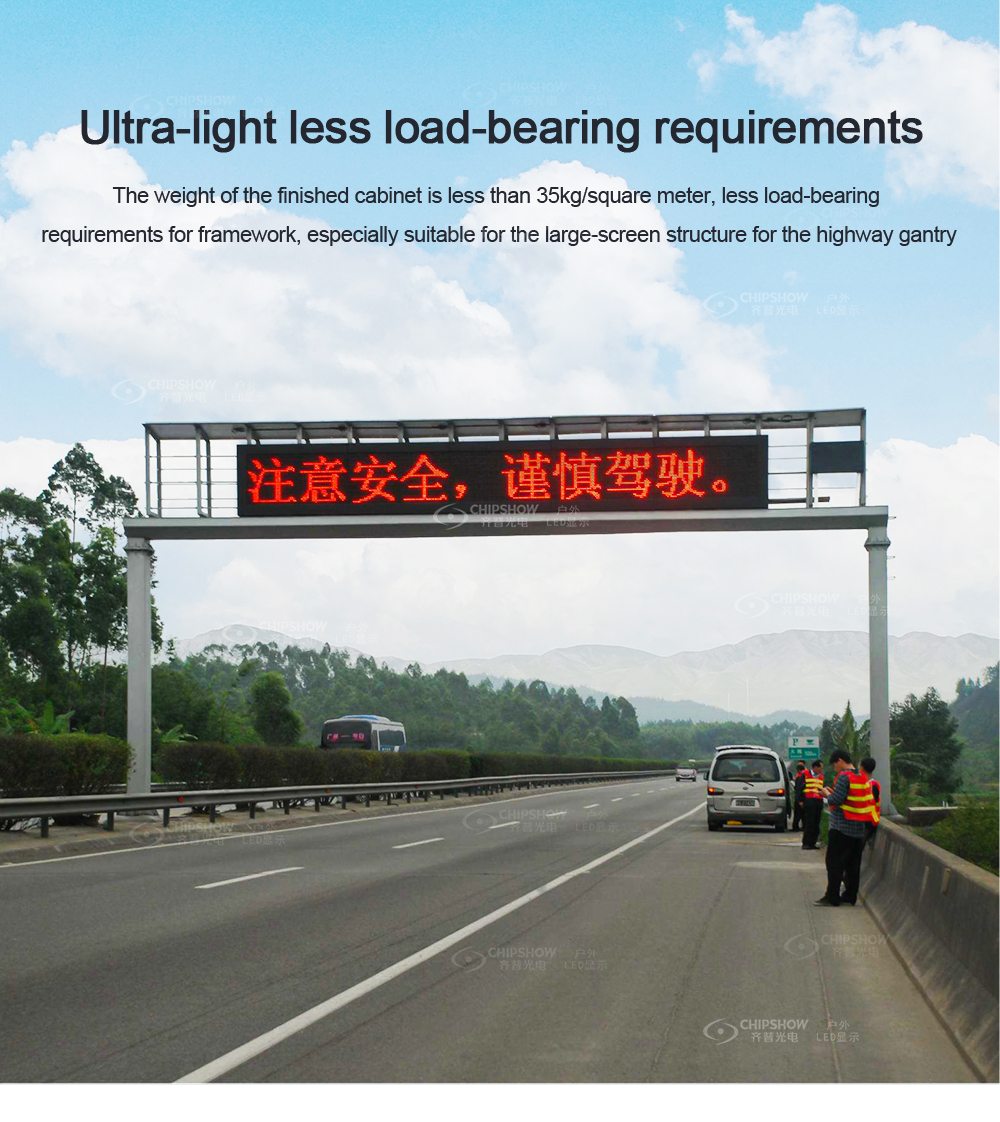

6.Ultra-light - the weight of the finished cabinet is less than 35kg/square, less load-bearing requirements for framework, especially suitable for the large-screen structure for the highway gantry;
7.High reliability - using large chip leds, high-end brand IC and power supply, suitable for various harsh environments, more reliable quality and low operating cost;

  • Product Details

High brightness traffic display

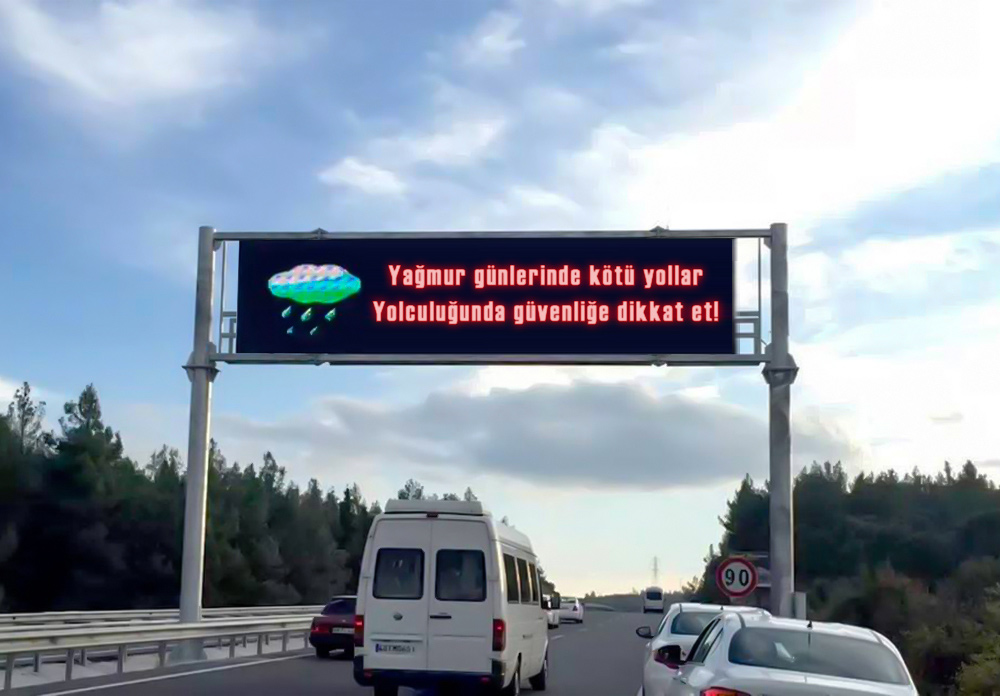

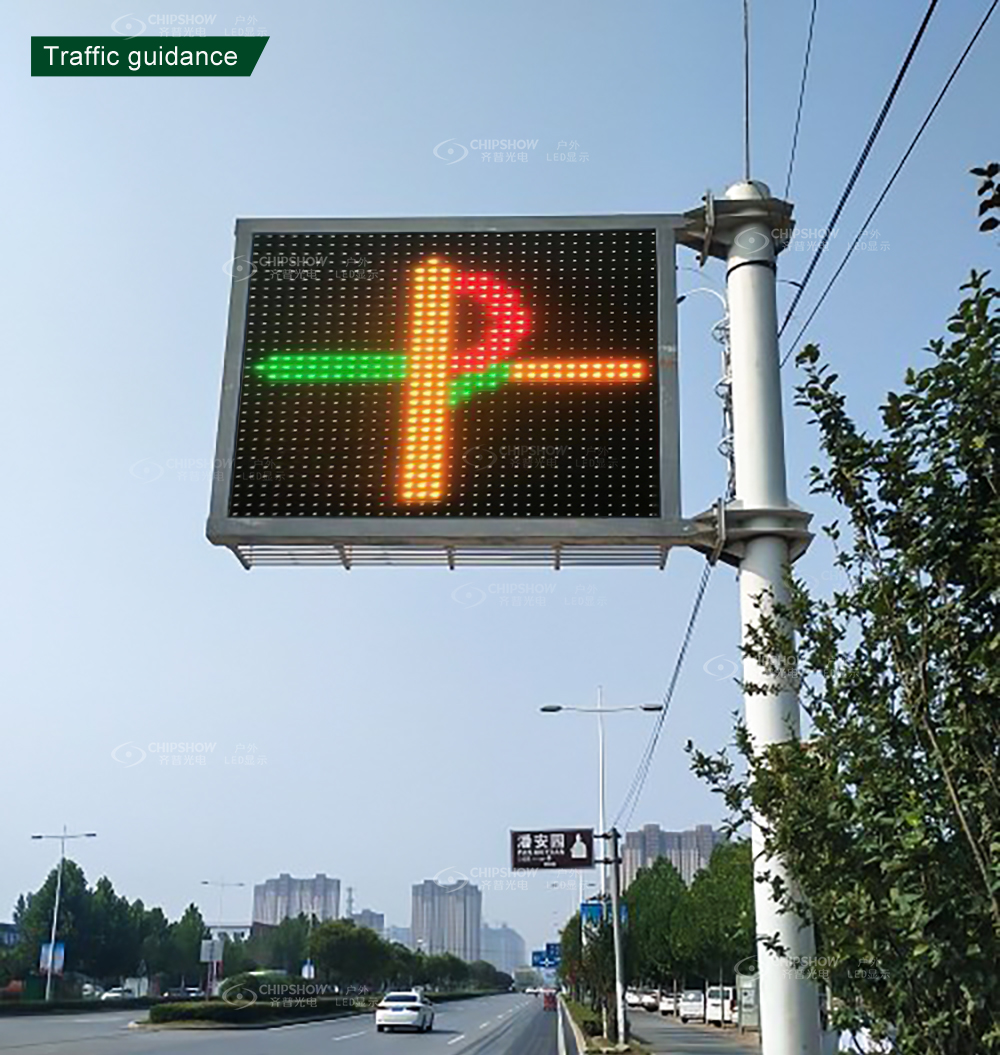

LED display used for road traffic requires stable quality and high brightness. There is no doubt that c-traffic is specially developed for road traffic. Its brightness can reach an amazing 14000cd/ ㎡, so that the traffic and pedestrians can clearly see the information displayed on the display screen. C-traffic traffic display is widely used in road traffic information release, weather warning, traffic guidance and other scenarios


LED display


Ultra light weight and good water resistance


The weight of traffic display is only 35kg per square meter. Therefore, c-traffic has very low requirements on the strength of the structure, which is particularly suitable for gantry and F-frame structures. In addition, the LED display with low weight is more convenient for installation. C-traffic adopts high-performance waterproof box, and the waterproof level reaches IP65.

LED screen

Super penetrating power

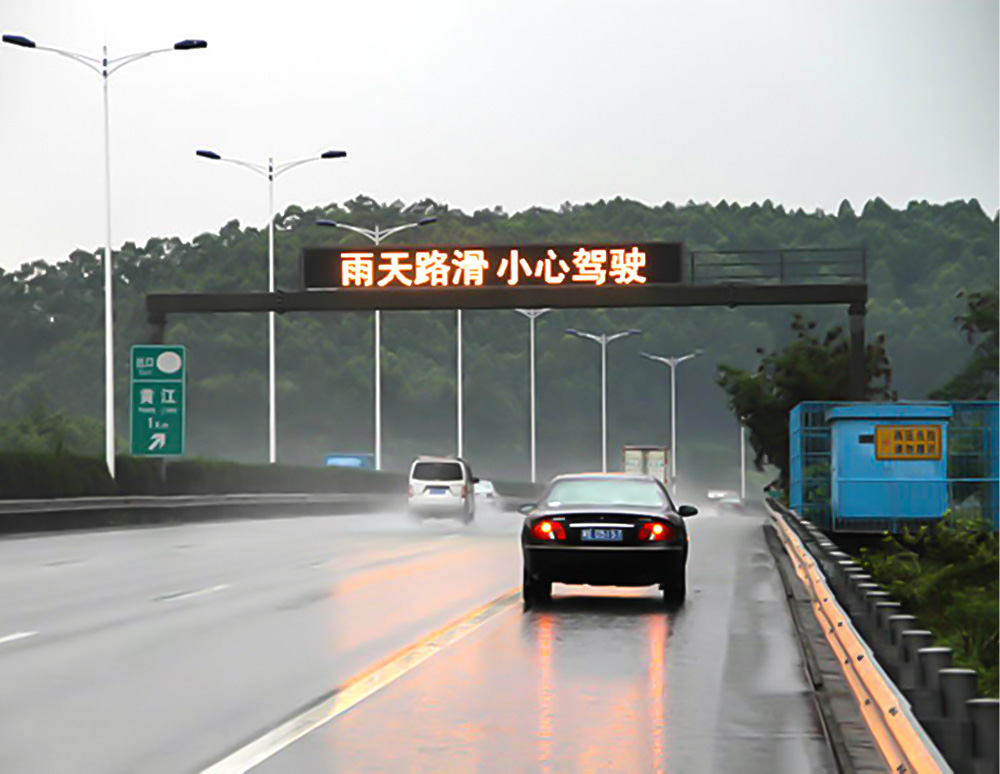

The high brightness light beads of the c-traffic traffic special screen have strong penetration, and the information displayed on the display can still be clearly seen in rainy and foggy days. Under this penetration force, even drivers with a speed of 120km/ km can clearly see the display signs.

Traffic display


energy saving


Even if the brightness of the display reaches an amazing 14000cd, c-traffic still saves a lot of power. This is because we have added a lens to the lamp bead. The brightness of the LED display increases, but the power consumption does not increase. On the contrary, it also saves more power.


Outdoor display

Better reliability


In the outdoor, the LED display always encounters all kinds of bad weather, so the quality of the display is very important. C-traffic adopts large chip lamp beads and high-end brand IC and power supply, with more stable and reliable quality.


Road signs


Specification parameters


Item
Specification Parameter
Pixel Pitch、Resolution rate、size
16mm、30*10、480mm*160mm

                   Pixel color Pixel LED

1R1G1B、 SMD2727
Working voltage、Module Power
DC4.5V、≤22W
Driving IC、Driving way
JXI5123GP-B  2 Scan
HUB
HUB75

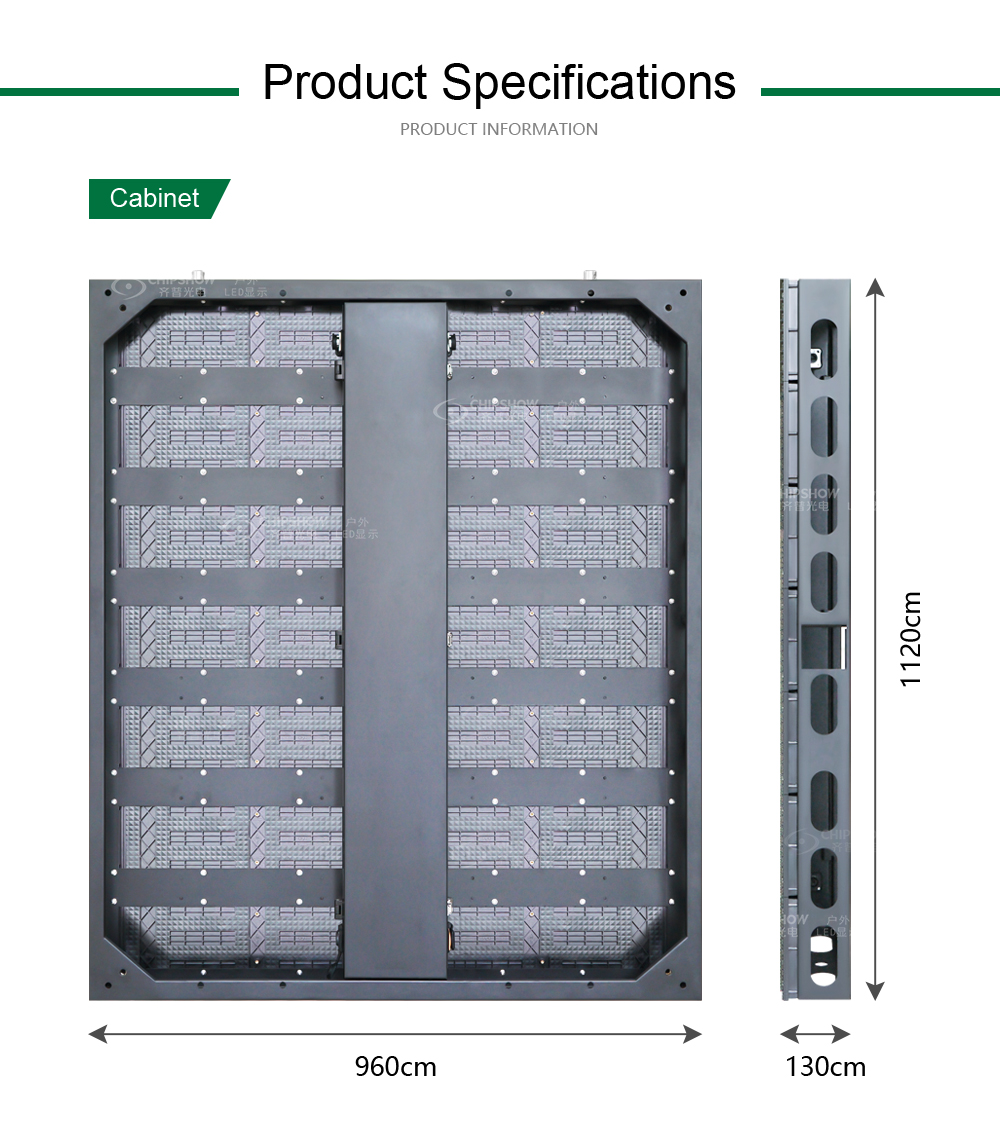

Material、Cabinet Weight(kg/Cabinet)
Sheet metal aluminum cabinet 、<35kg/m²
Resolution rate、size、Module quantity
60*70Dots、960*1120*130mm、2*7
Density
3906 Dots/㎡
White balance 、Color temperature
>8000 CD/㎡、6000K-8000K
view angel、Non-Flatness、Module interval
H/V:30°/30°、<0.3mm、<0.3mm
Maximal power/㎡、Average power/㎡
<300w/㎡、<100w/㎡
Frame frequency、Refresh frequency、Gray
60Hz、1920Hz、13bit
Control system、System supports
CHIPSHOW,Windows XP,WIN 7
Working temperature、Protection grade
-20~60℃、 Front/Back :IP65/IP65
