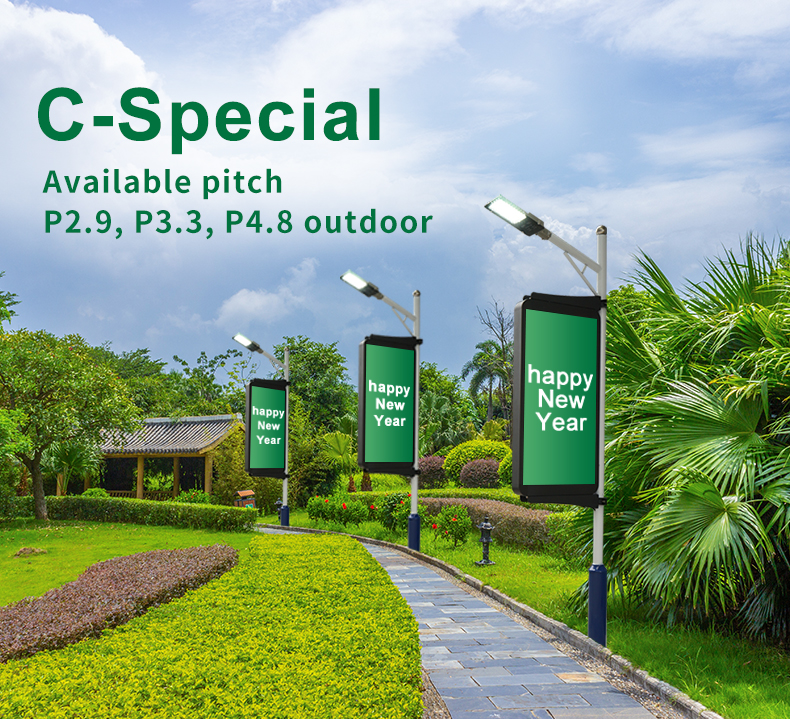

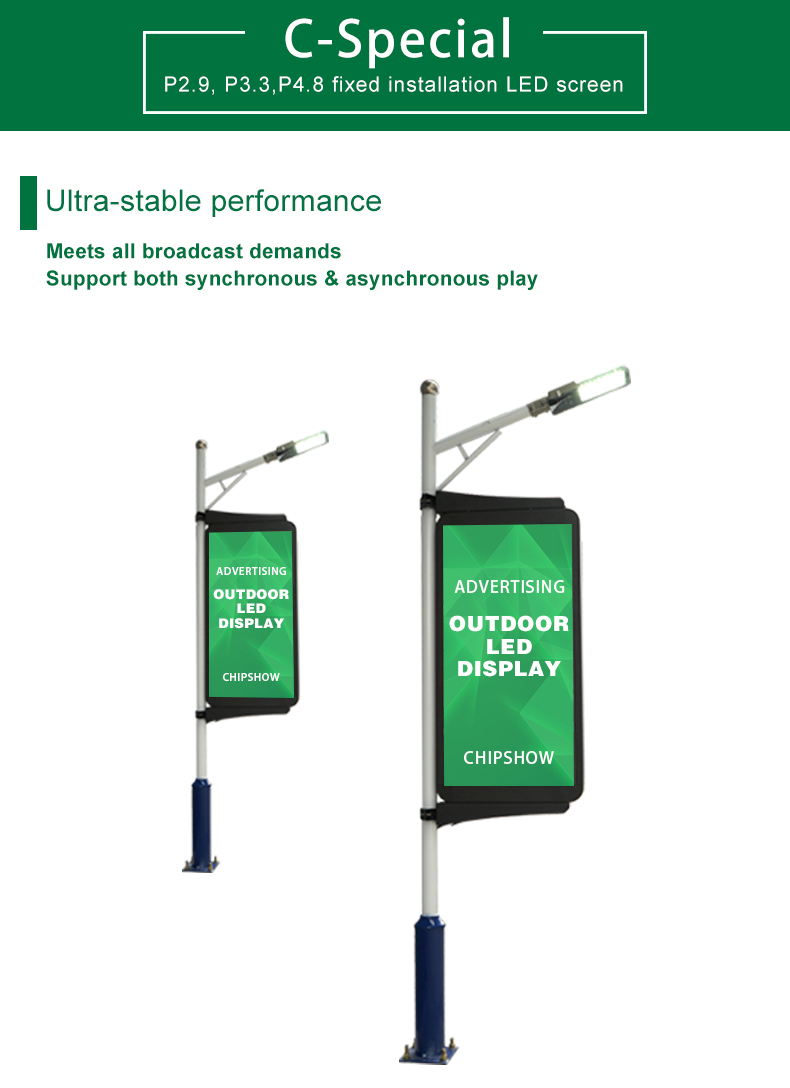

C-Special Outdoor lamp pole screen waterproof HD LED display screen

C-Special Outdoor lamp pole screen waterproof HD LED display screen

Features

1,Light-weighted, modular design, directly locked and installed on the street light pole, simple and fast installation and maintenance.

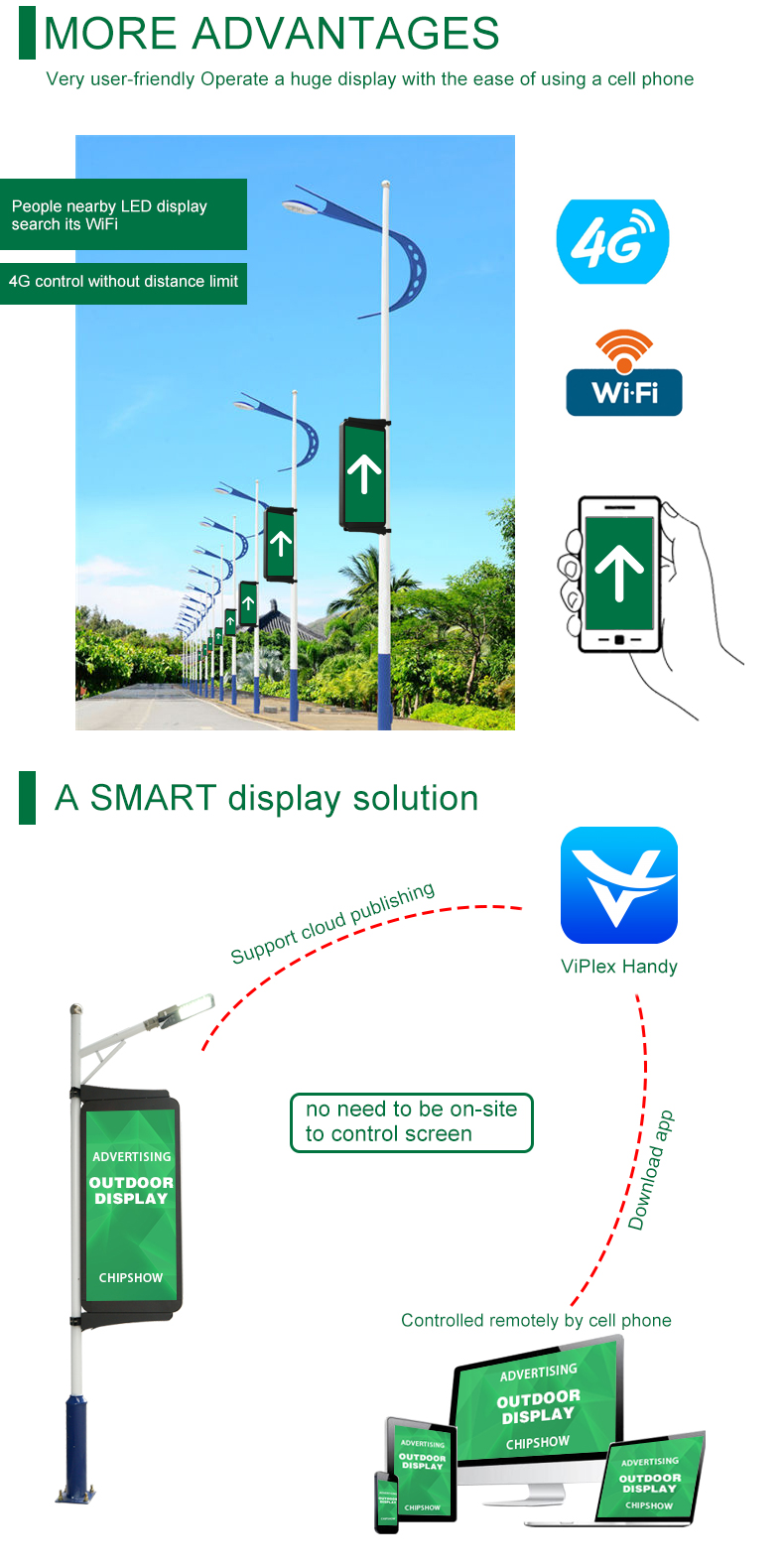

2,Cluster control, 5G networking, convenient upgrade and flexible operation.

3,IP65 high protection grade, suitable for outdoor environment.

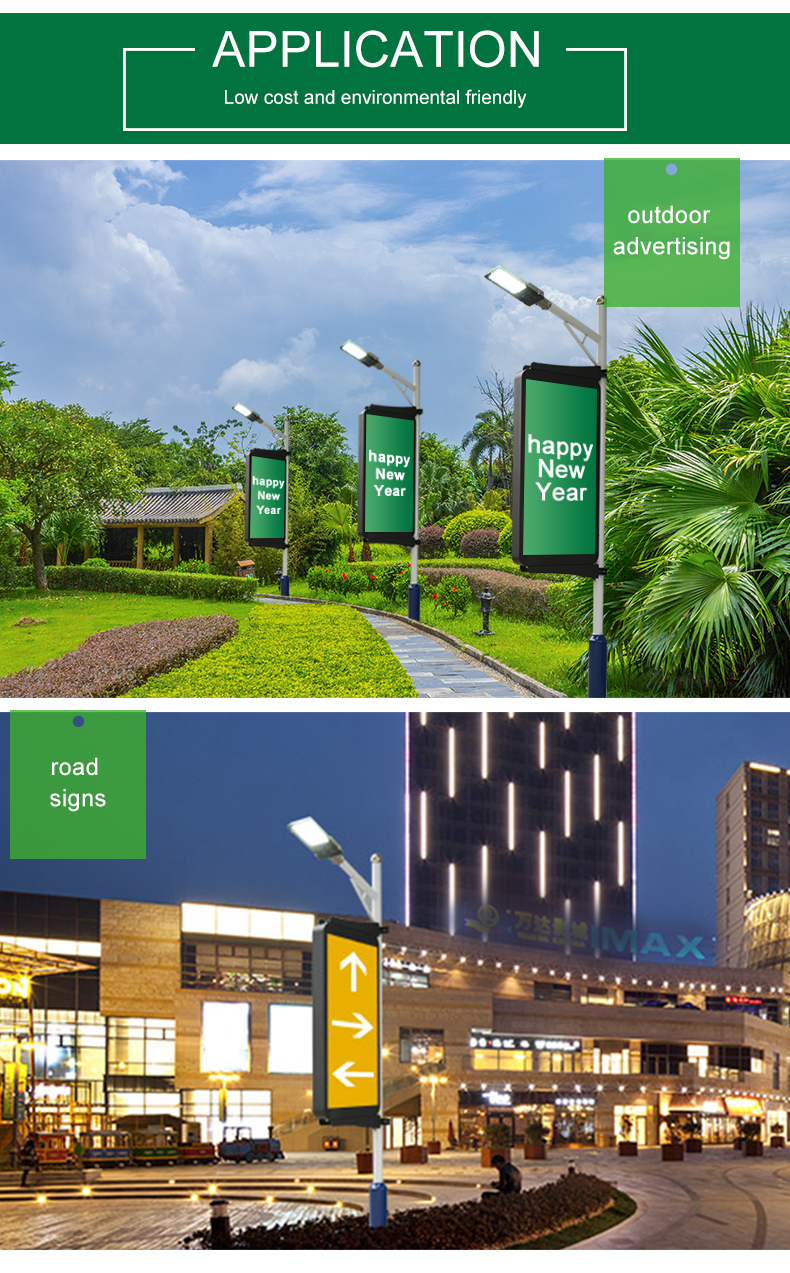

4,Good display effect and strong impact, and all the printed advertisements on the light pole can be replaced.

5,Large information capacity and rich content, as well as the fixed time and targeted delivery Low cost and environmental friendly.


Advantange:

Chipshow is specialized in LED screen manufacturing since 2000,and always devotes to researching stable and good show effect LED screen.


  • Item No.:

    C-Special
  • Product Details

Led pole screenOutdoor LED displaybillboard led video walladvertising led screensclear led displayelectronic signs led display

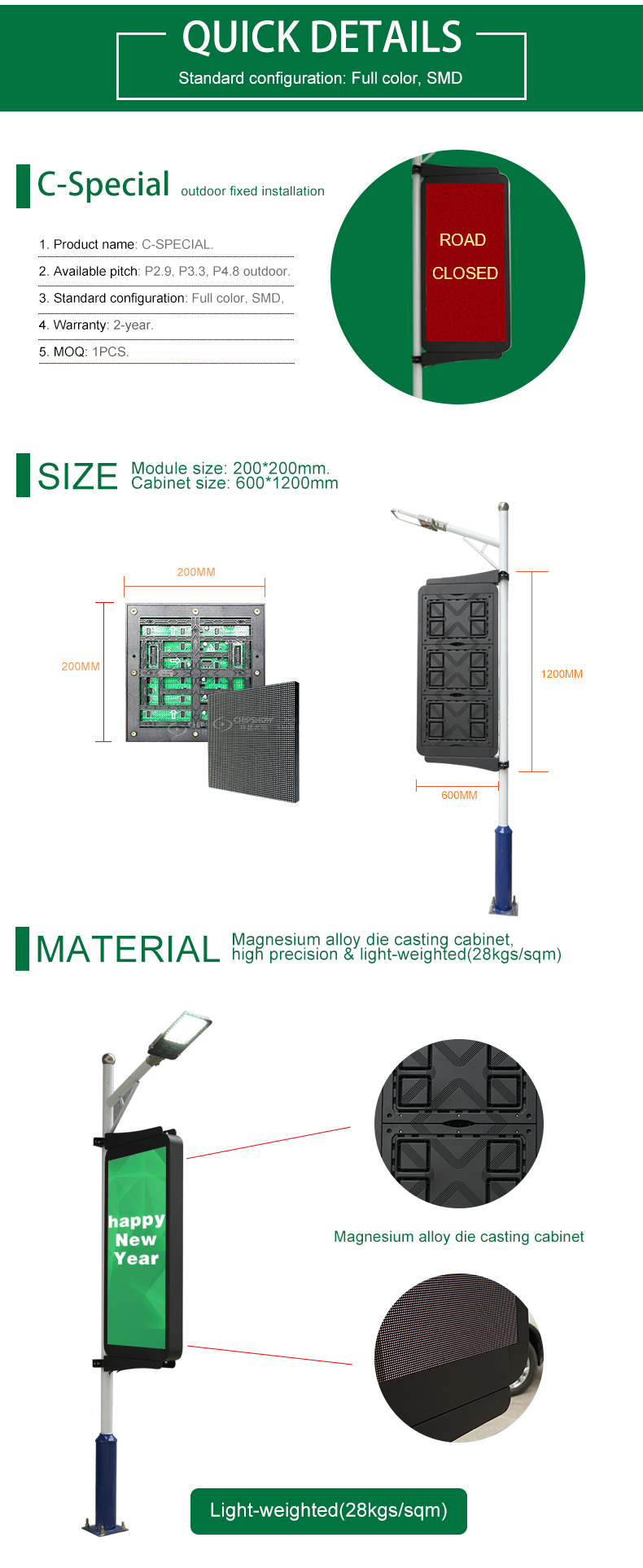

Module Parameter
Item
Specification Parameter
Pixel Pitch、Resolution rate、size
3.33mm、60*60Dots、200*200mm

                           Pixel color Pixel LED

SMD1921
Working voltage、Module Power
DC5v、≤30w
Driving IC、Driving way
ICND2038S、  1/15S
HUB
HUB75
Cabinet  Parameter
Material、Cabinet Weight(kg/Cabinet)
Cast aluminum、20kg/Cabinet
Resolution rate、size、Module quantity
180*360Dots、600*1200*107mm、3*6
Density
90180 Dots/㎡
White balance 、Color temperature
6000cd/㎡、6000k-8000k
view angel、Non-Flatness、Module interval
H:140°;V:120°、<0.2mm、<0.5mm
Maximal power/㎡、Average power/㎡
≤750w/㎡、≤240w/㎡
Frame frequency、Refresh frequency、Gray grade
60hz、1920hz、≥14bit
Control system、System supports
Nova,Colorlight,CHIPSHOW;Windows
Working temperature、Protection grade
-20~50℃、Front/Bac k:IP65/IP54
