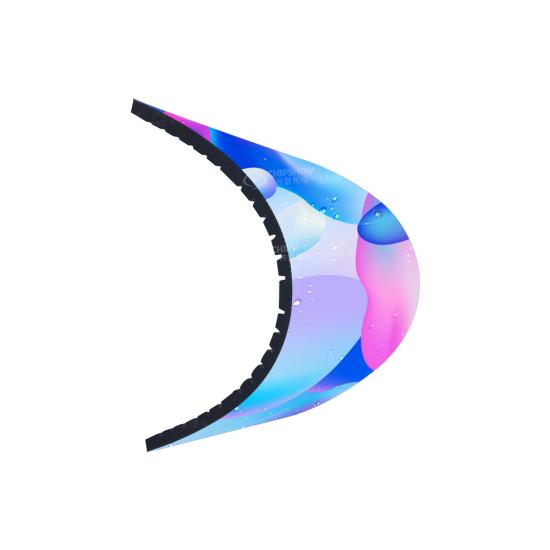

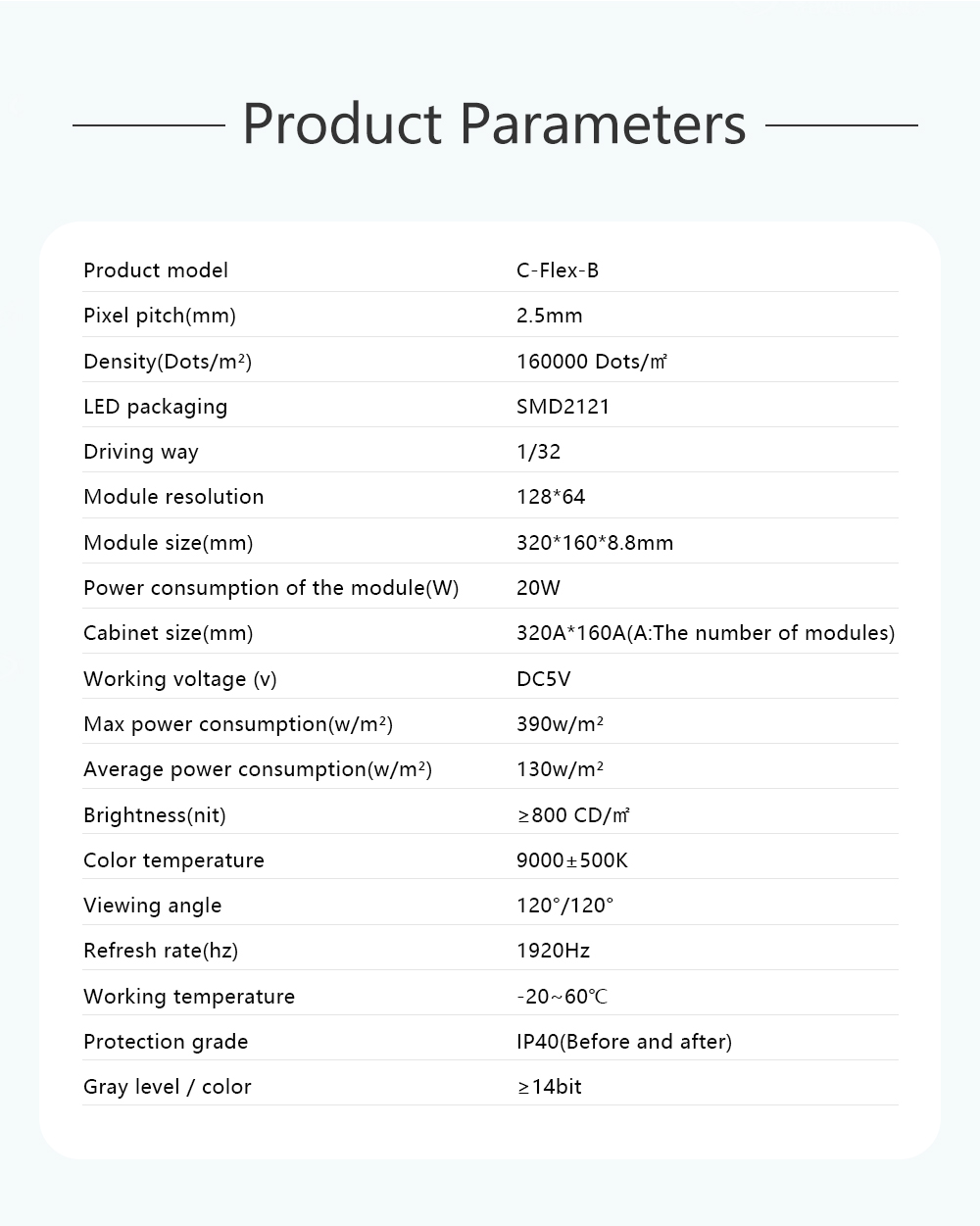

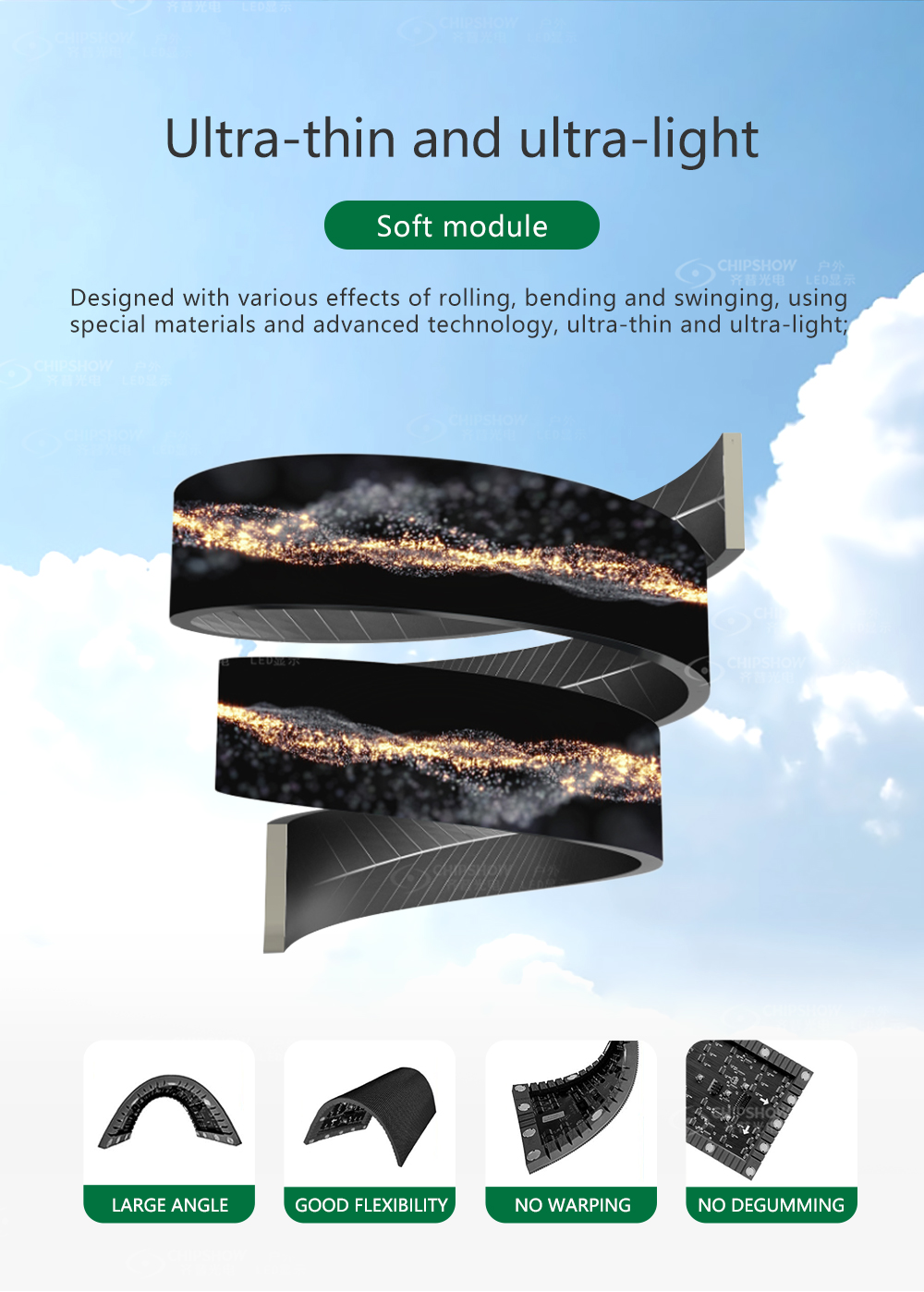

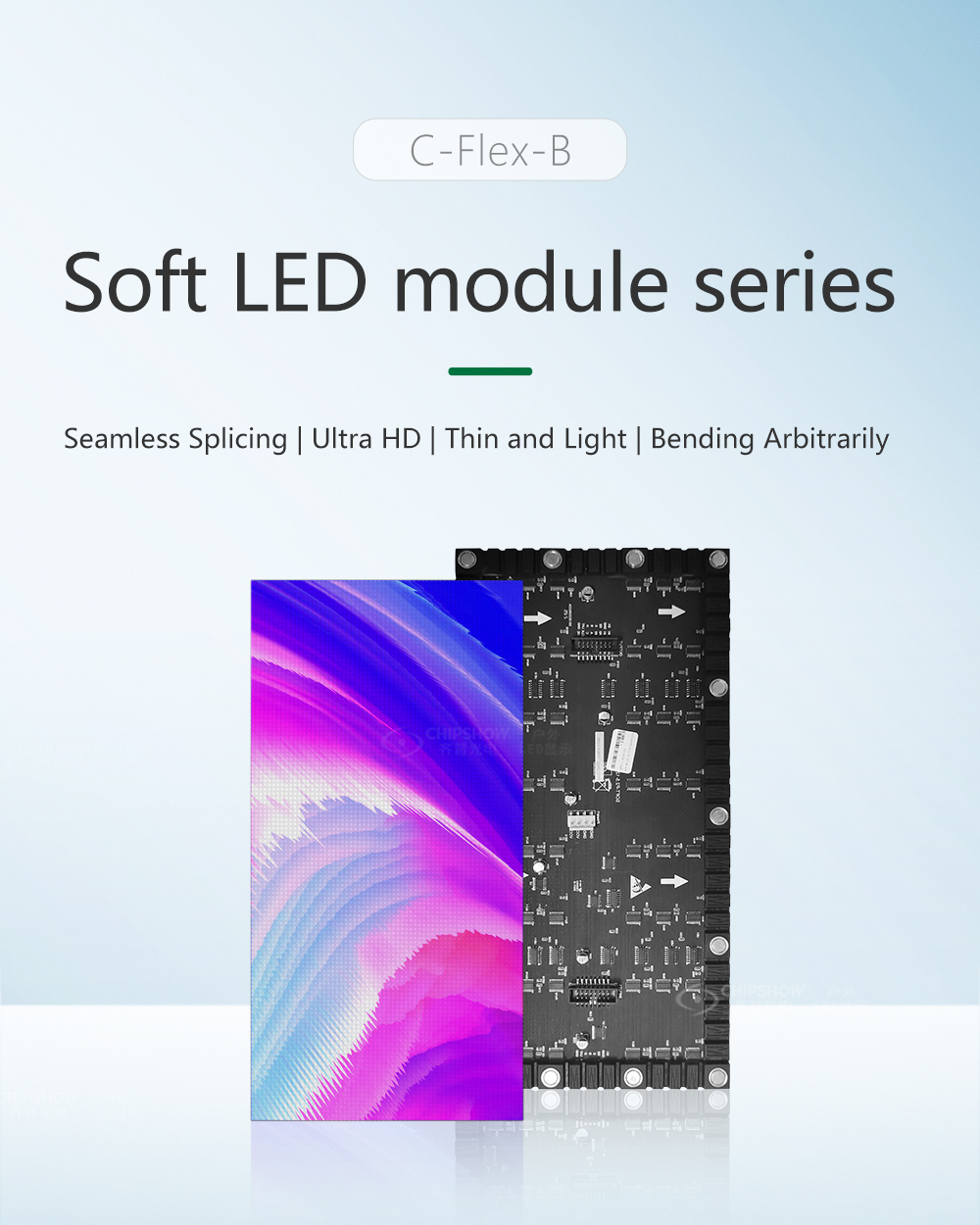

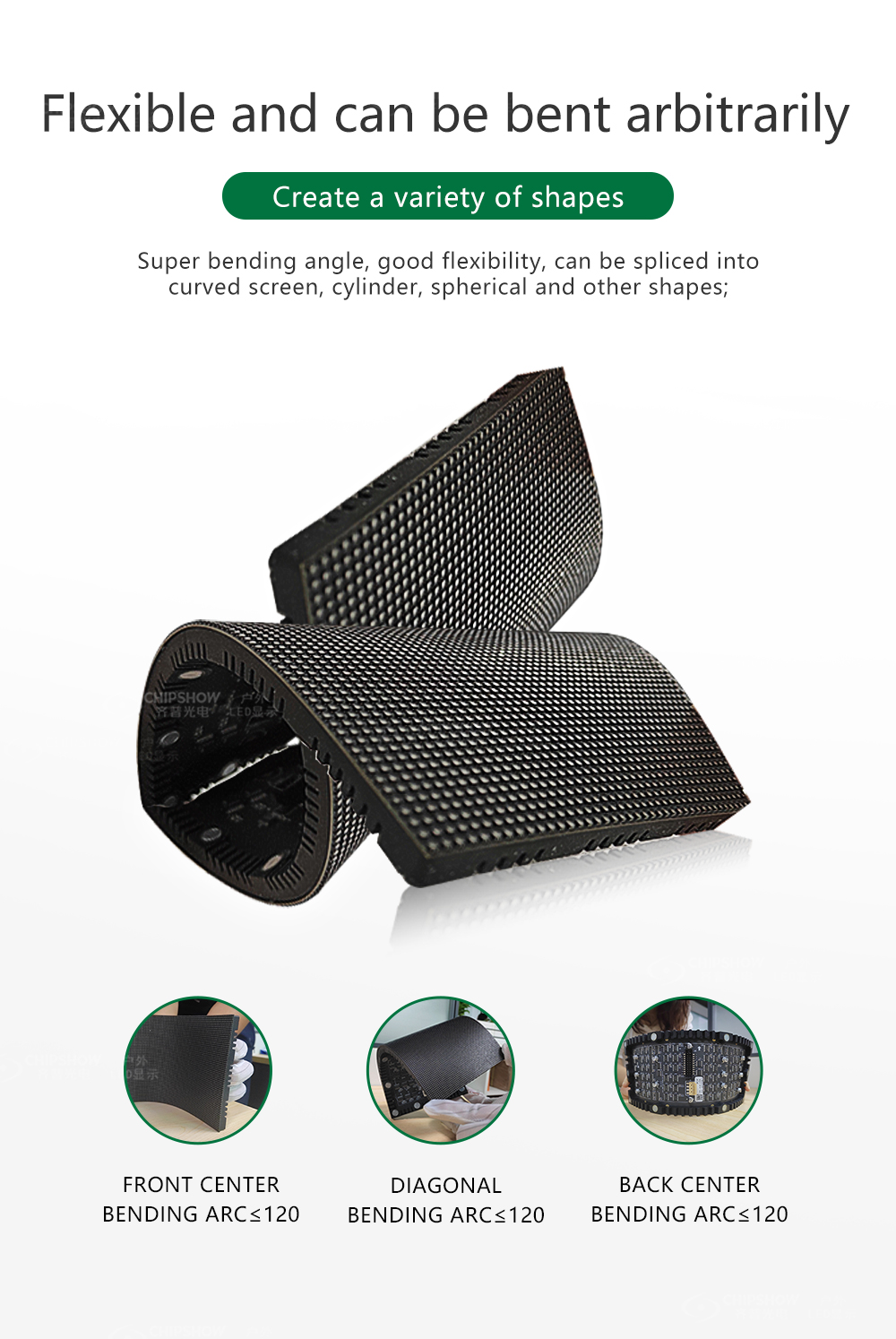

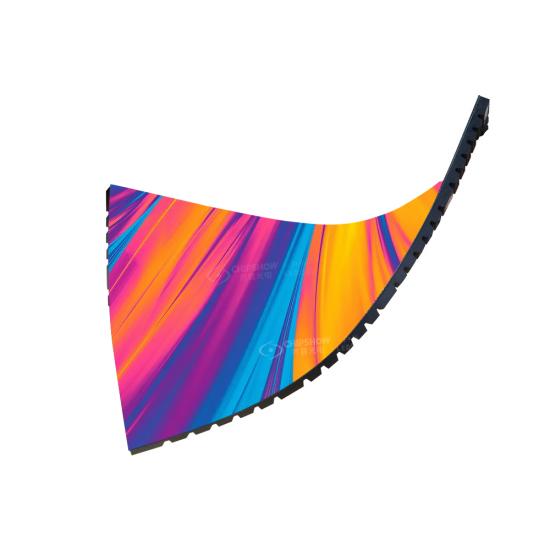

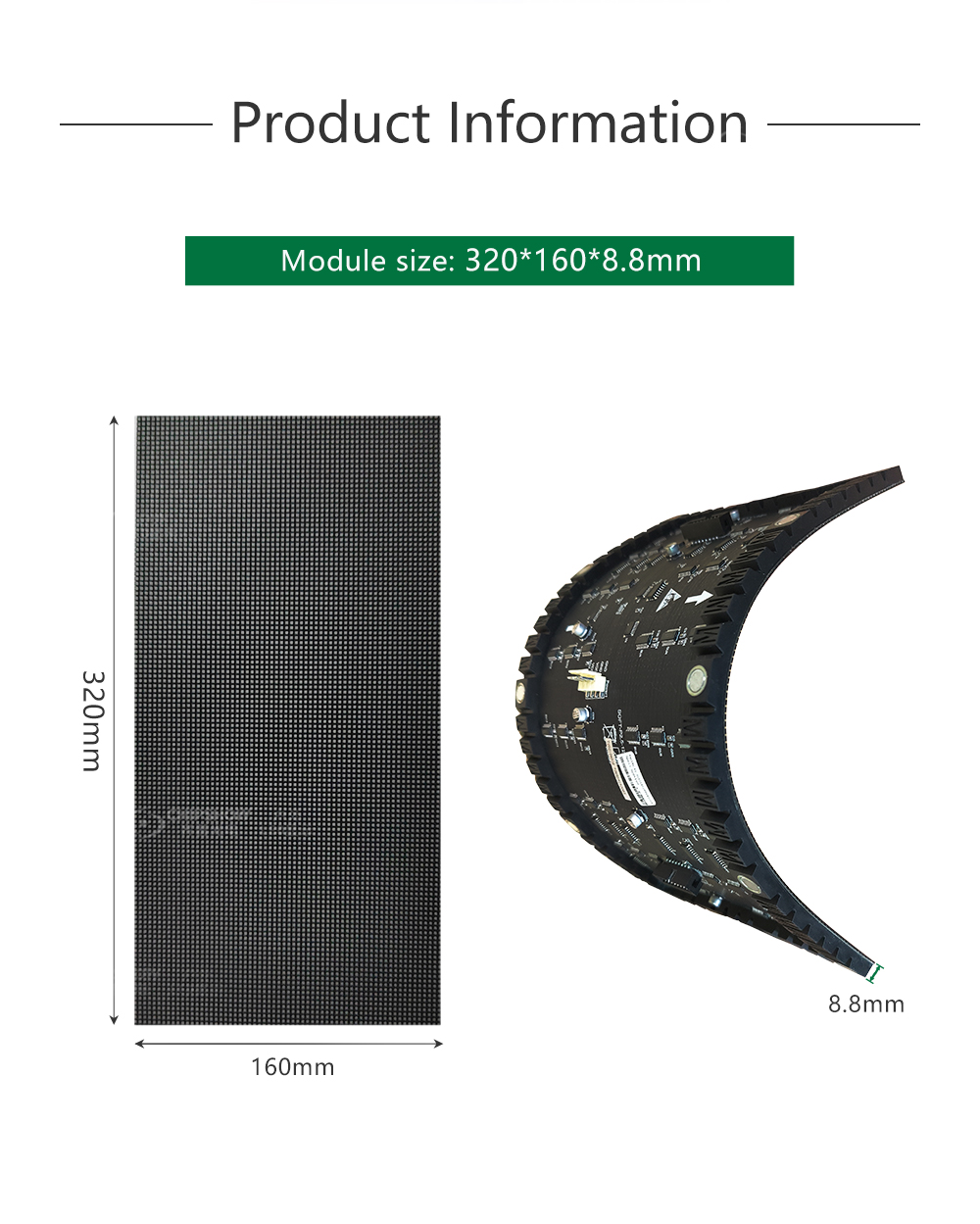

C-flex-b indoor LED display specifications for Indoor P2.5 Full Color Soft LED Module

Module features： 1,Easy：Modular design, easy assembly and maintenance. 2，module size：250*250mm ,Smooth surface, module gap small ，High precision Cabinet features： ●  Light：Cabinet size:500*500*86mm, Weight: 8.5kg/pc. ● Thin：Die-cast aluminum design, high precision, thickness only 86mm. ● Fast：Fast locks, Easy to assemble and disassemble. ● Compatibility：Available pixel pitch for P2.6，P3, P3.91，P4, P5, P6. ● Low：Excellent cooling design, no fans or air-conditioners needed noiseless, low power consumption, cost-effective.

Simplicity and durable, indoor commercial preferred. • 640x480mm cabinet size, it can be assembled with a variety of 4:3 and 16:9 LED large screens, directly mounted on the wall, saving space and labor. • The same proportion of video source as LCD, directly replacing the original LCD. • Widely used in auditorium, conference room, banquet hall, security monitoring, command system. Module features: • Easy: Modular design, easy assembly and maintenance. • Module size: 320*160mm, Smooth surface, module gap small, high precision Cabinet features: • Light: Cabinet size: 640*480*72.5mm, Weight: 7.5kg/pc. • Thin: Die-cast aluminum design, high precision, thickness only 72.5mm. • Fast: Fast locks, Easy to assemble and disassemble. • Compatibility: Available pixel pitch for P2.5, P3, P3.3, P3.91, P4, P5, P6. • Low: Excellent cooling design, no fans or air-conditioners needed. noiseless, low power consumption, cost-effective.

Quick Details • Cabinet size: 1280*960mm/pcs • Brightness: 6000~6500nits • Front and rear maintenance Advantages • New stadium base design，The angle between the screen and the ground can be adjusted from 30° to 90° to ensure the viewing angle of the audience. • Soft face shield protection, athletes and LED screens are perfectly protected. • The cabinet is made of cast aluminum, which is light and thin, and has good heat dissipation, which slows down the aging of the power module. • The module can be maintained quickly and the operation is simple and convenient. • High protection, protection level ≥IP65. • Strong compatibility, both indoor and outdoor courts can be hoisted and stacked to meet the needs of customers in multiple occasions. • Energy-saving, about 1/3 energy-saving than the traditional screen, greatly reducing the operating cost of the display. • Professional stadium playback software, diversified input of camera video sources, support for DP, HDMD, VGA, SDL, DVD, etc.

This screen is ventilation, lightweight, thin and front maintenance available, which is suitable for outdoor wall advertising solutions. Features 1. Ultra-thin design: The weight is 33kg/cabinet and the thickness of the whole cabinet is only 127mm 2. Low windage: The screen is ventilation, it reduce the windage and can save the structure costs. 3. Good ventilation: Do not need to use air conditioning fan and save cost. 4. Strong adaptability: Waterproof, dustproof and airproof design. 5. Environmental protection and energy saving: Good ventilation, do not need to use air conditioning fan and save cost. 6. Front and rear service.

C-Fit is 960*960mm big LED screen for outdoor advertising, stadium, rental,etc. Quick details 1. Pixel pitch: P2.5,3,4,5,6,6.67,8,10(SMD),10(Dip) mm 2. Module size: 320*160 mm 3. Cabinet size: 960*960*140 mm 4. Brightness: 6000~9000 nits 5. Cabinet material: magnesium alloy 6. Weight: 29kgs/sqm 7. Application: Fixed installation for advertisement, hanging installation and sports perimeter display 8. Standard configuration: Full color, Nationstar SMD, Chip-one MBI5124, Powerld power supply. (Customized service is open for you.) 9. Stock: Shenzhen,China/Netherlands

C-Easy P5,P6.67,P8,P10,P16 is a front and rear serviceable, energy-saving, outdoor waterproof replaceable LED modules. Advantages: 1. Energy-saving≥30%. 2. Brightness≤8500Nits 3. High accuracy and high flatness. 4. Replaceable modules, fast and easy replace. 5. Front and rear service. 6. IP65 protection grade 7. 320*320mm module size, you can assemble it into different size screens.

P2.5,P3,P3.3,P4 C-Max is indoor commercial preferred, simplicity and durable, the same proportion of video source as LCD, can direct replace LCD. Advantages: 1. 640mm*480mm cabinet size. can be assmbled with variety of 4:3 and 16:9 large screens. 2. Direct mounted on the wall, save space and labor. 3. The cabinet is made of die-cast aluminum, which is light in weight. 4. Wall mounting installation, full front serviceable for module, power supply and cards. 5. Flatness, easy to install and disassemble. 6. The cabinet adopts simplicity internal wiring, which perfectly realizes the splicing of the cabinet. 7. Perfect design of lamp board PCB, high-end IC, easy to achieve high gray, refresh, brightness. 8. Good heat dissipation, no noise, energy saving and environmental protection. Applications: Widely used in commercial display, indoor fixed advertising, auditorium, conference room, banquet, vestibule, exhibition demonstration, transportation, studio, command control.

C-Lite-D is high-end rental LED screen for varieties of activities, its control box can be clicked out by locks and protection pad prevent lamps at corners against damage, it'll bring you better experience on installation and disassembling. Features 1. Available pitch: P2.6,P2.97,P3.91,P4.81 indoor/outdoor 2. Cabinet size: 500*500mm/500*1000mm 3. Brightness: 800~1000nit(Indoor), 4500~6500nit(outdoor). 4. Integrated Power supply and receiving card. Plug in and out within 1 second. 5. Fast locks from up and down, left and right, 2 seconds to connect cabinets. 6. Die-casting aluminum, high-strength, high-tenacity, high-precision, ultra-high flatness, whole screen flatness error ≤ 0.01 mm. 7. Anti-collision design at the bottom of the cabinet, positioning beads on the side for precise alignment. 8. Good heat dissipation design, no need fan and air-conditioner, less noise during working. 9. High protection, weather and salt spray corrosion resistance. 10. A variety of installation methods, can be lifting, fixed, stacking.
