C-Mesh P3.91 transparent mesh screen for indoor advertising

Features: 1 Thin and light: the C-Carbon series adopts a carbon fiber integrated frame that only weighs 12.5kg/㎡; this makes it easy to install and maintain ; 2 Good transparency: the transparency level reaches 65%; when mounted on a glass wall, the glass wall can be transformed into a vivid video wall; meanwhile, it does not affect the view of the glass wall; 3 Magnetic design: the C-Carbon series supports the front-&-rear maintenance; through magnetic modules, cabinets can be precisely located during installation; and the rental installation method is very cost-effective; 4 Heat dissipation design: it adopts smart temperature-controlled fans that can automatically regulate agitation rate according to the temperatures inside the cabinet; a lot of energy can be saved while it is working to improve the heat-dissipation efficiency; 5 High reliability: the waterproof grade of the front and rear of the modules reaches IP65; it can work normally under common outdoor conditions; 6 Wide application: it can support ground-mounted installation, wall-mounted installation, and hanging installation. It can be used as a versatile display solution for scenarios that are related to industries that include military, public security, justice, energy, transport, IT, and so on;

Features: 1 Continuing transfer from breaking point: the C-Film series has broken the conventional design pattern of transparent LED film - even though a single point of failure is hit during signal transfer, it does not affectthe display of other parts (the backup date automatically starts, seamlessly switching without impacting the display effects of other points); in other words, the C-Film series has the breakpoint continuation function which provides a more stable performance; 2 High transparency: the transparency of the LED film is more than 78%, it does not affect the daylighting of glasses; 3 High grayscale: the RGB channel adopts the linear regulation (32-level current level) to display the 16-bit grayscale image under any current; so you do not have to worry about the requirement of current input whether in indoor circumstances or semi-outdoor circumstances; 4 Simple installation: no requirement for the support of steel structure, you just need to stick the film onto glasses, and then it can start to display after the power signal is connected; 5 Light-weight and thin: the film is as thin as 2.5mm, and the cabinet is as light as 5KG; 6 Flame retardant and anti-ultraviolet: the film’s flame retardant grade reaches V-1, and the film can resist ultraviolet for more than 8 years without yellowing; 7 Wide application: the LED film display is very common in indoor commercial outlets, and is widely used for advertising on transparent media, such as glass curtain walls, acrylic walls, glass guardrails…

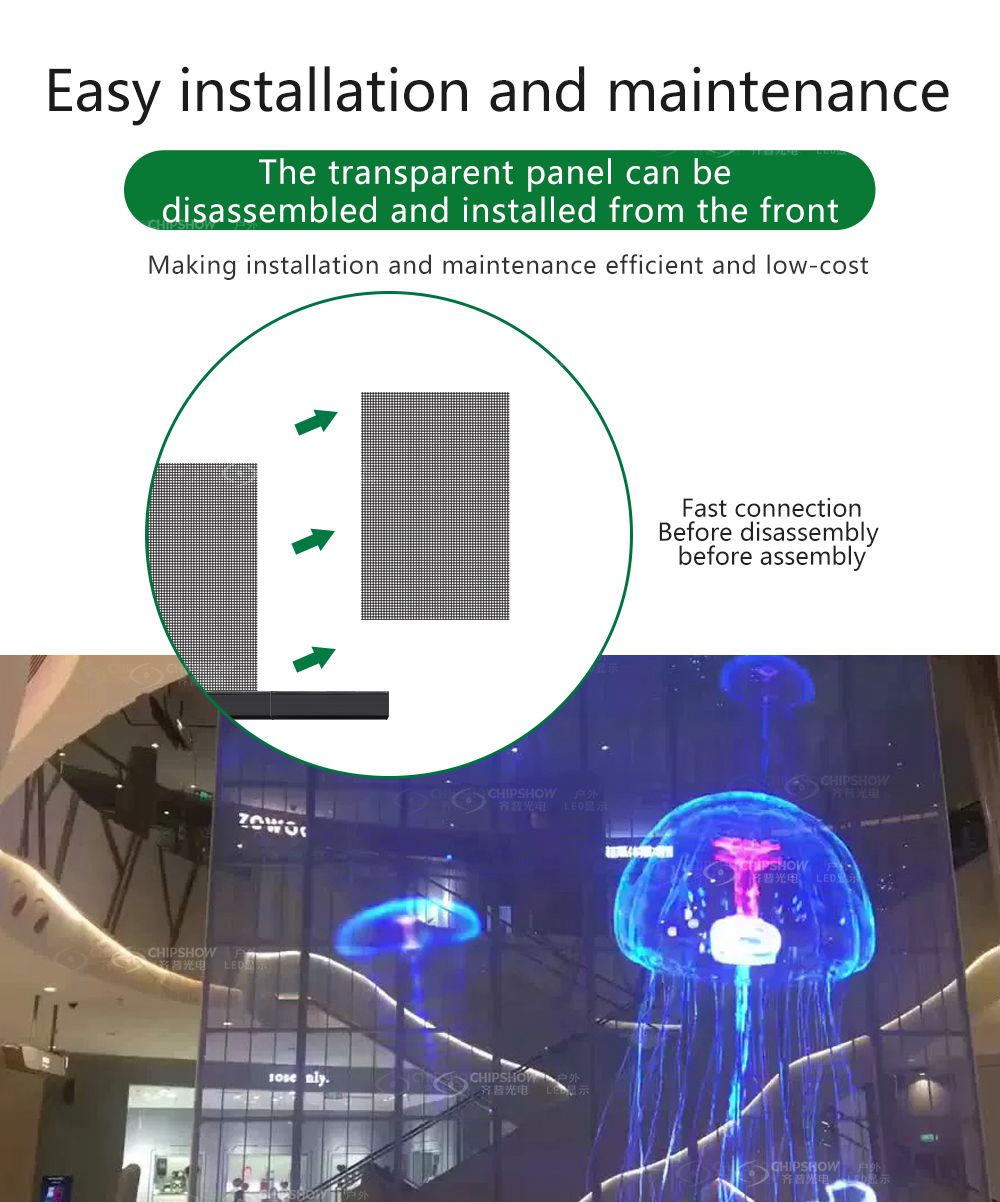

Invisible Mesh LED screen: 1 Vanish design: vanish mesh transparent screen, no obscruction to lighting; 2 Easy to install: supporting hanging/embed installations without changing the original space structure; 3 Customizable: customizable sizes to integrate with glass window dimensions seamlessly; 4 Floating image effects: naked eye AR and 3D holographic visual effects; 5 High brightness: the C-Mesh series is suitable as display solutions for semi-outdoor scenarios, such as store glass windows in a nearby street;

◙ The cabinet comes with a 90° rotating bracket and left and right fast locks for efficient assembly of the stadium LED display. ◙ The screen comes with soft mask and pillow protection, so athletes and the LED display are perfectly protected. ◙ Aluminum power box, thin and light, good heat dissipation, slowing down the aging of the power and module. ◙ Front and rear maintenance of the module, easy operation. ◙ Waterproof and dustproof, protection grade ≥ IP65. ◙ Energy-saving, about 1/3 energy saving than traditional LED display, greatly reducing the operating cost. ◙ Professional software, and supports video source input such as DP, HDMD, VGA, SDL, DVD, etc.

1. Alta planitud: caja de aluminio fundido a presión de alta resistencia de grado ADC12, sin deformación después del desmontaje y montaje frecuentes y buena planitud. 2. Alta confiabilidad: módulo completamente cerrado y conectado, protección IP65/IP54 frontal/trasera, el producto es estable y confiable; 3. Adaptarse a múltiples escenarios: los gabinetes de 500*500/1000 mm se pueden mezclar y el tipo curvo se puede ensamblar en pantallas grandes como pantallas curvas de -10° a 15°, esquinas de 90°, columnas, etc.; 4. Alto rendimiento en relación calidad-precio: conexión de bloqueo rápido entre cajas; una pantalla se puede utilizar para múltiples propósitos y puede ser fija, apilable o izada; 5. Funcionamiento silencioso: sin ventilador, ruido ≤40DB; no afecta los efectos audiovisuales del lugar; 8. Selección óptima para escenario y pantalla grande: alta tasa de actualización de 3840, disparo con obturador de 1/3000S, sin líneas de escaneo ni imágenes fantasma; 9. Brindar soluciones integrales para plazas comerciales, eventos de gran escala, lanzamientos de nuevos productos y otros sitios de eventos.

Quick Details • Cabinet size: 1280*960mm/pcs • Brightness: 6000~6500nits • Front and rear maintenance Advantages • New stadium base design，The angle between the screen and the ground can be adjusted from 30° to 90° to ensure the viewing angle of the audience. • Soft face shield protection, athletes and LED screens are perfectly protected. • The cabinet is made of cast aluminum, which is light and thin, and has good heat dissipation, which slows down the aging of the power module. • The module can be maintained quickly and the operation is simple and convenient. • High protection, protection level ≥IP65. • Strong compatibility, both indoor and outdoor courts can be hoisted and stacked to meet the needs of customers in multiple occasions. • Energy-saving, about 1/3 energy-saving than the traditional screen, greatly reducing the operating cost of the display. • Professional stadium playback software, diversified input of camera video sources, support for DP, HDMD, VGA, SDL, DVD, etc.

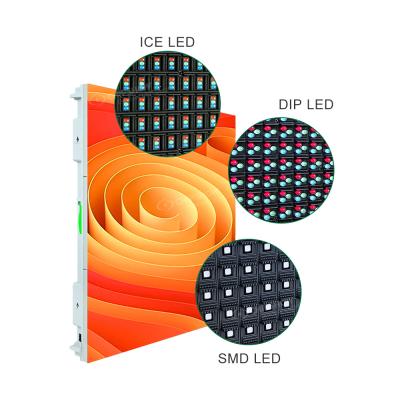

1 Fully enclosed LED modules: every module has a central control box and a power supply box that is connected with 4 unit models; 2 Simple bracket design: the modules just require a simple aluminum profile to complete installation, saving the cost of cabinets and frame structure; 3 Wall-mountable installation: the modules, power supply units, and control systems support front service, saving installation space greatly; 4 Self-expansion: the big-sized modules (size: 640*320 mm) can be seamlessly spliced due to their excellent flatness; you can quickly build screens with different sizes; 5 Quick screen connection: the modules adopt 2-in-1 signal power cables for convenience of quick connection and installation; in addition, the wiring is also relatively tidy; 6 Ultra light, ultra-thin: the weight of an entire cabinet is only 23.5KG/㎡; therefore, transportation costs can be saved; 7 High-level protection: the fully-enclosed modules with a rating of IP66 ensure the screens can be seasoned to various outdoor conditions; 8 Comprehensive display solution: the screens are especially suitable for outdoor advertising at different scenes (e.g. shopping mall, roadside, door header, and shop window); Specification： Chipshow C-Smart-Outdoor Led Screen P6.67U0604S27-C96X48-CA1280X640 Qualification： C-Smart IP66,LVD,EMC EP3761294 Patent

Features: 1 Continuing transfer from breaking point: the C-Film series has broken the conventional design pattern of transparent LED film - even though a single point of failure is hit during signal transfer, it does not affectthe display of other parts (the backup date automatically starts, seamlessly switching without impacting the display effects of other points); in other words, the C-Film series has the breakpoint continuation function which provides a more stable performance; 2 High transparency: the transparency of the LED film is more than 78%, it does not affect the daylighting of glasses; 3 High grayscale: the RGB channel adopts the linear regulation (32-level current level) to display the 16-bit grayscale image under any current; so you do not have to worry about the requirement of current input whether in indoor circumstances or semi-outdoor circumstances; 4 Simple installation: no requirement for the support of steel structure, you just need to stick the film onto glasses, and then it can start to display after the power signal is connected; 5 Light-weight and thin: the film is as thin as 2.5mm, and the cabinet is as light as 5KG; 6 Flame retardant and anti-ultraviolet: the film’s flame retardant grade reaches V-1, and the film can resist ultraviolet for more than 8 years without yellowing; 7 Wide application: the LED film display is very common in indoor commercial outlets, and is widely used for advertising on transparent media, such as glass curtain walls, acrylic walls, glass guardrails…
