Built for mullion-based mounting logic
Glass curtain walls have strict load and fixing rules. The P25 strip cabinet is sized to follow mullion rhythm, supporting integration planning without turning the facade into a heavy secondary structure.

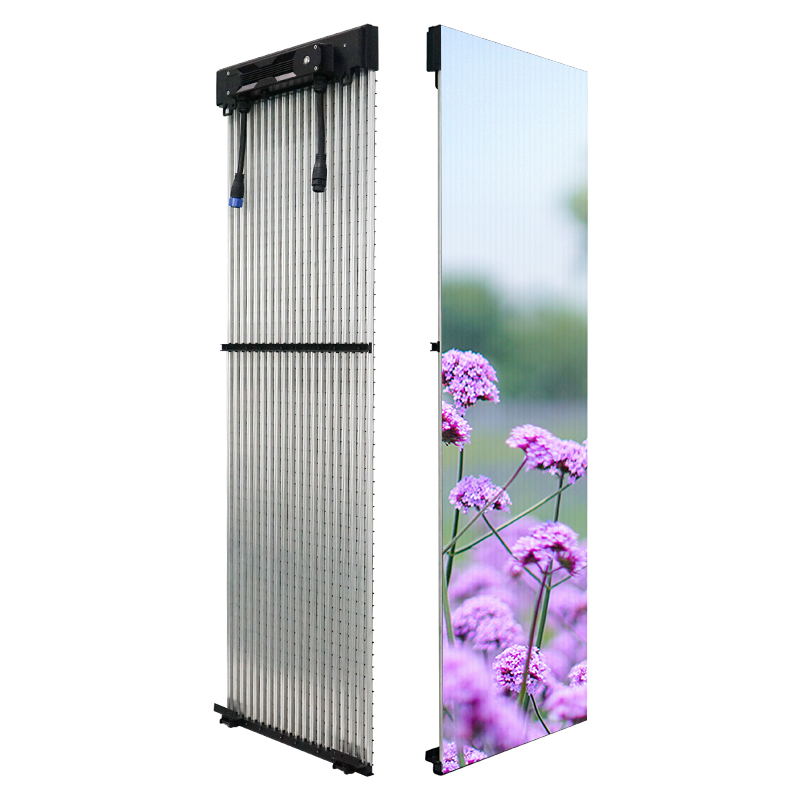

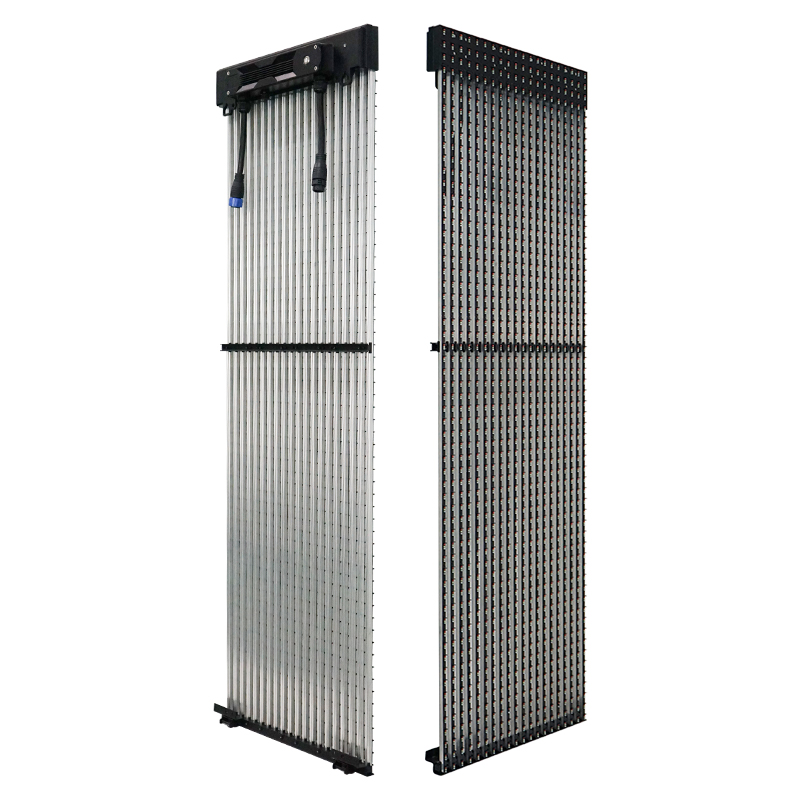

7-3C-Vent P25 Transparent Curtain（picture TBD）
High-transparency light-bar curtain for outdoor glass curtain walls.
C-Vent P25 is built for projects where glass structure, daylight, and viewing comfort come first. With 63% transparency and an ultra-light load around 10.7 kg/m², it can integrate with curtain wall mullions to keep interiors bright and open, while adding an outdoor media layer with IP-rated protection and predictable operating power.
7-3C-Vent P25 Transparent Curtain（picture TBD）
High-transparency light-bar curtain for outdoor glass curtain walls.
C-Vent P25 is built for projects where glass structure, daylight, and viewing comfort come first. With 63% transparency and an ultra-light load around 10.7 kg/m², it can integrate with curtain wall mullions to keep interiors bright and open, while adding an outdoor media layer with IP-rated protection and predictable operating power.
Specification
Pixel pitch 25 mm, DIP346
Rightness 7000 cd/m² (white)
Transparency 63% transparency ratio;
Viewing Angle 90°/55°
Weight 8 kg per panel (≈10.7 kg/m²)
Power & Maintenance 270/90 W/m² max/avg; IP65 front/rear;
- 63% Transparency: Strip design allows sunlight to enter and tenants to see out, preserving the building’s value.
- Zero Steel Structure: Weighing just 10.7 kg/m², it mounts directly to glass keel frames, saving massive installation costs.
- DIP346 High-Bright: 7,000 nits brightness ensures the image pops against the glass reflection, even in daylight.
- True Outdoor IP65: Unlike indoor transparent films, this is a rugged IP65 outdoor screen built for the elements.
- Invisible Aesthetic: Slim light-bar design blends seamlessly with the architecture when the screen is turned off.
- Fanless & Quiet: Natural cooling means no noisy fans to disturb office workers or hotel guests inside.
Send a Comment
- Description
- Specification
- Product Detail
- Parameter
- Form
- Product Highlight
- FAQ
Specifications&Details
Transparency that keeps interiors usable
With 63% transparency, the screen helps maintain indoor daylight and outward visibility. This is well-suited to offices, malls and terminals that rely on natural light and open views.
Ultra-light load for safer retrofit planning
At about 8 kg per 500×1500 panel (≈10.7 kg/m²), P25 supports projects where structural allowance is tight. This helps reduce the need for additional reinforcement in many retrofit concepts.
Outdoor readability with DIP346
Transparent screens often trade brightness for openness. P25 uses DIP346 LEDs to support strong white-balance brightness while maintaining a high transparency ratio, helping content remain readable in typical outdoor daylight conditions.
Natural airflow, reduced mechanical complexity
The light-bar structure leaves airflow channels through the screen, supporting convection cooling. This can reduce reliance on rear cooling equipment and helps keep ongoing maintenance simpler.
Weather-rated protection for glass exteriors
IP65 front/rear protection and a −40 to +55°C working range support year-round exposure on glass facades, including rain, dust, humidity and seasonal temperature swings.
Send a Comment
Product Highlight
63% transparent curtain
High transparency helps keep interior daylight and outward views.
Ultra-light 10.7 kg/m²
Low load supports facade projects with strict structural margins.

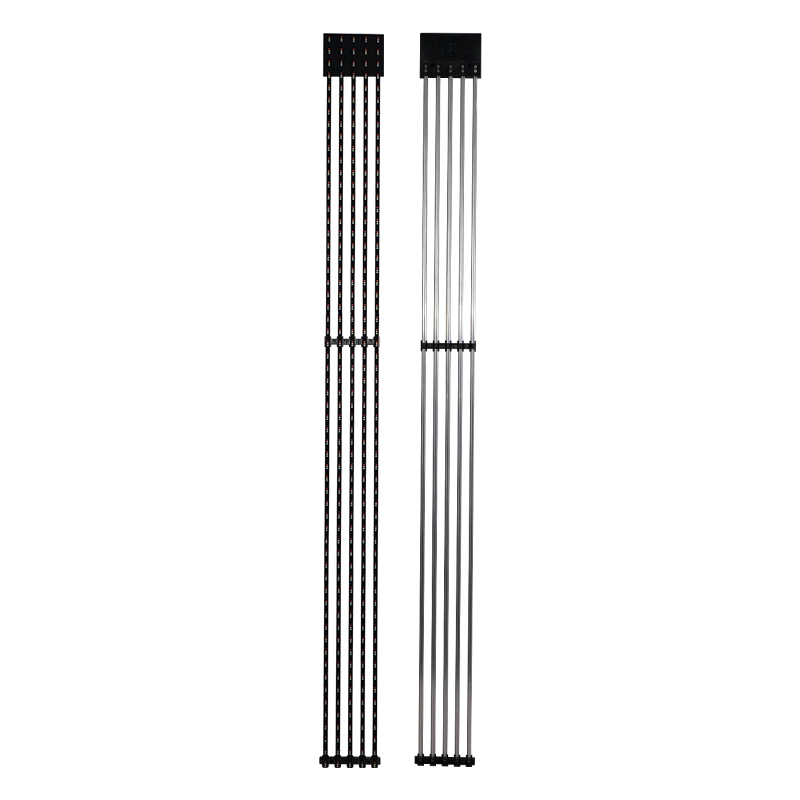

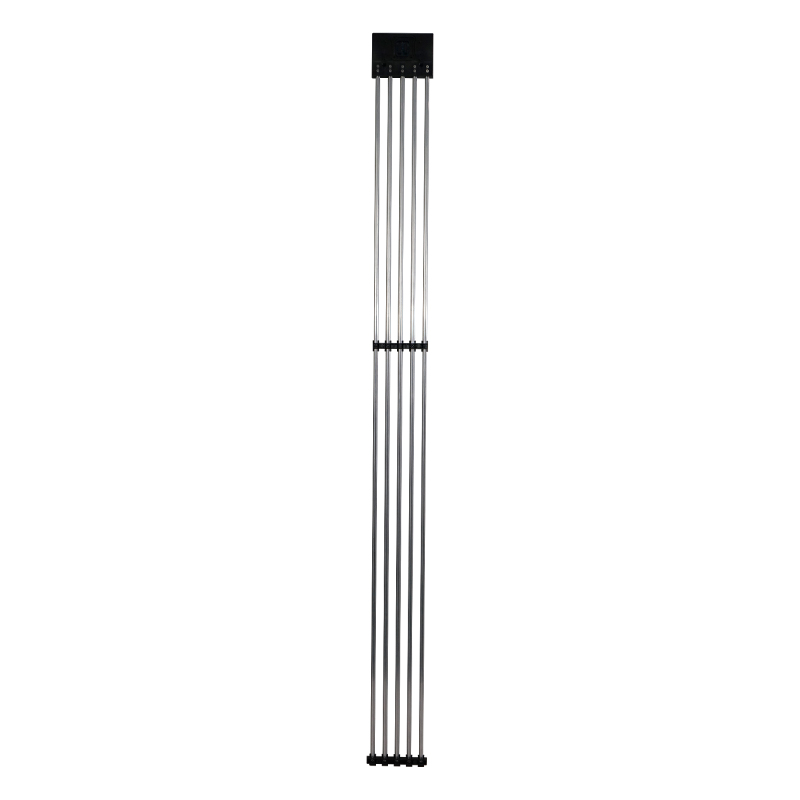

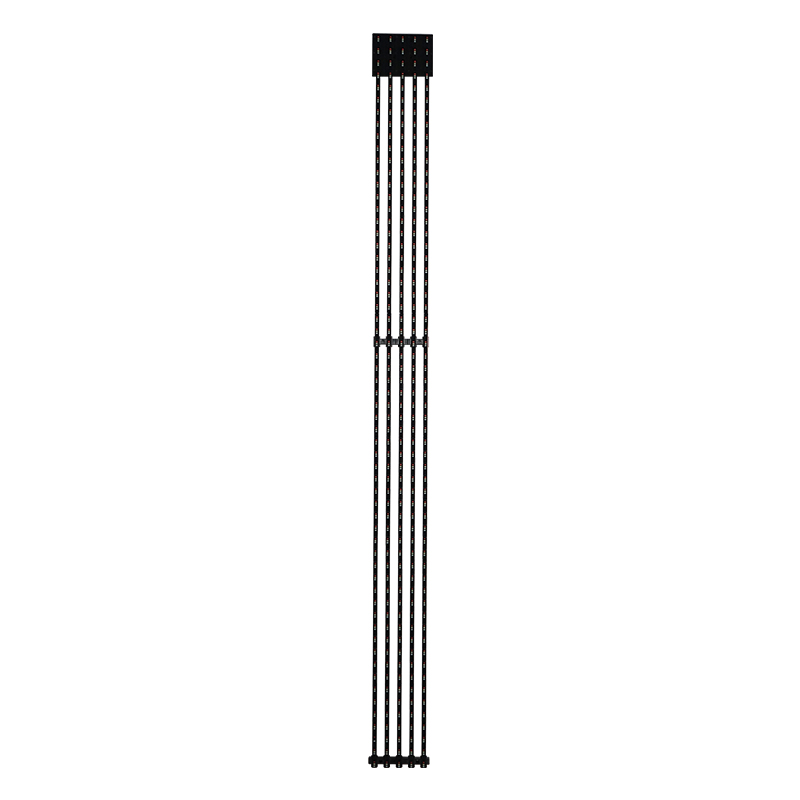

Mullion-mounted strips
Strip format aligns with curtain wall mullions for cleaner integration.
IP65 outdoor curtain
Front/rear protection supports exposed glass facade environments.
Service Support
End-to-End Project Support
From design to installation, we handle every step for you.
Customization for Every Scenario
Tailored LED screens for any location or shape.
Reliable Quality & Smart Maintenance
Stable performance, simple upkeep, and long lifespan.
Global Service & Fast Response
Fast delivery and responsive service worldwide.
Related Solution
Glass Curtain Wall Media Facade Solution
For high-rise and commercial glass facades, transparent curtain LEDs add media impact while preserving daylight, views, and a lighter structural footprint.
AI prompt: Night city skyline with several glass towers using transparent LED curtains, subtle media content, realistic reflections, architectural visualization, 16:9.
Recommend
Purpose-built platforms for iconic moments
Frequently Asked Questions
From specs and compatibility to warranty and support, our FAQ covers everything you need to know to get the most out of your experience.
No, that is the primary advantage of the C-Vent P25. Weighing only 10.7 kg/m², it is ultra-light and designed to mount directly onto the existing vertical mullions (keels) of your glass curtain wall. This eliminates the need for a heavy, separate steel framework, saving significant construction costs and engineering approval time.
