Lightweight grille LED for large building facades and retrofit walls.

When a solid cabinet is too heavy for an older wall, C-Vent P15.625 helps you deliver large-area DOOH with a lighter structural load. The grille structure supports airflow and partial daylight, while DIP346 brightness and an all-black matte grille help maintain contrast on sun-facing elevations.

Categories: , ,
7-2C-Vent P15.6 Outdoor Mesh Facade (Picture TBD)
Lightweight grille LED for large building facades and retrofit walls. When a solid cabinet is too heavy for an older wall, C-Vent P15.625 helps you deliver large-area DOOH with a lighter structural load. The grille structure supports airflow and partial daylight, while DIP346 brightness and an all-black matte grille help maintain contrast on sun-facing elevations.
Learn More
Specification

Pixel pitch 15.625 mm, DIP346

Brightness 7000 nit

Cabinet options 500×1000×82.2mm/500×1500×82.2 mm

Openness & load 27% transparency ratio; <23 kg/m²

Power & Maintain 380/130 W/m² max/avg; IP65 front/rear

  • Retrofit Optimization: <23 kg/m² load allows installation on older buildings with limited bearing capacity.

  • DIP346 Durability: Delivers superior contrast and UV resistance compared to standard SMD mesh options.

  • Cast Aluminum Build: Die-cast cabinets ensure precision alignment and resistance to coastal corrosion.

  • Natural Cooling: Grille structure prevents heat buildup against the wall, eliminating A/C requirements.

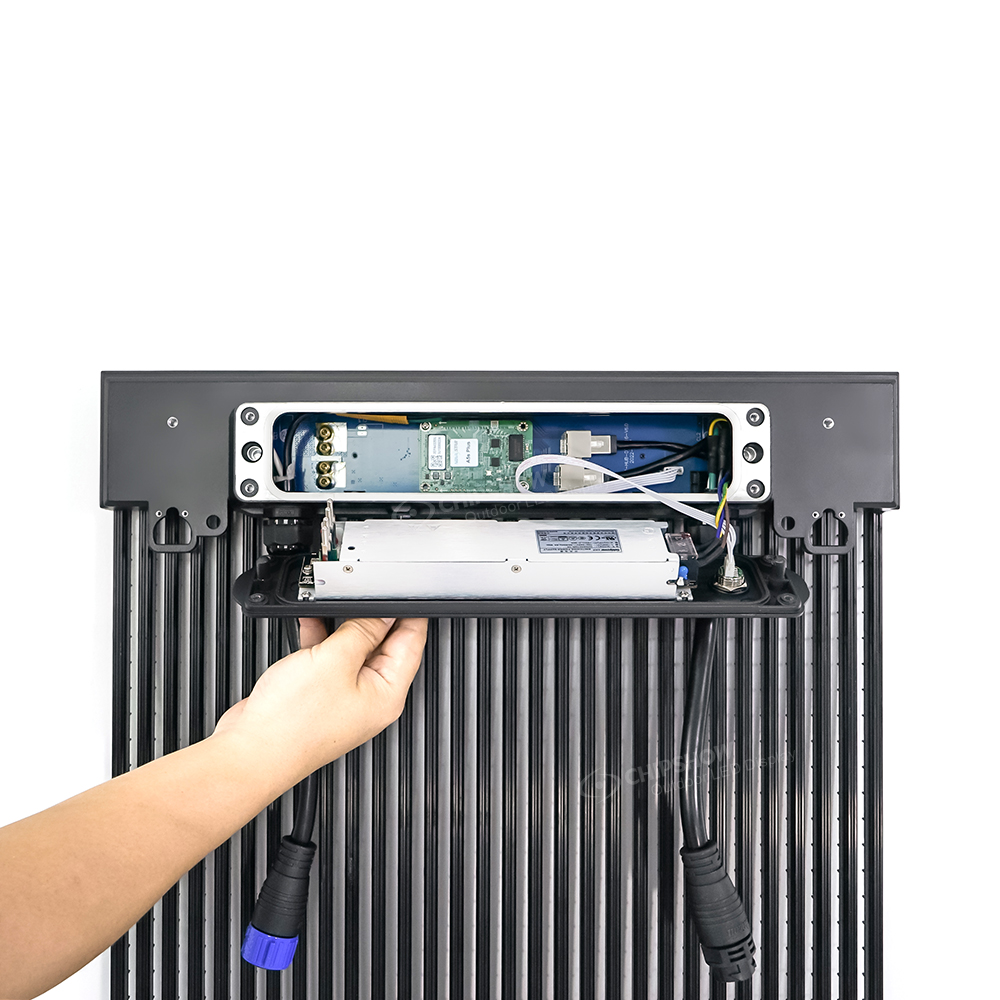

  • Dual Maintenance: Supports full front and rear service to adapt to complex wall-mount scenarios.

  • Visual Consistency: Matte black strip design enhances contrast ratio for deep blacks during the day.

Get Quote Now

Send a Comment

Checkboxes
Share
  • Description
  • Specification
  • Application
  • Parameter
  • Form
  • Product Highlight
  • FAQ

Match big facades with light mesh

Choose this mesh facade when old walls or limited bearing capacity rule out heavy cabinets. Strip ventilation keeps the wall easier to cool while letting daylight pass through. For glass façades, see C-Vent Curtain.

Specifications&Details

Designed for heavy walls, not heavy steelwork

For retrofit and renovation jobs, structural margin can limit screen size. The mesh grille design keeps the facade lighter than traditional solid cabinets, helping projects scale without overbuilding the frame.

Large-area coverage with modular cabinets

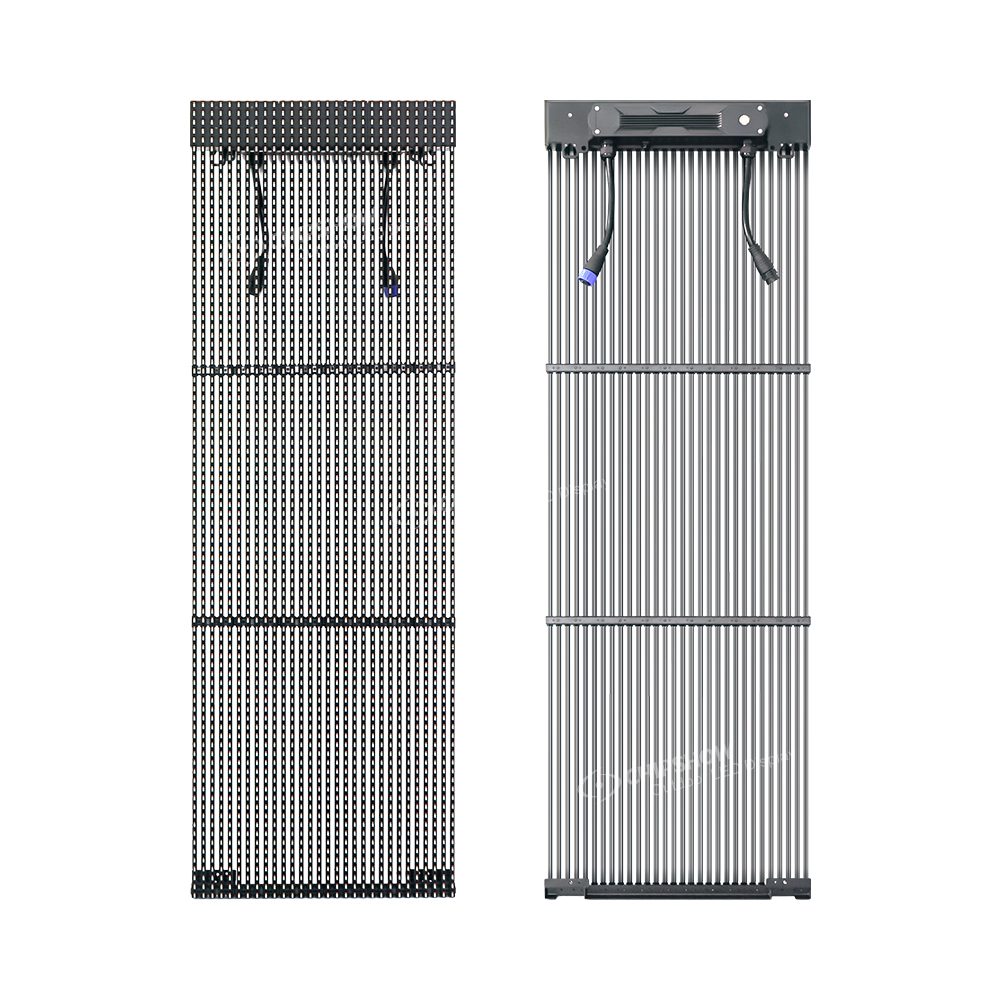

Two cabinet sizes (500×1000 and 500×1500) support fast coverage on wide elevations. Standardized modules also simplify partial replacement planning during future service.

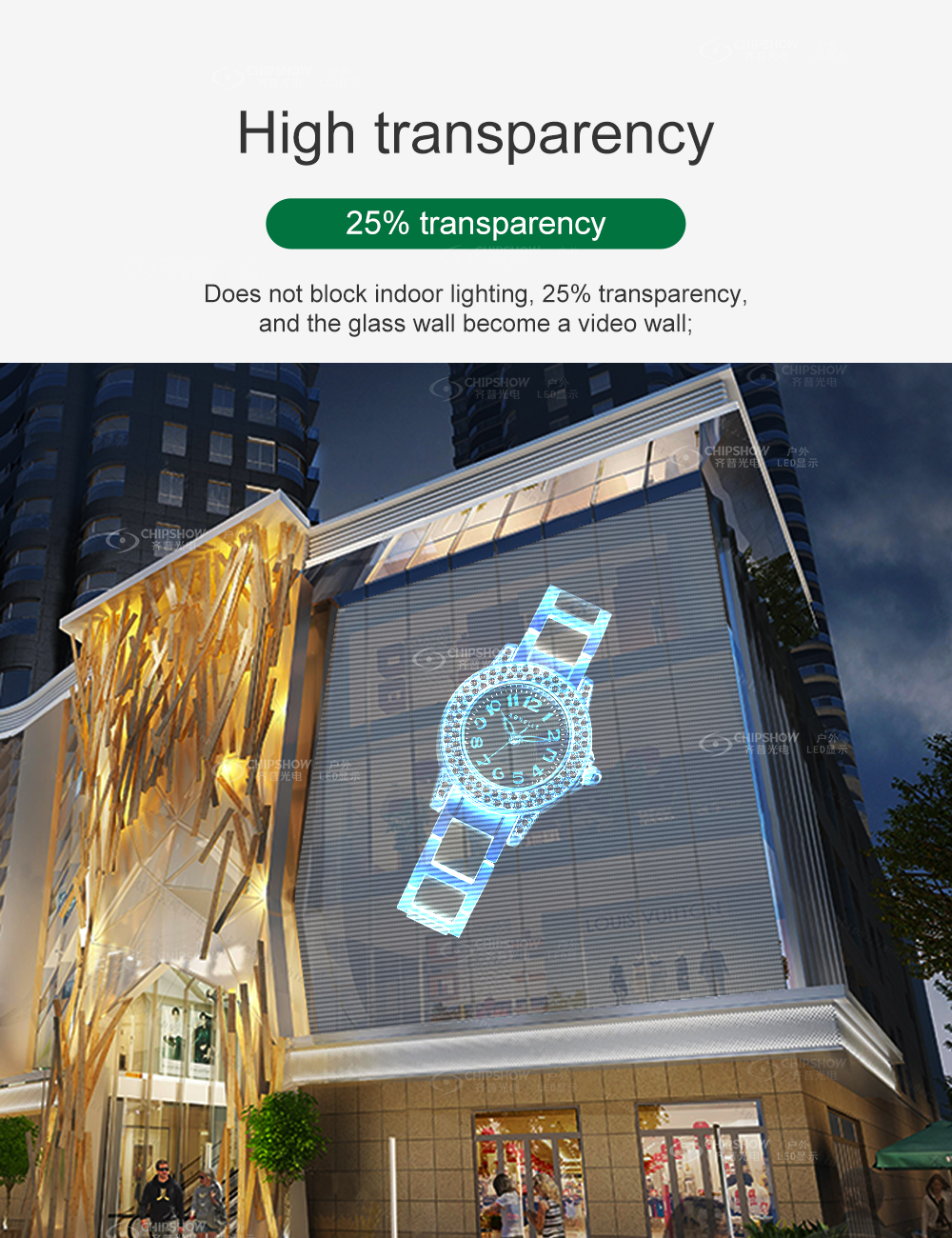

Daylight-friendly grille facade behavior

The open grille structure provides a measured transparency ratio, helping reduce the “blocked window” effect on buildings that still require usable interior lighting behind the screen.

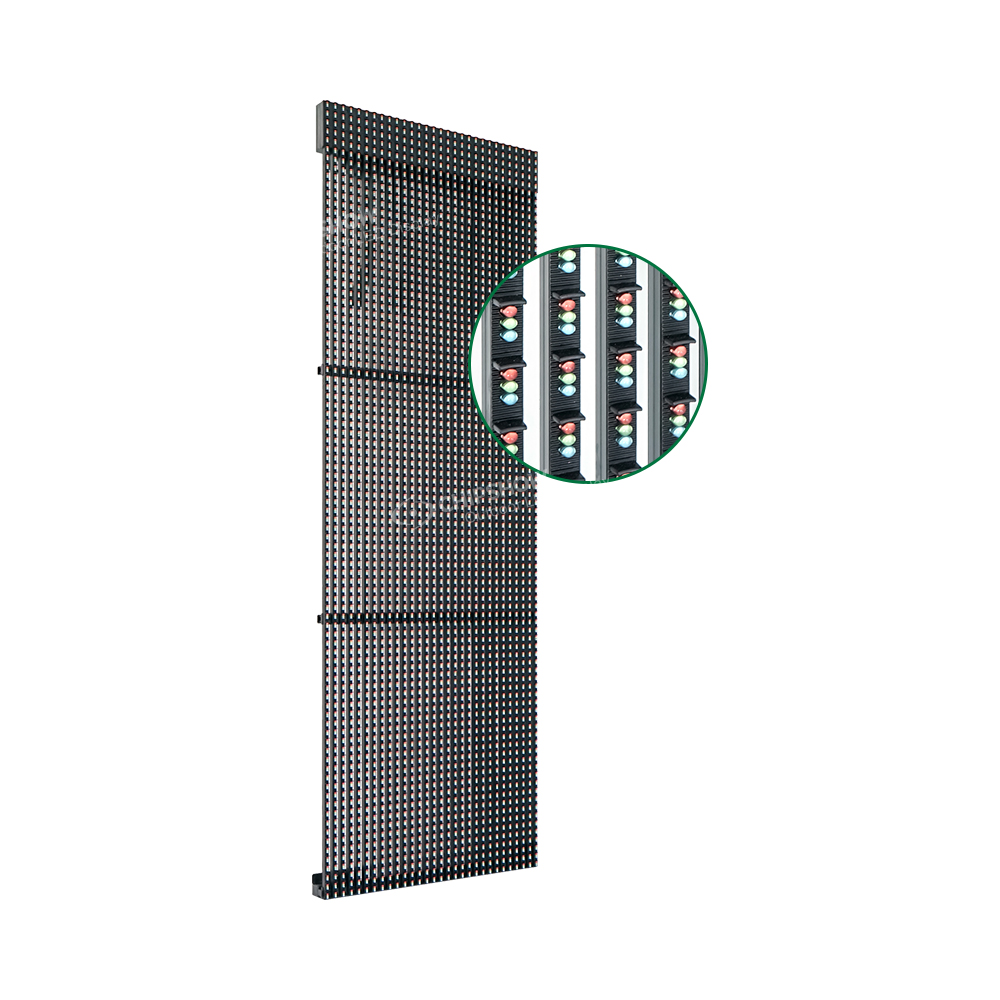

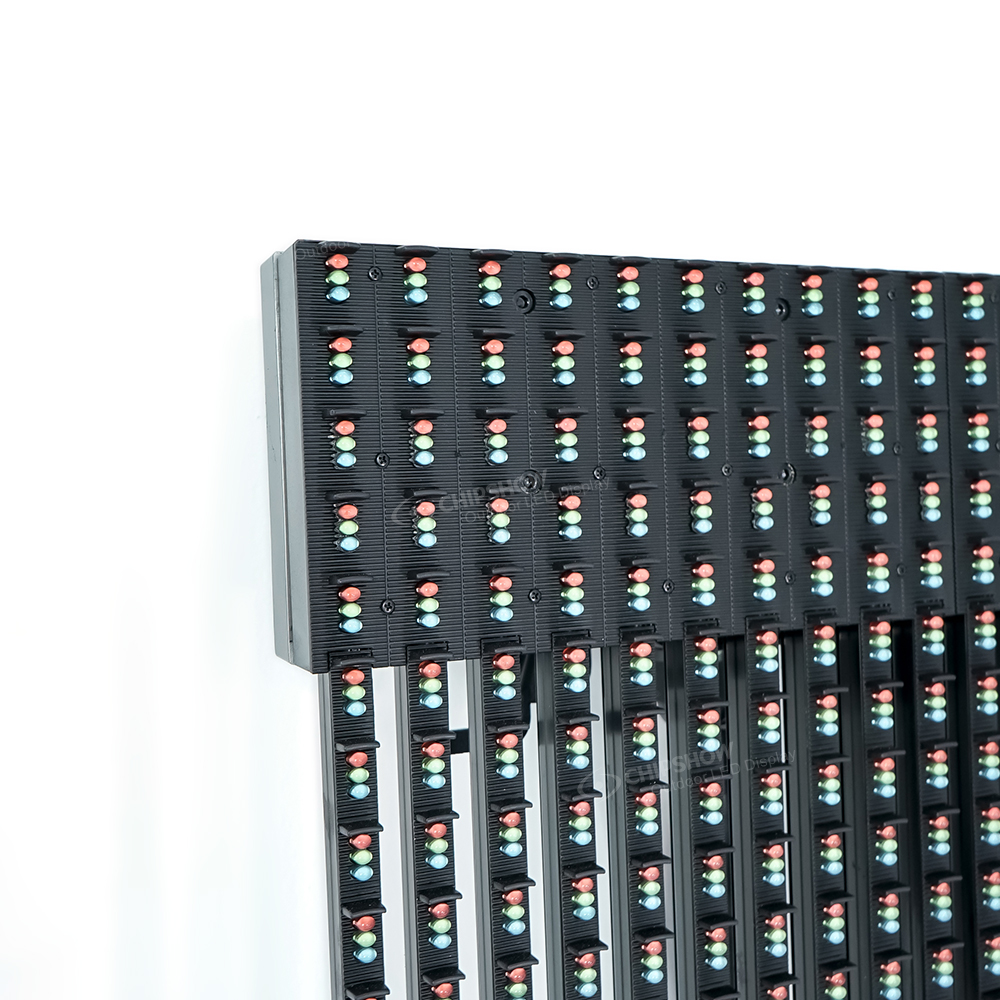

DIP346 visibility for sun-facing elevations

Many mesh screens lean on SMD to chase transparency, which can trade off contrast under direct sun. DIP346 plus the matte-black grille concept helps maintain more consistent facade readability in bright outdoor environments.

Fanless airflow, fewer service points

The strip design supports natural convection so heat can dissipate through the open channels. This approach can reduce reliance on air conditioners and lowers mechanical complexity in long-term operations.

Outdoor durability for public-facing facades

IP65 front/rear protection and a −40 to +55°C working range support year-round exposure on commercial and public buildings where dust, rain and temperature swings are routine.

Send a Comment

Checkboxes
Chat on WhatsApp

Product Highlight

Low-load facade mesh

Lightweight design supports retrofit walls with limited bearing capacity.

DIP high-bright contrast

DIP346 brightness helps keep content legible on sun-facing building elevations.

All-black matte grille

Matte black grille helps improve perceived contrast for outdoor viewing.

Front & rear service

Service access can be planned around site constraints and building access rules.

Service Support

End-to-End Project Support
From design to installation, we handle every step for you.
Customization for Every Scenario
Tailored LED screens for any location or shape.
Reliable Quality & Smart Maintenance
Stable performance, simple upkeep, and long lifespan.
Global Service & Fast Response
Fast delivery and responsive service worldwide.

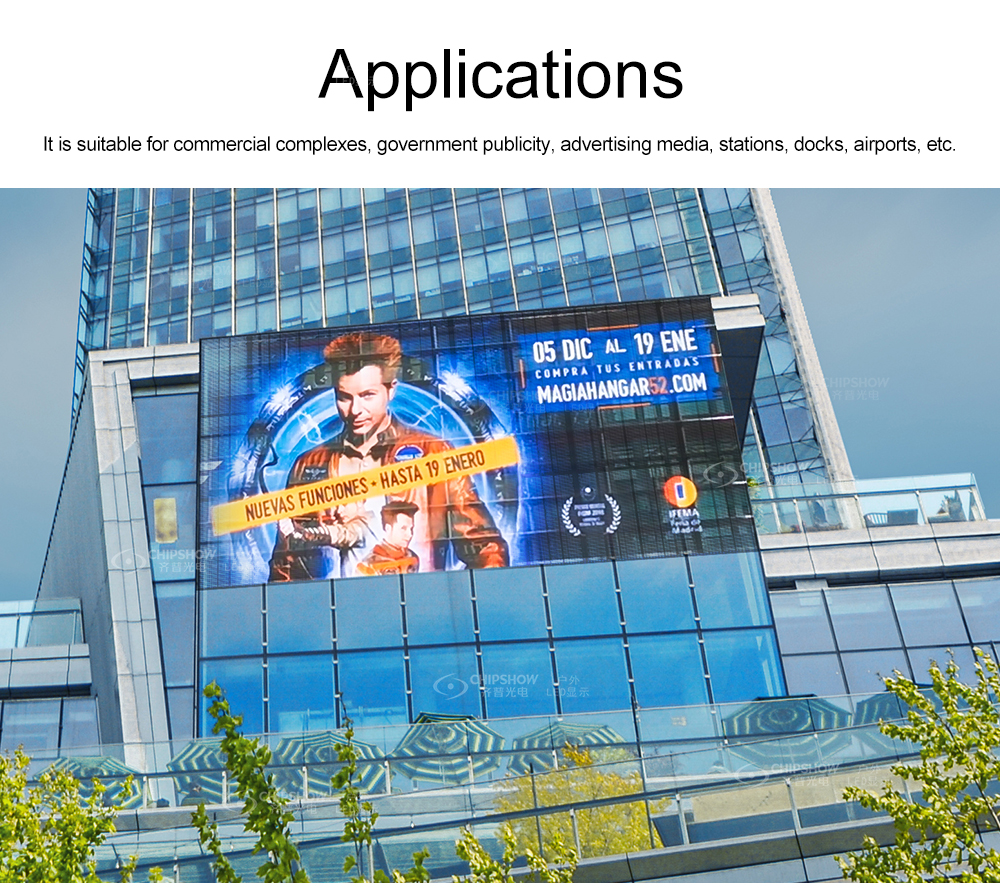

Related Solution

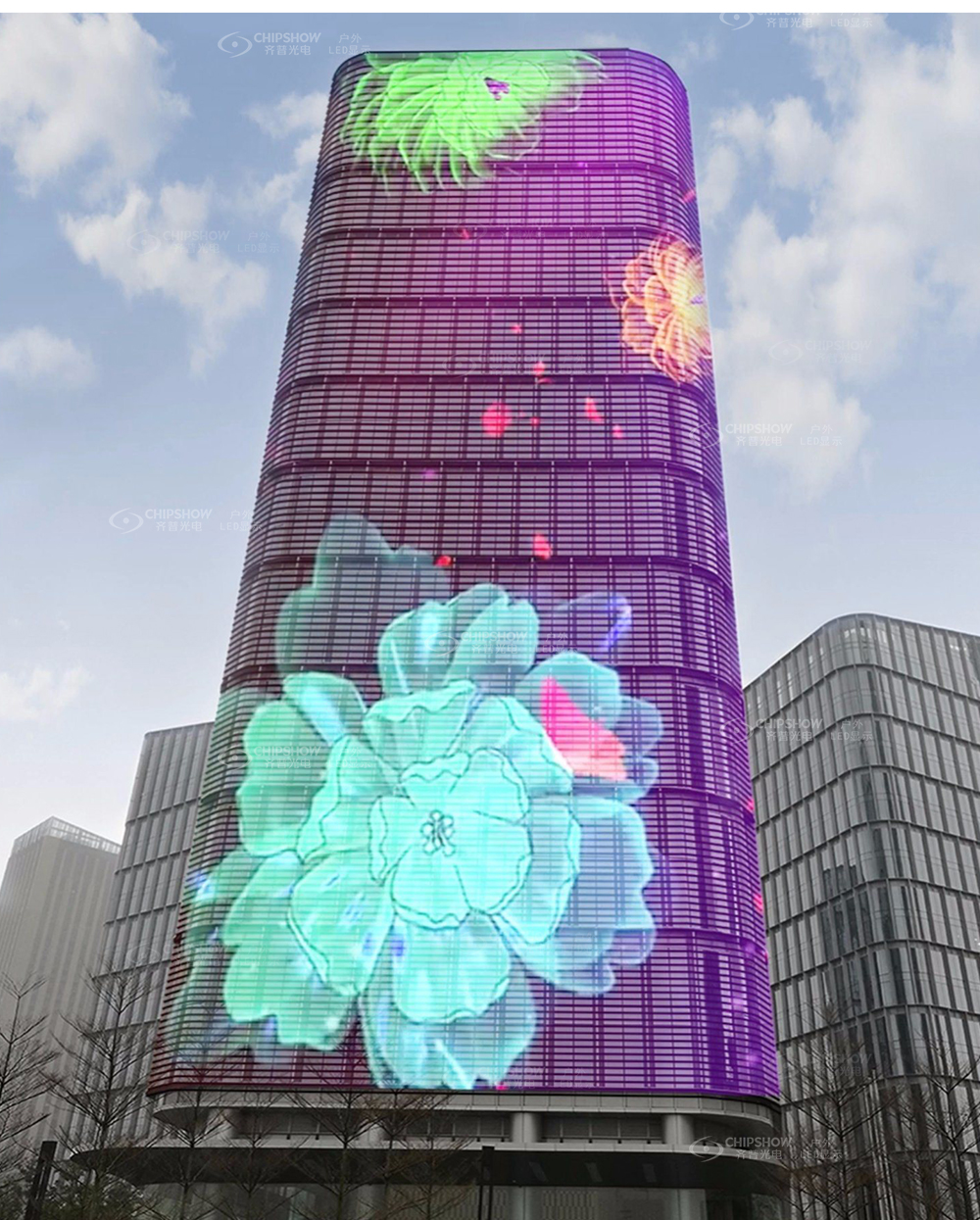

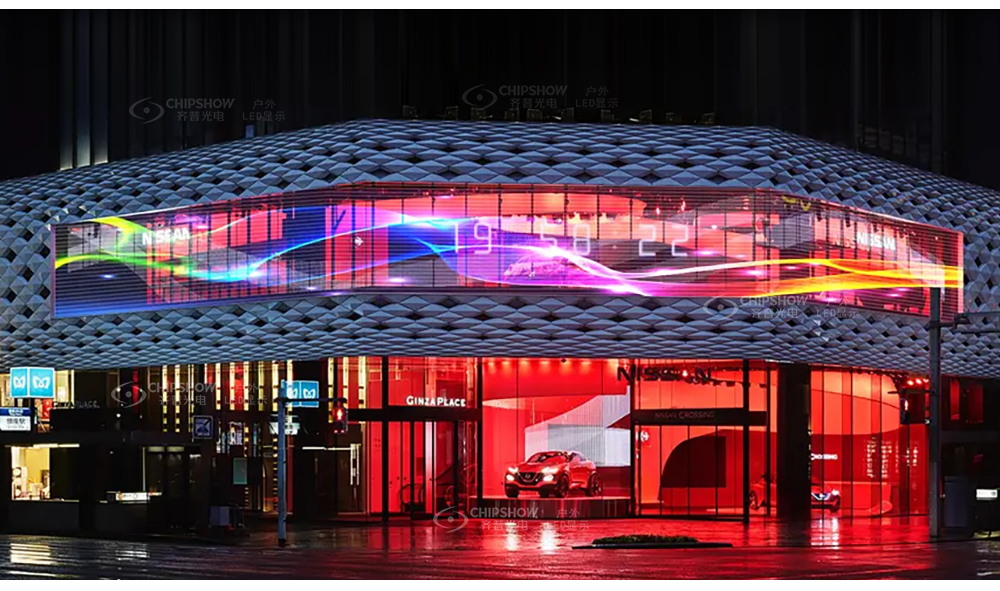

Building Media Facade Solution

For large commercial and civic facades that need outdoor visibility without the weight of solid cabinets, mesh grille LED screens help balance coverage, airflow and service planning.

Recommend

Purpose-built platforms for iconic moments
View More

Frequently Asked Questions

From specs and compatibility to warranty and support, our FAQ covers everything you need to know to get the most out of your experience.
+86 18148555033
manager@chipshow.com
123 Tech Avenue New York, NY 10001
Absolutely. This is exactly what the C-Vent P15.6 is designed for. Weighing <23 kg/m² (about 60% lighter than traditional iron cabinets), it minimizes the dead load on the facade. It is the ideal solution for older concrete buildings or renovations where structural reinforcement is not possible.
