18-1C-Slim（CA） DIP Series — 12,400 nits Ultra-High（Picture TBD）
18-1C-Slim（CA） DIP Series — 12,400 nits Ultra-High（Picture TBD） - Image 2
18-1C-Slim（CA） DIP Series — 12,400 nits Ultra-High（Picture TBD） - Image 3
18-1C-Slim（CA） DIP Series — 12,400 nits Ultra-High（Picture TBD） - Image 4
18-1C-Slim（CA） DIP Series — 12,400 nits Ultra-High（Picture TBD） - Image 5

18-1C-Slim（CA） DIP Series — 12,400 nits Ultra-High（Picture TBD）

Rugged cast-aluminum platform with DIP310 technology for extreme heat and coastal environments.

Standard SMD screens often struggle with thermal shutdown and washout in equatorial zones. The C-Slim (CA) series leverages the inherent heat-dissipation advantages of DIP technology and a corrosion-resistant cast aluminum chassis. It is engineered to deliver stable 12,400 nits luminance in environments where solar load and temperature extremes demand a more robust hardware architecture.

Category:
18-1C-Slim（CA） DIP Series — 12,400 nits Ultra-High（Picture TBD）
Rugged cast-aluminum platform with DIP310 technology for extreme heat and coastal environments. Standard SMD screens often struggle with thermal shutdown and washout in equatorial zones. The C-Slim (CA) series leverages the inherent heat-dissipation advantages of DIP technology and a corrosion-resistant cast aluminum chassis. It is engineered to deliver stable 12,400 nits luminance in environments where solar load and temperature extremes demand a more robust hardware architecture.
Learn More
Specification

Brightness 12,400 cd/m² (DIP High-Bright Config)

LED Technology DIP310 Gold Wire (1R1G1B)

Cabinet Material Die-Cast Aluminum (960×960×100 mm)

Protection Grade Front IP65 / Rear IP54

Maintenance Dual Access (Front & Rear)
  • Solar dominance: 12,400 nits brightness supports readability against direct equatorial sunlight.
  • Thermal resilience: DIP lamp spacing promotes airflow, reducing heat buildup compared to dense SMD.
  • Coastal defense: Cast aluminum chassis resists salt-spray corrosion better than fabricated steel.
  • Dual-service logic: Front and rear accessibility enables installation on poles or solid facades.
  • Sealed reliability: IP65 front rating resists heavy rain and dust ingress in uncontrolled climates.
Get Quote Now

Send a Comment

Checkboxes
Share
  • Description
  • Specification
  • Product Detail
  • Parameter
  • Form
  • Product Highlight
  • FAQs

Engineered for high heat and direct sun

For sites where standard screens fade or overheat. The DIP architecture prioritizes heat dissipation and luminance stability, making it the prudent choice for desert highways and coastal digital signage.

Solving the "Washout" Problem

In high-irradiance regions (e.g., Middle East, Nevada), 5,000 nits is often insufficient. This platform utilizes high-efficiency DIP LEDs to achieve 12,400 nits, ensuring content cuts through glare and heat haze for long-distance visibility.

The Engineering Logic of DIP

While SMD is compact, DIP (Dual In-line Package) remains superior for heat management. The physical separation of lamps allows better convective cooling, reducing the risk of thermal throttling in ambient temperatures exceeding 45°C.

Material Science: Cast Aluminum vs. Iron

Traditional iron cabinets are heavy and prone to rust in humid zones. We use a die-cast aluminum alloy chassis (960×960mm) which offers natural corrosion resistance and high structural precision for seamless large-format splicing.

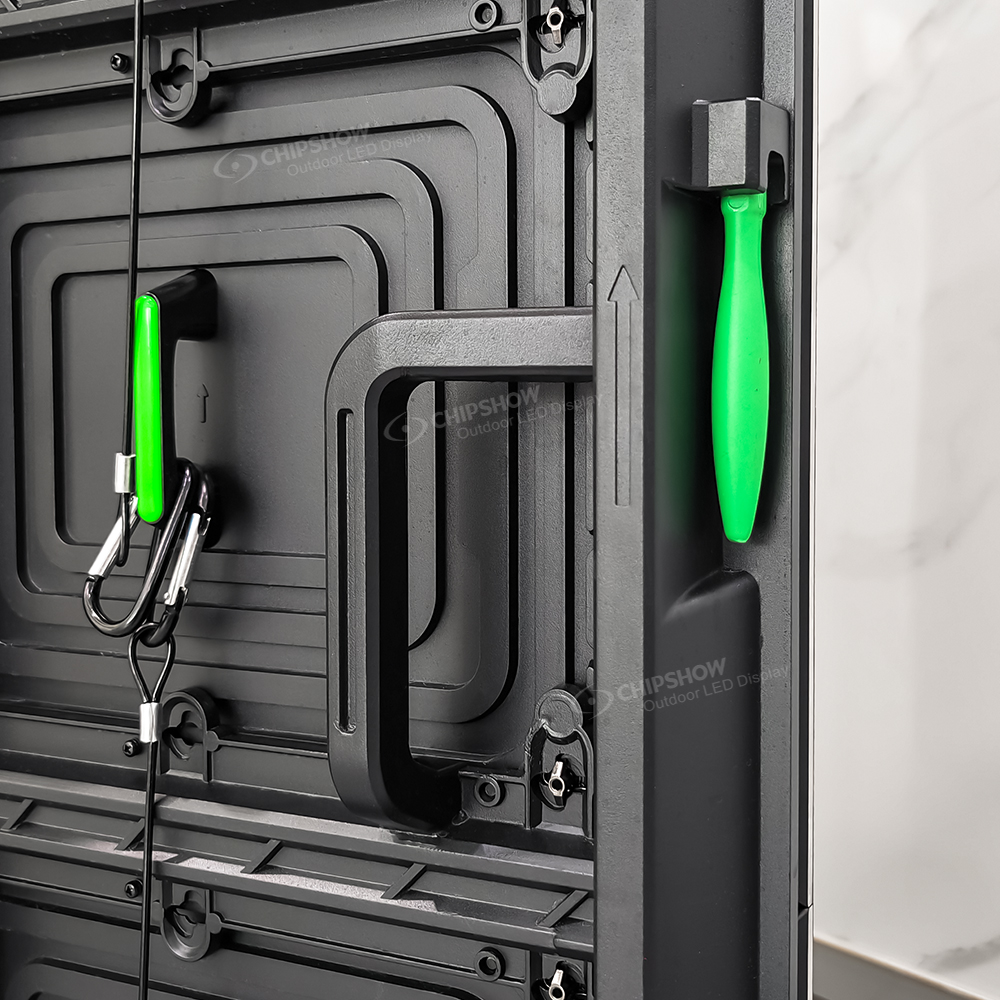

Installation Versatility via Dual Access

Site conditions vary. This cabinet supports both rear access (for open gantries/poles) and front access (for wall mounting), allowing integrators to standardize on one hardware platform for diverse project sites.

Power Efficiency through Headroom

Achieving high brightness doesn't strictly imply maxing out power. By operating high-spec DIP lamps below their peak current to hit standard brightness levels, the system can run cooler and extend component lifespan compared to overdriven SMDs.

Outdoor Protection Baseline

Built for real-world exposure, the system features fully potted modules and waterproof gaskets to achieve Front IP65/Rear IP54 ratings, meeting the checklist requirements for dust storms and driving rain.

Send a Comment

Checkboxes
Chat on WhatsApp

Product Highlight

12,400 nits Brightness

Supports clear visibility against direct sunlight and high ambient glare.

DIP Heat Resilience

Separated lamp structure aids heat dissipation in high-temperature climates.

Cast Aluminum Body

Die-cast chassis resists corrosion and ensures alignment precision.

Dual Maintenance

Module and power box access from front or rear for flexible install.

Service Support

End-to-End Project Support
From design to installation, we handle every step for you.
Customization for Every Scenario
Tailored LED screens for any location or shape.
Reliable Quality & Smart Maintenance
Stable performance, simple upkeep, and long lifespan.
Global Service & Fast Response
Fast delivery and responsive service worldwide.

Roadside DOOH billboard (long-running campaigns)

Extreme Climate DOOH

Recommended for regions with extreme UV index and temperatures >45°C where thermal stability is the primary failure point.

Frequently Asked Questions

From specs and compatibility to warranty and support, our FAQ covers everything you need to know to get the most out of your experience.
+86 18148555033
manager@chipshow.com
123 Tech Avenue New York, NY 10001
For giant outdoor screens, DIP346 technology remains the "King of Brightness" and stability. The C-Slim (CA) delivers 10,000 nits of ultra-high brightness, which SMD screens struggle to maintain long-term. If your billboard faces direct sunlight (e.g., south-facing highways in Texas or Dubai), DIP ensures your ads remain vibrant and readable for years longer than standard screens.
