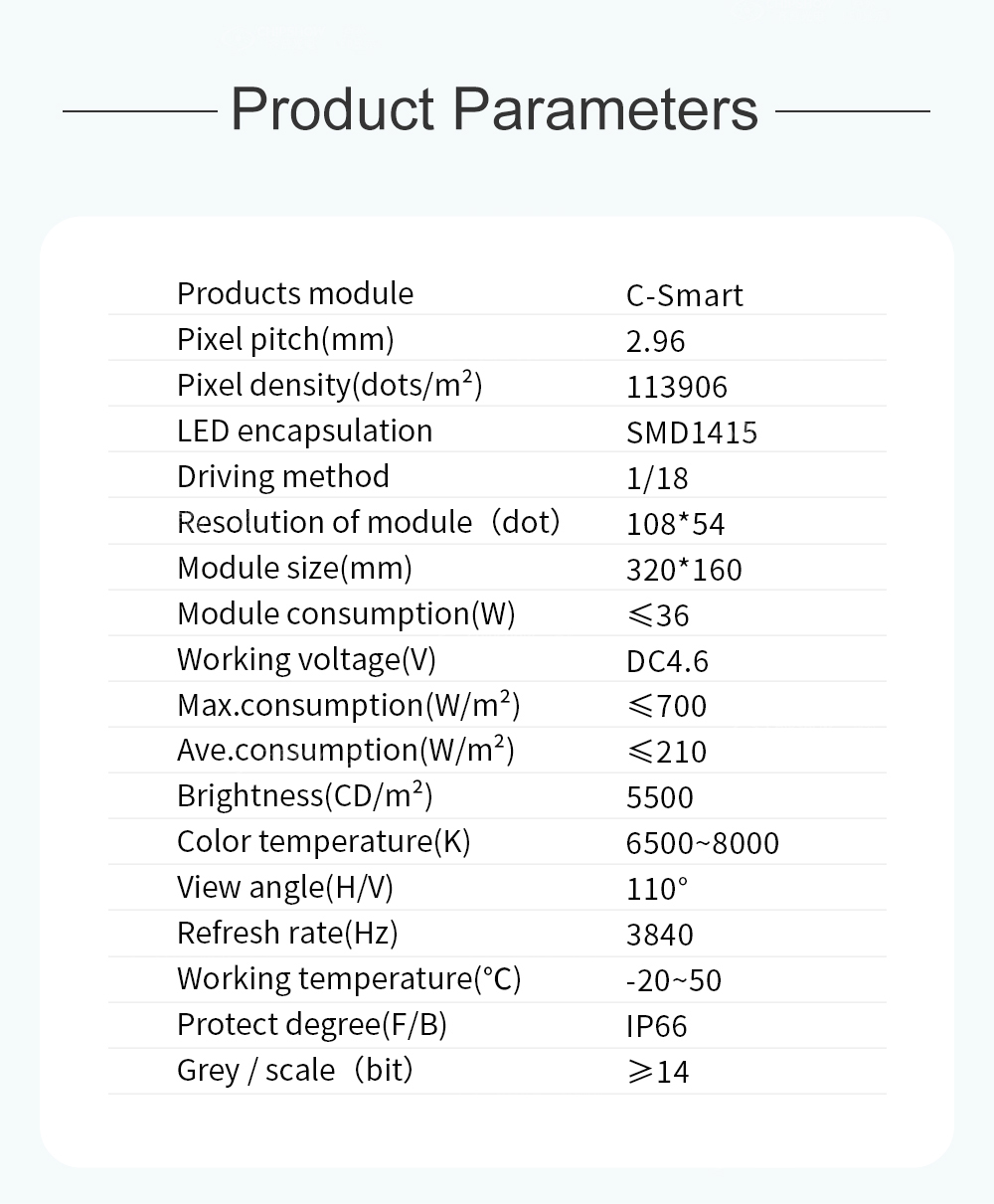

C-Smart 4-in-1 outdoor LED video sign – Low structural cost (P2.96)

C-Smart is an simple integrated front and rear serviceable LED screen. No cabinet design, only need a simple frame to hold the modules, which can reduce a big cost of installation. Advantages: 1.      Integration of the module and cabinet, replacing the traditional cabinet and cost-saving. 2.      Ultra-thin design, wall-mounted installation, easier maintenance front and rear. 3.      Unique mask design, dark color, high contrast. 4.      Module size 640mm*320mm, larger size, better flatness. 5.      Constant current drive, 1/10 scan. 6.      High brightness up to 5500cd/㎡, and has the advantages of good light distribution curve and good angle consistency. 7.      IP65 waterproof grade of the module. 8.     Wide applications: it can be used as LED signs for outdoor commercial outlets (e.g. stores, gas stations, vehicle tolls, and gyms) and public organizations (e.g. churches, communities, schools);

C-Easy P5,P6.67,P8,P10,P16 is a front and rear serviceable, energy-saving, outdoor waterproof replaceable LED modules. Advantages: 1. Energy-saving≥30%. 2. Brightness≤8500Nits 3. High accuracy and high flatness. 4. Replaceable modules, fast and easy replace. 5. Front and rear service. 6. IP65 protection grade 7. 320*320mm module size, you can assemble it into different size screens.

1 Fully enclosed LED modules: every module has a central control box and a power supply box that is connected with 4 unit models; 2 Simple bracket design: the modules just require a simple aluminum profile to complete installation, saving the cost of cabinets and frame structure; 3 Wall-mountable installation: the modules, power supply units, and control systems support front service, saving installation space greatly; 4 Self-expansion: the big-sized modules (size: 640*320 mm) can be seamlessly spliced due to their excellent flatness; you can quickly build screens with different sizes; 5 Quick screen connection: the modules adopt 2-in-1 signal power cables for convenience of quick connection and installation; in addition, the wiring is also relatively tidy; 6 Ultra light, ultra-thin: the weight of an entire cabinet is only 23 KG/㎡; therefore, transportation costs can be saved; 7 High-level protection: the fully-enclosed modules with a rating of IP65 ensure the screens can be seasoned to various outdoor conditions; 8 Comprehensive display solution: the screens are especially suitable for outdoor advertising at different scenes (e.g. shopping mall, roadside, door header, and shop window);

This screen is ventilated, lightweight, thin and front maintenance available, which is suitable for outdoor wall advertising solutions, especially for outdoor unipole advertising solutions. Features 1 This series is specially designed for two typical usage scenarios (1: coastal areas that have strong winds, 2: old buildings whose walls have special load-bearing requirements) 2 There are uniform ventilation holes in every module, significantly reducing windage; 3 The display screens are characterized by “Hollow Out” design and light-weight (cabinet weight (size: 960*960mm): 33KG, cabinet thickness (including modules): 127mm); 4 Based on signal box design and integrated power supply units, the screens’ inner structures are relatively simple, and the C-Vent series display screens just resort to air convection inside the screens to dissipate heat without using air conditioners; hence, more energy can be saved; 5 All the LED modules can be maintained from the front and back; the simple installation and maintenance provide a good user experience; 6 Modules are mounted vertically and the wideness of every module is only 240mm;

Product Features: 1 High precision: the screens adopt high precision die-cast aluminum cabinets; 2 Light weight, utra-thin: the weight of a cabinet (size:500*500 mm) is lower than 7kg, and the thickness of a cabinet is lower than 81mm; 3 Quick assembly and disassembly: the cabinets are available in 2 sizes (500*500mm, 500*1000mm); and you can splice up and down cabinets with different sizes; 4 Every cabinet adopts quick-dismantling control box for the convenience of quick disassembly of the screen; 5 Arc locks (optional): with the use of arc locks, you can splice large screens with a corner 90°angle, arc angles ranging from -10°to 15°, etc; 6 One-key unlocking design for modules: just with a spinning key, you can disassemble and maintain a module; 7 Mute working: the C-Shine-Plus series adopts no-fan design, and the working noise is under 40DB; so it does not influence the live acoustic and visual effects; 8 Background screen optimization: from the point of display effects, the C-Shine-Plus series is characterized by high refresh rate, SLR, shutter speed of 1/3000s, no ghost, and no flicker; hence, it is a optimized display solution for stage backgrounds; 9 Wide application: the C-Shine-Plus series includes outdoor and indoor stage screens; it provides comprehensive display rental solutions for conferences, stage designs, trade shows, and product launches; and the pixel pitches of the outdoor stage screens are also available with P1.9, P2.6, P2.97, P3.91;

Quick Details • Cabinet size: 1280*960mm/pcs • Brightness: 6000~6500nits • Front and rear maintenance Advantages • New stadium base design，The angle between the screen and the ground can be adjusted from 30° to 90° to ensure the viewing angle of the audience. • Soft face shield protection, athletes and LED screens are perfectly protected. • The cabinet is made of cast aluminum, which is light and thin, and has good heat dissipation, which slows down the aging of the power module. • The module can be maintained quickly and the operation is simple and convenient. • High protection, protection level ≥IP65. • Strong compatibility, both indoor and outdoor courts can be hoisted and stacked to meet the needs of customers in multiple occasions. • Energy-saving, about 1/3 energy-saving than the traditional screen, greatly reducing the operating cost of the display. • Professional stadium playback software, diversified input of camera video sources, support for DP, HDMD, VGA, SDL, DVD, etc.

Features: 1 Waterproof and dampproof: the bottom shell, mask, signal cable, and power cable are all equipped with dampproof and waterproof materials, and the cabinet is made of low moisture-absorption materials, the waterproof grade of the front and back of the cabinet reaches IP40; 2 Wear-resistant and anti-slip: the mask of the floor tile screen adopts high-performance PC materials that feature high wear-resistance, high flexibility, and good high-and-low temperature resistance; in addition, the mask also has excellent anti-slip performance and good load-bearing capacity; 3 Ultra-silent heat dissipation: the power box uses a special heat dissipation device to achieve ultra-silent heat dissipation; 4 Ultra high capacity of load bearing: according to experimental results, the ultimate load-bearing capacity of each component of the screen can reach up to 2 tons/㎡.

Professional advertising display screen for indoor transparent glass wall: 1: Ultra-light and ultra-thin: the weight of the aluminum cabinet is less than 5kg/m², and the cabinet has good resistance to deformation and extension; every cabinet is highly smooth and can be seamlessly spliced; this makes it easy for the transparent mesh LED screen to be mounted on a glass wall; 2: High transparency: the transparency rate reaches more than 40%; when the screen is displaying, the images look as if they are appearing in the air; 3: Customizable background color: the background color of the display screen can be customized according to specific requirements (for example, if the color of the wall is black, the background color of the screen can be set to black); during daytime, the transparent mesh screen does not change the building’s original style when it does not work; 4: Easy to install and maintain: the transparent mesh screen can be installed and disassembled from the front, and all the connectors adopt professional-grade aviation plugs; the efficiency of installation and maintenance is high; meanwhile, the installation and maintenance cost is low; 5: No flicker, no ghosting: the light and shadow are smooth and natural; the mesh screen performs with a high frame rate and 16-bit grayscale lossless output; 6: Silent and energy-saving: it adopts a quiet no-fan design and autonomous ventilation system to dissipate heat effectively; compared with common transparent mesh screens in the market, the Chipshow C-Mesh series can save nearly 30% of the cost that should have been used in heat dissipation; 7: The C-Mesh transparent mesh screens are widely used in a variety of indoor commercial premises, such as shopping malls, hotels, tourist spots, fences around commercial properties, exhibition halls, retail stores, and glass-covered bridges;
