P5 outdoor rental screen front and rear maintenance light large screen

P5 outdoor rental screen front and rear maintenance light large screen

Features:

1. Two-way maintenance—In order to adapt to various installation environments in the field of rental and fixed installation, the 640X480 rental display adopts a dual maintenance design scheme of gear and rack, which is convenient for maintenance;

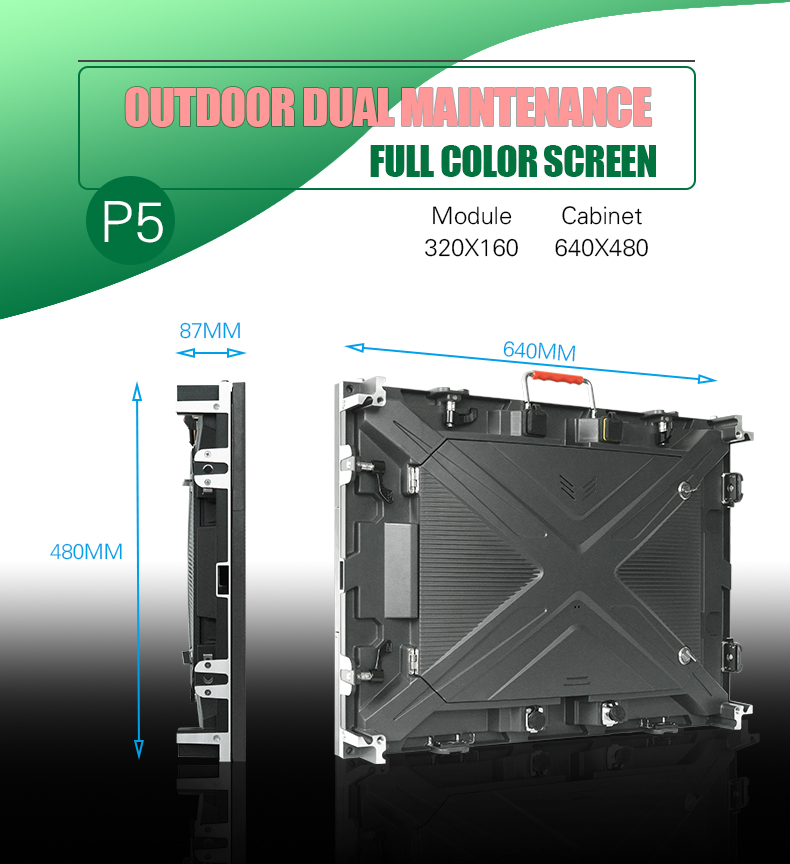

2. Ultra-thin-the cabinet is made of aluminum alloy die-casting, with high strength, not easy to deform, and the thickness of the cabinet is only 69mm;

3. Ultra-light—the empty weight of aluminum alloy die-casting is less than 6.4kg, and the weight of the finished cabinet is less than 11kg, which saves time and effort in transportation;

4. Good display effect—special circuit design, no color cast, no ghosting and other defects when the display is low gray and white balance, clear image, strong layering, uniform color, and more delicate display screen.

5. High-precision-after the cabinet is CNC processed, the accuracy is higher, and it can be seamlessly spliced;

6. High degree of protection-the special cabinet structure ensures that the cabinet can reach lP65 (front) and the rear can reach lP54;

7. Fast—The cabinet is connected up and down, left and right, with a quick locking mechanism, and the installation of a cabinet can be completed in 10 seconds, with high installation accuracy;

8. Pixel pitch: outdoor P5, P4.

  • Product Details

Obviously, it does a good job in outdoor leasing.Why? First of all, it has a extremely light weight and a extremely thin size. This makes it so easy for us to carry it that we can lift a box with two fingers.Moreover, the 640*480 wide and high design enables it to be connected more scientifically.



The refresh rate of up to 3840hz and the brightness of more than 5500cd make the display extremely dazzling.

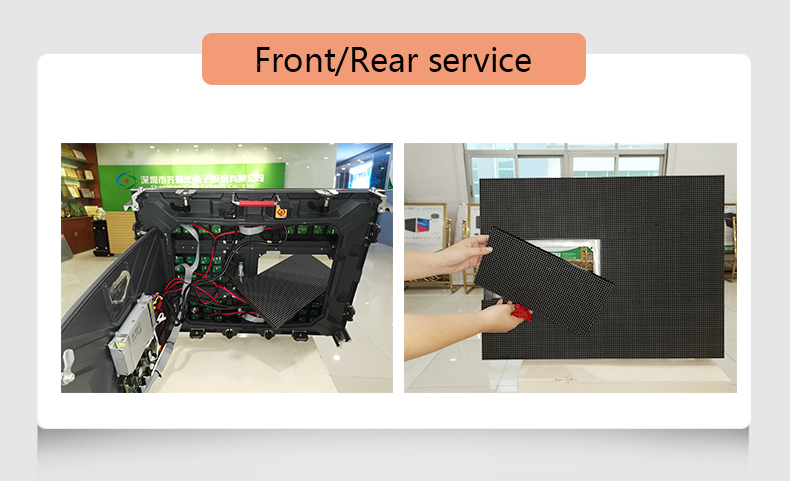

LED screen for front and rear maintenance.We adopt this design to make it more convenient for you to use it and maintain it in different places.



Let's look at its parameters。


Item
Specification Parameter
Pixel Pitch、Resolution rate、size
5mm、64*32、320mm*160mm

                      Pixel color、 Pixel LED

1R1G1B、 SMD1921
Working voltage、Module Power

                                         DC5V、≤40W

Driving IC、Driving way

                                        ICND2038S/  1/8

HUB

                                                HUB75

Material、Cabinet Weight(kg/Cabinet)

                                     Cast aluminum 、<11kg

Resolution rate、size、Module quantity
128*96Dots、640*480*87mm、2*3
Density
40000 Dots/㎡
White balance 、Color temperature
5500 CD/㎡、6000K-8000K
view angel、Non-Flatness、Module interval
H/V:120°/120°、<0.2mm、<0.2mm
Maximal power/㎡、Average power/㎡
<780w/㎡、<240w/㎡
Frame frequency、Refresh frequency、Gray grade
60Hz、3840Hz、13bit
Control system、System supports
CHIPSHOW,Windows XP,WIN 7
Working temperature、Protection grade

                            -10~60℃、 Front/Back :IP65/IP54

This led display can be used in various outdoor gatherings, such as weddings, concerts, lectures, etc.
