C-Alloy P4.71,6.67 Outdoor High-end Advertising LED Display

C-Alloy P4.71,6.67 Outdoor High-end Advertising LED Display

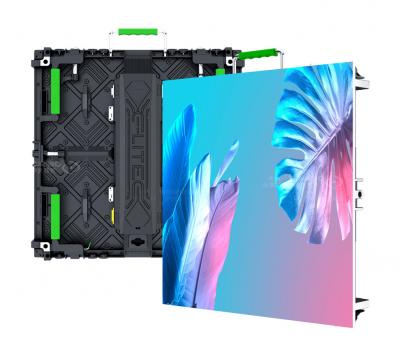

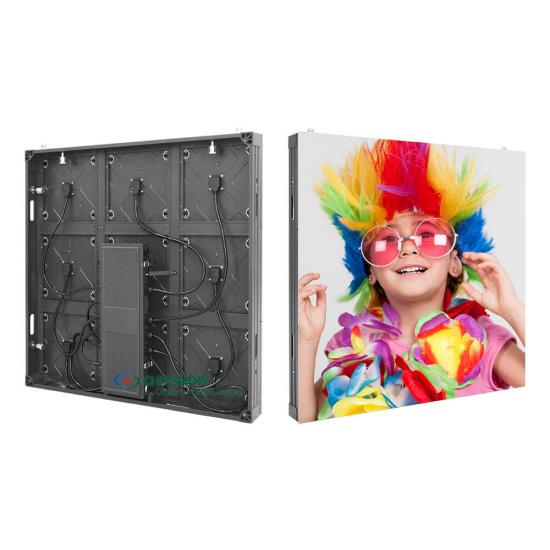

C-Alloy is a high-end outdoor fixed LED display with efficient heat dissipation, fast maintenance and installation, as well as high protection grade.

Features

1. Efficient heat dissipation: die-casting integrated molding, efficient heat dissipation groove design, large heat dissipation area, high heat conduction efficiency, and more stable performance.

2. Fast maintenance: quick assembly and disassembly without screws, supporting power on plug in and out. The module is equipped with a two-in-one waterproof connector, which can be quickly replaced in 10 seconds, convenient and fast.

3. Wall-mounted installation: modules and power boxes can be independently installed, disassembled and maintained from the front.

4. High protection: fully sealed module and power box, excellent sealing effect, the module itself reaches IP65 protection grade; anti-wind, rain and salt spray.

Application

suitable for outdoor advertising in shopping malls, office buildings, stadiums, highway, etc.

  • Product Details

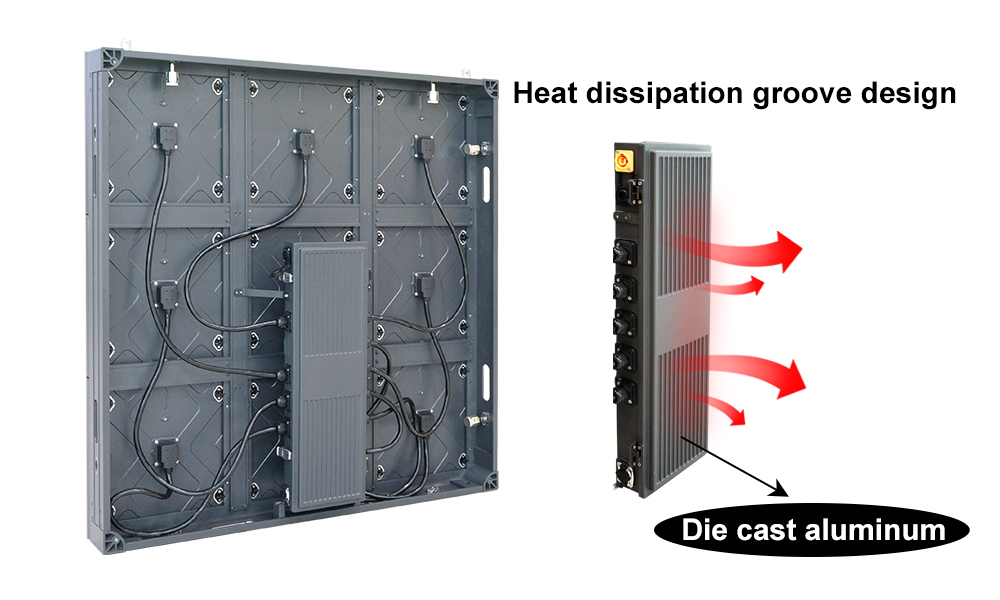

 Efficient heat dissipation

 die-casting integrated molding, efficient heat dissipation groove design, large heat dissipation area, high heat conduction efficiency, and more stable performance

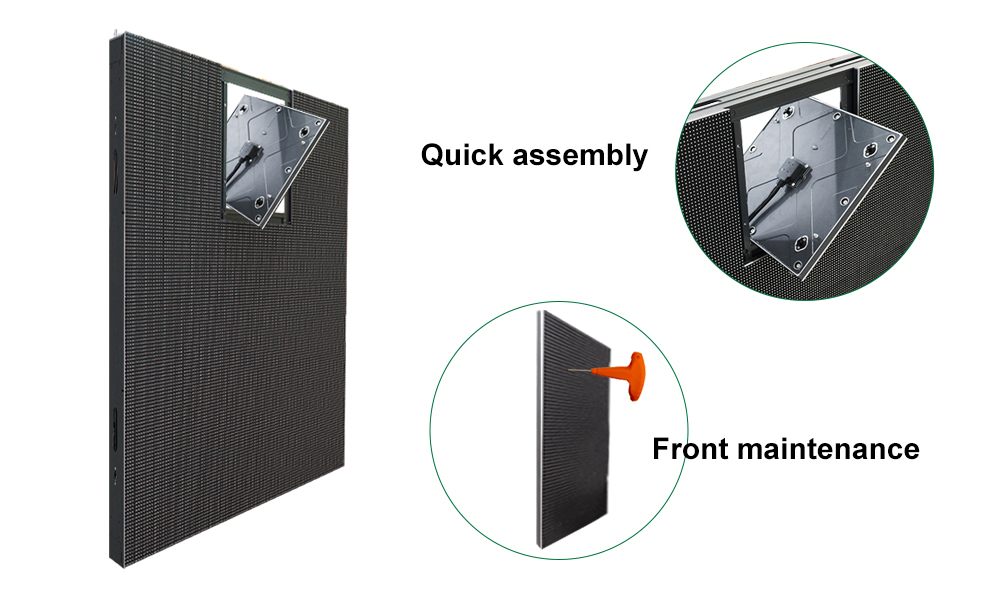

 Fast maintenance

The module is equipped with a two-in-one waterproof connector, which can be quickly replaced in 10 seconds, convenient and fast

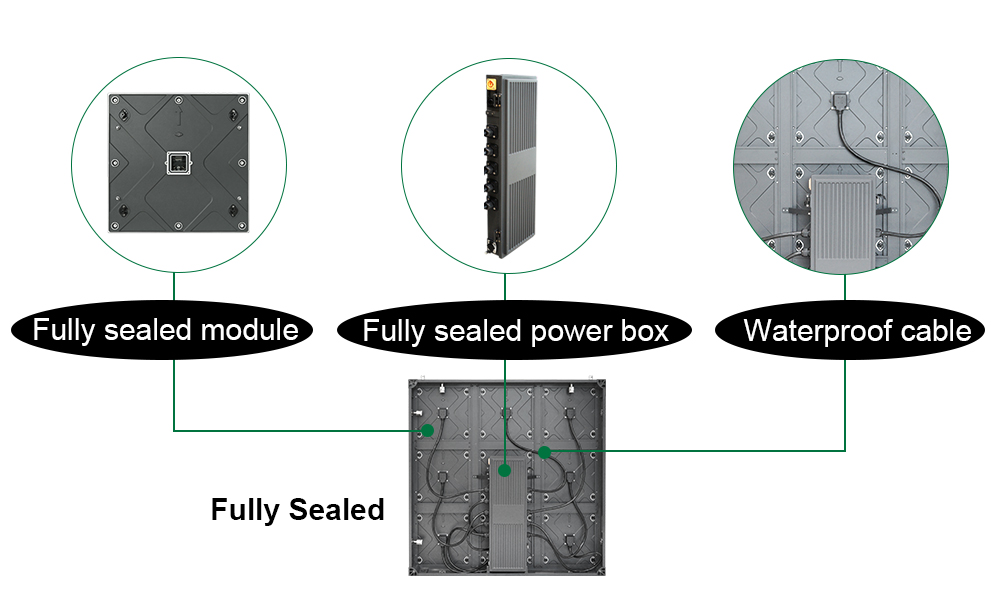

High protection

fully sealed module and power box, excellent sealing effect, the module itself reaches IP65 protection grade

Good weather resistance

 anti-wind, rain and salt spray, which can be used in harsh environments such as deserts and seaside



Specifications

Product C-Alloy
Module

Module dot pitch

4.71,6.67mm

Module size

320*320mm

Pixel structure

1R1G1B

LED packaging method

 SMD1921

Cabinet

Cabinet material

Cast aluminum and profiles


Cabinet size

960*960mm

Module arrangement

3*3

Weight

30Kg

White balance brightness

5500 CD/㎡

Color temperature

6500K-8000K

Viewing angle

H/V:120°/120°

Flatness

<0.4mm

Module gap

<0.4mm

Maximum power consumption

800W/㎡

Average power consumption

240W/㎡

Refresh frequency

1920Hz

Grayscale/color

14bit

Working temperature

-20℃-+50℃

IP rating

IP65
